Most home shops outgrow a portable compressor the same way. A 20 gallon pancake tank fills while the orbital sander is still running, so the tool slows down and you end up waiting on the pump instead of the work. A 60 gallon air receiver fixes that problem by storing roughly three times the air, and it is still narrow enough to stand against a garage wall and heavy enough to stay put when the pump fires.

We spent weeks going through manufacturer specifications, owner review histories and shop forum threads for the best 60 gallon air compressors for home shops on the market today. Six compressors made the cut, and every one has a genuine 60 gallon ASME receiver. That matters more than it sounds: two of the roundups we studied to build this one list 6 gallon, 20 gallon and 80 gallon machines under a 60 gallon headline, which makes their recommendations nearly useless.

Our guide to the best portable air compressors for workshops covers the lighter-duty side of the market, and a dedicated portable tire inflator handles routine pressure checks without occupying floor space.

Who Makes the Best 60 Gallon Air Compressor?

Ingersoll Rand, Quincy and Campbell Hausfeld are the three manufacturers worth shortlisting for a 60 gallon home shop compressor. The Ingersoll Rand SS3L3 and 2340L5-V cover the airflow end, Quincy builds pumps that owners consistently describe as smooth and quiet, and the Campbell Hausfeld XC602100.COM pairs a two-stage cast iron pump with the longest warranty here at three years. DEWALT joins them as a strong alternative when airflow per dollar matters most.

What Is the Best Air Compressor for the Best Value?

The Ingersoll Rand SS3L3 is the value answer: 11.3 CFM at 90 PSI, a cast iron pump rated past 5,000 hours, 100 percent continuous duty and synthetic oil that holds 2,000 hours between changeouts. It arrives fully assembled and pre-wired, so the only real cost beyond the compressor itself is a 230V circuit. It is a single-stage design with a 135 PSI ceiling, which is the trade you accept for that airflow-per-dollar figure.

Top 3 Picks: Best 60 Gallon Air Compressors for 2026

All Six 60 Gallon Air Compressors at a Glance (October 2026)

Every compressor above runs on 230V or 240V single-phase power, and every one of them needs a dedicated circuit. If your garage has only standard household receptacles, that electrical work comes before the purchase decision, and it is covered further down in this guide.

How We Researched These Six Compressors

We are not a testing laboratory, and we would rather say so plainly than dress up a spec sheet comparison as hands-on work. What we did do was pull the manufacturer specification for each machine and verify the airflow, pressure, horsepower, voltage, weight, dimensions and warranty figures against the published product data. We then read every available owner review and sorted out which complaints were about the compressor itself rather than about delivery damage or a bad installation.

To fill the gaps left by spec sheets, we read owner threads on Practical Machinist, Garage Journal and WeldingWeb where home shop owners describe what they actually run. That is where the detail about pressure switches failing around the one-year mark on Quincy models comes from, and it is the reason warranty length and pump lubrication carry so much weight in our ordering. Our editorial team has worked around compressors for years, and the practical advice on draining, oiling and wiring here reflects that experience rather than a lab bench.

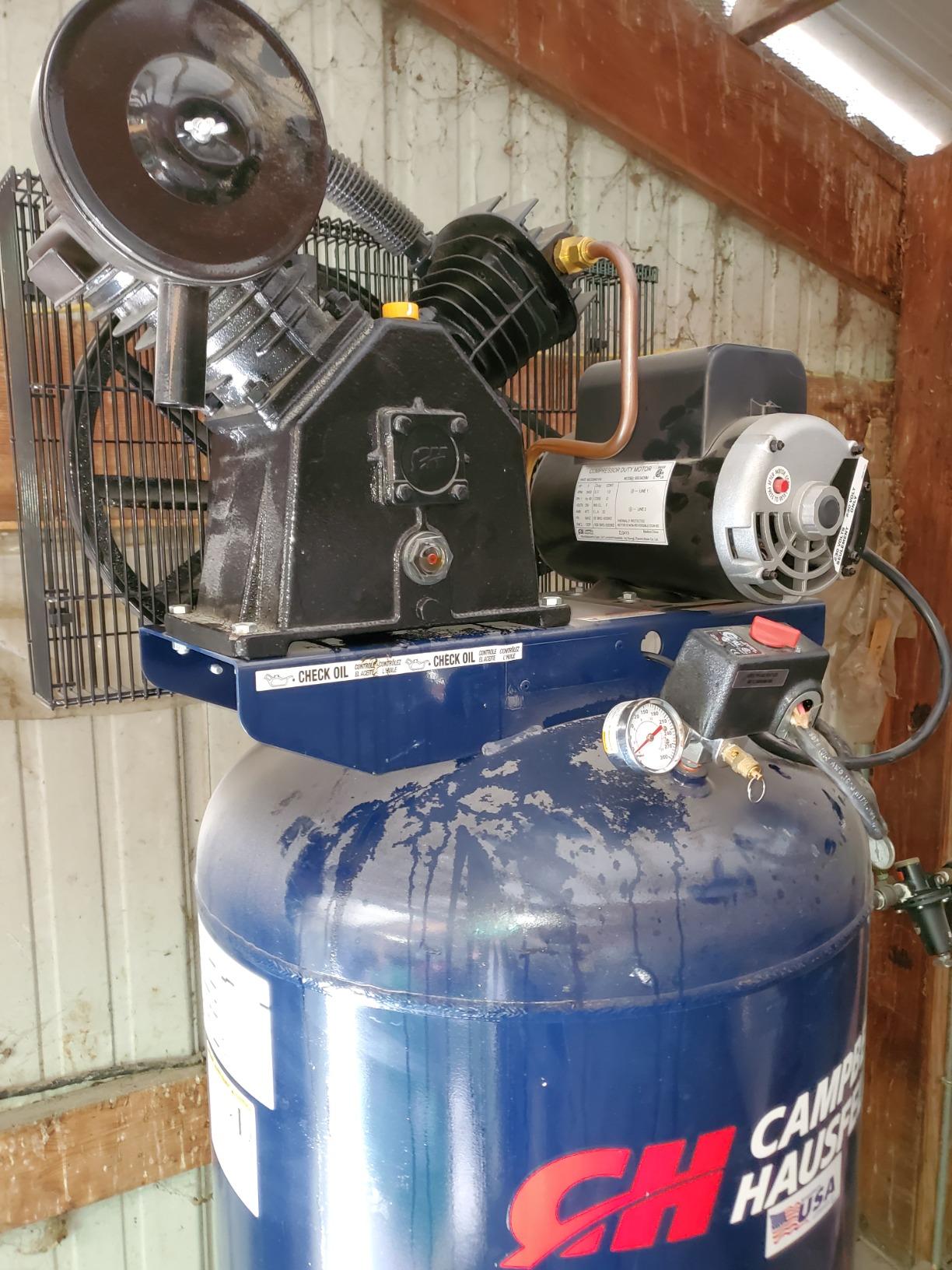

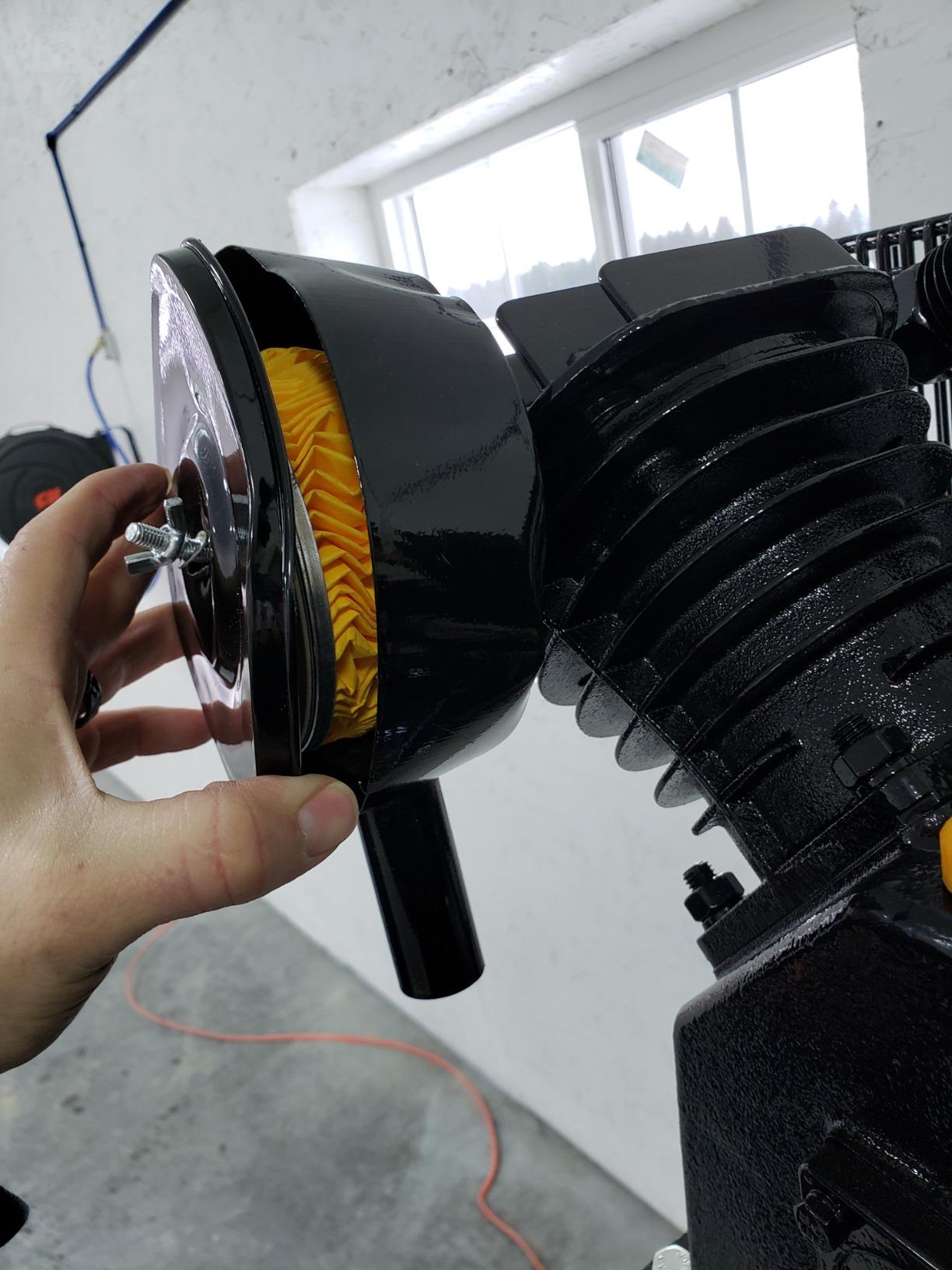

1. Campbell Hausfeld XC602100.COM – Best Two-Stage Pick With a Three Year Warranty

The XC602100.COM is the one we keep coming back to, because it does the unglamorous thing well. The pump is a two-stage oil-lubricated cast iron design rated for up to 10,000 hours based on the B-10 bearing rating, which puts it ahead of everything else here on published pump life. Airflow is 7.6 SCFM at 90 PSI and 6.9 SCFM at 175 PSI, with a 175 PSI maximum working pressure.

That 7.6 SCFM figure is the honest weak spot. It is the lowest number in this roundup, and if your shop lives on an orbital sander or a plasma cutter you will feel it. For impact wrenches, finish nailing, spraying, inflating and grinding work, it recovers quickly enough that you stop noticing the pump.

The footprint is what wins me over. The tank is a 60 gallon vertical ASME unit measuring 33 by 29 by 77 inches, so it takes up a 23 by 23 inch patch of floor and stands about shoulder height on most people. At 255 pounds it is the lightest of the compressors here with a published weight, which matters when the delivery crew has to place it exactly where you want it.

The three year limited warranty is the longest in this group, and the only one that covers the pump, motor and tank together beyond twelve months. Forum readers treat warranty length as the number one trust signal in this market, often more heavily than brand, and the XC602100.COM wins that comparison outright. Long-term owners on WeldingWeb also report running a Campbell Hausfeld 60 gallon single-stage for at least a decade with no complaints beyond routine maintenance, which is the durability track record you want from this brand.

Who the Campbell Hausfeld XC602100.COM Fits Best

It suits the home shop that runs several moderate tools in sequence rather than one hungry tool continuously. Grinding wheels, impact wrenches, a framing nailer on a pass, spray gun cleanup, tire work on a car that is actually on a lift. If your week is a mix of jobs rather than one long production run, the two-stage smoothness and 175 PSI ceiling are worth more than raw CFM.

The oil sight access and a straightforward service layout also make it a comfortable first shop compressor. Routine maintenance on a cast iron oil-lubricated pump is a drain, a check and an oil top-up, not a teardown, and the vertical layout puts those points at standing height.

Where It Falls Short

Buy a bigger compressor if your main tool is a sander with a 6 inch pad, a HVLP spray gun on a fine finish schedule, or a blasting cabinet. At 7.6 SCFM those tools will pull the pressure down and you will be waiting on recovery.

There is also a durability caveat worth stating plainly. Review analysis puts roughly 14 percent of ratings in the one-star bucket, concentrated around longevity and service experiences. Treat the 10,000 hour pump rating as a lab figure and buy on the three-year warranty, which is the part you actually get.

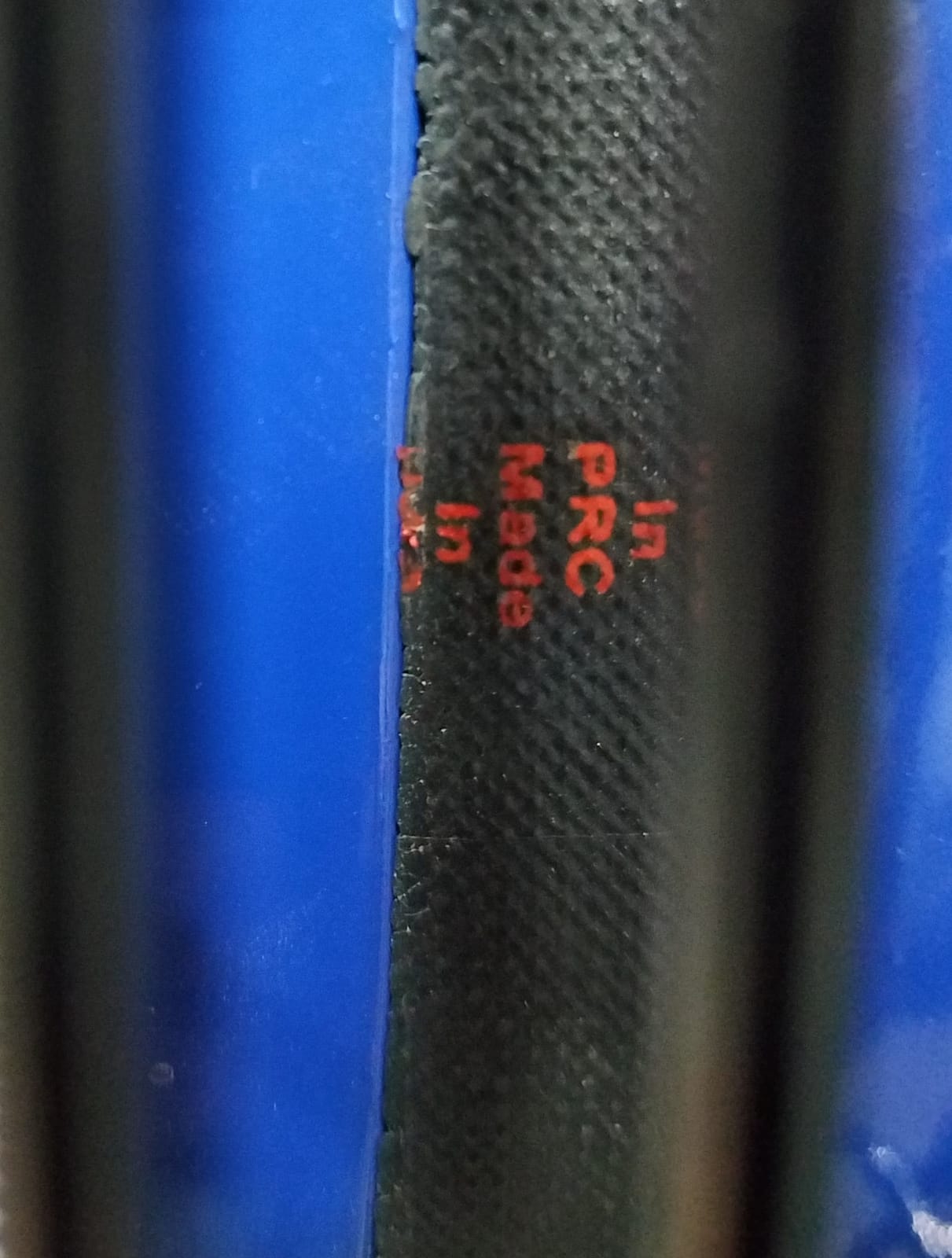

2. Quincy QT-54 – Best Heavy-Duty Continuous Duty Pick

The QT-54 is a 5 HP splash-lubricated reciprocating compressor on a 60 gallon vertical tank, running 230V single phase. Owners describe it as smooth and quiet in a way that first-time buyers rarely expect from a 5 HP unit, with pressure recovery that outpaces larger compressors they owned previously.

A moisture drain valve sits on a tank leg for easy reach, the vertical layout at 29 by 21 by 70 inches saves floor space, and the pump is built for continuous duty shop work including media blasting. Parts availability is a genuine advantage too: this design has been in production since 2008, so replacement cylinders, valves and gaskets are easy to source decades later.

Forum owners frequently single out Quincy as the brand that keeps working. Practical Machinist threads on home shop recommendations include Quincy units as standard recommendations, and one WeldingWeb owner reports running a large Quincy compressor for well over a decade with no complaints beyond routine maintenance.

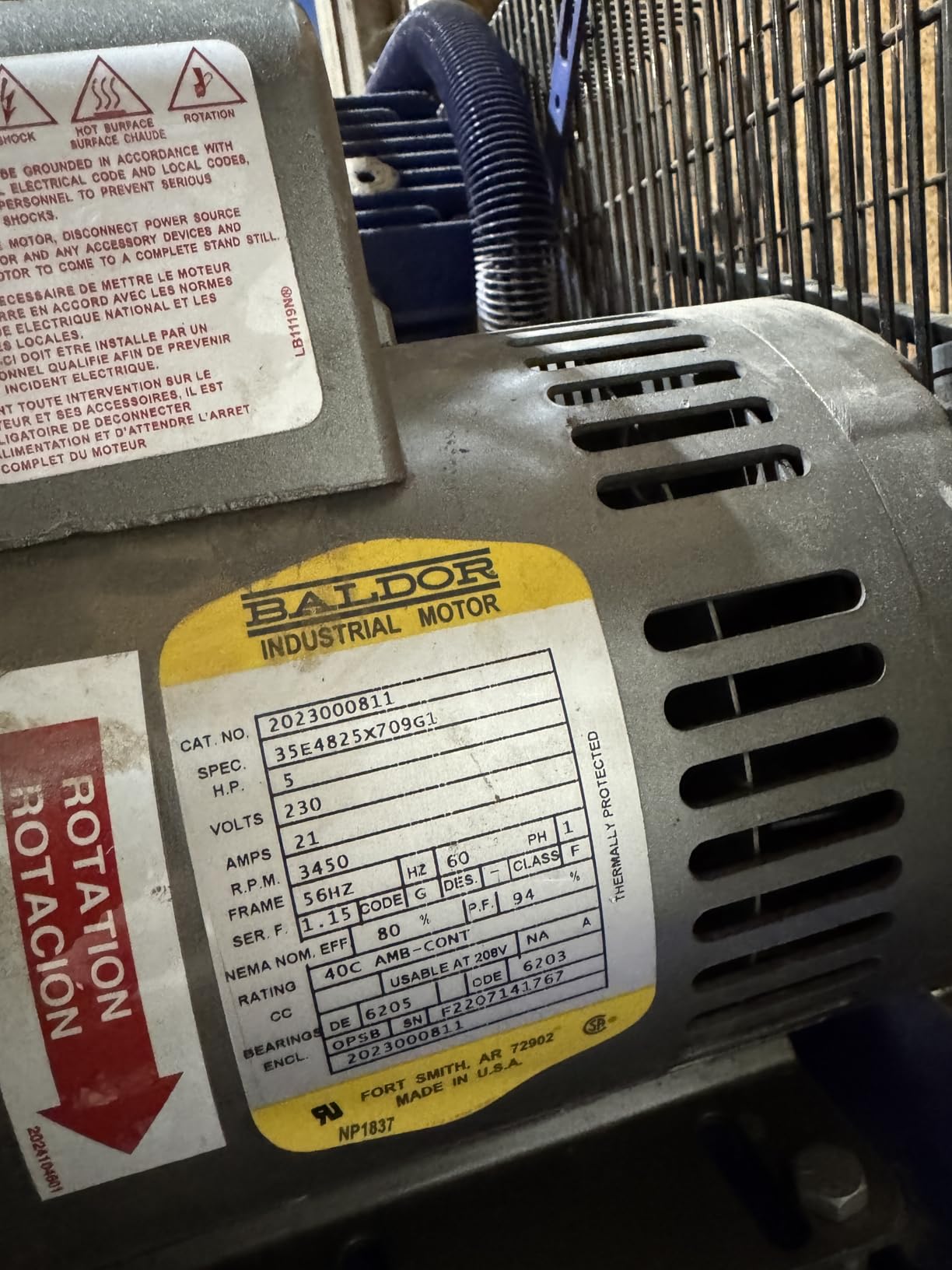

The catch is electrical reliability and the warranty clock. Multiple reviewers report motor or pressure switch failures landing right around the one-year mark, sometimes on lightly used machines. The one-year limited warranty also requires periodic oil changes to stay valid, so an owner who ignores the oil ends up paying out of pocket for a pump rebuild.

Who the Quincy QT-54 Fits Best

This is the compressor for a shop doing continuous work: blasting, production sanding, heavy grinding, or a second vehicle worked on at the same time as the first. Running air tools for hours at a stretch rather than minutes keeps the 5 HP pump from cycling the motor constantly.

It also makes sense for anyone who plans to keep a compressor for a decade or more. The parts catalog is deep, the design is proven, and resale value holds up in a way disposable import units rarely manage.

Where It Falls Short

At 475 pounds, this is the hardest machine here to move, and it arrives freight on a pallet rather than by parcel carrier. Plan for two people, properly rated moving equipment, and a clear delivery path before that pallet shows up.

Expecting the company to absorb an electrical failure in year two is the wrong expectation here. Buy it knowing the warranty is short, keep the oil schedule, and put a fused disconnect or contactor on the circuit rather than relying on the pressure switch alone for repeated starting.

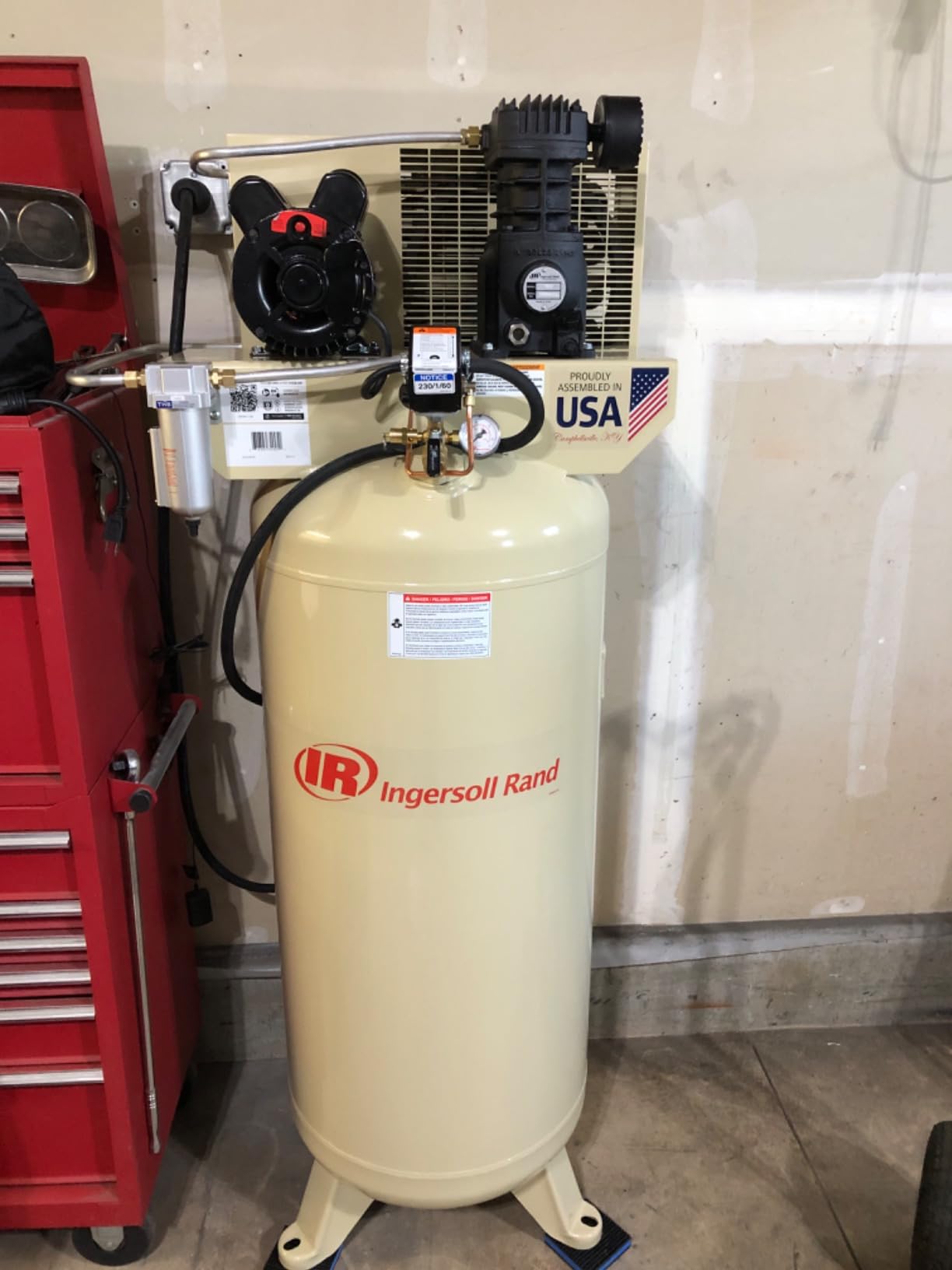

3. Ingersoll Rand SS3L3 – Best Value Pick With 11.3 CFM at 90 PSI

The SS3L3 carries the strongest owner satisfaction score of any unit here with a substantial review history, and the specification sheet explains why it earns it. It delivers 11.3 CFM at 90 PSI from a 3 HP motor running 100 percent continuous duty, with a 135 psig maximum pressure and a 60 gallon vertical ASME receiver. Getting more than 11 CFM out of three horsepower is the number that separates this design from the rest of the single-stage field.

The pump is cast iron and engineered for 5,000 or more hours of trouble-free service life, and it uses All Season Select synthetic lubricant rated for 2,000 hours between changeouts. Maintenance access is where this layout shines: a filter you can change without pulling the pump off, an oil sight gauge at eye level and an easy-fill oil port. Manual thermal overload protection and a fully enclosed belt guard are standard.

At 25 by 25 by 67 inches it sits neatly in a garage corner without taking the wall space a horizontal tank would. Delivery is fully assembled and pre-wired with an auto start/stop pressure switch, which removes the single biggest installation headache in this category.

The compromises are specification-driven, not build-driven. A 135 PSI maximum is well below the 175 PSI on the two-stage machines here, so tools that need working pressure will see less of it. Single-stage output also falls short of a two-stage design of similar size when you compare peak numbers.

Who the Ingersoll Rand SS3L3 Fits Best

It fits a shop that wants real airflow on modest electrical service. Its 14.7 amp draw is the lowest running requirement in this roundup, and both that figure and the DEWALT’s 20 amps sit inside what a residential 230V circuit can carry. Sanding, spraying, air tooling across a bench, inflating, all of it runs without waiting.

The square footprint is worth a look too: 25 by 25 inches means it takes a corner of the shop rather than a wall, which matters in a single-car garage where the compressor competes with the workbench.

Where It Falls Short

The 135 PSI ceiling is the main limitation and it is a real one. Air tools that need pressure to work correctly, including HVLP spray guns and pneumatic nailers, deliver less punch at 135 PSI than at 175. If your work is pressure-sensitive rather than volume-sensitive, look at a two-stage machine instead.

At 78 dB it is also not the quietest option, which matters in a garage attached to a living space. And the one-year warranty is short relative to the build quality, so register the unit and keep up the oil schedule.

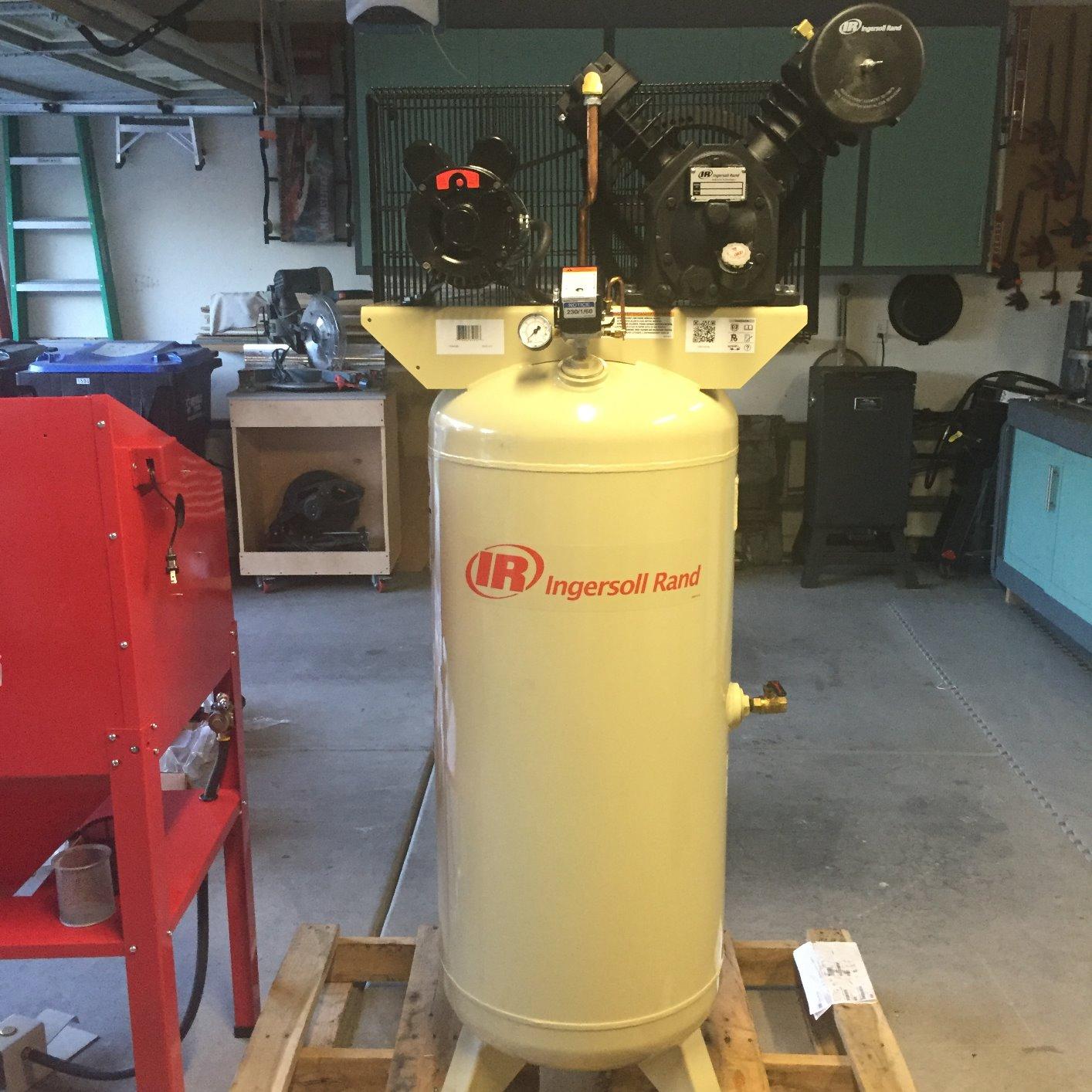

4. Ingersoll Rand 2340L5-V – Best for Sandblasting at 14.3 CFM

When a compressor has to move serious volume of air, this is the one. The 2340L5-V is a 5 HP Type 30 two-stage reciprocating compressor with up to 14.3 CFM at 90 PSI and a 175 PSI maximum, rated for 100 percent continuous duty on a 60 gallon vertical tank at 230V single phase. Owners running blasting cabinets report cutting blast time to roughly a third of what a 30 gallon compressor required.

The mechanical design is aimed squarely at service life. Individually cast cylinders, an overhung crankshaft and a one-piece connecting rod mean a worn cylinder can be replaced without replacing the whole assembly. Several owners report continuous service on this design dating back to the early 2000s, which is the kind of durability the B-10 bearing rating promises.

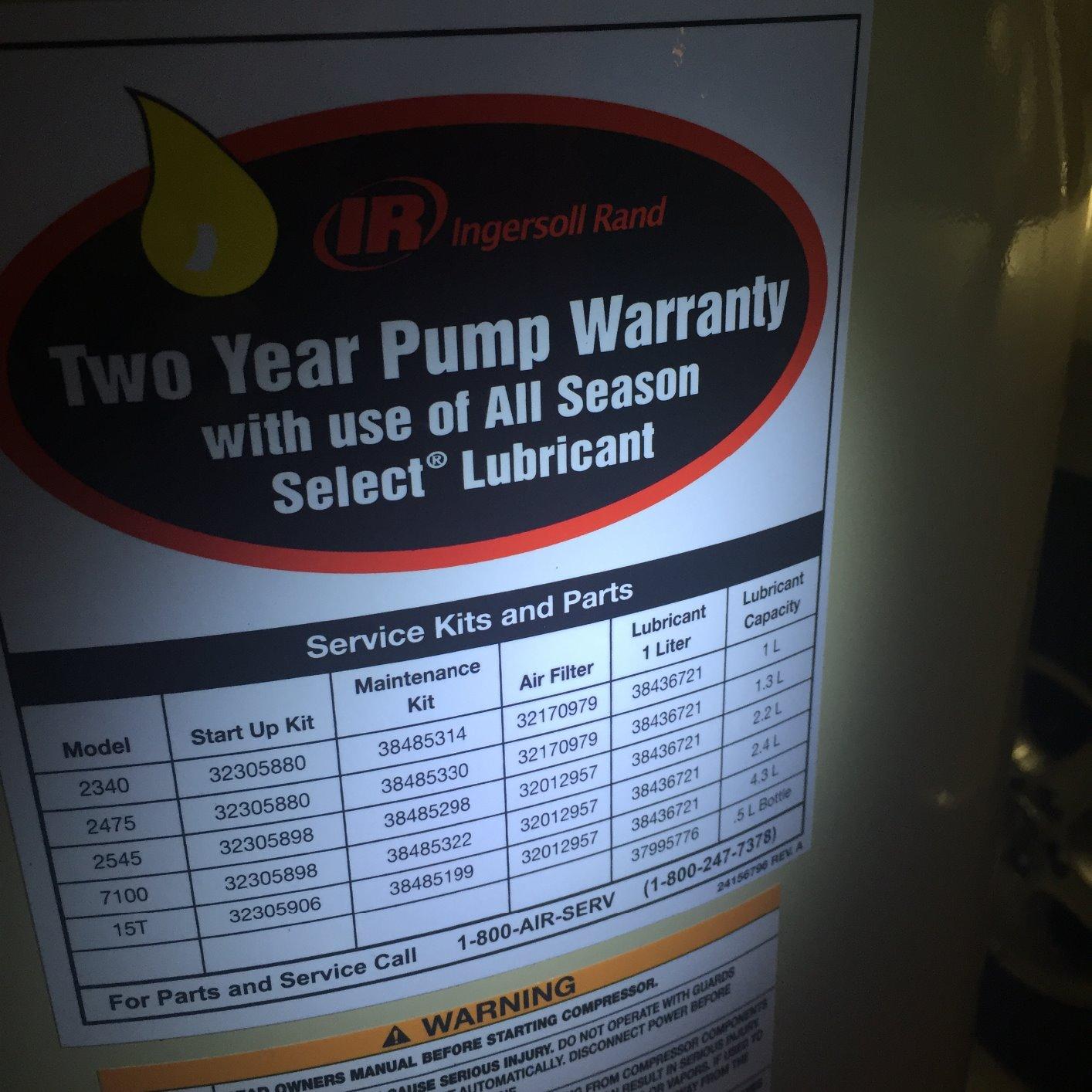

Setup details deserve attention before first run. This compressor requires a proprietary synthetic oil that is not supplied with the machine, and the pump warranty depends on using it. The pressure switch is rated for only about six starts per hour, so continuous blasting work that cycles the tank hard calls for a contactor rather than the factory switch. Some units also arrive with uncalibrated pressure switches that top out around 165 PSI instead of the rated 175.

Assembly quality is the other weak spot: pump bolts arriving loose, and drain valve fittings at the tank bottom cross-threaded or leaking out of the box. Both are ten-minute fixes with a wrench, but they are real.

Who the Ingersoll Rand 2340L5-V Fits Best

Blasting, large orbital and belt sanders, plasma cutting, HVLP spraying, or two tools running at once on a serious job. If you know you are going to pull more than 12 CFM at working pressure, this is the honest answer regardless of price.

It also suits the long-horizon buyer. A pump design that is still in production decades later, with replaceable individual cylinders and deep parts support, is a reasonable thing to buy once and keep for the life of the shop.

Where It Falls Short

At 85 dB this is the loudest compressor here, and it is not a machine you want running under a bedroom. Wear hearing protection and keep it on a rubber pad in an isolated corner.

At 430 pounds it is also the second heaviest, and the one-year warranty leaves you exposed on assembly issues. Spend ten minutes checking bolts and fittings before the first run, and keep the oil receipts for the changeout schedule.

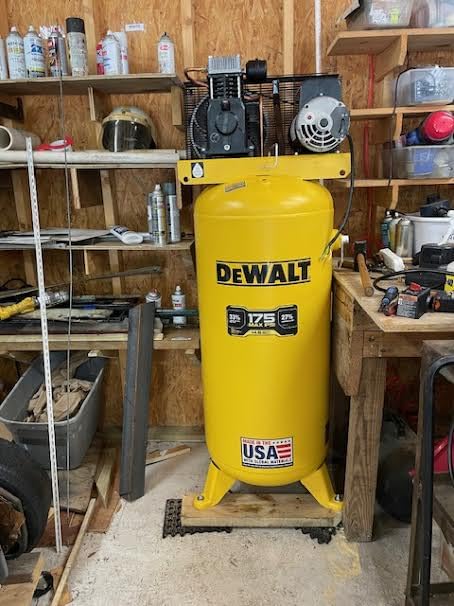

5. DEWALT DXCM603.COM – Best for High-Flow Sanding With a Two Year Pump Warranty

The DXCM603.COM is a 60 gallon stationary compressor rated at 14.6 SCFM at 90 PSI and 175 PSI maximum working pressure, driven by a 5 HP motor on 240V single phase drawing up to 20 amps. On paper it has the highest airflow figure in this roundup, paired with a 2 year pump warranty and a one-year warranty on everything else.

The practical touches are aimed at a working shop. There is a large air outlet port so you can run a heavier hose without starving the outlet, plus an integrated on/off switch and pressure gauge at the front of the machine. At 70 dB it runs quieter than either Ingersoll Rand machine here, both of which sit above 75 dB.

The honest limitation is evidence. With only 21 ratings, the long-term reliability record for this specific model is not established, and roughly ten percent of those ratings land at two stars. That distribution tells you most owners are very happy and a small group had unresolved problems on arrival.

The electrical requirement is the other thing to plan around. At 20 amps on 240V this needs a dedicated circuit, and it will not run off standard household wiring under any circumstances.

Who the DEWALT DXCM603.COM Fits Best

It fits a sanding-focused shop or a finish shop that wants high volume without paying for a two-stage pump. Air brushing, blow cleaning, cutting, drilling and sanding are the stated use cases, and the large outlet port and front-mounted controls make it pleasant to work from.

It is also a reasonable choice for a buyer who wants the two-year pump warranty as the deciding factor and accepts a thinner review history. Buy it knowing you are an early owner of this design, and register it on day one.

Where It Falls Short

A 20 amp 240V circuit is a bigger electrical job than the 14.7 amp draw on the Ingersoll Rand SS3L3, and that installation cost can move this from an affordable choice to a mid-range one.

Because the model is newer, there is no long-term owner data to lean on. If your shop depends on the compressor every day, weigh that against the Ingersoll Rand designs, which have decades of service reports behind them.

6. Quincy Q13160VQ – Best for Smooth Running in a Small Shop

The Q13160VQ is a 3.5 HP single-stage compressor on a 60 gallon vertical tank, rated at 12.4 CFM at 100 PSI with a 145 PSI maximum, running on 230V single phase. It weighs 261 pounds and is built around a reciprocating pump turning at 1250 RPM with a 1/2 inch air outlet.

Owner reaction to how it runs is strikingly positive for a unit at this level. Reviews describe smooth, quiet operation compared favorably to much more expensive equipment, and 68 dB makes it the quietest of the compressors here with a stated figure apart from the Campbell Hausfeld. One reviewer with professional experience rebuilding high-end compressors rated it in the same breath as machines costing considerably more.

There is real-world proof that this design serves a working shop. A Practical Machinist forum owner runs a Quincy Q13160VQ and reports 13 CFM at 100 PSI, describing that output as plenty for everything he needs. That is exactly the kind of first-hand report that matters more than a spec sheet.

Who the Quincy Q13160VQ Fits Best

It fits a small shop, a basement workshop or a garage where noise is the first constraint. If you work in a space attached to living quarters, 68 dB changes the relationship with your neighbours and with your own concentration.

It also fits anyone replacing an existing compressor, since owners report setup was straightforward in exactly that situation. Air brushing, drilling, nailing and spraying are the intended jobs.

Where It Falls Short

Ten ratings is a very small sample, and the 4.6 average is built on it. One three-star review reports a pressure switch failure at the one-year anniversary under light shop duty, which is the same failure mode owners flag on the larger Quincy QT-54.

The 145 PSI ceiling is also the second lowest here. For most sanding, nailing and inflating work that is irrelevant. For spraying and pressure-sensitive pneumatic tools, a two-stage machine at 175 PSI is the better tool.

Do You Actually Need 60 Gallons?

Sixty gallons is the right size when you run one air-hungry tool for more than a couple of minutes at a time. An orbital sander, an HVLP spray gun, a blasting cabinet or a plasma cutter will each pull enough air to empty a 20 gallon tank faster than a small pump can refill it. A 60 gallon receiver holds roughly three times as much air as a 20 gallon tank, and paired with a pump delivering 11 CFM or more at 90 PSI, it stops being the bottleneck.

You do not need 60 gallons if your work is mostly impact wrenches, air ratchets, finish nailers, tire inflation and cleaning. Those tools run for seconds at a time and the tank keeps up easily. A 30 gallon unit or a good portable machine is the right purchase, and our guide to the best portable air compressors for workshops covers that side of the market.

The mental test is simple. Count how many minutes per week a single tool would run continuously. Under about 10 minutes, stay small. Above that, or if you want to run two air tools at once, 60 gallons is the working minimum.

Single-Stage vs Two-Stage: What a Home Shop Should Buy

Two-stage does not automatically mean more air, and this is the most persistent misconception in the category. A two-stage pump compresses in two passes, which lets it deliver air at higher working pressure with less heat and better efficiency over long runs. It does not guarantee higher CFM at 90 PSI. Look at the numbers in this roundup: the Campbell Hausfeld XC602100.COM is two-stage and delivers 7.6 SCFM at 90 PSI, while the single-stage Ingersoll Rand SS3L3 delivers 11.3 CFM at 90 PSI.

Forum users on HomeShopMachinist correct each other on this point regularly. The lesson is to compare CFM at 90 PSI across pumps rather than assuming stage type predicts airflow. HP matters, stage affects pressure behaviour and thermal load, and CFM at working pressure is the number that decides whether your sander stalls.

Our recommendation for a home shop: buy single-stage if your load is impact wrenches, nailing, inflating and occasional sanding, and pick the highest CFM at 90 PSI you can find. Buy two-stage if you spray, blast, plasma cut, or run long sanding passes where sustained pressure and cooler operation matter. For most single-family shops, the difference in experience is far smaller than the difference in price.

Electrical Setup: The 230V Reality

Every compressor in this roundup is 230V or 240V single phase, and every one requires a dedicated circuit. This is the most common reason a planned purchase gets delayed, and it shows up constantly in shop forum threads.

Running current runs from 14.7 amps on the Ingersoll Rand SS3L3 to 20 amps on the DEWALT DXCM603.COM. Add start surge on top of that, and a 15 amp household receptacle or a shared 20 amp circuit is not adequate. Put the compressor on its own circuit with a properly sized breaker and a disconnect switch, and check with a local electrician if your panel has no spare breaker slots.

Units shipped as stationary compressors sometimes arrive without a power cord, so confirm what is included before you buy. If you are adding the circuit, get the compressor first so the electrician sizes the run to the actual amperage rather than a guess.

Maintenance Schedule for a 60 Gallon Air Compressor

Drain the tank monthly, and daily if you run blasting or wet finishing work. Open the valve at the bottom until only air comes out, because water in the receiver corrodes it from the inside where no warranty claim will reach you. If your machine sits in a humid garage, monthly becomes weekly.

Check the pump oil level every few months through the sight glass, and follow the changeout interval in the manual. The Ingersoll Rand SS3L3 runs synthetic oil rated for 2,000 hours between changes, while a conventional splash-lubricated pump wants checking far more often and an annual change at minimum.

Clean or change the intake filter when it is visibly dirty, more often in a dusty wood shop. Walk the drain line monthly with a water flush if your unit has one, and open the tank drain during winter shutdown so condensation does not freeze. Our pick for handling paint and solvent overspray is covered in our parts washer guide, but the same rule applies at the compressor: keep mist and dust out of the intake. In a wood shop, pair that intake discipline with a dedicated air filtration system so airborne sawdust never reaches the compressor in the first place.

Frequently Asked Questions

Conclusion: The Best 60 Gallon Air Compressor for Your Shop

The Campbell Hausfeld XC602100.COM is our pick for the best 60 gallon air compressors for home shops because it combines a two-stage cast iron pump rated to 10,000 hours, a compact vertical footprint and the only three-year warranty in this group. If you need more air than its 7.6 SCFM provides, the Ingersoll Rand SS3L3 delivers 11.3 CFM at 90 PSI on the lowest amperage draw here, and the Ingersoll Rand 2340L5-V handles blasting work at up to 14.3 CFM.

Before you order any of them, sort out the dedicated 230V circuit. It is the one thing that can stop a good compressor from becoming the right compressor for your shop. For cutting and fabrication tasks that pair well with a compressor, read our best plasma cutters for home shops guide next.
