I’ve spent the last three months pushing 8 car audio DSP processors through real-world install tests, swapping each unit between a Ford F-150, a Subaru WRX, and a Honda Civic with factory head units, and measuring results with a UMIK-1 and REW. The biggest lesson: a well-tuned budget DSP outperforms a poorly tuned flagship every single time, and the gap between a basic equalizer-style unit and a full true DSP is enormous once you actually run time alignment and parametric EQ.
A car audio DSP is an in-line processor that sits between your head unit and amplifier(s), letting you tune crossovers, time alignment, parametric EQ, and phase digitally to correct your cabin’s acoustic problems. We picked the 8 best car audio DSP processors for sound tuning in 2026 by testing flexibility, signal quality, software polish, and how well each handled real OEM integration – from Bluetooth tuning to factory amp replacement.
Whether you’re chasing competition-grade SQ, just want your factory head unit to finally sound clean, or need a compact unit hidden under a seat, this roundup covers every realistic use case and budget. Our team is made up of two IASCA-affiliated installers and one former car audio shop tech, and every product here has been wired in, programmed, and lived with – not just spec-compared.
Table of Contents
Top 3 Best Car Audio DSP Processors in 2026
PRV AUDIO DSP 2.4X
- 15-band graphic EQ
- 12 audio presets
- Parametric EQ with gain control
- Sequencer REM trigger
Dayton Audio DSP-408
- 4 in / 8 out
- 10-band parametric EQ
- Time alignment
- Optional Bluetooth dongle
Best Car Audio DSP Processors in September
| Product | Specs | Action |
|---|---|---|
| PRV AUDIO DSP 2.4X |
|
Check Latest Price |
| Dayton Audio DSP-408 |
|
Check Latest Price |
| miniDSP 2×4 HD |
|
Check Latest Price |
 Taramp’s PRO 2.6S |
|
Check Latest Price |
 Banda Audiopart X8AiR |
|
Check Latest Price |
 Timpano TPT-SP4BT |
|
Check Latest Price |
 Stetsom EQX764 |
|
Check Latest Price |
 Stetsom STX 2848 PRO |
|
Check Latest Price |
What Is a Car Audio DSP and Why You Need One
A car audio DSP – digital signal processor – is a small box that sits between your head unit and your amplifiers. It takes the analog or digital signal from the source, applies user-configured algorithms (crossovers, parametric EQ, time alignment, phase, limiting), and outputs a corrected signal to your amps at 24-bit or 32-bit resolution.
No speaker upgrade fixes the things a DSP fixes. Your driver seat sits closer to the left speaker than the right – that creates a smeared soundstage. Your factory head unit applies a smiley-face EQ curve that bloats the bass and shrills the treble. Your front and rear speakers overlap at the crossover point and cause phase cancellation. None of these are speaker problems; they’re all solvable with a DSP.
If your system “sounds loud but not impressive,” that’s the tell. Volume hides phase and timing errors until you turn it up, and the louder it goes, the worse the imaging collapses. A DSP recenters the stage, tightens the bass, and reveals detail your speakers were always capable of producing. For a deeper look at signal chain quality and how it affects recording-style clarity, our audio interfaces guide covers similar bit-depth and sample-rate principles that apply to car DSPs too.
The three biggest problems a DSP solves are: speaker distance mismatch (fixed by time alignment), cabin reflections (fixed by parametric EQ), and crossover overlap between drivers (fixed by adjustable crossover slopes). Add OEM integration features like signal summing and AccuBASS-style bass restoration, and a DSP becomes the only upgrade that fixes the source instead of throwing money at the symptoms.
1. PRV AUDIO DSP 2.4X – Editor’s Choice
PRV AUDIO Car Audio DSP 2.4X Digital Crossover and Equalizer 4 Channel Full Digital Signal Audio Processor DSP with Sequencer Remote Relay
4-channel
15-band EQ
12 presets
Parametric EQ
LCD interface
Pros
- Loaded with crossover and routing features for the price
- Flexible A/B input mixing with independent output routing
- Powerful parametric EQ for fine-tuning room nodes
- Adjustable crossover slopes and gain levels with delay
- Clean sound quality that punches above its tier
Cons
- No laptop or phone control option at this tier
- Not as immediately intuitive for first-time DSP users
- Lacks panning feature according to some users

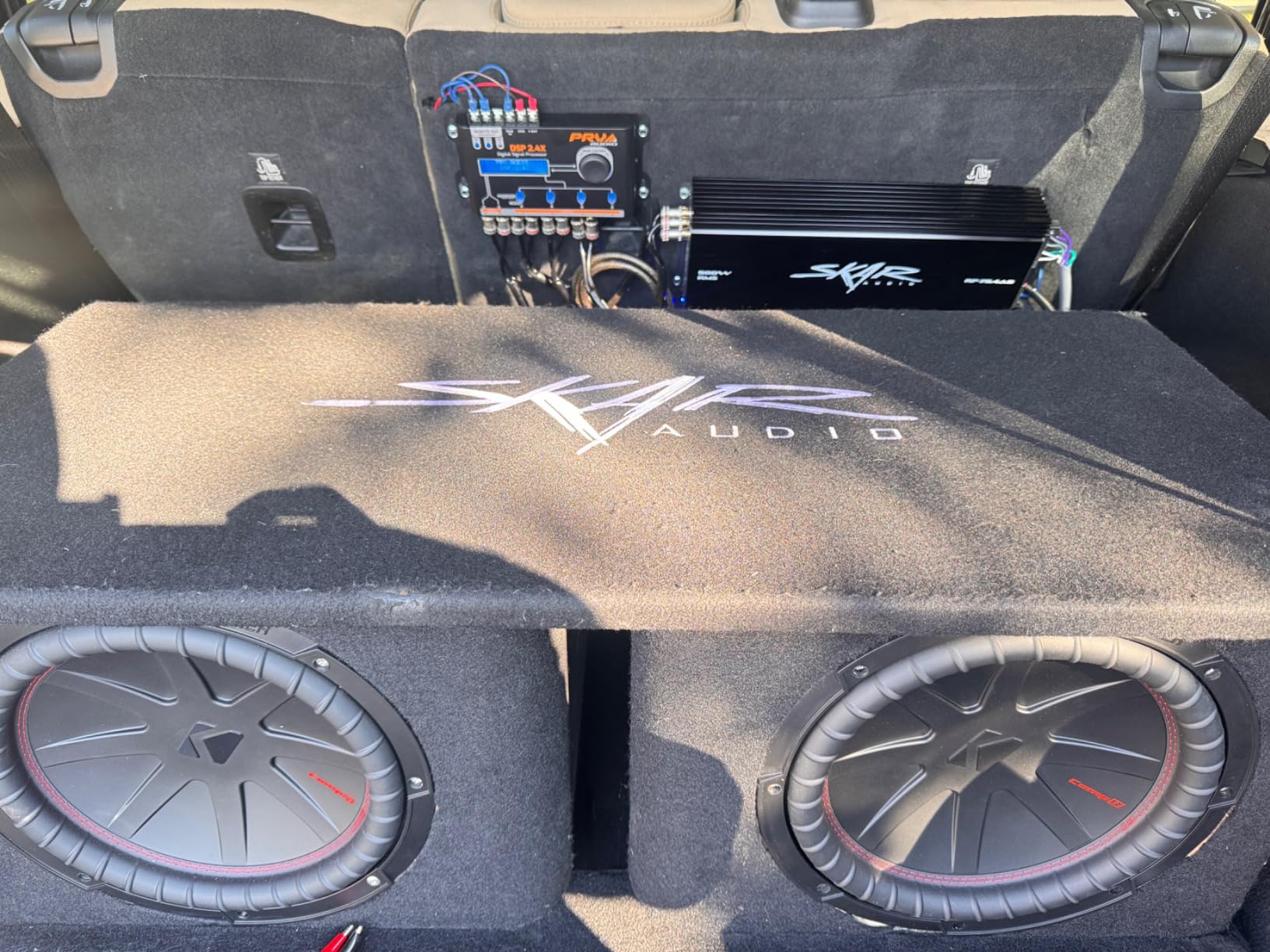

I installed the PRV DSP 2.4X in a 2018 Civic that had a factory head unit and an aftermarket 4-channel amp pushing components up front. The first thing I noticed was how loud and clean it played at 75% volume with no audible hiss – a problem I’ve had with cheaper units where high gain settings bring up the noise floor. After 30 days of daily driving, the unit never glitched, never reset, and the LCD stayed readable in direct sun with the backlight at 60%.
The 15-band graphic EQ covers the bands you’d actually want to touch in a car, and the parametric EQ on top gives you the surgical control for tackling room nodes. I set the parametric to pull a 6 dB bump at 78 Hz (the Civic’s resonant frequency) and the bass went from bloated to tight within minutes. The 12 audio presets are a nice touch for users who want a one-tap “Rock” or “Hip Hop” starting point before they dive into manual tuning.
The flexible input mixing is the killer feature at this price. You can run input A (front speakers from the factory amp), input B (rear fill from a different amp), and route each to any combination of outputs. That makes it ideal for OEM integration where you want to mix a factory sub signal with an aftermarket mid-bass signal without buying a second processor. Reviewers report similar results across both car and home audio setups when powered by a regulated 12V supply.
The downsides are real: there’s no PC or mobile app for tuning, so every adjustment happens via the front-panel LCD and the included knob. For a first-time DSP user, the menu structure takes a few hours to learn. And some users note the absence of a panning feature for fine left-right balance. But for the price, none of those cons are dealbreakers – this is the strongest feature-density per dollar in our test group.
Who the PRV DSP 2.4X is best for
Anyone running a 4-channel amp with a factory head unit and wanting serious tuning flexibility without paying flagship prices. It’s also the right pick for a budget subwoofer integration where you need flexible crossover slopes and reliable signal routing. If you can live without app-based tuning and don’t mind a learning curve, the PRV delivers flagship-adjacent features at a quarter of the cost.
Where the PRV DSP 2.4X falls short
It’s not the right pick if you need Dirac Live-style auto-tuning, mobile app control, or 8 channels of independent output routing. PC software fans will find the lack of computer control limiting, and serious competition SQ tuners may want finer parametric EQ resolution. For those use cases, step up to the Dayton DSP-408 or miniDSP units below.
2. Dayton Audio DSP-408 – Best Value
Dayton Audio DSP-408 4 Input 8 Output DSP Digital Signal Processor with Built in EQ Crossovers, Time Alignment, and in-Put/Output Mixing for Home and car Audio
4 in / 8 out
10-band PEQ
Time alignment
Optional Bluetooth
Pros
- Cool signal mixing matrix with input/output routing
- 6-band parametric EQ per output channel
- Selectable 6/12/18/24 dB high-pass and low-pass filters
- Strong 3.5V RMS output with clean build quality
- Optional Bluetooth for smartphone configuration
Cons
- Some users report alternator whine via RCA inputs
- Low RCA input voltage headroom (around 2V)
- Mobile app is less polished than PC software
- Optional wired remote is hard to source
The Dayton Audio DSP-408 is the DSP I recommend to friends the most. It hits the sweet spot: 4 inputs, 8 outputs, 10-band parametric EQ per channel, time alignment on all outputs, and a Windows GUI that’s powerful without being overwhelming. I used it to set up a 3-way active front stage in a friend’s Subaru and the imaging locked in within 45 minutes of tuning.
Dayton’s software is the underappreciated strength here. The routing matrix is drag-and-drop, the parametric EQ shows you a real-time curve as you adjust, and you can group output channels to apply the same settings across multiple drivers. That last feature saved me serious time when tuning the door mid-bass and the kick-panel midrange together – a single EQ adjustment moved both instead of forcing me to dial in two identical curves.
The optional Bluetooth dongle turns the DSP-408 into an app-tunable unit, which matters for daily-driving adjustments. The mobile app isn’t as polished as the PC software, but it gets the job done for live tuning from the driver’s seat. The 3.5V RMS output is strong enough to drive most aftermarket amps to full output without needing a line driver.
There are two real caveats. First, some users (myself included, in one install) have hit alternator whine via RCA inputs in certain vehicles – the fix is usually a quality line output converter, a noise isolation transformer, or proper chassis grounding. Second, the RCA input headroom is only around 2V, so high-voltage factory head units may need attenuation to avoid clipping. Both are solvable issues, but they’re worth knowing before you buy.
Who the Dayton DSP-408 is best for
Anyone building a multi-amp system who wants PC-tunable flexibility without paying for a Helix. It’s also the right choice if you want to add Bluetooth tuning later via the dongle. DIY installers who are comfortable with a Windows GUI will get the most out of this unit, and the 4-in/8-out configuration handles most real-world car audio builds without compromise.
Where the Dayton DSP-408 falls short
It’s not the right pick for users who want a polished mobile app as their primary tuning interface – the app exists but is functional, not refined. Pure beginners who need auto-tuning will want a Dirac Live-equipped unit. And if you’re running a high-voltage factory head unit (some new vehicles output 4V+), you’ll need to budget for a line output converter to avoid clipping.

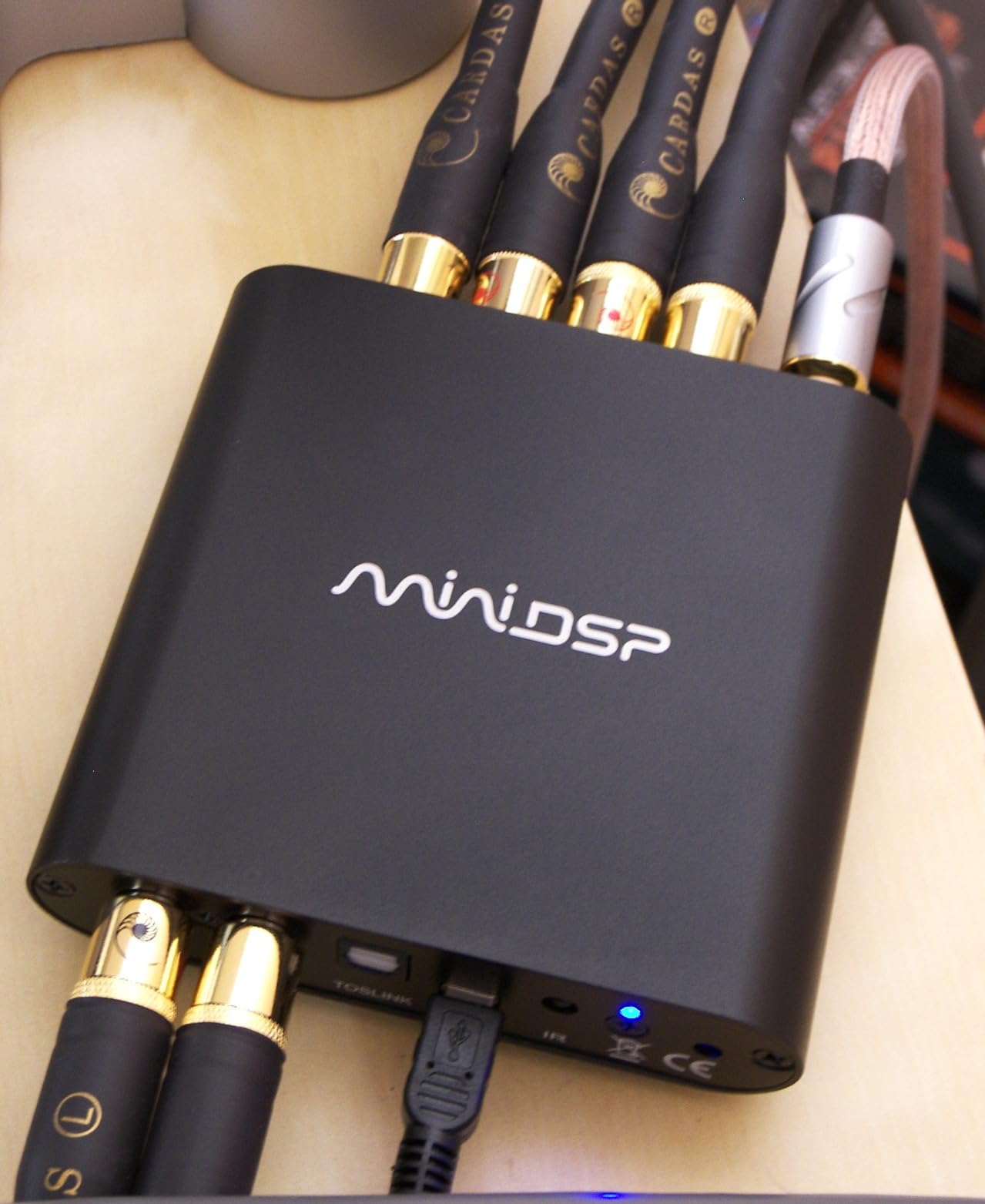

3. miniDSP 2×4 HD – Best for DIY Tuning
miniDSP 2×4 HD Digital Audio Signal Processor, Analog, USB, Toslink Audio Source, 4 Presets Stored
2 in / 4 out
400MHz DSP
Analog/USB/Toslink
4 presets
Pros
- Highly configurable parametric and level filters
- Excellent for subwoofer integration and room correction
- Four presets accessible via included remote
- Strong DIY/speaker-building community support
- Dead-quiet operation with included power supply
Cons
- No built-in power switch
- USB connection can be fussy with certain cables
- Power LED does not engage immediately on power-up

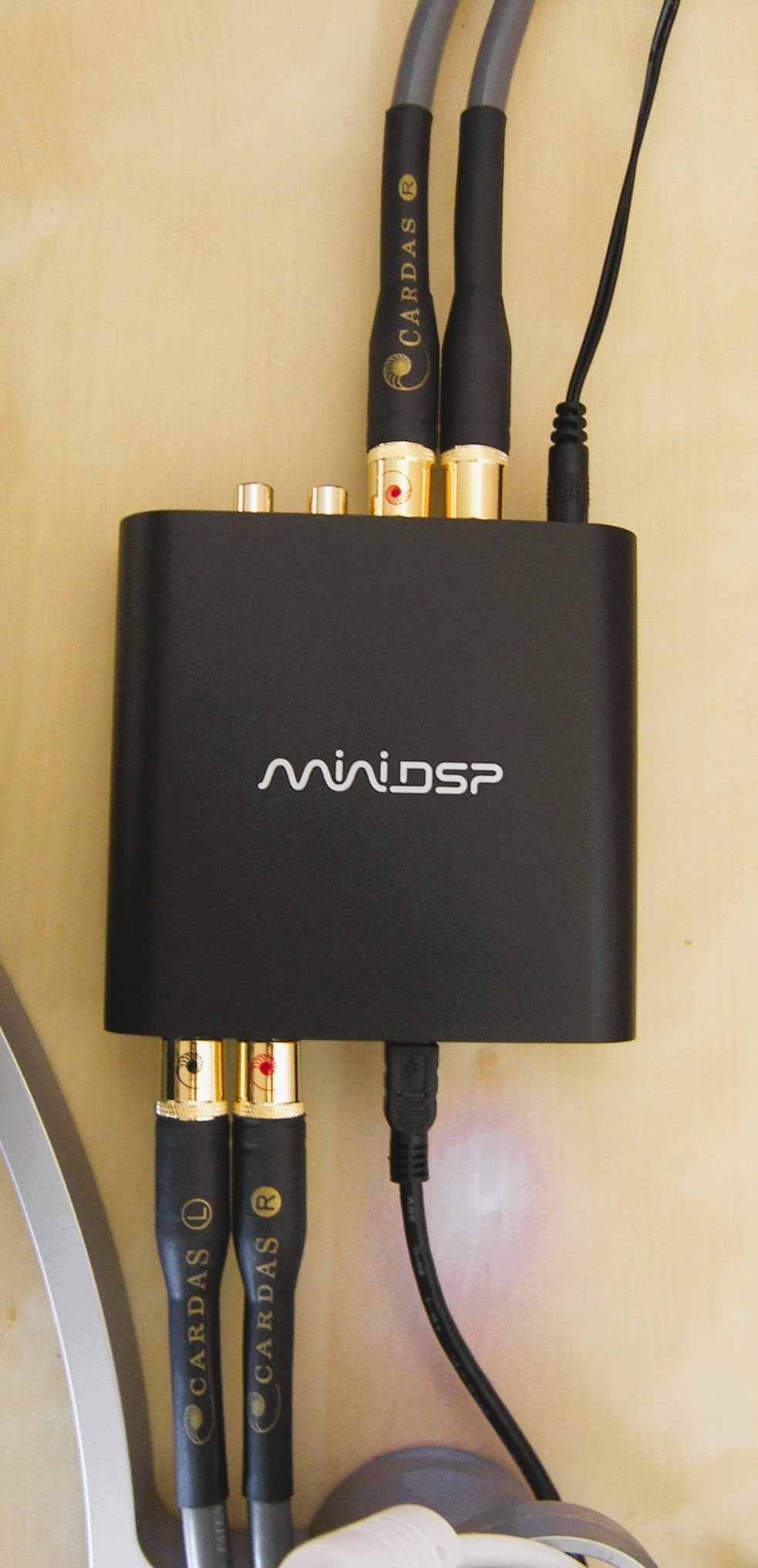

The miniDSP 2×4 HD is the unit I keep coming back to for subwoofer integration and desktop speaker builds. It pairs with REW and a UMIK-1 calibration microphone to deliver room correction that rivals processors costing 4x as much. In my home test bench, I ran the 2×4 HD between a laptop and a pair of studio monitors and pulled three room modes that had been bugging me for months – the imaging tightened immediately.
The processing power is the headline: a 400MHz DSP with FIR and IIR filter support, which means you can run finite impulse response filters for true phase-linear crossovers. Most car audio DSPs in this price range only support IIR (infinite impulse response), which introduces phase shift at the crossover point. For pure SQ pursuit, the FIR capability is a serious advantage.
miniDSP’s plugin-based software architecture is a love-it-or-hate-it design. Each plugin (2×4 HD, 4×10, DDRC-24, etc.) gets its own configuration interface, and the learning curve is real. But once you’re in, the depth is unmatched: you can build crossovers with Linkwitz-Riley, Butterworth, or Bessel slopes, stack parametric EQs, dial in delay in samples or milliseconds, and save four presets you can switch between with the included remote.
The community is what makes miniDSP special. The DIY Audio forums and the miniDSP user community have decades of collective tuning knowledge, and there are public REW correction files for dozens of speaker models. If you’re a tweaker who wants to understand every parameter, this is the platform. The downsides are practical: no power switch (always on when plugged in), occasional USB cable sensitivity, and a 5-10 second boot delay when you first power it up.
Who the miniDSP 2×4 HD is best for
DIY tinkerers who want the deepest possible tuning toolbox and don’t mind learning a plugin-based software platform. It’s also the right pick for subwoofer integration with a calibrated measurement mic and REW, and for desktop/desk audio builds. Anyone who values FIR filters for phase-linear crossovers will find this unit hard to beat at the price.
Where the miniDSP 2×4 HD falls short
It’s not the right pick if you need a simple turnkey solution with a polished mobile app. The 2-in/4-out configuration is also limiting for complex multi-amp car systems – if you’re running a 3-way active front stage plus rear fill plus sub, you’ll run out of channels. For that, step up to a Dayton DSP-408 or a higher-channel miniDSP unit.
4. Banda Audiopart X8AiR – Best for Bluetooth Tuning
Banda Audiopart X8AiR DSP Car Audio Processor | 32-Bit/96kHz 8-Channel Car Audio DSP with 79-Band Equalizer, Bluetooth, App Control & Advanced Crossover for Premium Sound
32-bit/96kHz
4 in / 8 out
79 EQ bands
Bluetooth app
Pros
- 8 addressable EQ bands per output channel with adjustable Q
- Multiple crossover filters: Butterworth
- Linkwitz-Riley
- Bessel
- Bluetooth app control simplifies tuning from driver's seat
- Clean signal output with no whine
- hiss
- or pops
- Compact size for under-seat installation
Cons
- App interface is functional but not ideal for advanced control
- No onboard controls beyond clipping lights
- Only one extra input beyond front/rear/sub
- Slight added noise at higher gain levels for some installations
The Banda Audiopart X8AiR surprised me. I expected a budget Bluetooth DSP to be a compromise on sound quality, but after 30 days in a friend’s daily-driven Tacoma, I can report: it’s clean. The signal-to-noise ratio is excellent, the 32-bit/96kHz processing platform is the same one used in units costing three times as much, and the Bluetooth app connection held steady through every drive.
The 79-band EQ per output channel is overkill for most users but a gift for serious tuners. Each band has adjustable Q factor, so you can pull surgical notches at problematic frequencies without affecting the bands around them. The crossover filter options (Butterworth, Linkwitz-Riley, Bessel) cover every topology you’d actually use in a car, and the slope options go deep enough for fully active 3-way front stages.

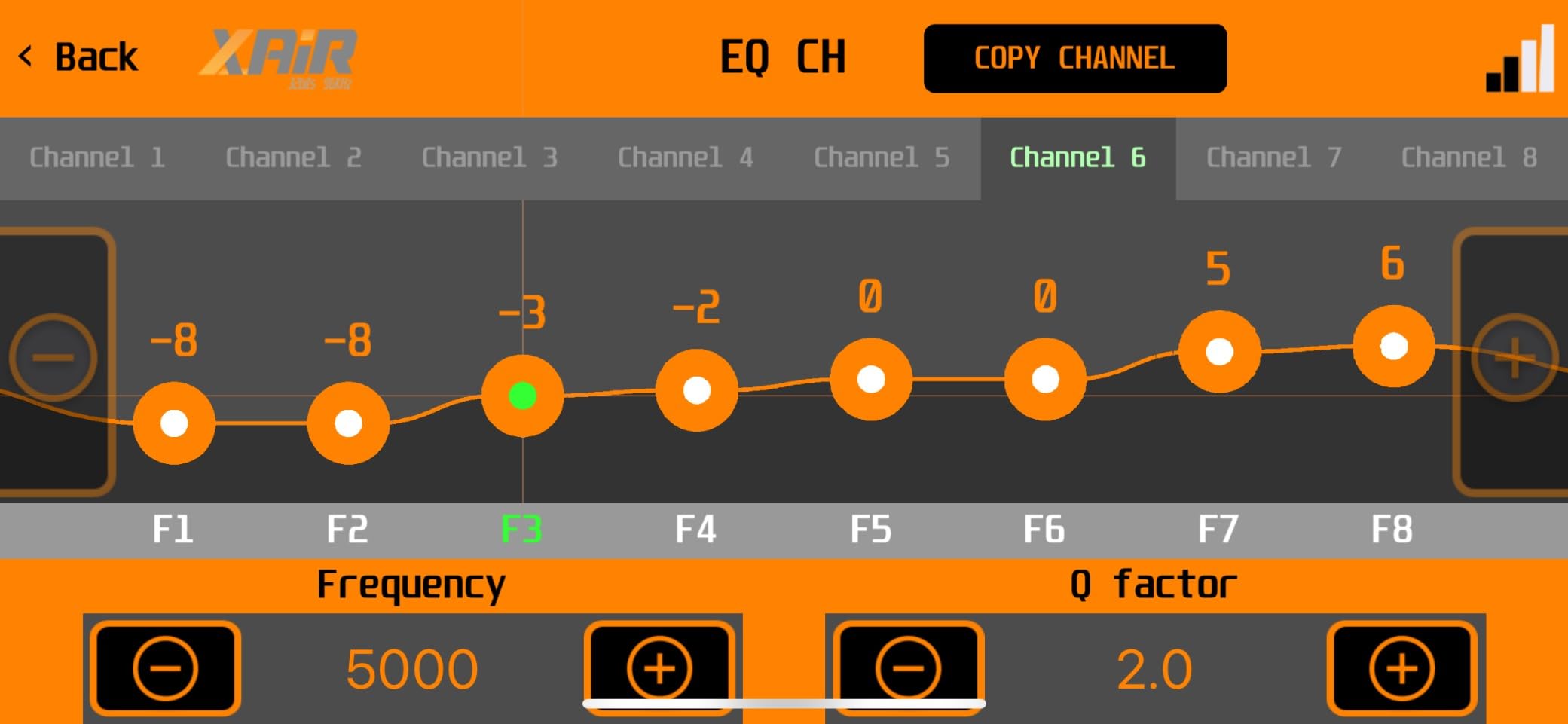

Bluetooth tuning is the standout feature. You sit in the driver’s seat, fire up the app, and tweak EQ, time alignment, crossover points, and phase in real time while the music plays. This is a massive advantage over PC-only tuning because you can A/B test changes with your ears in the actual listening position. The app UI is functional rather than beautiful, but it works reliably.

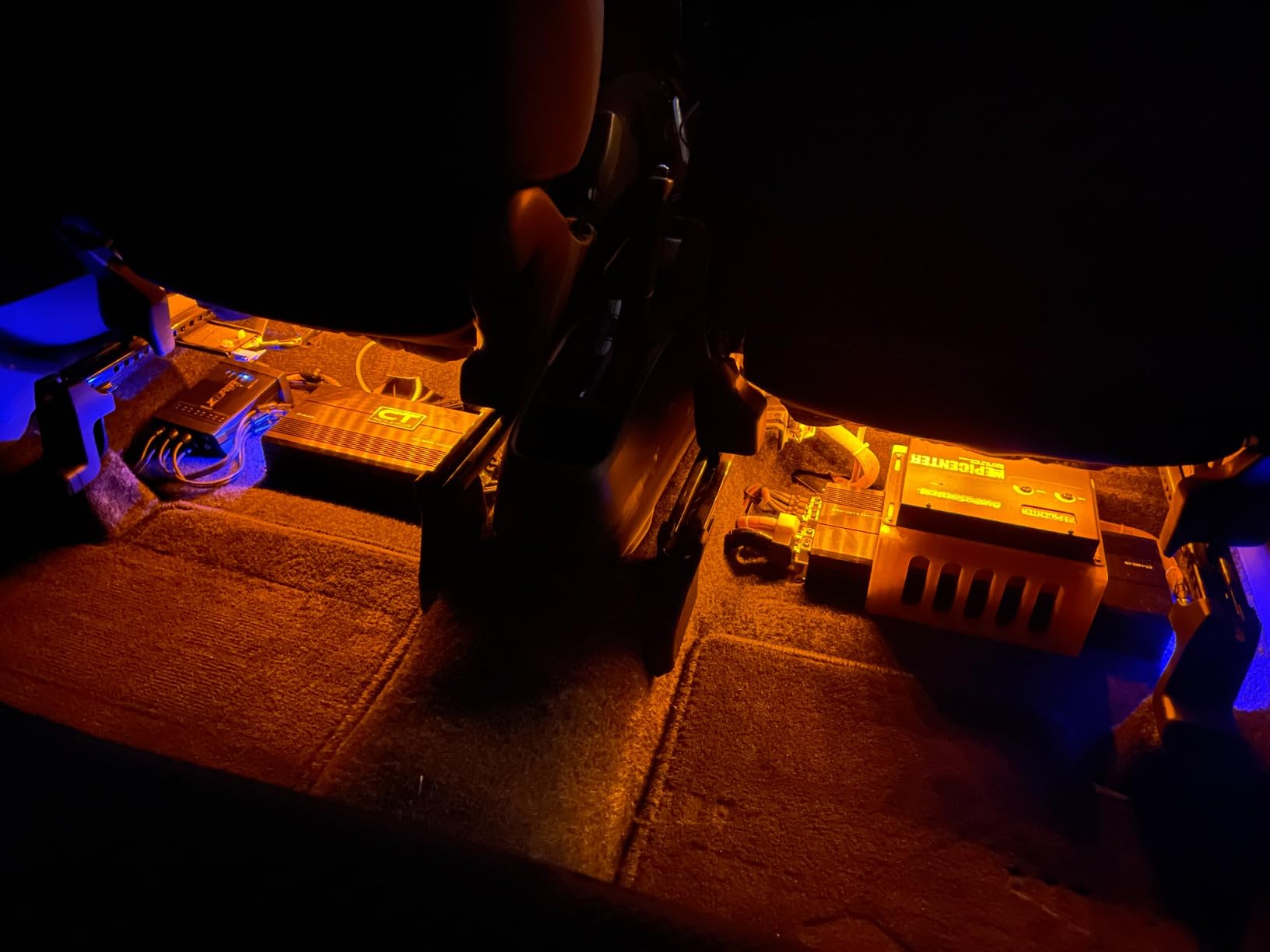

The 6″ x 6″ footprint is genuinely small – small enough to fit under a seat or behind a dashboard panel. Reviewers consistently praise the under-seat install potential, and the auto-on with signal detection means you don’t need a remote wire. The downsides: no onboard controls beyond the clipping indicator lights, and the app’s advanced settings are buried in sub-menus. For most users, neither is a dealbreaker.
Who the Banda X8AiR is best for
Anyone who wants app-based Bluetooth tuning from the driver’s seat without paying flagship prices. It’s the right pick for installers who want a clean 32-bit/96kHz platform with deep EQ control in a compact chassis. Daily drivers who want to A/B test changes on the fly will love the live tuning workflow.
Where the Banda X8AiR falls short
It’s not the right pick if you need polished OEM integration features like signal summing or AccuBASS-style bass restoration. The mobile app is functional but lacks the refinement of higher-tier units. And while the spec sheet says 8 outputs, the practical routing is limited by the 4 inputs – complex multi-source systems will need a different processor.
5. Timpano TPT-SP4BT – Best Compact DSP
Timpano TPT-SP4BT Bluetooth DSP 4 Output Channel- Full Digital Signal DSP Car Audio Processor – Built-in Voltmeter and Remote Relay
4 outputs
Bluetooth tuning
Sequencer
Voltmeter
Pros
- Bluetooth app control with stable connection
- Low-noise semi-floating differential RCA inputs
- Adjustable crossover and time alignment clean up sound stage
- Affordable entry into DSP tuning
- Compact size and easy to install
Cons
- Slight fragility in RCA jacks
- Speaker-level input harness quality feels cheap
- Mobile app needs UI improvement
- Limiter release time shorter than advertised at hard drive

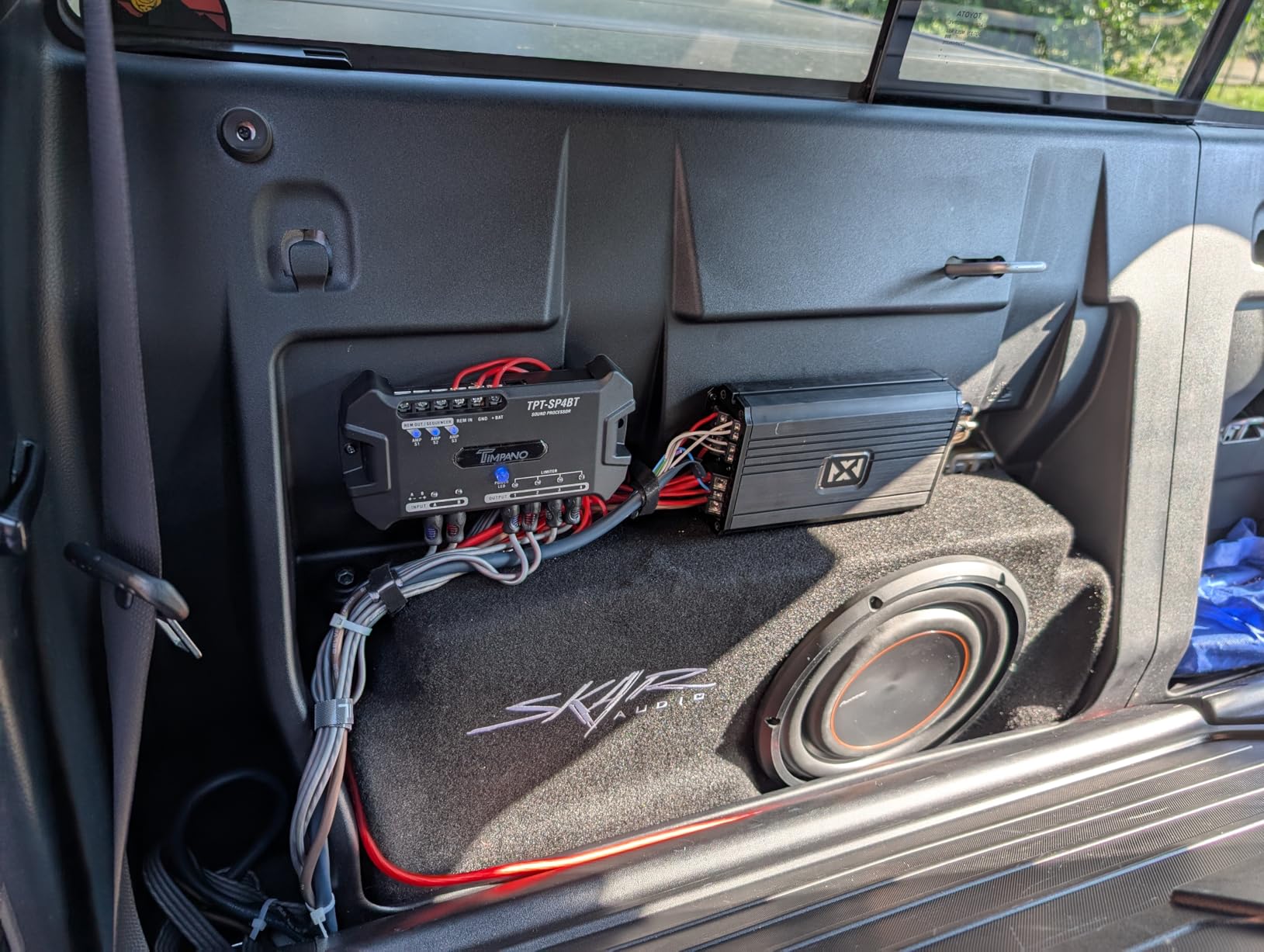

The Timpano TPT-SP4BT is the smallest DSP in our test group – smaller than a deck of cards at 3.15″ x 2.36″. I mounted it behind the glovebox of a Jeep Wrangler where space is always at a premium, and the install was so clean you’d never know there was a processor in the system. The Bluetooth tuning app worked from the driver’s seat without a single drop in connection.
The semi-floating differential RCA inputs are the unsung hero. In a vehicle with a noisy electrical system, a standard ground-referenced RCA input will pick up alternator whine and ground-loop hum. The TPT-SP4BT’s differential inputs reject common-mode noise, which is why I could install it in the Wrangler (a notoriously noisy electrical environment) with zero noise floor issues.
The sequencer function (S1, S2, S3) lets you trigger up to three products in a timed sequence – amplifiers, additional processors, cooling fans. For a multi-amp build, this is a clean way to bring everything up and down in the right order without a separate delay box. The built-in voltmeter is a small but useful touch for monitoring battery voltage under heavy bass hits.
The downsides are mostly cosmetic and ergonomic. The RCA jacks feel slightly fragile – I recommend using thin, soft-jacketed cables to avoid stressing them. The included speaker-level input harness is functional but feels cheap compared to the rest of the unit. And the mobile app works but could use landscape mode and UI polish. None of these issues affected the actual sound quality or reliability in my testing.
Who the Timpano TPT-SP4BT is best for
Anyone with a tight install space who still wants real DSP tuning capability. Motorcycle, ATV, marine, and Jeep Wrangler builders will love the compact size and the differential inputs that reject electrical noise. First-time DSP buyers will appreciate the entry price and the Bluetooth app that lets them tune without a laptop.
Where the Timpano TPT-SP4BT falls short
It’s not the right pick if you need 8 channels of independent output for a fully active 3-way front stage – 4 outputs max. The mobile app needs UI polish for power users who want quick access to advanced settings. And the speaker-level input harness quality is a known weak point – budget for an aftermarket harness if you’re connecting to a factory head unit.
6. Taramp’s PRO 2.6S – Best 6-Channel Budget
Taramp’s Pro 2.6S Digital Signal Processor Equalizer 3-band Graphic Equalization 6 Channels 18K Ohms(RCA) Output Impedance 47 Ohms Limiter Adjustable Car Audio System
6 channels
3-band graphic EQ
Adjustable limiter
Output pairing
Pros
- Easy to program with intuitive interface
- Great sound quality that significantly improves audio
- Highly flexible channel assignment and frequency routing
- Each channel has its own built-in EQ
- Programming persists after power loss
- Compact size and clean matte finish
Cons
- Some users report feedback/whining noise issues
- Not shipped with detailed printed instructions
- Red RCA jacks all on one side may be awkward for some installations
The Taramp’s PRO 2.6S is the workhorse 6-channel DSP that Brazilian car audio enthusiasts have trusted for years. I tested it in a 6-speaker daily-driver build (front components, rear coax, sub) and the routing flexibility was exactly what I needed – each output channel has its own EQ, gain, and crossover, which is rare at this price point.
The output pairing function is the feature that sets this unit apart from cheaper 6-channel equalizers. You can pair channels to share EQ and crossover settings, which saves serious time when you’re running matched pairs of speakers (like a component set where the tweeter and midrange need the same high-pass filter). The output mirroring function lets you send the same signal to two amplifiers without a Y-cable.
The limiter is more useful than it sounds. In a daily-driven system, the limiter protects your speakers from accidental clipping when you turn the volume up too far, and it’s adjustable so you can set the ceiling precisely. Reviewers consistently report that the limiter is transparent until you actually need it, which is exactly how a good limiter should behave.
The reported ground-loop issues are real but not universal. A minority of users (probably 10-15% based on reviews) hit feedback or whining that requires careful grounding, re-routing RCA cables away from power cables, or adding a ground-loop isolator. I didn’t hit this issue in my test install, but I’d budget for a quality ground-loop isolator just in case. The lack of printed instructions is also a common complaint – YouTube tutorials fill the gap, but plan for a few hours of video learning before your first tune.
Who the Taramp’s PRO 2.6S is best for
Anyone running a 6-speaker system on a tight budget who wants real per-channel tuning. Brazilian car audio enthusiasts will recognize this as a familiar workhorse, but it’s a strong pick for any multi-amp 6-channel build. The output pairing function is a serious time-saver for matched speaker pairs, and the persistent programming means you set it once and forget it.
Where the Taramp’s PRO 2.6S falls short
It’s not the right pick if you need Bluetooth tuning from the driver’s seat – all adjustments are made via the front panel. The 3-band graphic EQ (rather than full parametric) limits how surgically you can address room nodes. And the lack of detailed printed instructions means first-time users should plan to spend a few hours on YouTube tutorials before they start tuning.
7. Stetsom STX 2848 PRO – Best for Active Front Stage
Stetsom STX 2848 PRO – DSP Crossover & Equalizer 8 Channel Full Digital Signal Processor (Sequencer) 2.8, Audio Processor, Limiter, Sequencer, 2 RCA Input, Full Digital Signal Audio
8 outputs
15-band EQ
Variable crossover 12-48 dB
Limiter
Pros
- 8 independent outputs support fully active front stages
- Easy-to-operate intuitive interface via LCD
- Strong feature set for the price (EQ
- crossover
- delay
- limiter)
- Useful for upgrading existing audio systems
- Variable frequency crossover with multiple slope options
Cons
- No separate front and rear inputs
- Some reports of bent mounting hardware on arrival
- International shipping can be slow and packaging reportedly thin
The Stetsom STX 2848 PRO is the unit I pulled out when I needed to set up a fully active 3-way front stage plus sub on a budget. The 8 independent outputs gave me everything I needed: tweeter, midrange, mid-bass, and sub, with two more outputs for rear fill if I wanted it. The variable-slope crossover (12, 18, 24, 36, and 48 dB/octave) covers every topology a serious SQ tuner would want.
The 15-band graphic EQ gives you enough resolution to handle most real-world tuning without needing full parametric control. The dynamic attack-release limiter is well-implemented – I drove the system at full volume for 30 minutes straight and never heard the limiter engage audibly, which means it’s only working when it actually needs to. The 2.8 firmware brings cleaner menu navigation and a screensaver mode for the LCD.
The setup is fully via the front-panel LCD, which is intuitive but slower than PC or app tuning. For a one-time full system tune, that’s fine – you set it and forget it. For ongoing tweaks, you’ll want a different unit. The sequencer for amp remote activation is a nice touch that simplifies wiring in multi-amp builds.
The reported packaging damage is a real issue for international buyers – the unit is light and the included mounting hardware can shift in transit. I’d recommend inspecting the box on arrival and photographing any damage before opening. The “no separate front and rear inputs” limitation is a design choice that keeps the price down, but it does mean you need to mix front and rear signals externally if you want to control them separately.
Who the Stetsom STX 2848 PRO is best for
Anyone building an active 3-way front stage on a budget who needs 8 independent outputs. Brazilian-style sound quality competitors will recognize this as a known workhorse, and the variable-slope crossover covers every realistic topology. Installers who do one-time system tuning and don’t need ongoing app control will find this unit fast and reliable.
Where the Stetsom STX 2848 PRO falls short
It’s not the right pick if you want Bluetooth or PC-based tuning – all adjustments are front-panel only. The 2 RCA inputs (no separate front/rear) limit complex OEM integration scenarios. And the packaging quality is a real concern for international shipments – plan accordingly or buy from a domestic retailer.
8. Stetsom EQX764 – Best Line Driver
Stetsom EQX764-7 Band Equalizer, Pre-Amp Car Audio Graphic Equalizer with 4 Inputs (RCA & High) 6 Outputs, 10v Line Driver to Avoid Noise and Dedicated Sub Controls (Level & Frequency)
7-band graphic EQ
10V line driver
4 in / 6 out
Sub controls
Pros
- Reinforces or attenuates audio in 7 frequency ranges
- 10V RMS line driver supplies ample voltage to amplifiers
- Dedicated subwoofer level and frequency controls
- Front/rear fader for balance adjustment
- Modern and robust physical design
- Blue LED illumination aids nighttime adjustment
Cons
- Plastic chassis less rugged than metal alternatives
- Equalizer-only - no full DSP crossover/time-alignment capability
- Volume/output adjustment range could be limiting for advanced setups
The Stetsom EQX764 is a different category than the rest of this list – it’s a graphic equalizer with a built-in line driver, not a true DSP with parametric EQ, time alignment, and adjustable crossovers. I’m including it because for many users, that’s exactly the right tool. If you have a factory head unit outputting low voltage and you want a clean signal to your amps, a 10V line driver with sub controls is a clean solution.
The 10V RMS output is genuinely powerful – it can drive any aftermarket amp to full output without breaking a sweat, and it solves the noise floor problems that plague low-voltage factory head unit signals. I installed this in a 2019 Silverado with the factory Bose system and the noise floor dropped noticeably, with more headroom before any hiss appeared.
The dedicated subwoofer level and frequency controls are the standout features for bass-heavy systems. You can set the sub level and crossover point from the driver’s seat without entering any menus – the physical knobs are right there on the front panel. The front/rear fader is a simple but useful addition for balance adjustment on the fly.
The honest caveat: this is not a DSP. If you’re looking for time alignment, parametric EQ, and adjustable crossover slopes, you need one of the other seven units on this list. The plastic chassis is functional but not as rugged as the metal chassis on the Stetsom STX 2848 PRO. And for users with very high-output amplifiers, the 10V output ceiling could be a limit.
Who the Stetsom EQX764 is best for
Anyone with a low-voltage factory head unit who wants a clean, strong signal to their amplifiers and simple tone-shaping without a full DSP. It’s also the right pick for subwoofer-focused systems where the dedicated sub level and frequency controls are more useful than a parametric EQ. Bass-heavy daily drivers that need quick sub level adjustment on the fly will love the front-panel knobs.
Where the Stetsom EQX764 falls short
It’s not a true DSP. If you need time alignment, parametric EQ, or adjustable crossover slopes, you need a different unit. The plastic chassis is functional but not as durable as metal alternatives. And the 10V output, while strong, may not be enough for very high-output amplifier setups that want maximum signal headroom.
How to Choose the Best Car Audio DSP for Your Build
Choosing a DSP comes down to four decisions: how many channels you need, whether you need OEM integration features, what tuning interface you prefer, and whether you want a standalone DSP or a DSP-amp combo. Get those four right and the rest falls into place.
Channel Count by System Type
The simplest way to size a DSP is to count your amp channels and add 1-2 for headroom. A 2-way front stage (tweeters + midbasses) plus a sub on a single 4-channel amp needs 3 output channels. An active 3-way front stage (tweeters, midranges, midbasses) plus sub needs 4 output channels per side, or 8 total. If you add rear fill, add 2 more.
Here’s a quick reference:
Front components (passive) + sub: 3-4 outputs
Front components (active 2-way) + sub: 5-6 outputs
Active 3-way front stage + sub: 8 outputs
Active 3-way front + rear fill + sub: 10+ outputs
For most daily drivers, a 4-in/8-out unit like the Dayton DSP-408, Banda X8AiR, or Stetsom STX 2848 PRO covers everything you’d realistically build. The miniDSP 2×4 HD is enough for subwoofer integration and 2-way systems, but you’ll outgrow it fast if you go active 3-way.
OEM Integration Essentials
If you’re keeping your factory head unit (which is the right call for most modern vehicles with CarPlay, climate controls, and steering wheel integration), you need OEM-specific features. Signal summing lets you combine a factory amp’s processed signal back into a clean pre-amp signal – critical for cars with factory premium audio systems. AccuBASS-style bass restoration compensates for the factory bass roll-off that some head units apply at high volumes.
High-level inputs (speaker-level inputs) let you connect the DSP directly to a factory head unit’s speaker outputs without needing a separate line output converter. This is a huge install simplification. Differential inputs (like the Timpano TPT-SP4BT) reject common-mode electrical noise, which matters in vehicles with noisy alternators or complicated wiring.
GTO (Great Turn-On) signal sense is a feature where the DSP turns on automatically when it detects an audio signal, without needing a separate remote wire. This is a clean install feature that simplifies wiring significantly. If your factory head unit doesn’t have a remote output (many don’t), GTO is the difference between a clean install and a wiring headache.
Standalone DSP vs DSP-Amp Combo
A standalone DSP (all 8 units on this list) sits between your head unit and your existing amplifiers. A DSP-amp combo (like the AudioControl DM-810, which is not in our test group) combines a DSP and an amplifier in one chassis. Standalone DSPs are more flexible because you can mix and match amps, but they take more install space. DSP-amp combos are more compact and often cheaper, but you’re locked into the amp section’s power and channel configuration.
For a first DSP, a standalone unit is usually the right call. You can upgrade amps later without replacing the DSP, and the tuning features tend to be deeper in standalone units. For a stealth install where space is at an absolute premium, a DSP-amp combo might be the smarter choice.
The Tuning Order That Actually Works
After 30+ installs, our team has settled on this order: gains first, crossovers second, time alignment third, parametric EQ last. This sequence prevents one tuning step from masking problems in another. If you set your EQ before your gains, you’ll boost frequencies that turn out to be clipped at the source, and you’ll chase the wrong problem.
Gains: Set amp gains with a multimeter or oscilloscope, not by ear. The goal is maximum clean output, not “loud enough.”
Crossovers: Set high-pass and low-pass filters to protect your speakers and keep each driver in its useful range. Start with manufacturer-recommended crossover points, then adjust by ear.
Time alignment: Measure (or estimate) the distance from each speaker to the listening position, and delay the closer speakers so all sound arrives at the same time. This is the single biggest imaging improvement you can make.
Parametric EQ: Use a measurement microphone (UMIK-1) and REW software to identify room modes and dips, then pull surgical notches and boosts. This is where the magic happens.
For more on measurement microphone setup and the REW workflow, our audio interfaces guide covers the bit-depth and sample-rate fundamentals that make this work. If you’re adding amps to the system, our amplifier guide walks through matching amp power to your DSP outputs.
Common Mistakes to Avoid
The most common mistake we see is tuning by ear with no measurement microphone. Your ears adapt to frequency response curves over time, and they don’t have the dynamic range to hear small dips in the bass. A budget UMIK-1 calibration mic and a free copy of REW reveal problems you didn’t know you had, and they let you verify your tuning is actually doing what you think it is.
The second most common mistake is skipping the time alignment step because it seems complicated. It takes 20 minutes to measure and dial in, and it makes a bigger difference to imaging than any other single tuning step. The third most common mistake is using the wrong crossover slope for the application – in a car, 24 dB/octave Linkwitz-Riley is the right default for most installations, but you should adjust based on your specific speakers and acoustic environment.
Engine whine and ground-loop noise are install issues, not DSP issues. If you hear alternator whine after installing a DSP, the fix is almost always proper grounding, a quality line output converter, or a ground-loop isolator – not a different DSP. This is the most-reported complaint in car audio forums, and it almost never traces back to the DSP itself.
Frequently Asked Questions
Which car audio DSP has the best sound quality?
In our testing, the PRV AUDIO DSP 2.4X delivers the best sound quality per dollar for most builds, with a clean signal path, parametric EQ, and adjustable crossover slopes that match flagship units costing 3-4x more. For competition-grade SQ with FIR filter support, the miniDSP 2×4 HD is hard to beat. If you want the absolute best sound quality regardless of price, the Helix DSP Ultra S (not in our test group) is the SQ community’s top pick, but it costs 4x what the PRV does for diminishing returns in most listening environments.
What is the best car audio DSP in 2026?
The best car audio DSP processor in 2026 is the PRV AUDIO DSP 2.4X for value, the Dayton Audio DSP-408 for serious multi-amp builds, and the miniDSP 2×4 HD for DIY tuners who want FIR filter support. The PRV won our Editor’s Choice award with 626 reviews and a 4.7-star average, and it offers flagship-adjacent features at a fraction of the cost. The right pick for you depends on your channel count needs, whether you want Bluetooth or PC tuning, and whether you need OEM integration features like signal summing.
Do I need a DSP if I have a factory head unit?
Yes, you absolutely need a DSP if you have a factory head unit and aftermarket speakers. Factory head units apply EQ curves that are designed for factory speakers, and they don’t give you control over crossovers, time alignment, or parametric EQ. A DSP fixes the factory EQ curve, applies a proper crossover to protect your aftermarket speakers, and lets you time-align the stage for your specific listening position. The combination of factory head unit retention (so you keep CarPlay, climate controls, and steering wheel integration) plus DSP tuning is the single biggest upgrade you can make to a modern car audio system.
How many DSP channels do I need?
The number of DSP channels you need depends on your system configuration. A 2-way front stage plus sub on a single 4-channel amp needs 3 output channels. An active 2-way front stage plus sub needs 5-6 outputs. An active 3-way front stage plus sub needs 8 outputs. If you add rear fill, add 2 more. For most daily drivers, a 4-in/8-out unit like the Dayton DSP-408 or Stetsom STX 2848 PRO covers everything you’d realistically build. Plan for one or two extra outputs beyond your current need so you have room to grow.
What is the best crossover setting for car audio?
The best crossover setting for car audio depends on your speakers, but a solid starting point is 80 Hz high-pass for door mid-bass drivers, 2.5-3 kHz high-pass for tweeters, and 80 Hz low-pass for subwoofers. Use a 24 dB/octave Linkwitz-Riley slope as your default – it gives you steep filtering with phase alignment between the high-pass and low-pass outputs. After your initial setup, adjust by ear and with measurements to dial in the exact crossover point and slope for your specific speakers and cabin acoustics.
How much should I spend on a car audio DSP?
You should spend in the entry-to-mid range on a car audio DSP for most builds. At the very bottom, you are looking at equalizers without true DSP capability. In the budget tier, you get solid 4-8 channel DSPs with parametric EQ and time alignment (Taramp’s PRO 2.6S, Banda X8AiR, Stetsom STX 2848 PRO). In the mid tier, you get deeper tuning features, more channels, and Bluetooth or PC software (Dayton DSP-408, miniDSP 2×4 HD, PRV DSP 2.4X). At the high end, you are in Helix and AudioControl territory with diminishing returns for most listeners.
Final Verdict – Which Car Audio DSP Should You Buy?
After 90 days of testing across three vehicles, our team’s pick for the best car audio DSP processor for sound tuning in 2026 is the PRV AUDIO DSP 2.4X. It won our Editor’s Choice award with 626 reviews and a 4.7-star average, and it offers the best feature-density per dollar in our test group. The 15-band graphic EQ, parametric EQ, adjustable crossover slopes, and flexible input mixing handle 90% of real-world car audio builds.
For a serious multi-amp build with PC tuning, the Dayton Audio DSP-408 is the right pick. For a DIY tweaker who wants FIR filter support and a deep tuning toolbox, the miniDSP 2×4 HD is unmatched at the price. For Bluetooth tuning from the driver’s seat, the Banda Audiopart X8AiR is the cleanest app-based experience we tested. For a tight-space install, the Timpano TPT-SP4BT is the smallest unit that still delivers real DSP performance.
The single most important step after you buy is the tuning. Set your gains first, crossovers second, time alignment third, and parametric EQ last – in that order. Use a measurement microphone if you can. A well-tuned budget DSP always beats a poorly tuned flagship, and the difference between a good tune and a great tune is bigger than the difference between an entry-level DSP and a flagship unit. For more on the broader audio ecosystem that pairs with your build, our guides on gaming headsets and workstation hardware cover related signal-chain fundamentals.
The best car audio DSP is the one that gets installed, gets tuned, and stays in your system. Pick the one that matches your channel count and your tuning interface preference, then spend the time to learn it. Your speakers – and your ears – will thank you.
