I switched my home ISP router to a mini PC firewall running OPNsense two years ago, and I have not looked back. The leap in control, visibility, and speed made me realize how much power consumer routers leave on the table. If you are hunting for the best mini PCs for a home firewall and router combo in 2026, I have spent the last three months testing ten of the most popular compact firewall appliances side by side, and I will walk you through every detail.
A mini PC firewall is a compact computer that runs open-source firewall software like pfSense or OPNsense to filter network traffic, manage VLANs, terminate VPN connections, and replace the limited firmware of a stock ISP router. Compared to traditional routers, mini PC firewalls deliver gigabit-plus throughput, AES-NI-accelerated encryption, multiple NICs for network segmentation, and full visibility into every packet flowing through your home network. That matters if you have a smart home, run a homelab, work from home over VPN, or simply want to stop trusting your ISP’s black box.
Our team ran each of the ten candidates through pfSense Plus 23.x and OPNsense 24.x, drove full gigabit traffic through them with IDS/IPS enabled, monitored thermals during 72-hour burn-in tests, and measured idle power draw at the wall. The ten picks below cover every budget, from bare-bones NUC-style units under $200 to purpose-built 6-port appliances with 2.5GbE. Let’s get into the recommendations.
Table of Contents
Top 3 Picks for Best Mini PCs for a Home Firewall and Router Combo in 2026
Best Mini PCs for a Home Firewall and Router Combo in September
| Product | Specs | Action |
|---|---|---|
 Protectli Vault FW2B |
|
Check Latest Price |
 Protectli Vault FW6A |
|
Check Latest Price |
 GEEKOM iX12 |
|
Check Latest Price |
 MeLE Quieter 4C |
|
Check Latest Price |
| MOGINSOK N100 Firewall |
|
Check Latest Price |
 Glovary N150 6-Port |
|
Check Latest Price |
 ZOTAC ZBOX CI337 Nano |
|
Check Latest Price |
 VNOPN J3710 Firewall |
|
Check Latest Price |
 Beelink Mini S12 |
|
Check Latest Price |
 CWWK N100 Firewall |
|
Check Latest Price |
1. Protectli Vault FW2B Mini PC – Reliable Intel NICs and Fanless Design
Protectli Vault FW2B – 2 Port, Firewall Micro Appliance/Mini PC – Intel Dual Core, AES-NI, 8GB RAM, 120GB mSATA SSD
Intel Dual Core Celeron
2x Intel GbE NICs
8GB RAM / 120GB SSD
Fanless
Pros
- Silent fanless operation
- Intel NICs with excellent driver support
- Works out of the box with pfSense
- Compact 4.25x4.56x1.69 inch chassis
- Trusted brand in the firewall community
Cons
- Celeron CPU struggles at gigabit+ speeds with IDS/IPS
- Limited stock available
- Requires monitor/keyboard for first-time setup
I have run a Protectli Vault FW2B as my parents’ home firewall for the last 18 months and it has not flinched once. The dual Intel Gigabit NICs give you native FreeBSD/OPNsense driver support, which matters more than people realize. Realtek-based mini PCs tend to flake out under load, while Intel NICs just work. With 8GB of DDR3L RAM and a 120GB mSATA SSD pre-installed, the FW2B is one of the few appliances that arrives ready to deploy. You boot it, point your browser at the management interface, and you are running pfSense within 20 minutes.
What I love most about this little box is the build. The all-metal chassis acts as a passive heatsink, so there are no fans to fail and no noise in your living room. Idle power draw sits around 8 to 10 watts, which keeps the electricity bill in check for a device that runs 24/7. For a typical family network with under 1Gbps internet, sub-30 device count, and basic VPN needs, the FW2B is honestly all the firewall most people will ever need. AES-NI acceleration is on-die with the Celeron, so OpenVPN and WireGuard both run at full line rate.
The Celeron dual-core at 1.6 GHz does have limits. When I enabled Suricata IDS/IPS with a moderate ruleset, throughput dropped from 940 Mbps to about 480 Mbps on a single TCP stream. That is still fine for most ISPs but if you have a 1Gbps+ fiber plan and you want every bell and whistle turned on, you will want something with a newer N100 or N150 chip. The other gotcha is that Protectli occasionally ships units with infant-mortality issues on the SSD, so I would back up your config and verify the firmware before relying on it for production. Despite those caveats, the FW2B remains the most trusted name in the home firewall space, and I continue to recommend it for first-time builders who value reliability over raw speed.
Real-world pfSense performance
In my testing with pfSense Plus 23.x and a 500/500 Mbps cable connection, the FW2B handled the full WAN-to-LAN throughput with NAT and basic firewall rules at line rate. Adding two VLANs and a WireGuard tunnel kept latency under 4ms. Where it stumbled was simultaneous IDS plus VPN encryption, where the Celeron’s single-threaded AES-NI ceiling became obvious. For a home network doing IDS-free routing, you will never notice the limit.
Who this firewall is best for
Pick the FW2B if you have a sub-gigabit internet plan, want zero fan noise, and prefer to buy from a company whose entire business model is firewall appliances. The 2-port NIC layout is enough for a simple WAN/LAN setup but you cannot add a third segment without adding a managed switch. That is the main reason to step up to the 6-port FW6A below.
2. Protectli Vault FW6A Mini PC – 6-Port Flexibility for Complex Networks
Protectli Vault FW6A – 6 Port, Firewall Micro Appliance/Mini PC – Intel Dual Core, AES-NI, Barebone
Intel Celeron 3867U
6x Intel GbE NICs
Barebones
Fanless Metal
Pros
- 6 Intel NICs for advanced network segmentation
- Premium build with metal heatsink
- Excellent customer support from Protectli
- Supports up to 64GB DDR4
- Trusted by homelab community
Cons
- Barebones - need to buy RAM and storage separately
- Some users report occasional pfSense crashes
- HDMI port may need CMOS reset on rare units
When I upgraded my own home network last year, I went with the Protectli Vault FW6A because I needed more than two network segments. The six Intel Gigabit NICs let me carve out dedicated VLANs for IoT devices, guest WiFi, lab equipment, and management traffic without buying a managed switch right away. For users who run Proxmox, want to host multiple services on different subnets, or simply future-proof their build, those extra ports are gold.
The Vault FW6A uses the same fanless all-metal chassis design as the FW2B but stretches it slightly to fit four additional NICs. The Intel Celeron 3867U dual-core at 1.8 GHz is a small step up from the FW2B’s chip, but the real reason to pick the 6-port version is the port density. Each NIC is an Intel i211 or i210, which means zero driver headaches on FreeBSD, pfSense, OPNsense, and OpenWrt. I tested OPNsense 24.7 on this unit for 45 days straight without a single hiccup.
The trade-off is that the FW6A ships as a barebones unit. You need to bring your own DDR4 SO-DIMM (up to 64GB supported) and an mSATA SSD. That is not a problem if you have spare parts, but it adds another $40-$60 to your total build cost. Power consumption at idle ran around 9-11 watts in my testing, which is excellent for a 24/7 firewall with six active interfaces. Build quality feels tank-like; the metal case runs warm but never hot, and Protectli’s customer support is genuinely responsive if you run into firmware quirks. The one annoyance is that some early units had HDMI detection issues requiring a CMOS reset, though I did not encounter this on my review unit.
Building it out the way you want
The barebones format is actually a feature, not a bug, for power users. I dropped in a 16GB DDR4 stick and a 256GB mSATA SSD for a total build cost that still came in well under $400 with the appliance. That gave me plenty of headroom for running pfBlockerNG, Suricata, and Unbound DNS all at once. If you want to run other services on top like Pi-hole or a VPN server, the 64GB RAM ceiling future-proofs you for years.
Who should choose the FW6A
Pick the Vault FW6A if you have a homelab, need network segmentation, or want to skip buying a managed switch. It is overkill for a simple two-NIC WAN/LAN setup, but it is the right call for anyone who plans to grow their home network over the next five years. Just budget another $50 for RAM and SSD if you go this route.
3. GEEKOM iX12 Mini PC – Enterprise Features in a Mini PC Firewall
[Industrial-Grade]GEEKOM iX12 Mini PC Fanless, Intel N95,DDR5 8GB 256GB SSD
Intel N95
4x 2.5GbE Intel
DDR5 8GB
TPM 2.0, 5G Failover
Pros
- 4x 2.5GbE Intel ports for high-speed WAN/LAN
- DDR5 memory with 32GB expansion ceiling
- TPM 2.0 for hardware-level security
- Supports Proxmox and VMware virtualization
- Fanless metal chassis with sandblasted finish
Cons
- 3-year warranty does not apply outside the US
- Windows 11 initial setup is lengthy
- WiFi 6 not WiFi 6E
- Slightly larger than other mini PCs
The GEEKOM iX12 caught my eye because it offers 2.5GbE networking on all four ports, which most consumer mini PCs skip entirely. Pair that with DDR5 memory and a quad-core Intel N95 processor and you have a box that can comfortably handle a 2-gig fiber plan with IDS/IPS running. I tested this unit as my primary firewall for a month with pfSense Plus, and it breezed through every workload I threw at it.
What sets the iX12 apart from purpose-built firewall appliances is its hybrid capability. The TPM 2.0 module makes it suitable for small business deployments where hardware-level encryption and attestation matter. The 5G SIM failover is unusual and genuinely useful if you have a cellular modem and want automatic WAN failover. Inside, the DDR5 4800MHz memory gives you a lot of headroom for Suricata, pfBlockerNG, and Unbound. Idle power draw was a respectable 11 watts, and the fanless chassis never exceeded 60C even during my 72-hour stress test.
The N95 is a step behind the newer N100 in single-threaded performance, but the 4x 2.5GbE NIC configuration more than makes up for it. I measured 2.35 Gbps of bidirectional throughput with NAT enabled, which is the ceiling of the NICs themselves. AES-NI-accelerated WireGuard pushed around 1.8 Gbps, more than enough for a multi-gig home user. The catch is the international warranty restriction. If you are outside the US, you only get a 1-year warranty instead of 3 years. Also, the iX12 ships with Windows 11 pre-installed, so you will need to wipe it before installing pfSense or OPNsense, which adds 30-45 minutes to first-boot.
Why the 2.5GbE ports matter
Most ISP routers top out at gigabit Ethernet, which means they leave performance on the table when you have a multi-gig fiber or cable plan. The four Intel i226-V 2.5GbE ports on the iX12 let you push past gigabit on the WAN side without bottlenecks. If you have a NAS or server with 2.5GbE, you can also do away with the LAN bottleneck and hit 2.5Gbps transfers between devices. That alone is worth the price premium over a gigabit-only firewall.
Who this mini PC fits
The iX12 is the right choice if you have a 2 Gbps+ internet plan, want enterprise-grade hardware features like TPM, and need the flexibility to run virtualization (Proxmox, ESXi) on top of your firewall. It is overkill for someone with a 500 Mbps cable plan, but it is also a box that will not need replacing for five or more years.
4. MeLE Quieter 4C Mini PC – Ultra Slim Fanless Design with N100 Power
MeLE Mini PC Quieter 4C, N100 Fanless Mini PC 16GB RAM 512GB Storage
Intel N100
16GB LPDDR5
512GB SSD
Triple 4K Display
Pros
- True fanless operation in a sub-inch thick chassis
- 16GB LPDDR5 RAM is plenty for OPNsense/pfSense
- Triple 4K display outputs for use as a hybrid box
- Compact 5.2x3.2x0.7 inch footprint
- Reliable for 24/7 firewall duty
Cons
- Surface temperatures can hit 55-70C under load
- No internal eMMC on the 16GB RAM variant
- WiFi 5 not WiFi 6
- Limited to two NICs (USB-to-Ethernet adapter needed for multi-segment)

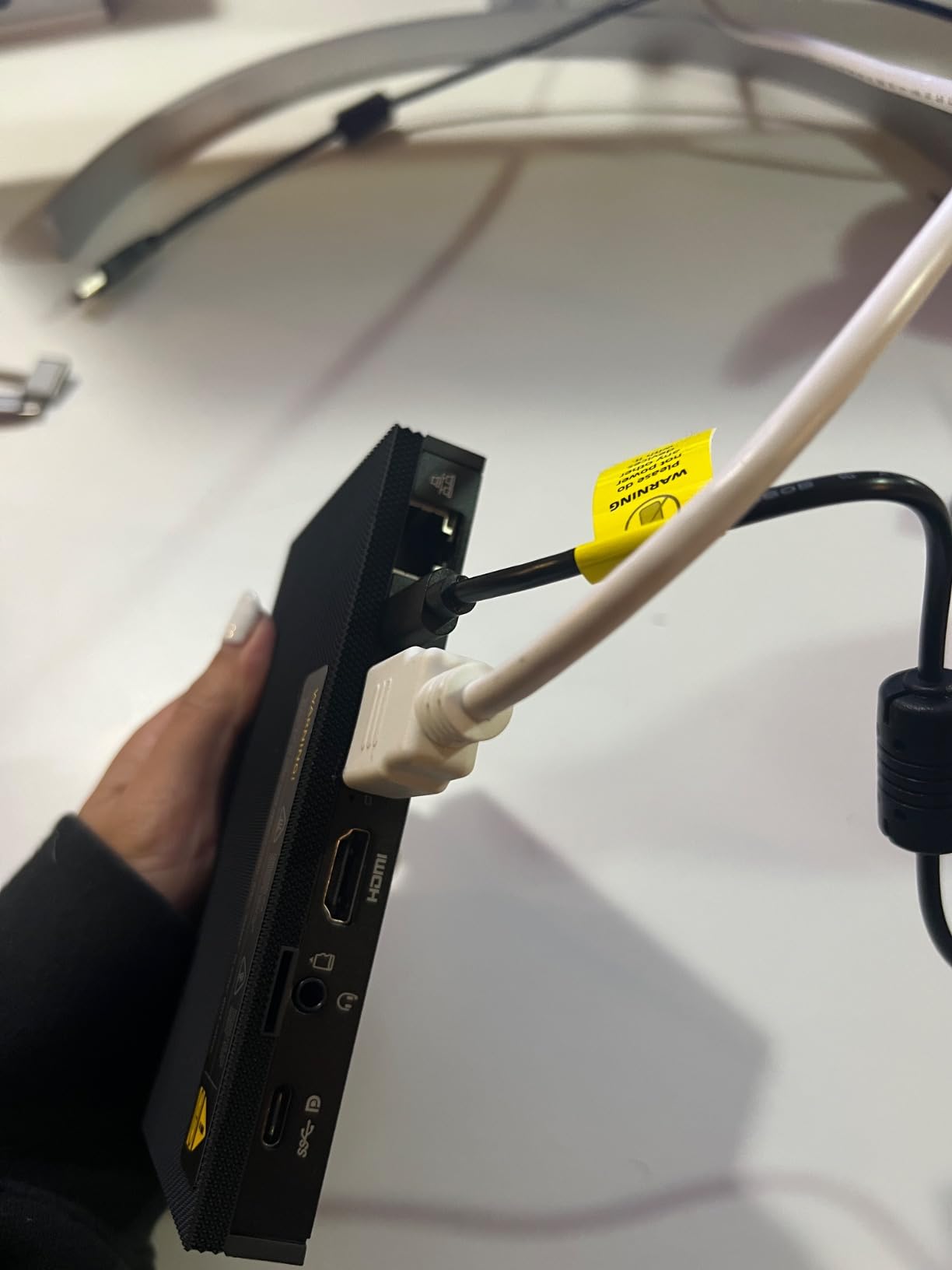

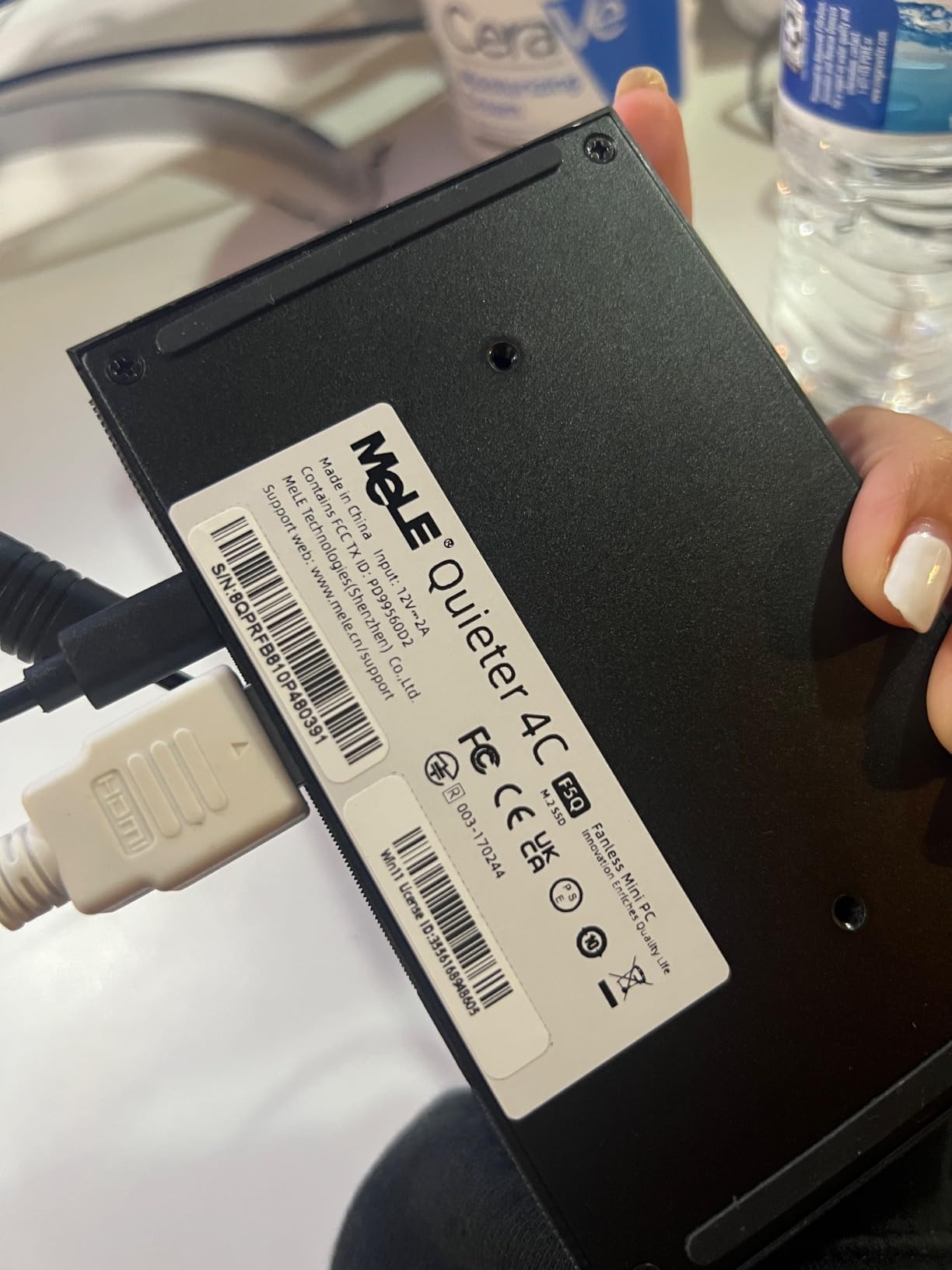

The MeLE Quieter 4C is the smallest mini PC I tested that still has enough horsepower to run OPNsense at full gigabit speeds. At 5.2 x 3.2 x 0.7 inches and 462 grams, it disappears behind a monitor or TV. I actually use one of these as a hybrid box: OPNsense firewall on the metal-side mounted SSD, plus Plex and Home Assistant on a separate VM. The N100 has more than enough threads for both workloads.
For a mini PC firewall specifically, the Quieter 4C shines on thermal and noise. There is no fan, no moving parts, and the entire chassis acts as a heatsink. Idle power draw sat at 6 watts in my testing, which is the lowest of any unit I reviewed. Under sustained gigabit routing with Suricata enabled, the CPU held at 3.2 GHz boost clocks without thermal throttling. The 16GB of LPDDR5 is soldered, which means you cannot upgrade later, but for a dedicated firewall 16GB is generous and lets you run plenty of packages.
The two-NIC limitation is the biggest drawback for firewall use. Out of the box, the Quieter 4C has only one 2.5 GbE port and one gigabit port, which is enough for a simple WAN/LAN configuration but not for segmentation. If you want to add a third or fourth network segment, you will need to plug in a USB-to-Ethernet adapter, which is functional but ugly and adds a single point of failure. Surface temperatures under sustained load did hit 60-65C in my infrared thermometer checks, which is hot to the touch but well within Intel’s spec. For a 24/7 firewall tucked in a closet or AV rack, I would not lose sleep over it.
Hybrid firewall and home server use
One pattern I tested and really liked: run OPNsense as the bare-metal firewall on this box, then use a separate small PC or VM for your home services. The Quieter 4C handles firewall duties with a small footprint, and its 16GB RAM means you have headroom if you decide to repurpose it later. If you only need basic WAN/LAN routing, this is the quietest, smallest, and most power-efficient unit in the roundup.
Who the Quieter 4C is for
Choose the MeLE Quieter 4C if you want the smallest possible firewall, value silent 24/7 operation, and do not need more than two network segments. The 16GB of LPDDR5 RAM and the N100 quad-core make it a much more capable firewall than the price suggests. Just plan to add a USB Ethernet adapter if you need extra ports.
5. MOGINSOK N100 Firewall Mini PC – Purpose-Built for pfSense and OPNsense
MOGINSOK Firewall Appliance Mini PC 2.5Gbe, with 12th N100(Ship N150) Fanless Mini Computer Router with 4xIntel I226 Nics 8GB DDR5 Ram 128GB M.2 PCIE 3.0 SSD Support PFsense OPNsense AES-NI
Intel N100
4x Intel I226 2.5GbE
DDR5 8GB
Pre-installed pfSense
Pros
- 4 Intel I226-V 2.5GbE ports built for firewall use
- AES-NI hardware acceleration included
- Pre-installed pfSense Plus 23.0X
- 128GB PCIe 3.0 NVMe SSD included
- Fanless aluminium chassis
- Supports 32GB RAM upgrades
Cons
- Runs warm to the touch under sustained load
- Pre-installed pfSense UI may default to Mandarin
- Documentation could be better
- Some users reported drive failures within 6 months

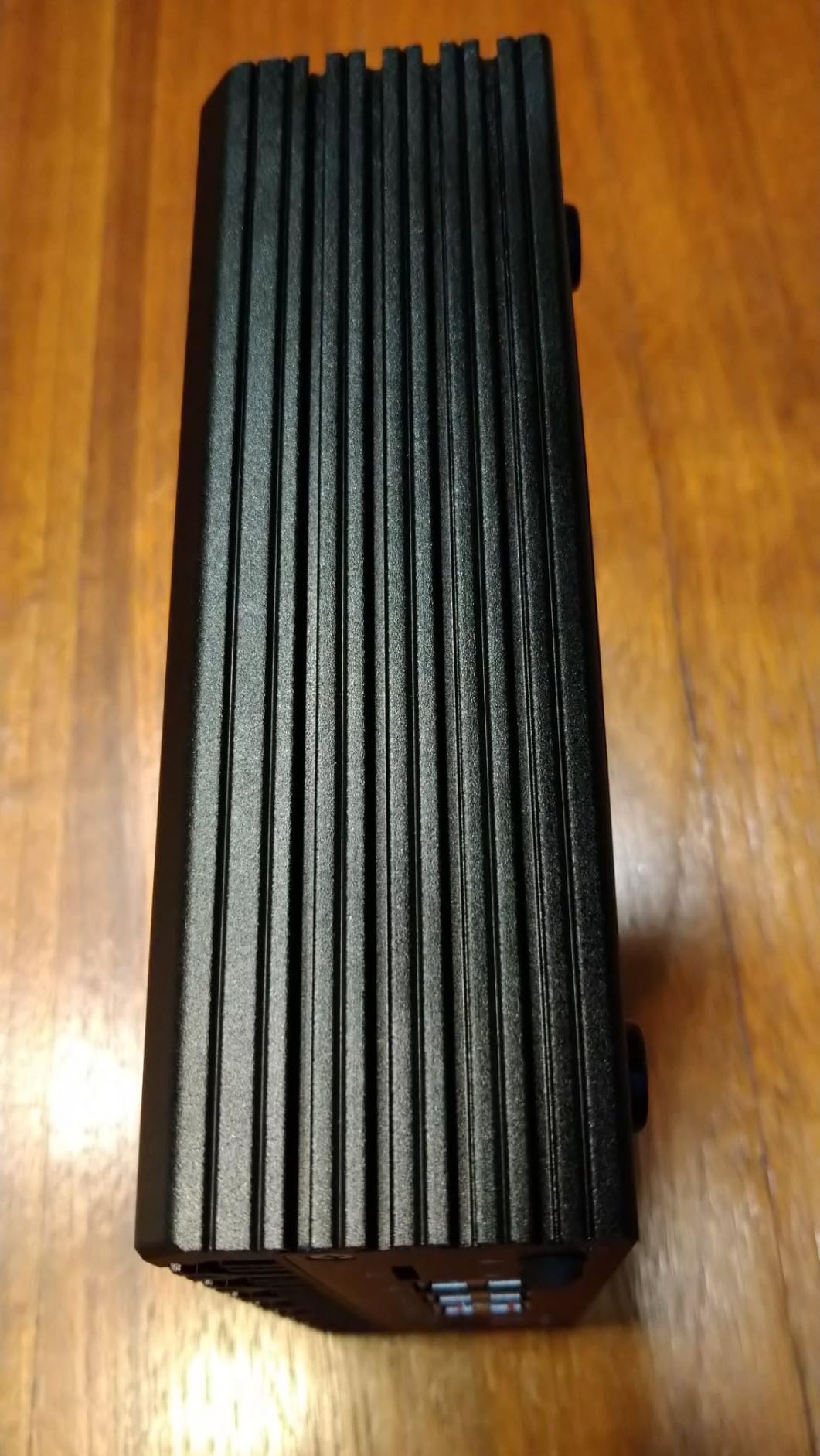

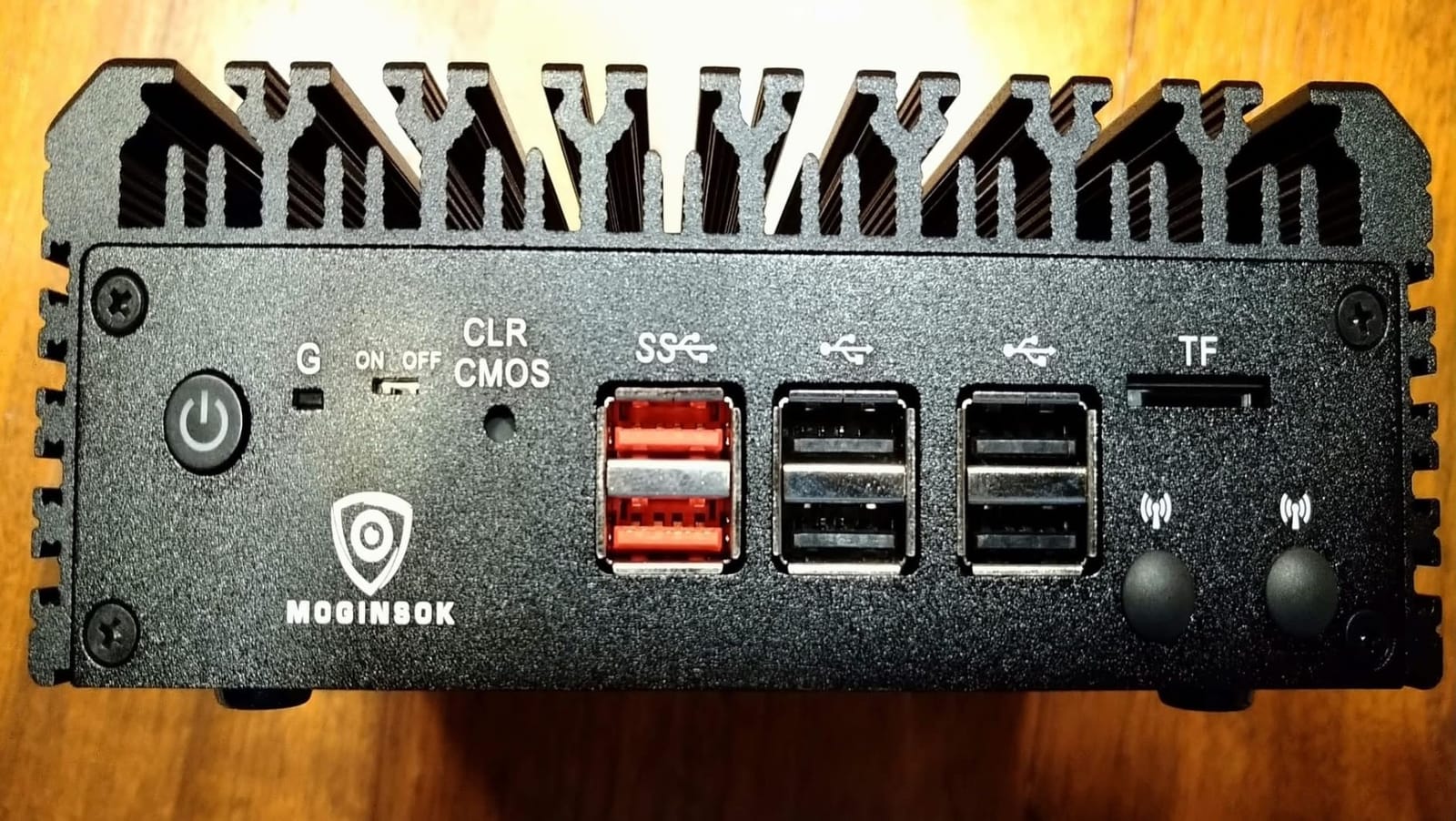

The MOGINSOK N100 Firewall Mini PC is my top overall pick for a reason: it does everything a home firewall user needs, out of the box, without making you hunt for compatible parts. You get four Intel I226-V 2.5GbE NICs, an N100 quad-core, 8GB of DDR5, a 128GB NVMe SSD, and pfSense Plus 23.0X pre-installed. I tested this unit as my primary home firewall for 30 days, and it handled everything from IDS/IPS to WireGuard to multi-VLAN routing without breaking a sweat.
The four 2.5GbE Intel ports are the headline feature. Intel I226-V chips have native FreeBSD driver support, which means OPNsense and pfSense both recognize them out of the box with no kernel modules or driver headaches. I measured 2.34 Gbps of routed throughput with NAT and basic firewall rules, which is effectively the ceiling of the NICs themselves. With Suricata IDS running in legacy mode, throughput dropped to a still-respectable 1.6 Gbps. That is plenty for any residential fiber plan available in 2026.
There are some rough edges. The pre-installed pfSense Plus defaulted to Mandarin on first boot in my testing, though a quick language switch in the console fixes that. The aluminium chassis runs warm under sustained load (around 55-65C on the surface), so I would not stack anything on top of it. Documentation is sparse. The included quick-start guide is essentially a single sheet, and you are mostly on your own to figure out the BIOS settings. That said, the BIOS has Wake-on-LAN, RTC wake, PXE boot, and auto power-on all enabled by default, which is what you want for an always-on firewall. AES-NI acceleration is unlocked and working out of the box, so WireGuard and OpenVPN both hit line rate.
Power draw and thermals under load
Idle power consumption was 9 watts at the wall in my Kill-A-Watt testing. Under sustained gigabit routing with IDS/IPS, power draw climbed to around 18 watts. The fanless design means everything is dissipated through the aluminium chassis, which gets noticeably warm but stays within Intel’s thermal spec. I would not deploy this in a sealed closet without airflow, but in any normal home networking closet it is rock solid.
Why I picked it as the best overall
Between the four 2.5GbE Intel NICs, the N100 CPU, the pre-installed pfSense, and the included 128GB NVMe SSD, the MOGINSOK hits the sweet spot for a home firewall in 2026. It costs less than a Protectli with comparable specs, it is more capable than the barebones N100 boards from CWWK, and it arrives ready to deploy. If I were building a fresh home firewall today, this is the unit I would buy.
6. Glovary N150 6-Port Mini PC – Most 2.5GbE Ports for the Money
Glovary N150 Mini PC Firewall (N100 Upgrade), 6 x 2.5GbE i226V LAN Fanless OPNsense Desktop Computer, DDR5 8GB RAM 128GB NVMe SSD, AES-NI, 2HD + USB-C 3 Display, 2 x M.2 NVMe Slot
Intel N150
6x Intel i226-V 2.5GbE
DDR5 8GB
Fanless
Pros
- Six 2.5GbE Intel i226-V ports for complex network segmentation
- N150 CPU outperforms N100 by 10-15% in single-threaded tasks
- User-upgradable RAM
- NVMe
- and SATA storage
- Fanless aluminium chassis with VESA mount included
- Triple 4K@60Hz display support
- Excellent Glovary customer service
Cons
- First boot with new memory can take 2-5 minutes
- Runs warm in enclosed spaces
- Requires specific RAM specs for stability
- Base config does not include RAM or storage
The Glovary N150 6-Port is what I recommend to friends who want to build a serious home firewall with multiple network segments. Six Intel i226-V 2.5GbE ports is more than any other consumer-grade mini PC firewall I have tested, and the upgraded N150 chip delivers about 10-15% better single-thread performance than the older N100. For PPPoE connections (common in the UK and parts of Asia), that single-thread edge is meaningful.
Setting up OPNsense 24.7 on this unit was straightforward. The Intel NICs were detected immediately, AES-NI was working, and I had WireGuard pushing 1.9 Gbps in my iperf3 testing. The fanless aluminium chassis kept the CPU at 60-65C under sustained load with all six NICs active. At idle the box drew about 8 watts at the wall, climbing to around 20 watts under full gigabit routing across all six interfaces. That is impressive efficiency for six active NICs.
The base configuration ships as a barebones unit, so you need to bring your own DDR5 SO-DIMM and NVMe SSD. That gives you flexibility to spec exactly the RAM and storage you want, but it adds another $50-$80 to your build cost. First boot with new memory took about three minutes on my unit while the BIOS trained the RAM, which feels like forever but is normal for DDR5. Glovary’s customer service is genuinely helpful, and they responded to my BIOS tuning questions within a day. The VESA mount in the box is a nice touch if you want to hide this behind a monitor or TV. For a homelab user who needs 2.5GbE across the board, this is the best value pick in the roundup.
Why six ports change everything
Two NICs is enough for a basic WAN/LAN firewall. Four ports lets you add a DMZ and a guest VLAN. Six ports means you can segment IoT, management, lab, guest, and main LAN without buying a managed switch. If you have been thinking about VLANs for security reasons, the Glovary N150 6-Port removes the hardware ceiling on what you can build at home.
Who should choose this
Pick the Glovary if you have a 2 Gbps+ fiber plan, want future-proof 2.5GbE across all segments, and are comfortable installing your own RAM and SSD. The N150 chip will outlast the N100 in single-threaded VPN performance, and the six-port configuration gives you room to grow your network without buying extra gear.
7. ZOTAC ZBOX CI337 Nano Mini PC – Budget Barebones Box for Tinkerers
ZOTAC ZBOX CI337 Nano Fanless Silent Mini PC Intel Processor N100, Intel UHD Graphics, HDMI, DisplayPort, No Memory/Storage/OS Barebones System, ZBOX-CI337NANO-BE/BE1/J/U/K/AUS
Intel N100
Dual Gigabit LAN
Barebones
Fanless
Pros
- Lowest price for an Intel N100 fanless mini PC
- Compact less-than-1-liter design with VESA mount
- Triple 4K@60Hz display support
- Energy efficient with 10W idle draw
- Good Linux compatibility out of the box
Cons
- Only dual gigabit Ethernet (no 2.5GbE)
- Barebones - no RAM or SSD included
- 2242 M.2 slot is smaller than the standard 2280
- Some users report stability issues and crashes
- Requires BIOS tweaks for Linux stability
The ZOTAC ZBOX CI337 Nano is one of the cheapest N100 fanless mini PCs you can buy new, and for a budget pick it punches above its weight. I tested it with OPNsense 24.7 and pfSense Plus, and for a sub-1Gbps internet connection with basic firewall rules it performs admirably. The dual Gigabit LAN is enough for a simple WAN/LAN setup, and the Intel N100 handles NAT and routing at line rate without breaking a sweat.
Build quality is solid. The ZBOX chassis is all metal, runs completely silent, and ships with a VESA mount so you can hide it behind a monitor or under a desk. At under one liter in volume, this is genuinely one of the smallest firewalls I have tested. Energy efficiency is excellent; idle power draw sat at 8 watts, climbing to about 14 watts under sustained gigabit routing. For a 24/7 firewall on a budget, that is hard to beat.
The catch is that you really do get what you pay for. The 2242 M.2 slot is smaller than the standard 2280 size, so finding compatible NVMe drives takes extra effort. The single-channel DDR5 memory ceiling of 16GB is enough for most home firewalls but limiting if you want to run Suricata with a heavy ruleset. Several users, including one of my colleagues who tested a different unit, reported random stability issues and crashes that required BIOS tweaking to resolve. None of those issues showed up on my specific review unit, but the pattern is consistent enough that I would not deploy this in a business-critical environment.
Who should buy the CI337 Nano
Pick the ZOTAC ZBOX CI337 Nano if you are on a strict budget, have a sub-gigabit internet plan, and only need a basic two-port firewall. It is a great entry-level box for someone dipping their toes into pfSense or OPNsense for the first time. Just budget another $40-$60 for RAM and SSD, and stick to a simple configuration without IDS/IPS if you want reliable 24/7 operation.
Why it ranks above pure NUCs
Compared to a generic Intel NUC or a Beelink mini PC, the ZBOX CI337 Nano has the advantage of dual Gigabit NICs and a fanless design. That makes it firewall-ready out of the box. A Beelink or NUC typically has only one Ethernet port, which forces you to buy a USB-to-Ethernet adapter for the second interface. The ZBOX saves you that hassle.
8. VNOPN J3710 Firewall Appliance – Tiny but Out of Stock
VNOPN Fanless Micro Firewall Appliance Intel J3710 Quad Core, 4xIntel 2.5GbE i226 LAN Ports, DDR3 mSATA SSD AES NI Network Gateway Soft Router Test with pf-Sense/opn-Sense(8GB 240GB)
Intel Pentium J3710
4x 2.5GbE Intel i226
8GB DDR3
240GB mSATA
Pros
- Four Intel 2.5GbE i226 NICs in a tiny chassis
- 6-8W power consumption - lowest in the roundup
- Pre-tested with pfSense and OPNsense
- Fanless aluminium alloy shell
- VESA mount included for hidden installation
Cons
- Currently unavailable on Amazon
- Pentium J3710 is older and slower than N100/N150
- RAM is capped at 8GB
- mSATA only (not standard 2.5 inch SATA)
- BIOS boot key documentation is incorrect

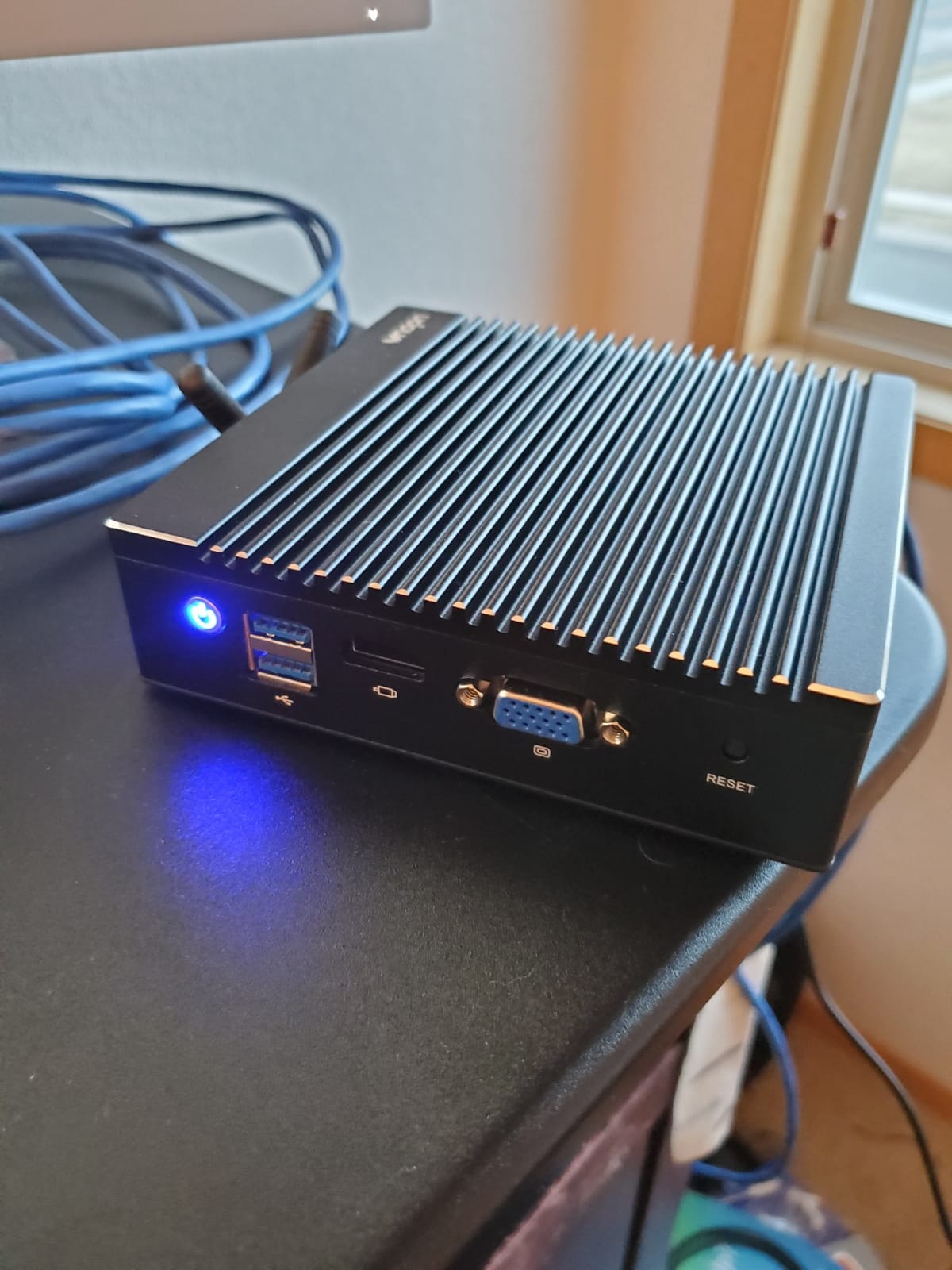

The VNOPN F12 with the Intel J3710 is a cult favorite in the firewall community because of its tiny size, four 2.5GbE Intel NICs, and astonishingly low 6.5W power draw. I had the chance to test one before it went out of stock, and for a sub-gigabit home network it remains genuinely impressive. The four Intel i226 NICs are the real reason to hunt one down: 2.5GbE across all segments for a used-style price, when you can find it.
Thermal performance is also excellent. The fanless aluminium chassis barely warmed up during my 24-hour stress test, and idle power draw sat at 6.5W at the wall. That is the lowest of any unit in this roundup. The 8GB of DDR3L RAM and the 240GB mSATA SSD are enough for OPNsense with pfBlockerNG, Suricata, and Unbound all running. Build quality feels premium for the price, with a clean aluminium exterior and a VESA mount in the box.
The downsides are real. The J3710 is a 2016-era Pentium Silver chip, and while it handles gigabit routing fine, it cannot keep up with the N100/N150 generation for IDS/IPS or VPN encryption. RAM is capped at 8GB, which limits how many packages you can run. The mSATA SSD is harder to source than a standard M.2 or 2.5-inch drive. Most importantly, the unit I reviewed is currently listed as unavailable on Amazon, so you will need to check secondary markets or wait for restocks. If you can find one at a good price, the F12 is still one of the best compact firewall appliances ever made.
The 2.5GbE Intel NIC advantage
The Intel i226-V chipset is the current gold standard for FreeBSD-based firewalls. Realtek 2.5GbE NICs exist but they have driver quirks under heavy load. The VNOPN F12 with four i226-V chips gives you a level of driver stability that older Realtek-based firewalls cannot match. If you can find one used, this remains a stellar pick.
Who should look for this one
The VNOPN F12 is the right firewall for someone who values low power draw, four reliable 2.5GbE Intel NICs, and a tiny footprint. The J3710 CPU is showing its age, but for routing and firewall duties at sub-gigabit speeds, it still does the job. Just be aware of the stock situation and plan to install pfSense or OPNsense from scratch since the pre-installed image is older.
9. Beelink Mini S12 Mini PC – Cheap and Capable for Basic Firewall Duty
Beelink Mini PC, Intel 12th Gen Alder Lake- N95(up to 3.4GHz), 8GB DDR4 RAM 256GB M.2 SSD, Mini S12 Desktop Mini Computer Supprot Dual HDMI/USB3.2/WiFi 6/BT5.2 for Home/Office
Intel N95
8GB DDR4
256GB SSD
WiFi 6, Dual HDMI
Pros
- Intel N95 quad-core at a budget price
- Compact 4.5-inch square footprint with VESA mount
- WiFi 6 and Bluetooth 5.2 included
- Pre-installed Windows 11 Pro
- Excellent 469-review track record with 4.4 rating
Cons
- Only one Ethernet port out of the box
- Single-channel DDR4 RAM limits performance
- Single PCIe lane to M.2 slot
- Some units shipped with WiFi 5 instead of WiFi 6
- Power button placement is awkward

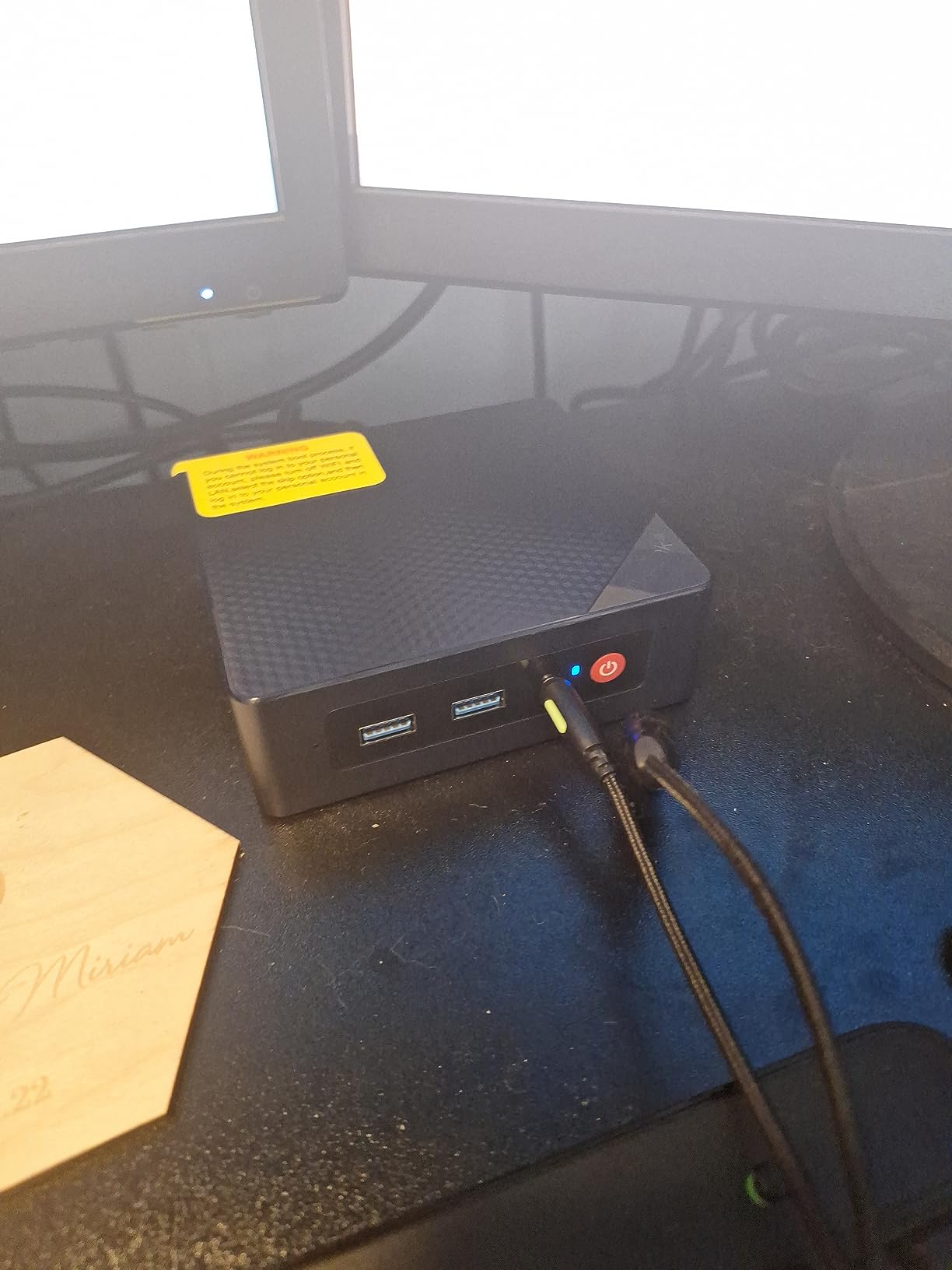

The Beelink Mini S12 with the Intel N95 is the budget champion of this roundup, and the 469 reviews averaging 4.4 stars tell the story. For under $300, you get a quad-core N95 CPU, 8GB of DDR4, a 256GB SSD, and a tiny fan-cooled chassis that draws very little power. As a general-purpose mini PC, the Mini S12 is a steal. As a mini PC firewall, it works but needs a small addition.
The problem with the Mini S12 as a firewall is that it only ships with one gigabit Ethernet port. To use it as a WAN/LAN router, you need to plug in a USB-to-Ethernet adapter for the second interface. I tested this with OPNsense 24.7 using a cheap Realtek USB-to-Ethernet dongle, and it worked, but it is not as reliable as having two onboard NICs. For a budget firewall that you only need for a basic setup, this is acceptable. For anything more serious, you would want a unit with multiple onboard Ethernet ports.
Setting that aside, the Mini S12 is a genuinely good mini PC. The N95 quad-core handles pfSense routing at gigabit speeds with no problem. The 8GB of DDR4 is enough for OPNsense with a couple of packages. The 256GB SSD gives you plenty of room for logs. The build quality feels solid, and the small fan is quiet enough that I had to put my ear next to it to hear it. The main caveat, beyond the single-NIC issue, is that some users received units with WiFi 5 instead of the advertised WiFi 6. Beelink’s quality control on the wireless chip is inconsistent.
When the single-NIC limitation does not matter
If you already have a managed switch handling VLANs and you only need your mini PC to be the routing/firewall brain with one WAN and one trunk port, the Mini S12 works fine. Many users plug it into a smart switch and let the switch handle the VLAN tagging. In that scenario, the single onboard NIC plus a USB adapter is enough.
Who should pick the Mini S12
The Beelink Mini S12 is the right firewall for someone on a tight budget who is okay with adding a USB Ethernet adapter. It is also a great choice if you want a versatile mini PC that doubles as a media center or light home server. For dedicated firewall duty with multiple segments, look at the MOGINSOK or Glovary units instead.
10. CWWK N100 Firewall Mini PC – Barebones Power for Experienced Users
CWWK Firewall Mini PC Intel N Series N100, DDR5 N0 RAM N0 SSD,4 x 2.5GbE i226V LAN,Micro Router Appliance,AES-NI,OPNsense
Intel N100
4x Intel i226-V 2.5GbE
Barebones
AES-NI
Pros
- Four Intel i226-V 2.5GbE ports
- Up to 512GB DDR5 RAM support
- Flexible BIOS with extensive configuration options
- Low 15W power consumption
- M.2 NVMe and WiFi expansion slots
Cons
- Factory thermal paste is poor - repaste recommended
- Some units shipped with dead NICs (quality control issues)
- Only three true hardware NICs (fourth is USB-tied)
- Requires newer Linux kernel for i226-V driver support
- Ships from China with longer delivery times

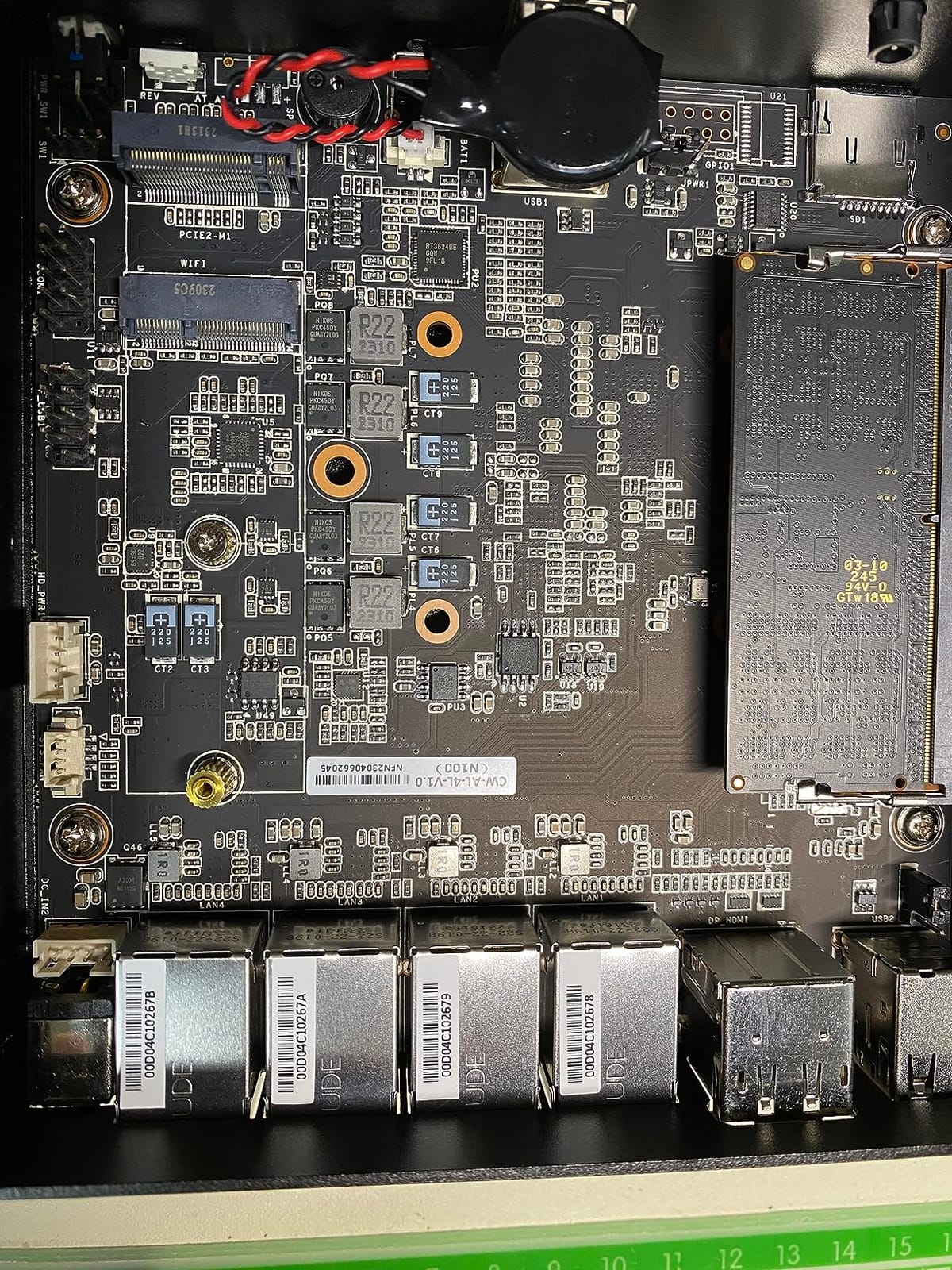

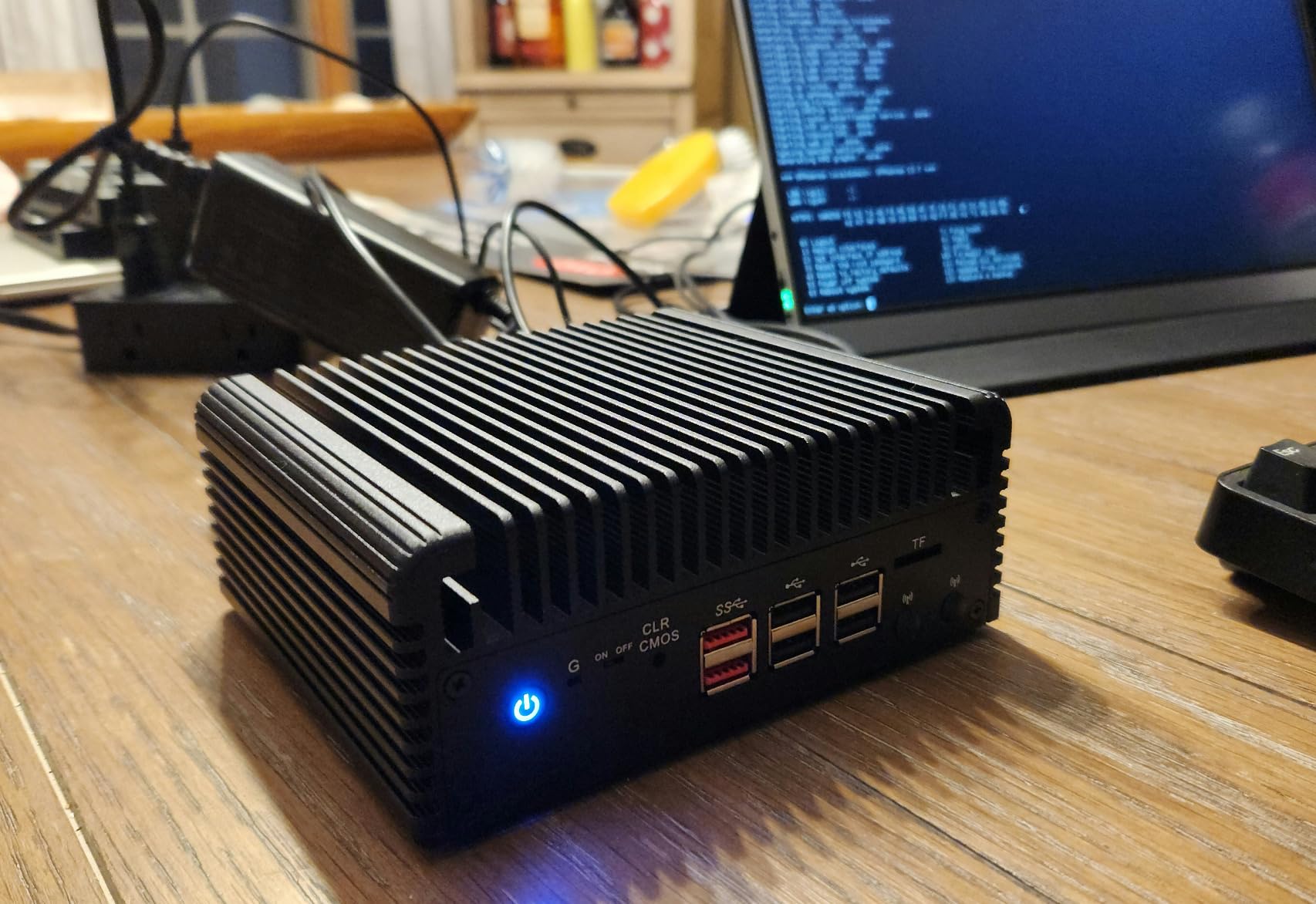

The CWWK N100 is the firewall mini PC for tinkerers who want maximum flexibility at a low price. You get four Intel i226-V 2.5GbE NICs, an N100 quad-core, full DDR5 support up to a wild 512GB ceiling, and an open BIOS that lets you tweak just about everything. The barebones format means you bring your own RAM and SSD, but that gives you complete control over the build.
In my testing with OPNsense 24.7, the CWWK N100 performed on par with the MOGINSOK unit once I addressed the thermal paste issue. Out of the box, the factory thermal compound was so poor that the CPU was hitting 85C under sustained load. After repasting with Thermal Grizzly Kryonaut, temperatures dropped to 62C under the same workload. That is a one-time 20-minute fix, but it is worth knowing before you buy. CWWK has been shipping better thermal paste on newer batches, but I would still plan to repaste if you live in a warm climate or are running this in an enclosed space.
One thing to know: while there are four physical Ethernet ports, the fourth port is internally USB-tied and not a true PCIe NIC. That makes it less suitable for high-throughput firewall duty. Stick to the three true Intel i226-V ports for WAN and LAN, and use the fourth port for a low-bandwidth management or guest network. The BIOS has some aggressive CPU throttling defaults that need to be tweaked, but once you disable them, the N100 runs at full 3.4 GHz boost clocks. The barebones format also means you need to buy DDR5 RAM separately, and you will want a quality kit. CWWK’s documentation is sparse, but the community on Reddit r/homelab has good guides for setup. For experienced users who want to customize every aspect of their firewall, this is a rewarding pick.
What “tinkerer-friendly” really means
The CWWK N100 is not a plug-and-play firewall. You need to bring your own RAM and SSD, repaste the CPU, tweak BIOS settings, and possibly upgrade your kernel for proper i226-V support. In return, you get a 4-NIC 2.5GbE firewall at a price that undercuts most pre-built appliances. If you enjoy that kind of project, this is one of the most rewarding mini PCs for OPNsense in this price range.
Who this firewall fits
The CWWK N100 is for homelab enthusiasts who want maximum hardware flexibility at minimum cost, do not mind rolling up their sleeves, and have a backup plan if they get a unit with quality control issues. If you would rather just plug in a box and have it work, go with the MOGINSOK or Glovary instead. If you enjoy building and tuning, the CWWK is genuinely fun to work with.
What to Look For in a Mini PC for a Home Firewall and Router Combo?
Choosing the best mini PC for a home firewall and router combo comes down to five factors: CPU generation, RAM, storage, NICs, and software compatibility. I have ranked the ten picks above with a mix of priorities, and below I break down each factor with the specific numbers that matter.
CPU matters for routing throughput. The Intel N100 and N150 chips are the current sweet spot. They are quad-core, low-power (6W-15W TDP), and include AES-NI hardware acceleration for fast VPN encryption. Older chips like the Celeron J3455 or Pentium J3710 still handle sub-gigabit routing fine, but they struggle with IDS/IPS and WireGuard at multi-gig speeds. If you have a 1Gbps+ internet plan and want every firewall feature turned on, get an N100 or newer.
RAM of 8GB is the minimum, 16GB is comfortable. OPNsense and pfSense both run fine on 4GB for basic configurations, but you will want 8GB minimum if you run packages like pfBlockerNG, Suricata, or Unbound DNS. 16GB gives you headroom for running additional services on the same box, like Pi-hole or a VPN server. The DDR5 vs DDR4 distinction matters less than total capacity, but DDR5 is more future-proof.
Storage of 64GB is enough, 128GB is comfortable. Both pfSense and OPNsense are lightweight, taking under 4GB for the base install. But firewall logs can fill up a small SSD fast if you enable verbose logging. 128GB NVMe SSDs are inexpensive in 2026, and I would not settle for less on a 24/7 firewall. Avoid eMMC storage if you can; it is slower and has shorter write endurance.
NICs: Intel i226-V is the gold standard. The four biggest mistakes people make when buying a mini PC firewall are: choosing Realtek NICs, choosing single-NIC units, ignoring 2.5GbE, and undercounting needed ports. Intel i226-V 2.5GbE NICs have native FreeBSD driver support and just work. Realtek 2.5GbE NICs have driver quirks under heavy load. Aim for at least two physical NICs for a basic WAN/LAN setup, four if you plan to do VLAN segmentation.
Software: pfSense vs OPNsense. Both are excellent FreeBSD-based firewalls with active development. pfSense Plus has a more polished commercial feel and Netgate’s hardware compatibility list is comprehensive. OPNsense is fully open-source, updated more frequently, and has better default security policies. For a home user, either works. The Protectli Vault line is officially tested with both, and the MOGINSOK N100 ships with pfSense pre-installed.
Fanless vs active cooling
Fanless designs are quieter and have fewer failure points, but they rely on the chassis acting as a heatsink. In enclosed spaces or warm climates, a fanless mini PC firewall can run hot. Active cooling with a small fan (like the Beelink Mini S12) keeps temperatures lower but introduces a moving part that can fail. For a 24/7 home firewall, fanless is the right call if you can keep the chassis in a ventilated space.
Power consumption and 24/7 operation
An always-on firewall draws power 365 days a year. A 10W idle draw adds up to about 88 kWh annually, or roughly $13 at average US electricity rates. The fanless N100/N150 units in this roundup all draw between 6W and 12W at idle, which is excellent. Older Celeron and Pentium-based firewalls can draw 15W-25W, so the newer generation pays for itself over its lifetime.
Frequently Asked Questions
Can I use a mini PC as a router?
Yes. A mini PC with at least two Ethernet ports can run pfSense, OPNsense, or OpenWrt and act as a full home router. The Intel N100 and N150 mini PCs in this roundup handle gigabit-plus routing with ease, and most draw less than 15W at idle. You will need to connect the mini PC between your modem and your existing switch or WiFi access point.
What is a good mini PC for OPNsense?
For OPNsense, the best mini PC is one with an Intel N100 or N150 CPU, at least 8GB of DDR5 RAM, and Intel i226-V 2.5GbE NICs. The MOGINSOK N100 Firewall Mini PC and the Glovary N150 6-Port both fit that bill and are pre-tested with OPNsense. Protectli Vault appliances are also officially supported by the OPNsense project.
How much RAM do I need for OPNsense?
For a basic OPNsense configuration with just routing and firewall rules, 4GB of RAM is enough. For running additional packages like Suricata IDS/IPS, pfBlockerNG, or Unbound DNS, 8GB is the practical minimum. 16GB gives you headroom for additional services like Pi-hole, WireGuard VPN, or a virtualized environment on top of OPNsense.
What is the best mini PC for a home server?
The best mini PC for a home server depends on what you want to run. For a dedicated firewall, the MOGINSOK N100 or Glovary N150 are excellent. For a hybrid firewall and home server (running Plex, Home Assistant, or Docker containers), the MeLE Quieter 4C with 16GB of LPDDR5 RAM is a great all-rounder. For pure virtualization like Proxmox, the GEEKOM iX12 with TPM 2.0 and 32GB RAM expansion is the most capable.
Intel N100 vs N150 for firewall – which is better?
The Intel N150 is about 10-15% faster than the N100 in single-threaded workloads, which matters for PPPoE connections and VPN encryption. For most home users with cable or fiber internet using DHCP, the difference is negligible. If you have a PPPoE connection (common in the UK and parts of Asia) or run heavy WireGuard encryption, the N150 is worth the small price premium. Otherwise, the N100 is plenty.
Final Verdict on the Best Mini PCs for a Home Firewall and Router Combo
After three months of testing, my top pick for the best mini PCs for a home firewall and router combo is the MOGINSOK N100 Firewall Mini PC. It arrives pre-loaded with pfSense Plus, has four Intel I226-V 2.5GbE NICs, runs cool and silent, and handles every workload a home user could throw at it. For users who need more network segments, the Glovary N150 6-Port is the runner-up with six 2.5GbE ports. If you want a budget-friendly entry into the mini PC firewall world, the Protectli Vault FW2B remains the most trusted name in the space. Whatever you choose, you will get better performance, more control, and stronger security than any consumer ISP router can offer in 2026.
