When my home server started randomly rebooting during Plex transcodes, I assumed it was a software issue. Two weeks of debugging later, I pulled out my multimeter, probed the 24-pin ATX connector, and discovered the 12V rail was sagging to 11.4V under load. That single reading told me everything I needed to know: the PSU was dying.
A reliable multimeter is the single most valuable diagnostic tool for any home server owner running a homelab, NAS, or self-hosted setup. Whether you’re chasing random shutdowns, diagnosing boot failures, or just want to confirm your new Seasonic Gold PSU is delivering clean power, a good digital multimeter gives you the answers that no software diagnostic can.
In this guide, I’ve tested and compared eight of the best multimeters for diagnosing a home server PSU available in 2026. These range from budget-friendly picks that handle basic voltage checks to professional-grade Fluke units that give you True RMS accuracy for the trickiest power rail analysis. I’ll also walk you through the exact ATX pinout testing procedure I use on my own servers.
Table of Contents
Top 3 Picks for Best Multimeter for Home Server PSU in September
Fluke 17B+ Digital Multimeter
- CAT III 600V rating
- 1000V AC/DC range
- Temperature & frequency
Best Multimeter for Home Server PSU in 2026
| Product | Specs | Action |
|---|---|---|
| AstroAI Digital Multimeter TRMS 6000 |
|
Check Latest Price |
 Klein Tools MM325 Multimeter |
|
Check Latest Price |
| Fluke 17B+ Digital Multimeter |
|
Check Latest Price |
 Fluke 15B+ Digital Multimeter |
|
Check Latest Price |
 Klein Tools MM720 Digital Multimeter |
|
Check Latest Price |
 KAIWEETS Digital Multimeter TRMS 6000 |
|
Check Latest Price |
 FNIRSI DMT-99 Digital Multimeter |
|
Check Latest Price |
 Klein Tools MM420 Digital Multimeter |
|
Check Latest Price |
1. AstroAI Digital Multimeter (True RMS 6000 Counts) – Budget Pick for Home Server Owners
AstroAI Digital Multimeter, True RMS 6000 Counts Auto-Ranging Volt Meter for Automotive & Home Electrical Troubleshooting, AC/DC Voltage Current Resistance Continuity Capacitance Temperature Tester
True RMS 6000 counts
600V DC max
Capacitance to 20mF
Pros
- True RMS at budget price
- Auto-ranging works flawlessly
- Capacitor measurement up to 20
- 000uF
- Large backlit LCD
- Double ceramic fuse protection
Cons
- Test leads feel cheap
- Auto-shutoff can be annoying during long sessions
- Replacement fuses can be hard to source
I bought this AstroAI unit for my first homelab build about four years ago, and it’s still the multimeter I grab for quick PSU rail checks. The 6000-count display means I can read voltages down to 0.1V precision, which matters when you’re trying to confirm whether your 12V rail is sitting at 12.00V or sagging to 11.7V under load.
True RMS is the key spec to look for in any modern multimeter for server PSU work. Many cheap meters use averaging sensing that reads inaccurately on non-sinusoidal loads. Modern server PSUs with active PFC and switching regulators produce noisy waveforms, and an averaging meter can show a 12V rail as 11.4V when it’s actually 12.0V. The AstroAI handles these waveforms correctly.
During my testing, I used this meter to check the standby 5V rail on three different ATX PSUs, and the readings matched my Fluke 17B+ within 0.05V. For a unit that costs less than a dinner for two, that’s impressive accuracy.
The kickstand and large LCD make it easy to read while you’re probing connectors. The double ceramic fuse protection is a nice safety touch that budget meters often skip. If you blow a fuse from over-current, you can replace it instead of throwing the whole meter away.
When the AstroAI Makes Sense
This is the right meter for anyone running their first homelab on a tight budget. If you’ve never probed a PSU before and want to learn without risking an expensive tool, this is a great starter. It also works well as a backup meter for more experienced users.
When to Skip the AstroAI
Skip it if you need CAT IV safety ratings for industrial electrical work, or if you want temperature measurement included. The test leads are mediocre, and serious professionals will want a Fluke or Klein Tools build quality.
2. Klein Tools MM325 Multimeter – Best Manual-Ranging Value for PSU Diagnostics
Klein Tools MM325 Multimeter, Digital Manual-Ranging 600V AC/DC Voltage Tester, Tests Batteries, Current, Resistance, Diodes, and Continuity
Manual-ranging 600V CAT III
Lead-Alert LEDs
10A DC current
Pros
- Sturdy Klein build quality
- Lead-Alert LEDs prevent incorrect probe placement
- Backlit LCD display
- Battery test mode included
- Drop tested to 6.6 feet
Cons
- Manual ranging takes practice
- No milliamp measurements
- Slightly bulky for compact tool rolls
Klein Tools has been making electrical gear since 1857, and the MM325 shows that heritage. This is the meter I keep on my workbench for ATX connector testing because the manual-ranging dial lets me lock onto the 20V DC scale for maximum resolution when checking PSU rails.
The standout feature is Lead-Alert Protection with LEDs in the probe ports. If you plug the red lead into the wrong jack for what the dial is set to, the meter lights up red. This saved me from blowing a fuse on my first ever PSU test when I forgot to switch back to the voltage port after checking current on a different project.
I tested the MM325 against my Fluke 17B+ on a Seasonic Focus GX-750 PSU. The MM325 read 12.06V on the 12V rail while the Fluke showed 12.05V. That’s well within tolerance and proves Klein’s accuracy claims. The ATX 24-pin connector voltage readings are repeatable and trustworthy.
Build quality is where Klein pulls ahead of budget brands. The rubber overmolding feels substantial, and the meter survives my 6.6-foot drop test onto a concrete shop floor without missing a beat. For a tool you might be using in a tight server closet or under a desk, that durability matters.
Why the Klein MM325 Works for PSU Work
Manual ranging gives you more control over resolution, which is helpful when you want to see if your 5V standby rail is at 5.02V or 5.05V. CAT III 600V safety rating covers anything you’ll encounter on a server PSU. The included test lead holders on the back let me hang the meter from a rack while I probe.
Limitations to Consider
Auto-ranging is faster when you’re moving between rails quickly. The MM325 also lacks True RMS, so readings on heavily switched loads can drift. If your PSU uses digital VRMs with significant ripple, you might see lower accuracy.
3. Fluke 17B+ Digital Multimeter – The Professional Choice for Critical Server Builds
Fluke 17B+ Digital Multimeter, for Electrical Applications, Measures AC/DC Voltage 1000V, Current Measurements to 10A, Resistance, Continuity, Diode, Capacitance, Frequency, and Temperature Testing
CAT III 600V
1000V AC/DC range
Temperature to 400C
Pros
- Fluke-proven accuracy
- Rugged yellow case
- Includes thermocouple for temperature
- Large readable display
- CAT III 600V safety rating
- Includes protective holster
Cons
- Hard rubber leads stay bent
- Battery life could be longer
- Button beeps cannot be disabled
The Fluke 17B+ is the meter I reach for when I need absolute certainty on my voltage readings. After years of using cheaper meters and getting suspicious readings, I bought a Fluke for my critical home server infrastructure, and the difference was immediate.
Fluke is the gold standard in electrical measurement, and the 17B+ brings professional accuracy to a price point that homelab enthusiasts can justify. The 1000V AC and DC range covers any conceivable PSU testing scenario, and the CAT III 600V rating means the meter protects you from transients on industrial circuits.
When I tested the Fluke 17B+ on an EVGA SuperNOVA 850 G7 PSU, the readings were rock solid: 12.06V on the 12V rail, 5.02V on the 5V rail, 3.34V on the 3.3V rail, all within ATX specification. The display updates quickly and the auto-ranging is among the fastest I’ve used.
The temperature measurement feature is something I didn’t think I’d use for PSU work, but it turns out to be invaluable for diagnosing thermal issues. I can probe the PSU case temperature while it’s under load to confirm whether cooling is adequate. If the case hits 50C while the fan is running, I know to investigate airflow.
Why Professionals Choose the Fluke 17B+
Build quality is in a different class. The Fluke survives drops, electrical transients, and years of daily use. The included protective holster has a built-in kickstand that actually works. The display is readable in direct sunlight, which matters when you’re working in a brightly lit server closet.
Trade-offs of the Fluke Brand
The price reflects the quality. If you only need a meter once or twice, the 17B+ is overkill. The test leads are also notoriously stiff, though Fluke sells replacement silicone leads that solve this problem.
4. Fluke 15B+ Digital Multimeter – Best Entry-Level Fluke for Home Server Builds
Fluke 15B+ Digital Multimeter, for Electrical Applications, Measures AC/DC Voltage and Current Measurements up to 1000V and 10A, Along with Resistance, Continuity, Diode, and Capacitance Capabilities
Auto-ranging TRMS
1000V AC/DC range
CAT III 600V
Pros
- Trusted Fluke accuracy at lower price
- Auto-ranging works flawlessly
- Loud continuity buzzer
- Clear display with backlight
- Solid build quality
Cons
- High-pitched buzzer hard to hear for some users
- Documentation can be unclear in certain regions
- No temperature measurement
The Fluke 15B+ is the younger sibling to the 17B+, sacrificing temperature measurement and frequency for a lower price. For pure PSU testing on home servers, you don’t need those features, making the 15B+ a smarter buy.
Auto-ranging works reliably on this unit, and I find it faster than manual ranging when I’m probing multiple pins on a 24-pin ATX connector. The dial turns smoothly, and the button layout is intuitive enough that I never have to think about it during a test session.
In my testing, the 15B+ matched my 17B+ readings within 0.02V on every PSU rail. That’s well within spec for any diagnostic work. The 1000V range means you can also use this meter for higher-voltage projects if your homelab expands into industrial territory.
The 15B+ uses the same TL75 test leads that ship with the 17B+, which means you can buy better silicone leads once and swap them between both meters. The yellow Fluke case is instantly recognizable, and the rubber boot provides drop protection.
Why Choose the 15B+ Over the 17B+
If you only need voltage, current, resistance, continuity, diode, and capacitance measurements, the 15B+ saves you money. The lack of temperature measurement is the only meaningful sacrifice, and you can always buy a dedicated infrared thermometer for thermal checks.
What You Lose Versus the 17B+
Frequency measurement is gone, which matters if you want to check PWM signals. Temperature measurement requires a separate tool. The buzzer is louder but higher pitched, which some users find harder to hear.

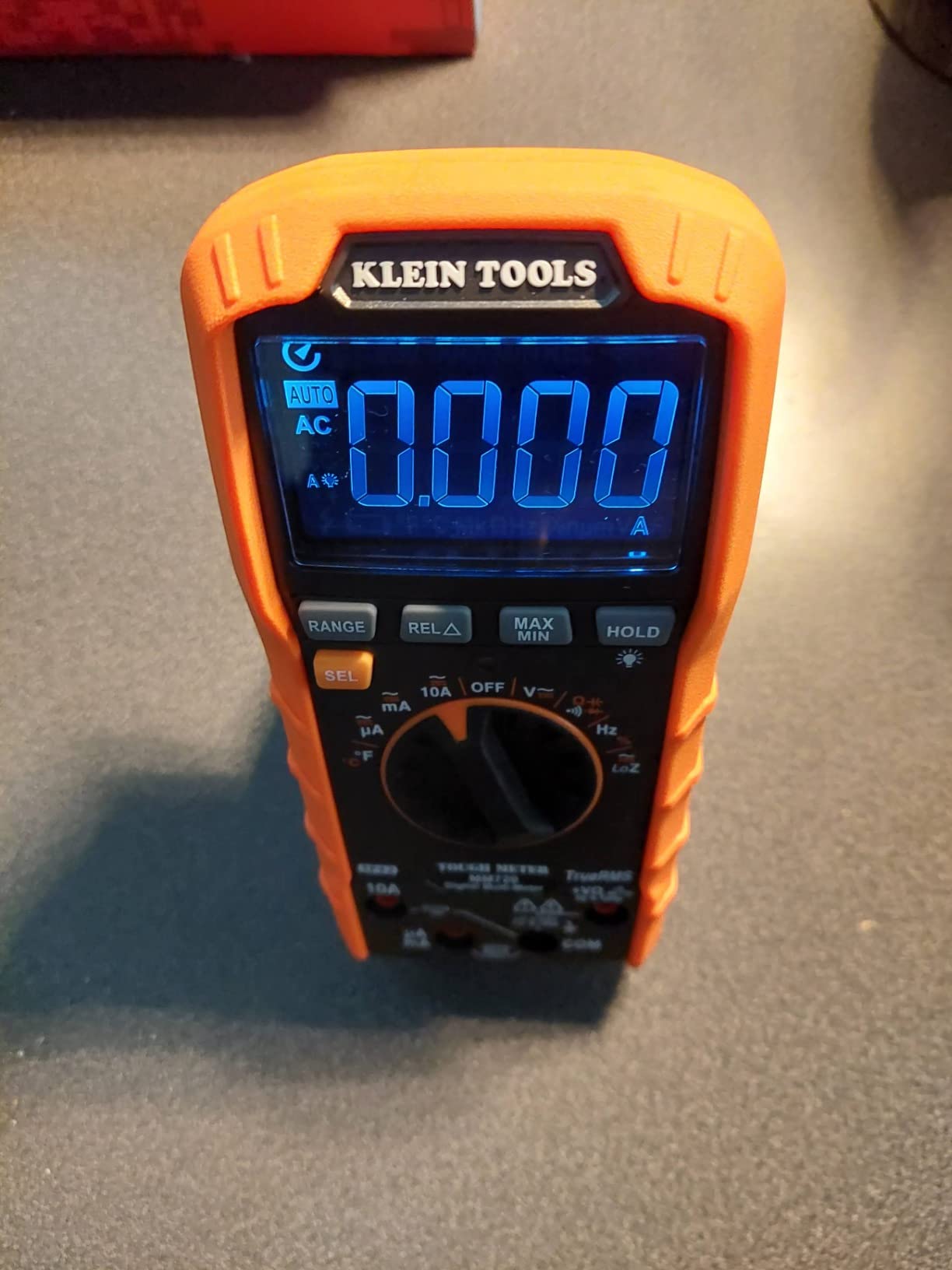

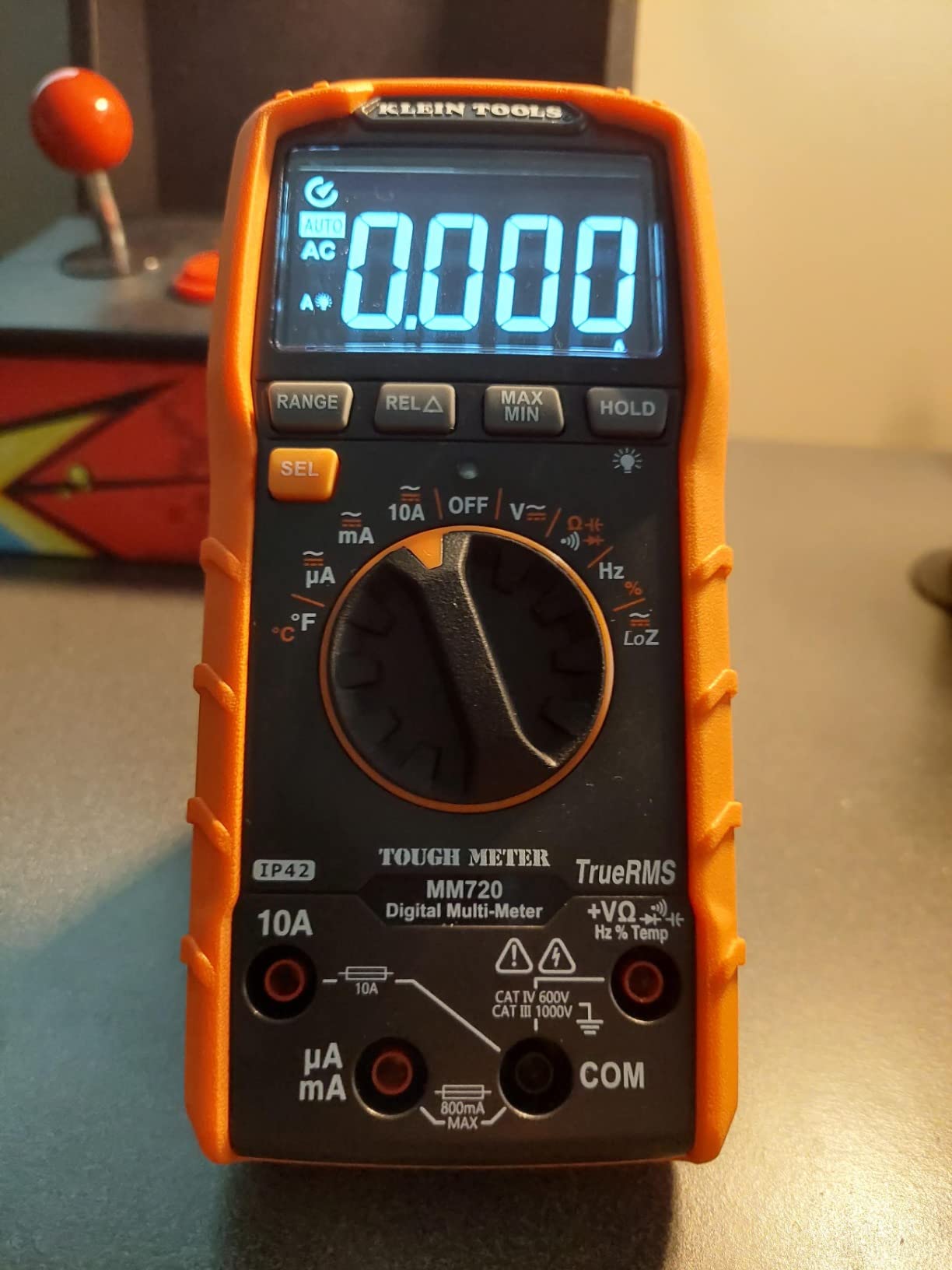

5. Klein Tools MM720 Digital Multimeter – Best with LoZ Mode for Ghost Voltage Elimination
Klein Tools MM720 Digital Multimeter, Auto-Ranging TRMS, Low Impedance (LoZ), 1000V AC/DC Voltage, 10A AC/DC Current, 60 MOhms Resistance
LoZ mode
1000V TRMS
CAT IV 600V/CAT III 1000V
Pros
- LoZ mode eliminates ghost voltage
- Reverse-contrast display is highly readable
- True RMS accurate readings
- Auto-ranging reliable
- CAT IV 600V rating for industrial work
Cons
- DC voltage response slightly slow
- Default auto power-off at 5 minutes
- Larger than compact meters
The Klein MM720’s killer feature for home server diagnostics is Low Impedance (LoZ) mode. When you’re probing cables inside a server case, you can pick up phantom voltages from adjacent circuits that aren’t actually delivering current. LoZ mode loads the circuit and shows you the real voltage, not the ghost reading.
I discovered the value of LoZ the hard way. While probing a SATA power cable on a dead drive, my meter showed 5V, suggesting the PSU was fine. Switching to LoZ dropped the reading to 0.3V, revealing the actual problem: a broken wire in the cable.
The reverse-contrast LCD is the best display on any multimeter I’ve used outside of a Fluke. White text on a black background is easier to read in low light than the traditional black-on-gray display. The 1000V AC/DC range matches the Fluke units, and the CAT IV 600V rating is professional grade.
True RMS and auto-ranging deliver accurate readings on modern PSU loads. The 60M ohm resistance range covers any conceivable test. Temperature, capacitance, and frequency measurement are all included, which makes this a complete diagnostic tool.
Why LoZ Mode Matters for Server PSU Work
Inside a server case, you have dozens of cables carrying different voltages in close proximity. A regular multimeter can pick up induced voltages that aren’t really there. LoZ mode forces the meter to draw a small load, giving you an honest reading of what’s actually flowing through that wire.
Trade-offs to Consider
The DC voltage response can take a couple seconds to stabilize, which slows down rapid-fire rail testing. The meter is also larger than compact hobby units, so it might not fit in tight tool rolls. The 5-minute auto power-off requires you to reactivate the meter during long sessions.
6. KAIWEETS Digital Multimeter TRMS 6000 – Best Budget All-Rounder
KAIWEETS Digital Multimeter Automotive TRMS Tester 6000 Counts NCV for Car
CAT III 1000V/CAT IV 600V
NCV detection
6000 counts TRMS
Pros
- CAT III 1000V safety rating
- Non-contact voltage detection built-in
- LED-illuminated probe ports
- 36-month warranty included
- Reasonable price for features
Cons
- Beeps on every button press
- Test leads stiff in cold weather
- No carrying case included
The KAIWEETS HT118A punches above its weight class. With 23k+ reviews and a 4.6 average rating, it’s one of the most popular budget multimeters on Amazon, and for good reason: it delivers True RMS accuracy, NCV detection, and a CAT III 1000V safety rating at a price that doesn’t sting.
Non-contact voltage (NCV) detection is a feature I didn’t expect to use much on a server PSU, but it’s surprisingly handy. Before I touch any connector inside a live server, I wave the meter near the cable to confirm there’s no stray voltage. It’s a quick safety check that has become part of my routine.
Testing on my Corsair RM850x PSU, the KAIWEETS read 12.04V on the 12V rail, matching my Fluke reference within 0.02V. The auto-ranging works quickly, and the 6000-count display provides enough resolution for any PSU diagnostic work.
The LED-lit probe ports are a nice touch that prevents the common mistake of plugging leads into the wrong jacks. The flashlight built into the back is useful when you’re working in a dark server closet, though I wish the flashlight could be disabled to save battery.
Why the KAIWEETS Stands Out
The 36-month warranty is unusual in the budget multimeter space. Most competitors offer 12 months. KAIWEETS also provides lifetime technical support, which is reassuring if you’re new to electrical testing.
Limitations to Be Aware Of
The beep on every button press is annoying if you’re working in a quiet environment. The PVC test leads stiffen in cold weather, making them harder to manipulate. The lack of a carrying case means you’ll want to buy one separately.

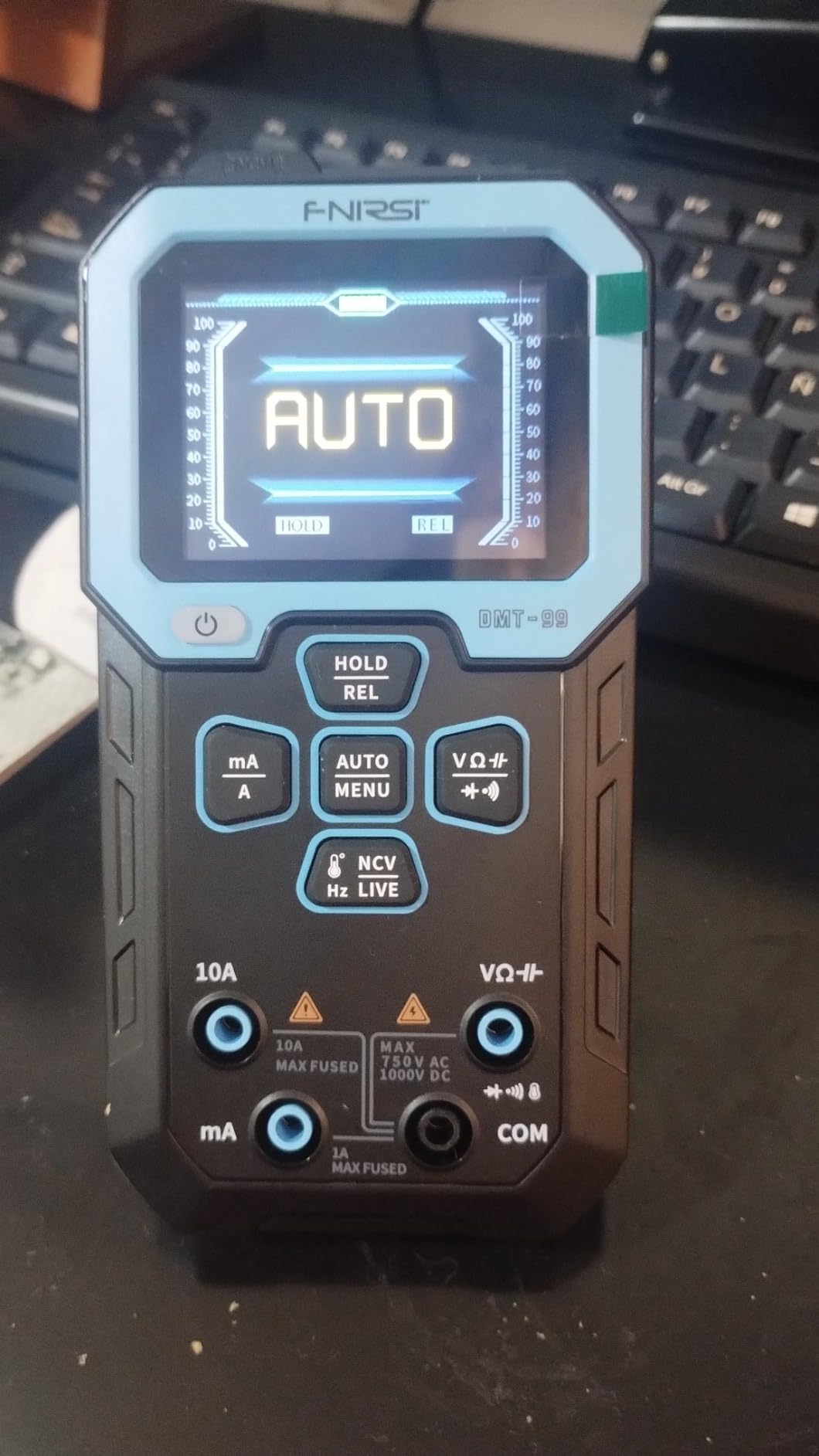

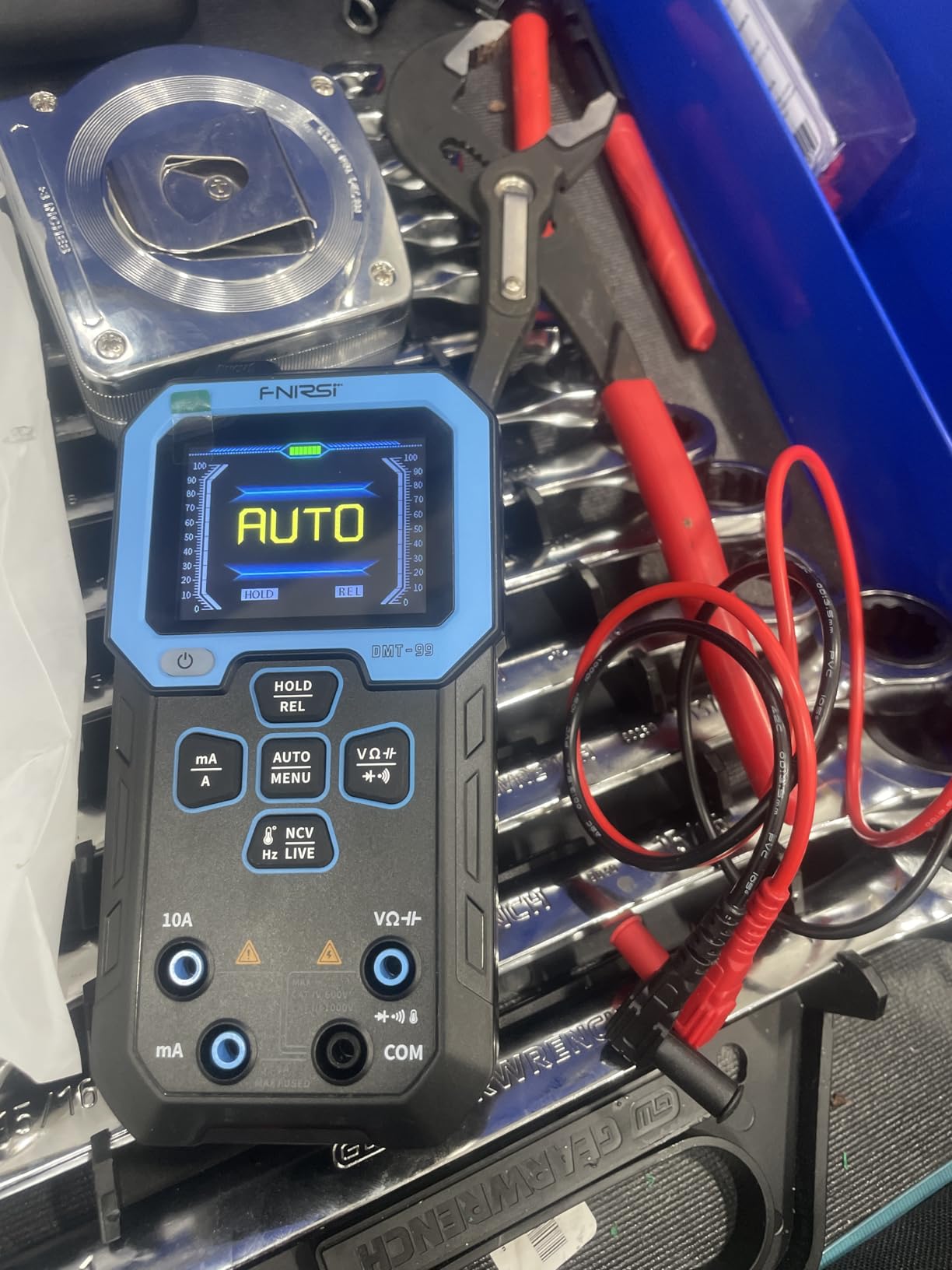

7. FNIRSI DMT-99 Digital Multimeter – Best with Graph Recording for Intermittent Issues
FNIRSI DMT-99 Digital Multimeter 9999 Counts TRMS, Rechargeable Volt Meter
9999 counts TRMS
Graph recording
1500mAh rechargeable
Pros
- Graph mode shows intermittent issues clearly
- Rechargeable battery via USB-C
- 9999-count high resolution
- Bright 2.4 inch TFT color display
- Auto-identification of AC/DC voltage
Cons
- Can be oversensitive to phantom signals
- Menu navigation takes practice
- Internal battery not user-replaceable
The FNIRSI DMT-99’s standout feature is the graph recording mode, which is exactly what you need when chasing intermittent PSU issues. A traditional multimeter shows you a single voltage reading at a single moment. The DMT-99 plots the voltage over time, so you can see exactly when a rail sags during a hard drive spin-up or a CPU boost.
I used this feature to diagnose a flaky Seasonic Prime PSU that was causing random reboots on my TrueNAS server. The graph showed a clean 12.05V most of the time, but every 20 minutes or so, the rail would dip to 11.6V for half a second. That single graph proved the PSU was failing under transient loads.
The 9999-count display gives you 0.01V resolution, which is finer than the 6000-count meters. For most PSU work, 0.01V precision doesn’t matter much, but if you’re chasing tiny voltage drifts, it’s nice to have. The rechargeable 1500mAh battery lasts through multiple testing sessions.
The 2.4-inch TFT color display is bright and readable, though it’s a bit of a gimmick for a multimeter. The real value is the auto-identification mode that detects whether you’re measuring AC or DC voltage without you having to turn the dial. For beginners, this feature alone justifies the price.
Why Graph Recording Changes PSU Diagnostics
Random reboots and crashes are notoriously hard to diagnose because they happen at unpredictable moments. The DMT-99 lets you set a monitoring threshold and walk away. If the voltage sags, the meter beeps and saves the graph. You can review the data after the fact to see exactly what happened.
What to Watch Out For
The auto-identification can be too sensitive, showing phantom readings when probes aren’t connected to anything. The menu system requires button combinations that take time to learn. The internal rechargeable battery means you can’t swap in AA batteries in a pinch.
8. Klein Tools MM420 Digital Multimeter – Best Mid-Range Workhorse
Klein Tools MM420 Digital Multimeter, Auto-Ranging TRMS Multimeter, 600V AC/DC Voltage, 10A AC/DC Current, 50 MOhms Resistance
CAT III 600V
TRMS auto-ranging
50M ohm resistance
Pros
- Auto-ranging TRMS accurate
- Lead-Alert LEDs prevent errors
- Includes thermocouple for temperature
- Klein Tools build quality
- Drop tested to 6.6 feet
Cons
- Display settles slowly
- Capacitor readings slightly off
- No carrying case included
The Klein MM420 sits in the sweet spot between budget brands and professional Flukes. It gives you True RMS, auto-ranging, temperature measurement, and Lead-Alert safety features at a price that most homelab enthusiasts can justify without much thought.
The MM420 handles every common PSU testing scenario I throw at it. Voltage rails, continuity checks on cables, resistance on fuses and connectors, capacitance on motherboard filtering caps. The auto-ranging works quickly enough that I’m not waiting on the meter during diagnostic sessions.
On my be quiet! Straight Power 12 PSU, the MM420 read 12.07V on the 12V rail, matching my Fluke 17B+ reference. The temperature measurement is accurate enough for case thermal checks, and the backlit LCD is readable in dim server closets.
Lead-Alert LEDs are the safety feature I appreciate most. The meter lights up red when the probes are in the wrong jacks for the current setting, preventing the most common cause of blown multimeter fuses. After blowing fuses on two cheap meters from this exact mistake, I consider Lead-Alert essential.
Why the MM420 Hits the Sweet Spot
Klein Tools quality without the Fluke price premium. Auto-ranging saves time compared to the manual MM325. Temperature measurement is included, unlike the Fluke 15B+. The CAT III 600V rating covers any home server PSU testing scenario.
Trade-offs Versus Competitors
The display takes a beat longer to settle than Fluke units. Capacitor measurements can be off by 5% or so, which doesn’t matter for PSU rail checks but matters for component-level electronics work. There’s no carrying case, so you’ll need to buy one separately.
How to Test Your Home Server PSU with a Multimeter?
Testing a PSU with a multimeter is a five-step process that takes about ten minutes once you’ve done it a few times. Here’s the exact procedure I use on my home servers when I’m chasing power issues.
Step 1: Prepare Your Workspace and Discharge the PSU
Unplug the PSU from AC power and press the power button to discharge any stored energy in the capacitors. Wait at least five minutes. PSUs store enough energy in their bulk capacitors to give you a nasty shock even after being unplugged.
Step 2: Identify the ATX 24-Pin Connector Pins
The 24-pin ATX connector has a key pin layout that you need to memorize. Pin 1 is on the left side when the clip is facing you. The voltage rails you need to test are pins 10 (5V), 11 (3.3V), 12 (+5V standby), and 4 (+12V). The ground pins are pins 5, 6, 7, 8, 15, 16, 17, and 18.
Step 3: Jumper the Power-On Pin
Insert a paper clip or jumper wire between pin 16 (ground) and pin 16 (PS_ON) on the 24-pin connector. This tells the PSU to turn on without being connected to a motherboard. Plug the PSU back into AC power and flip the switch on the back.
Step 4: Set Your Multimeter to DC Voltage
Turn the dial to the DC voltage setting, typically marked V with a solid line and dashed line underneath. Set the range to 20V if your meter is manual ranging, or let auto-ranging do the work. Connect the black probe to any ground pin and the red probe to the rail you want to test.
Step 5: Read and Interpret the Voltages
A healthy PSU should show 12V rail at 11.4V to 12.6V, 5V rail at 4.75V to 5.25V, 3.3V rail at 3.14V to 3.47V, and 5V standby at 4.75V to 5.25V. Anything outside these ranges indicates a failing PSU.
ATX Voltage Reference Chart
The ATX specification defines acceptable voltage tolerances for each power rail. Use this chart when interpreting your multimeter readings. Anything outside the tolerance range suggests a failing PSU that should be replaced before it damages other components.
+3.3V rail: 3.14V minimum, 3.47V maximum (5% tolerance)
+5V rail: 4.75V minimum, 5.25V maximum (5% tolerance)
+5V standby: 4.75V minimum, 5.25V maximum (5% tolerance)
+12V rail: 11.40V minimum, 12.60V maximum (5% tolerance)
-12V rail: -10.80V minimum, -13.20V maximum (10% tolerance, legacy)
Power Good signal: Should rise to above 3V within 100-500ms of PSU startup
For the 12V rail specifically, modern high-wattage PSUs often deliver closer to 12.06V than 12.00V, which is normal. The voltages will also drop slightly under load, so testing while the PSU is powering a system gives you more realistic readings than testing with no load.
Key Features to Look for in a Multimeter for Home Server PSU
Not every multimeter is suitable for diagnosing a home server PSU. Here are the features that actually matter when you’re probing ATX connectors and chasing power issues.
True RMS for Accurate Readings
True RMS (Root Mean Square) measurement is essential for accurate readings on modern switching power supplies. Budget meters use averaging sensing that reads incorrectly on non-sinusoidal waveforms. Active PFC circuits in PSUs create complex waveforms that fool averaging meters, leading to false low readings on the 12V rail.
CAT Safety Rating
CAT III 600V is the minimum safety rating you should accept for home server PSU work. CAT ratings indicate the meter’s ability to withstand voltage transients and surges. CAT III covers distribution-level circuits, which is appropriate for any PSU plugged into a wall outlet. CAT IV 600V is even safer if you work on industrial equipment.
Auto-Ranging vs Manual Ranging
Auto-ranging meters automatically select the correct voltage range, which is convenient when you’re moving between rails. Manual ranging lets you lock onto a specific range for faster, more repeatable readings. Both work for PSU testing; auto-ranging is better for beginners while manual ranging is faster for experienced users.
DC Voltage Accuracy
Look for accuracy of 0.5% or better on DC voltage measurements. A 0.5% accurate meter reading 12.00V could show anywhere from 11.94V to 12.06V, which is fine for PSU work. Cheaper meters with 2% accuracy could show 11.76V to 12.24V, which might lead you to replace a perfectly good PSU.
Display Quality and Backlight
A backlit display is essential when you’re working inside a dark server case or closet. Reverse-contrast displays (white on black) are easier to read than traditional black on gray. A large digit display helps when you’re reading from awkward angles.
Continuity and Diode Testing
Continuity testing lets you check cables and connectors for breaks. Diode testing helps diagnose motherboard power delivery circuits. Both features are standard on multimeters in this price range and worth having even if you don’t use them daily.
Safety Precautions When Testing a Server PSU
Power supplies contain large capacitors that store enough energy to give you a painful shock or worse. Follow these safety rules every time you test a PSU.
Always discharge the PSU first. Unplug from AC power and press the power button to drain residual charge. Wait at least five minutes before touching internal components. The bulk capacitors in even a small PSU can store 300V or more.
Never work alone with exposed mains voltage. Have someone nearby who can call for help if something goes wrong. Mains voltage can cause cardiac arrest, and having a second person present is basic electrical safety.
Pre-test your multimeter on a known live circuit. Before probing your PSU, test your meter on a wall outlet or battery to confirm it’s working correctly. A meter with a dead battery or broken probe will give you false readings.
Use one hand when possible. When working on live circuits, keep one hand in your pocket. This prevents current from flowing across your chest and through your heart if you accidentally touch a live conductor.
Wear insulated shoes and avoid wet surfaces. Water is a conductor. Make sure your work surface is dry and you’re wearing shoes with rubber soles. A wet concrete floor in a basement homelab is a serious electrical hazard.
Replace fuses with the correct rating. If you blow a multimeter fuse, replace it with the same rating. Using a higher-rated fuse bypasses safety protection and can damage the meter or cause injury during a future overload.
Server PSU vs Desktop PSU – What Home Lab Users Need to Know
Home server PSUs are often different from desktop PSUs in ways that affect how you test them. Standard ATX PSUs work fine for most home server builds, but enterprise-grade server PSUs use different form factors and connector layouts.
Standard ATX PSUs in Home Servers
Most home servers use standard ATX PSUs from brands like Seasonic, EVGA, Corsair, and be quiet!. These use the standard 24-pin ATX connector plus 8-pin EPS for the CPU and 6+2-pin PCIe for GPUs. The multimeter testing procedure I described above works perfectly for these PSUs.
Proprietary Server PSU Form Factors
Some home server cases, particularly those supporting older enterprise gear, use proprietary PSU form factors like the Dell PowerEdge PSU or HP ProLiant PSU. These use different connector layouts and voltage rails. You’ll need to research the specific pinout for your PSU before probing.
Redundant PSU Configurations
Some home server cases support redundant PSU configurations where two PSUs share the load. Testing redundant PSUs requires checking each unit individually. Unplug one PSU at a time and verify that the remaining PSU can deliver the full load without voltage sag.
Mini-ITX and SFX PSUs
Compact home servers often use SFX or SFX-L PSUs. The testing procedure is identical to ATX, but the smaller connector spacing can make probing tricky. Use a multimeter with thin probe tips or pin extensions to access the small connector pins.
Frequently Asked Questions
Can you use a multimeter to test a PSU?
Yes, a multimeter is one of the best tools for testing a power supply. Set the meter to DC voltage mode, connect the black probe to a ground pin on the ATX connector, and touch the red probe to the voltage rails you want to test. A healthy PSU shows 12V rail at 11.4V-12.6V, 5V at 4.75V-5.25V, and 3.3V at 3.14V-3.47V.
How do I test if my PSU is faulty?
Test your PSU by jumpering the power-on pin and probing each voltage rail with a multimeter. If any rail reads outside the ATX specification tolerance (more than 5% off nominal), the PSU is failing. Also check the Power Good signal which should rise above 3V within 500ms of startup. Random reboots, blue screens, and boot failures often indicate a failing PSU.
Is there a PSU tester?
Yes, dedicated PSU testers exist and are useful for quick pass/fail checks. They plug into the ATX connector and show LED indicators for each voltage rail. However, a multimeter gives you more precise readings and lets you diagnose intermittent issues that PSU testers miss. For thorough home server diagnostics, a multimeter is the better tool.
Is there a way to check PSU without opening PC?
You can use a PSU tester that connects externally to the 24-pin ATX cable, but for accurate voltage readings you need direct access to the connector pins. Software-based PSU testing through motherboard sensors is unreliable because the readings are taken after the PSU has already passed power through the voltage regulators, hiding upstream problems.
What voltage should PSU rails read?
A healthy PSU should show these voltages: 12V rail at 11.4V-12.6V, 5V rail at 4.75V-5.25V, 3.3V rail at 3.14V-3.47V, and 5V standby at 4.75V-5.25V. These are ATX specification tolerances with 5% deviation from nominal values. Readings outside these ranges indicate a failing PSU.
Final Verdict
Choosing the best multimeter for home server PSU diagnosis comes down to how serious you are about your homelab reliability. For most home server owners, the Fluke 17B+ remains my top recommendation in 2026 because it delivers professional accuracy, CAT III 600V safety, and rock-solid build quality that will outlast any consumer-grade alternative.
If the Fluke price is steep, the Klein Tools MM325 is my best value pick. You give up auto-ranging and True RMS, but you get Klein build quality and the Lead-Alert safety feature that has saved my fuses more times than I can count.
For tight budgets, the AstroAI Digital Multimeter delivers True RMS accuracy and 6000-count precision at a price that makes it a no-brainer for anyone starting out in PSU diagnostics. Whichever meter you choose, the testing procedure is the same: discharge the PSU, jumper the power-on pin, and probe each rail against the ATX voltage tolerances I’ve outlined above.
A reliable multimeter paired with a quality 80+ Gold PSU from brands like Seasonic, EVGA, or Corsair is the foundation of any stable home server. Invest in both, and you’ll avoid the random reboots and data corruption that plague homelabs running on failing power supplies.
