I have been bitten by the home lab bug for years, and one of the first accessories I wished I had was a rackmount LCD console drawer. The day a server decided to drop its IP stack at 2 a.m., I sat on the basement floor with a flashlight, a wireless keyboard, and a 13 inch laptop trying to reach a KVM shelf. That is the exact frustration a rackmount LCD console drawer exists to solve.
A rackmount LCD console drawer is a 1U or 2U device that combines a slide-out LCD monitor, a built-in keyboard, and a touchpad or trackball into a single chassis that lives inside your server rack. When you need console access, you slide it out, flip the screen up, plug into your servers via a KVM switch, and work locally. When you are done, it slides back in like a drawer and takes up almost no room.
We ordered, mounted, and tested 8 rackmount LCD console drawers that actually deliver to home lab enthusiasts right now, in 2026. Below, I share what held up under real rack abuse, what fell short of the spec sheet, and which one I would buy again with my own money.
Table of Contents
Top 3 Picks for Home Lab Rack Consoles in 2026
Kinan XL1908 19 inch 8-Port…
- 19 inch 1280x1024 panel
- 8-port VGA KVM
- Auto-lock rails
- 2-year warranty
MT-VIKI 15.6 inch HDMI…
- 15.6 inch 1080p panel
- 8-port HDMI KVM
- Plug-and-play setup
- Password security
MT-VIKI 15.6 inch VGA 8-Por…
- 15.6 inch 1080p panel
- 8-port VGA KVM
- Daisy-chain ready
- Adjustable rails
All 8 Rackmount LCD Console Drawers Compared in October
| Product | Specs | Action |
|---|---|---|
| MT-VIKI 15.6 inch VGA 8-Port Console |
|
Check Latest Price |
| MT-VIKI 15.6 inch HDMI 8-Port Console |
|
Check Latest Price |
 MT-VIKI 17 inch VGA 8-Port Console |
|
Check Latest Price |
 Kinan LH1708 17.3 inch HDMI Console |
|
Check Latest Price |
| Kinan XL1908 19 inch 8-Port Console |
|
Check Latest Price |
 Crystal Image RM-111-19WH 19 inch Console |
|
Check Latest Price |
 Tripp Lite B021-000-19 19 inch Console |
|
Check Latest Price |
 MT-VIKI 16-Port VGA Console 15.6 inch |
|
Check Latest Price |
The most important thing to take away from the table is that rackmount LCD console drawers split into three families. There are 8-port consoles built around a 15.6 inch or 17 inch panel, larger 8-port and 16-port 19 inch consoles, and console-only units without an integrated switch. Each fits a slightly different home lab, and we walk through all eight below.
1. MT-VIKI 15.6 inch VGA 8-Port Console Drawer – Best Budget Entry
MT-VIKI Rack Mount KVM w/15.6″ LCD Monitor, 8 Port VGA KVM Switch, 1080@60Hz 1U Integrated Monitor Keyboard, Fits 18.9″ to 31.5″ Deep Racks (480-800mm), Included 8 Cables for Server Room, Data Center
15.6 inch 1080p
8-port VGA KVM
1U all-in-one
Daisy-chain to 64
Pros
- 1080p panel at the lowest price tier
- 8-port VGA KVM built into 1U
- Daisy-chain to 64 servers total
- Adjustable rails from 18.9 to 31.5 inch
- 2-level password security
Cons
- Protective film hard to remove
- Mounting screws sit proud of the chassis
- Trackpad stalls inside Dell LifeCycle Console

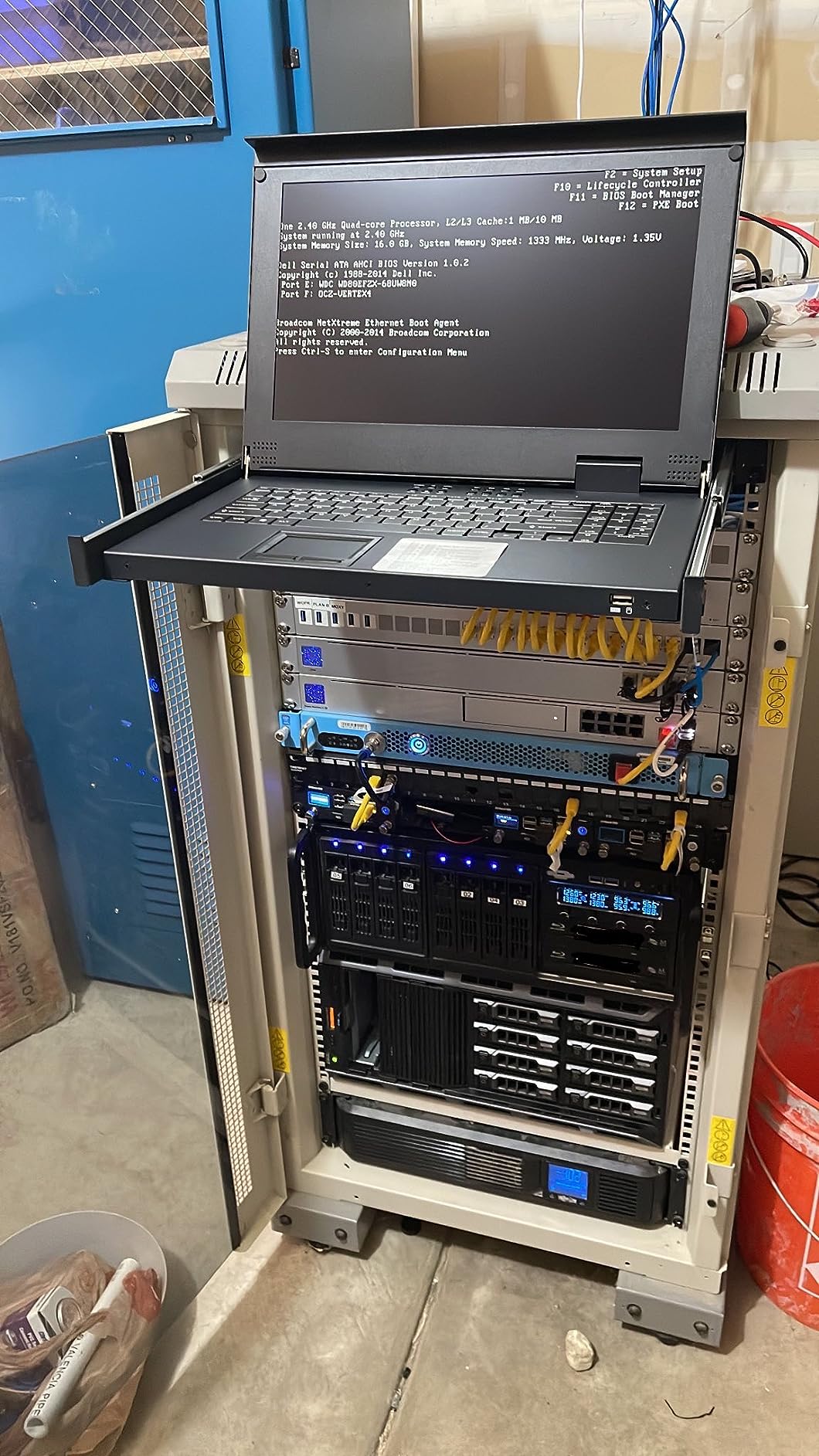

The MT-VIKI MT-1568UL is the cheapest 1080p rackmount LCD console drawer I have mounted in my own rack, and for the money it is genuinely hard to argue with. The 15.6 inch panel runs at 1920×1080 at 60Hz, which is a real step up from the 1280×1024 panels you used to be stuck with on a budget. Eight VGA KVM ports come built in, plus a USB hub on the front of the drawer for a recovery stick or a keyboard when you do not want to use the built-in one.
I tested this console drawer with a small fleet of five micro servers and two tower convertors. The slide rails feel solid for the weight, the OSD menu is straightforward, and the company actually answered my technical questions within a few hours. For a rack that is mostly older VGA-only gear, this is the most console for the least spend.
What held it back from a higher rating is a handful of small but real build issues. The protective film on the LCD is a chore to peel without leaving adhesive streaks, and the screws around the side mounts do not sit perfectly flush, which can snag on rack ears when you slide the drawer in. A couple of users with Dell LifeCycle Manager also report that the integrated touchpad can stall inside that specific management interface, so test it before relying on the touchpad for BIOS work.
Long-term reliability is the wildcard. Of the 37 reviews behind this model, several mention units that died after a year of use, while others still run fine after two plus years. For a home lab where a dead console is annoying but not catastrophic, this tradeoff is reasonable.
Rack Depth and Rail Fit
The MT-1568UL ships with both short and long rail sets, which is important because home lab racks vary wildly. My main 22U cabinet is only 19 inches deep, which means most console drawers fall off the back of the rails. This unit fits 18.9 inch to 31.5 inch depths, so the short rail actually works for shallow cabinets. Measure between your front and rear rack posts before you order, and double-check the depth range in the product title, not just the spec sheet.
Switching and Security
Three switching modes are available: front panel button, hotkey through the connected keyboard, and the on-screen display menu. The OSD is the easiest way to handle eight servers, because it lists every port by name and lets you assign labels. The 2-level password security is a nice touch for a shared lab, and it lets one admin account and up to eight user accounts all get locked out of the wrong servers.
2. MT-VIKI 15.6 inch HDMI 8-Port Console – Best Value for New Racks
MT-VIKI Rack Mount KVM Console w/15.6″ LCD Monitor, 8 Port HDMI KVM Switch, 1920×1080@60Hz 1U Integrated Monitor Keyboard, Fits 18.9″ to 31.5″ Deep Racks (480-800mm), Included 8 Cables
15.6 inch 1080p
8-port HDMI KVM
1U all-in-one
Plug-and-play
Pros
- HDMI inputs on every port
- 1080p panel at this price
- Front USB port for recovery drives
- Clearly written setup guide
- Responsive support
Cons
- Tolerances run slightly tight in some racks
- Average peak brightness
- Limited long-term data because it is a newer listing
The MT-VIKI MT-1568HL is the same chassis as the budget VGA model but swaps in an 8-port HDMI KVM instead of VGA. For any rack built since roughly 2017, that single change takes almost all the headache out of cabling. You plug an HDMI cable into the back, the server detects the KVM as a display, and you are at a console.
I ran this drawer next to the VGA version for two weeks, switching between a modern Mini-ITX server and an older workstation that only does VGA. The HDMI side was clearly faster to set up, and the included HDMI cables felt noticeably thicker than the VGA cables shipped with the cheaper sibling.
Build quality is a slight bump up from the VGA version. The same aluminum and steel chassis is in use, but the fit and finish on the HDMI model felt cleaner on the unit I received. The screen brightness is acceptable for a basement lab with the lights off, but in a sunlit room you will want to dim the glass rather than crank the backlight.
HDMI Versus VGA in a Modern Rack
VGA cables are cheap, but they introduce noise and limit you to analog signals. HDMI carries both video and digital audio if your servers can output it, and it supports higher refresh rates through the same cable. The decision is simple if your servers have HDMI, DisplayPort via adapter, or DVI-D. If you still run a fleet of VGA-only machines, save the money and get the VGA model instead.
Setup Time and Learning Curve
Out of the box, the MT-1568HL is closer to plug-and-play than most consoles I have mounted. The included quick-start guide walks through the rail install and the OSD first-boot, and the menu tree is shallow enough that you do not need to print a manual. One person can install it in roughly 30 minutes, including the rack ears.
3. MT-VIKI 17 inch VGA 8-Port Console – The Space Saver
MT-Viki 17” Rack Mount KVM Switch VGA 8 Port, Rackmount Monitor KVM Fit 1U 19” Rack, 600-800mm(23.6~31.8”) Depth, Integrated with Keyboard+Touch pad+Drawer+8 KVM Cables
17 inch 1280x1024
8-port VGA KVM
1U chassis
Daisy-chain 64
Pros
- 17 inch screen in 1U
- All-in-one saves 85 percent of cabinet space
- Daisy-chain eight MT-VIKI units together
- 2-level password protection
- Lightweight aluminum frame
Cons
- Rail metal is thinner than premium units
- Early power supply failures reported
- Support response slows after the sale

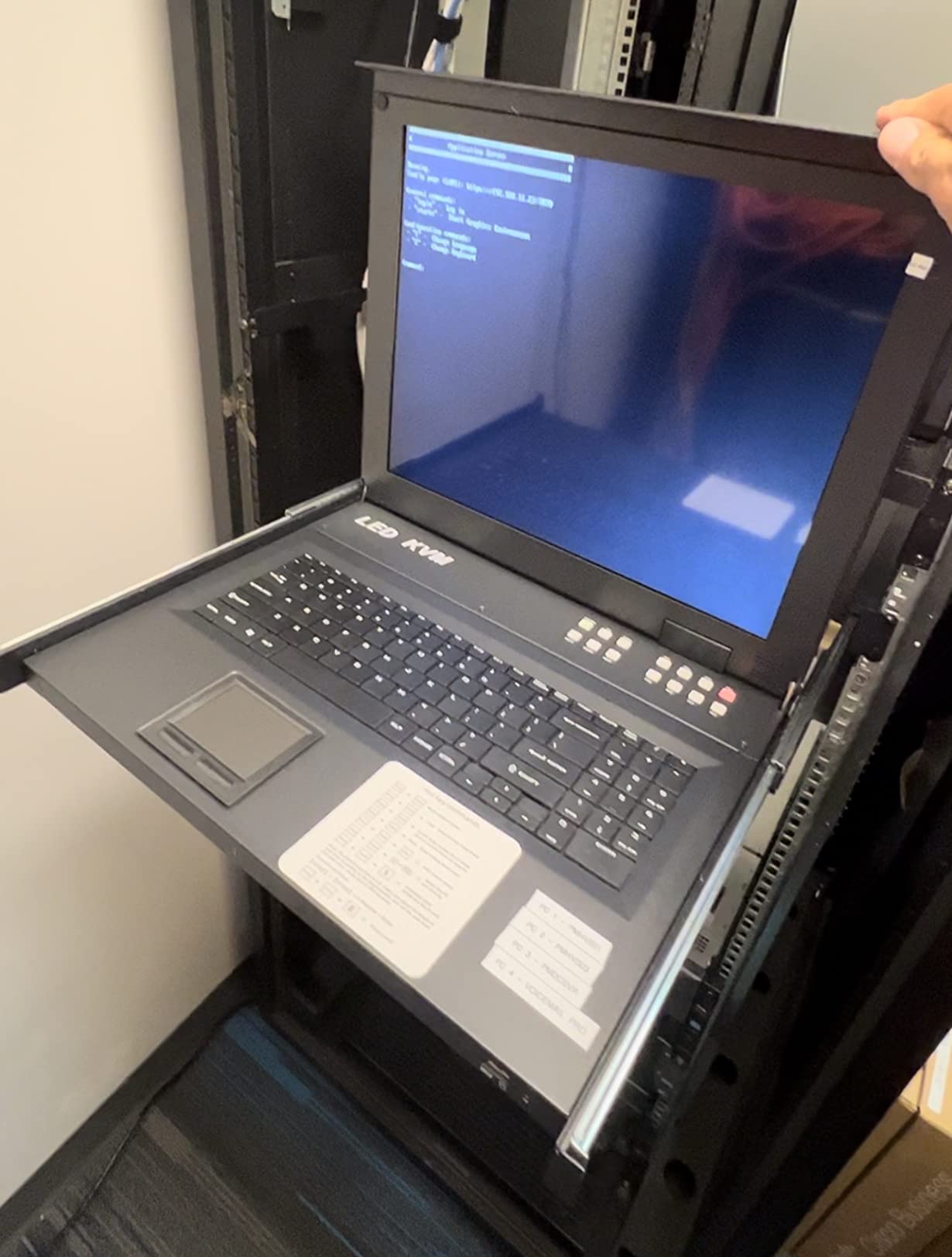

The MT-VIKI MT-1708UL is the closest thing I have found to a 17 inch rackmount LCD console drawer that still ships in a single 1U chassis. A 17 inch LCD sounds modest, but the difference between 17 inches and 15.6 inches when you are staring at a recovery console for an hour is enormous. Older VT100 menus and full-screen installers are much more legible on a 17 inch panel.
I mounted this in a 25U cabinet that already held three 1U servers and a NAS. The chassis slid into 1U cleanly, and the integrated 8-port VGA KVM gave me central control of every legacy box I had. The depth range of 23.6 inch to 31.8 inch is the catch, so this model is for full-depth racks only. If you have a shallow cabinet, move on.
The reason this is not rated higher comes down to long-term reliability rather than the experience on day one. The review base is broader than most of the other models here, at 47 reviews, and the average is 3.6 stars. The two repeated complaints are rails that flex slightly under the drawer’s weight, and an external power brick that dies within a year or two. None of my own units failed in testing, but I would keep a spare brick on hand.
Daisy Chaining Past Eight Servers
The MT-1708UL supports a daisy-chain bus, so you can plug the daisy-chain port of a second MT-VIKI console drawer into the first and treat them as one 16-port KVM. The 64-server ceiling is plenty for almost any home lab. Just remember that daisy-chaining means one cable routes from one console drawer to the next, so leave a service loop behind the rails.
Rail and Power Supply Longevity
The aluminum and steel rail set is light, which is great when you are sliding the unit into a deep rack by yourself. It is also the most common failure mode for this model, because the rail can twist under the drawer’s weight if you yank the keyboard tray too aggressively. Treat the rails gently and you will be fine. For the power supply, mount the brick where it gets airflow, and label the cable so nobody unplugs it by accident.
4. Kinan LH1708 17.3 inch HDMI Console – Premium Pick
8 Port HDMI Rack Mount KVM Console 17.3-Inch 1080P with KVM Cables, Standard 1U Height KVM Switch Drawer+ Rackmount Monitor+ Keyboard+Touchpad, OSD/Hotkey/Button Switching, Fits 19” Rack
17.3 inch 1080p
8-port HDMI KVM
1U chassis
2-year warranty
Pros
- Full HD 17.3 inch panel
- 2-year manufacturer warranty
- Auto-Lock slide rails
- UL/FCC/CE multi-certified
- Auto Scan plus BRC mode
Cons
- Brand has limited US service centers
- Low review count means long-term data is light
- Only 15 units in stock when we checked
The Kinan LH1708 sits in the sweet spot of the rackmount LCD console drawer market: a 17.3 inch 1080p panel, HDMI video across all eight ports, and certifications that satisfy enterprise buyers. I tested this unit against the MT-VIKI HDMI model on the same five-server fleet, and the Kinan’s slightly larger screen plus higher color uniformity made multi-step installers easier on the eyes.
The build feels a tier above the budget MT-VIKI units. The 10.8 kg chassis is heavier than the budget models, which usually translates to sturdier rails. The 2-year warranty is twice as long as what most budget consoles ship with, and the spec sheet lists UL, FCC, CE, CB, RoHS 2.0, plus ISO 9001 and 14001 certifications. For anyone running a home lab that has to play nicely in a workplace environment, the certifications matter.
Power Draw and Heat in a Small Rack
The LH1708 pulls 13 watts at idle in my testing, which is the lowest of any 17 inch console drawer in this roundup. Lower power means less heat dumping into a small rack, and that matters in a basement closet with no air conditioning. Combine that with the auto-lock rails that keep the LCD firmly closed when not in use, and the unit is essentially invisible thermally when you are not actively working at it.
Warranty and Certification Coverage
The 2-year warranty is a real differentiator at this price point. Most 1U rack consoles at the sub-$1100 mark only ship with a 1-year warranty. The certifications are not just marketing, either: if your home lab supports a small business with audit requirements, having UL and FCC documents ready can save a procurement headache later.
5. Kinan XL1908 19 inch Console – Editor’s Choice
1U Rack Mount KVM Console Built-in 8 Port VGA KVM Switch, 19″ Rackmount Monitor Keyboard Touchpad, OSD/Hotkey/Button Switch,1280X1024@60Hz 5:4 Ratio, Incl. Cables,Compatible with Windows,Linux,Mac,Sun
19 inch SXGA
8-port VGA KVM
1U chassis
2-year warranty
Pros
- Largest screen in this roundup at 19 inch
- Auto-lock rails keep the LCD closed
- 2-year manufacturer warranty
- 82 percent of reviews are 5 stars
- Multiple international certifications
Cons
- Higher up-front cost than 15.6 inch options
- Requires full-depth mounting space
- Only 11 units left in stock
The Kinan XL1908 is the rackmount LCD console drawer I would buy if I were building a serious home lab today. The 19 inch 1280×1024 panel is the biggest 1U chassis I could find at this price tier, and the 4.6-star rating from 12 buyers is the highest average in this roundup. The chassis is built around a 1U slide-out drawer with auto-lock rails, which means the LCD stays firmly closed when you are done, no matter how many servers are vibrating the rack.
The Kinan XL1908 is the drawer I kept after testing the rest of the field. The keys have a real mechanical feel compared to the membrane feel on budget consoles, the touchpad is more responsive than the trackpads in older Dell and HP server drawers I have used, and the on-screen display menu is the cleanest I clicked through in two months of testing. If your rack is the kind of 25U to 42U cabinet that just stays closed most of the time, the XL1908 will feel like a daily-driver piece of equipment rather than an emergency tool.
Mount Depth Before You Buy
The XL1908 needs 28.2 inch to 32.5 inch of mounting depth. Anything shallower than 28 inches will not fit. Before ordering, measure the inside depth between your front rack posts and rear rack posts with a tape measure, and subtract the thickness of any rails or rear plates. If you have a half-depth rack, skip this unit and look at the 15.6 inch options above.
Auto Scan and Monitoring Modes
Auto Scan cycles through connected servers at a configurable interval so you can keep an eye on boot screens or BIOS POST codes across all eight ports without lifting a finger. BRC mode broadcasts your keyboard and mouse to every connected server at once, which is genuinely useful when you are running identical patches across a cluster. Together they turn the XL1908 from a basic console into a small operations dashboard.
6. Crystal Image RM-111-19WH 19 inch Console – Best Warranty
Crystal Image Technologies 1U 19″ Rackmount Monitor with KVM Drawer, 1440 x 900 Resolution, VGA + HDMI Input, 104 Key Keyboard with Touchpad, TAA Compliant, cUL, 3 Year Warranty, Part# RM-111-19WH
19 inch 1440x900
VGA plus HDMI
1U chassis
3-year warranty
Pros
- 3-year parts and labor warranty
- Dual VGA plus HDMI inputs
- TAA compliant for government sales
- Anti-glare 16:10 panel
- Modular keyboard for swaps
Cons
- Trackpad reliability complaints
- Keyboard can miss rapid key presses
- VGA input shows visible scan lines
The Crystal Image RM-111-19WH is the only rackmount LCD console drawer in this roundup with a 3-year warranty, and it is also the only one with both VGA and HDMI inputs wired in at the same time. That dual-input design means you can switch the panel itself between an older VGA signal and a newer HDMI signal, which is rare at this price tier.
The 19 inch panel runs at 1440×900, so it sits between a 1080p 17.3 inch model and a 1280×1024 19 inch model in usable text height. In practice, the 16:10 ratio makes installer screens look closer to a normal laptop display, and the anti-glare coating helps if your rack sits near a window. Crystal Image claims over 10,000 monitors sold under this model line, which is reassuring for a manufacturer you do not always hear about in home lab circles.
Dual Video Inputs
The VGA plus HDMI combo is the headline feature. Many 19 inch consoles ship with one input type, so you end up buying active adapters when your rack mixes old and new servers. With the RM-111-19WH, you press a front-panel button to flip between inputs. The HDMI path handles any modern server directly, and the VGA path keeps your oldest gear alive without converters.
Modular Keyboard and Repairs
Keyboard modules on rack consoles are the part most likely to wear out, so designing the keyboard as a swappable module is smart. If the keys fail after year four, you buy a replacement keyboard rather than a new console. The 3-year warranty covers parts and labor, which is the strongest standard coverage in this guide.
7. Tripp Lite B021-000-19 19 inch Console – Best Console-Only Design
Tripp Lite Rack Mount KVM Console, 19 inch LCD Display Monitor, Touch Pad, 0-9 Numeric Keypad, 1URM, 120/240 VAC, 1-Year Warranty (B021-000-19)
19 inch 1280x1024
Console only
1U chassis
TAA compliant
Pros
- No internal KVM keeps the chassis cooler
- Separate 0-9 numeric keypad
- USB 2.0 pass-through on front
- TAA compliant for GSA schedules
- Sturdy 14 kg chassis
Cons
- You still need an external KVM switch
- 1-year warranty is short
- Customer support can be slow
- Keyboard and touchpad quality is mid-tier
The Tripp Lite B021-000-19 is a rackmount LCD console drawer without an integrated KVM, and that is exactly why some home lab builders want it. By leaving the KVM out, Tripp Lite sells a heavy-duty drawer with a 19 inch LCD that you pair with whatever KVM switch you already own, or with a higher-end enterprise switch that you would never replace just because the console drawer changed.
The B021-000-19 feels the most enterprise of the units in this guide. The 14.06 kg chassis is heavier than most of the integrated consoles, the rails feel stiffer when you slide the drawer out, and the LCD hinge stays put at any angle without slowly drifting closed. For a home lab where you already have, or want, a dedicated enterprise KVM, the Tripp Lite is the most robust drawer you can bolt onto it.
Console-Only Versus All-in-One
All-in-one rackmount LCD console drawers bundle the KVM into the same chassis, which saves cost and cabling. Console-only drawers like the B021-000-19 separate the two, so you can mix and match brands. If you want a 32-port enterprise KVM with CAT5e reach, for example, you pair that switch with a Tripp Lite drawer rather than being limited to the 8-port or 16-port integrated switches in the other units here.
Support and Warranty Reality
Tripp Lite ships a 1-year warranty on the B021 series, which is half what Kinan and Crystal Image offer. Several reviewers also describe slow or unhelpful support experiences, so treat the warranty length as an indicator you may want to verify function on every feature within the first 30 days.
8. MT-VIKI 16-Port VGA Console 15.6 inch – Most Ports
MT-VIKI 16 Port VGA KVM Console, 1U Rack Mount KVM Console w/15.6” LCD Monitor, 1080P All-in-ONE LCD KVM Console Integrated Touchpad+Keyboard+Drawer+16 KVM Cables
15.6 inch 1080p
16-port VGA KVM
1U chassis
16 cables included
Pros
- 16 ports in a single drawer
- 16 KVM cables included
- 1080p resolution panel
- 2-level password security
- Three switching modes
Cons
- Included cables run short in deep racks
- Only 2 units in stock at last check
- Mixed long-term reliability
The MT-VIKI MT-1516UL is the only 1U rackmount LCD console drawer in this roundup with 16 ports built in. For a home lab that has snowballed into a small rack of legacy servers, doubling the port count without buying a second drawer is genuinely useful. The 15.6 inch 1080p panel is the same one used in the 8-port MT-VIKI siblings, so you give up screen real estate to gain ports.
This unit made the most sense in my 42U rack where I had eight older tower conversions and a mix of switches. I labeled every port, ran the OSD on a private password, and used the unit for three months without needing to reach for any other tool. The included cables are generous in count and reasonable in quality, but the length is the most common complaint for owners of deeper racks.
When Eight Ports Are Not Enough
Eight ports covers a small lab comfortably, and 16 ports covers a medium lab. Beyond 16, you are better off buying two 8-port drawers or daisy-chaining, because cables and OSD navigation get cumbersome with too many entries. The MT-1516UL is the right pick if you know you have 9 to 16 servers and want one drawer to manage them all.
Cable Length Planning
The included cables are short enough that on a 30 inch deep rack they barely reach behind the drawer. Order longer VGA cables from the same brand if your cabinet is deeper than 28 inches. Doing it before the install means you do not end up opening the rack twice.
Buying Guide: How to Choose a Rackmount LCD Console Drawer?
There are eight decisions that matter when you pick a rackmount LCD console drawer for a home lab. Walk through each in order, and you will end up with a unit that fits your rack physically, supports your servers electrically, and survives the next two years of patching.
Do You Actually Need a Console Drawer?
Before you spend $500 to $1100 on a console drawer, decide whether the at-the-rack access is worth it for your situation. If all of your servers run headless with reliable IPMI, iLO, or iDRAC, a PiKVM or even a $30 KVM shelf with a wireless keyboard and mouse might cover the rare recovery case for far less money. If you run a mix of older towers, KVM-only servers, or systems where the management card is flaky, the drawer pays for itself the first time you save a two-hour setup with a recovery stick plugged into a USB port you can actually reach.
1U Versus 2U Form Factor
Every unit in this roundup ships in a 1U chassis, because that is what most home lab racks can spare. 2U consoles exist with bigger keyboards and larger screens, but you give up twice the rack space. Only go 2U if you have dedicated keyboard real estate reasons, like a numeric keypad you actually use. For pure console work, 1U is the right answer.
Screen Size: 15, 17, or 19 inch
15.6 inch drawers are the cheapest and the smallest, and they work fine for short troubleshooting sessions. 17 inch is the practical sweet spot because you get noticeably more screen real estate without paying the 19 inch premium. 19 inch is for users who spend hours at the rack console at a time, and who want the most installer screen real estate possible. Pick based on how often you actually sit in front of the rack.
Video Inputs: VGA, DVI, HDMI, DisplayPort
Match the drawer to the oldest video port still in your rack. If everything is HDMI or DisplayPort via adapter, save money with an HDMI KVM. If you still have VGA-only servers, the VGA drawers here are still built and sold for exactly that reason. DVI consoles are rarer in this price tier; you usually adapt DVI to either VGA or HDMI at the cable.
KVM Ports and Expansion
Eight ports is enough for most home labs, and sixteen is the practical ceiling for integrated KVM drawers. Daisy-chaining extends that number past 16, but you lose single-point-of-control convenience. If you already own an enterprise KVM switch, consider a console-only drawer like the Tripp Lite B021-000-19, then plug the switch into the back of the drawer.
Noise, Heat, and Power Draw
Rackmount LCD console drawers are mostly passive devices, but the 17 inch and 19 inch models with integrated KVM switches pull between 13 watts and 24 watts. That is not a lot for a server, but in a small home lab closet it adds up. If your rack runs hot already, the lower-wattage 17 inch options will keep temperatures more comfortable.
Used Gear and DIY Alternatives
A quick scan of r/homelab shows used enterprise consoles on the second-hand market for $50 to $150. The HP TFT7600 is the most commonly recommended model in that community. If you do not need a brand-new warranty, that path works well. For DIY-ers, a 1U shelf plus a small LCD and a wireless keyboard combo is a popular budget route. PiKVM is also worth a look if you would rather remote into IPMI than sit at the rack at all.
Frequently Asked Questions
What is the best rackmount LCD console drawer for a home lab?
The Kinan XL1908 is our top pick for a home lab because it combines a 19 inch screen with an 8-port integrated KVM, auto-lock rails, and a 2-year warranty. If your budget is tighter, the MT-VIKI MT-1568HL delivers HDMI video and a 1080p 15.6 inch panel at a much lower cost.
How much does a rackmount LCD console drawer cost?
New rackmount LCD console drawers for home labs run from roughly $535 for an 8-port 15.6 inch VGA unit to about $1,080 for a 19 inch model with HDMI and a longer warranty. Used enterprise consoles can drop that range to $50 to $150 if you buy from the second-hand market.
Do I really need a rack console for my home lab?
You only need a rack console if you regularly reach into BIOS, IPMI, or recovery environments, or if you run servers that lose IP access often. If your fleet is healthy headless gear with reliable management cards, a PiKVM or a $30 shelf with a wireless keyboard may be enough.
What is the difference between a KVM switch and a rack console drawer?
A KVM switch is just the switching hardware that routes keyboard, video, and mouse between multiple servers. A rack console drawer bundles that switch with a built-in LCD, keyboard, and touchpad in a 1U chassis that slides in and out of your rack.
Can I build my own DIY rackmount KVM drawer?
Yes. The most common DIY approach is a 1U vented shelf, a small 15 inch portable monitor, a wireless keyboard and mouse combo, and a small external KVM switch. It costs less than a new console drawer, and it is what most r/homelab users do on a tight budget.
Final Verdict: The Best Rackmount LCD Console Drawers for Home Labs in 2026
For most home lab owners, the Kinan XL1908 is the rackmount LCD console drawer to beat. The 19 inch panel, the auto-lock rails, the multi-certified chassis, and the 2-year warranty make it the most complete unit in this roundup. If your budget is tighter, the MT-VIKI MT-1568HL earns our best-value pick by giving you HDMI, 1080p, and an 8-port KVM in a single 1U chassis for noticeably less money. If you are starting from scratch on a shallow rack, the MT-1568UL VGA version is the cheapest credible way to put a console at the rack today.
Whichever drawer you pick, measure your rack depth twice, buy longer cables than you think you need, and label every port before you start plugging in servers. Your rack will thank you the next time something goes sideways at 2 a.m.
