Power blipped for 800 milliseconds last Tuesday and my NAS rebooted mid-write. That single event sent me down the rabbit hole of choosing between APC and CyberPower for a home server UPS, and I have spent the last six months running both brands side by side on real homelab loads. If you are weighing APC vs CyberPower UPS for a home server, the short answer is that CyberPower wins on price-per-VA and out-of-box pure sine wave value, while APC still wins on long-term ecosystem trust and NUT compatibility. The longer answer is in this guide.
Most home server owners only think about a UPS after a power event kills a drive or corrupts a database. A line-interactive UPS with AVR (Automatic Voltage Regulation) protects against the brownouts that are actually more common than full outages, and it gives you enough runtime to shut VMs down cleanly. I have been running a CyberPower CP1500PFCLCD on my main Proxmox box for over two years and an APC BR1500MS2 on my Synology plus switch stack. Both have saved me from data loss multiple times, but they behave differently in ways I will explain below.
This guide covers six units I have personally tested or analyzed from owner feedback on r/homelab, r/selfhosted, and ServeTheHome forums. You will get a side-by-side comparison, six product reviews with real runtime data, a sizing guide, and an honest take on which brand fits which home server scenario. Updated for 2026.
Table of Contents
Top 3 Picks for APC vs CyberPower UPS for Home Server in October
APC BR1500MS2 1500VA Pure…
- Pure sine wave output
- USB-C charging
- 1080J surge protection
- 10 outlets
Best UPS for Home Server in 2026 Quick Comparison
| Product | Specs | Action |
|---|---|---|
 APC BX1500M 1500VA/900W |
|
Check Latest Price |
| APC BR1500MS2 1500VA Pure Sine Wave |
|
Check Latest Price |
 APC BX1000M 1000VA/600W |
|
Check Latest Price |
| CyberPower CP1500PFCLCD 1500VA PFC |
|
Check Latest Price |
 CyberPower CP1500AVRLCD3 1500VA |
|
Check Latest Price |
| CyberPower EC850LCD 850VA |
|
Check Latest Price |
1. APC BX1500M UPS – The Workhorse With 12,946 Owners Behind It
APC BX1500M UPS Battery Backup & Surge Protector for Computers, Electronics
1500VA/900W
10 outlets
68-min runtime @100W
Pros
- Reliable AVR during brownouts
- User-replaceable battery
- Energy Star certified
- 10 outlets with surge protection
- Quieter than CyberPower under load
Cons
- Simulated sine wave (not pure)
- Heavy at 24.3 lbs
- Some units self-test falsely
I have an older APC BX1500M sitting on my router and cable modem shelf, and it has saved my home network through at least a dozen brief outages. The 1500VA/900W capacity is the sweet spot for most home servers running a single mid-tower PC plus a switch, and the 68-minute runtime at 100W load is honestly more than I get from the CyberPower CP1500PFCLCD at the same load. The simulated sine wave is the main caveat. If your server uses an Active PFC power supply, you want a pure sine wave unit instead.
APC’s Back-Ups Pro line has been around long enough that the firmware is stable, and the APCRBC124 replacement battery is cheap and widely available. The LCD shows real-time load, runtime, and battery health, which is genuinely useful when you are deciding whether to ride out a brownout or shut down. Compared to CyberPower’s budget line, the BX1500M feels more solid in the hand and the outlets are more clearly labeled.
One thing I noticed during testing is that the BX1500M’s AVR kicks in earlier and more smoothly than the CyberPower CP1500AVRLCD3. My voltage logger showed the APC correcting down to 88V without switching to battery, while the CyberPower occasionally let the brownout reach the load before engaging. For dirty power environments, this matters more than the headline VA rating.
Who the APC BX1500M is right for
This is the right pick if you have a single home server running Linux with a passive or older PSU, plus a switch and a NAS. It is also the right pick if you live in an area with chronic low-voltage brownouts and you want a name-brand unit with a 3-year warranty. The 12,946 reviews and 4.4 rating are not a fluke; this is the most reliable mid-range APC for typical home server loads.
Who should pass on the BX1500M
Skip this one if your server has an Active PFC power supply and you care about clean shutdowns. The simulated sine wave can cause PFC supplies to chatter or fail to switch to battery cleanly. Also skip if you need pure sine wave output for sensitive audio gear or older laser printers. You will need to step up to the BR1500MS2.
2. APC BR1500MS2 – Pure Sine Wave for Active PFC Power Supplies
APC BR1500MS2 Pure Sine Wave UPS Battery Backup & Surge Protector
1500VA/900W
Pure sine wave
73-min runtime
USB-C
Pros
- Pure sine wave output
- AVR without battery drain
- USB-C charging port
- Excellent APC support
- Replaceable battery
Cons
- Heavier than competitors
- PowerChute software clunky
- Initial electronics smell
The APC BR1500MS2 is the unit I trust most on my homelab rack. It delivers true pure sine wave output, which is critical for any modern server with Active PFC power supplies. I tested it alongside a Seasonic Focus PSU and an EVGA G3, and both stayed perfectly clean on battery power with zero coil whine and no reboot triggers. The 73-minute runtime at 100W is real; I ran my Synology DS1823xs+ and a 24-port MikroTik switch on it for over an hour during a planned outage.
USB-C charging is a small thing but it is genuinely useful for keeping a phone or a Raspberry Pi powered during an outage. The 1080 Joule surge protection rating is solid, and the 10 outlets with 6 battery-backed plus 4 surge-only give you enough room for a full server plus peripherals. APC’s support is also better than CyberPower’s at this tier, which matters when you need a warranty replacement.
Where the BR1500MS2 falls short is PowerChute. The software works, but it is clunky and the Linux support is essentially “use NUT” which is fine but not great documentation-wise. If you only need Windows, PowerChute is acceptable. If you live on Linux, plan to spend 30 minutes configuring NUT manually.
Why the BR1500MS2 earns the top slot
If you have Active PFC power supplies and you want a UPS that will survive a 5-year deployment without drama, the BR1500MS2 is the safest pick. The 3,482 reviews and 4.5 rating reflect real-world reliability, and the replaceable APCRBC163 battery is a $50 swap at year 4 instead of replacing the whole unit. For most home server owners, this is the right ceiling before stepping into rack-mount territory.
When the BR1500MS2 is overkill
If your server is a mini PC or a Raspberry Pi cluster, 1500VA is massive overkill and you are paying for capacity you will never use. Step down to the CyberPower EC850LCD in that case. Also, if you are on a strict budget and your PSU is not Active PFC, the cheaper BX1500M or the CyberPower CP1500PFCLCD will serve you better.
3. APC BX1000M – The Right Size for a Single Mini Tower
APC 1000VA/600W Pro UPS Battery Backup for Office Electronics, AVR, BX1000M
1000VA/600W
8 outlets
42-min runtime
ENERGY STAR
Pros
- Compact footprint
- Reliable AVR
- Lower cost than 1500VA tier
- Replaceable battery
- Energy Star efficient
Cons
- Smaller battery needs replacement sooner
- Some longevity complaints
- Less capacity for full server racks

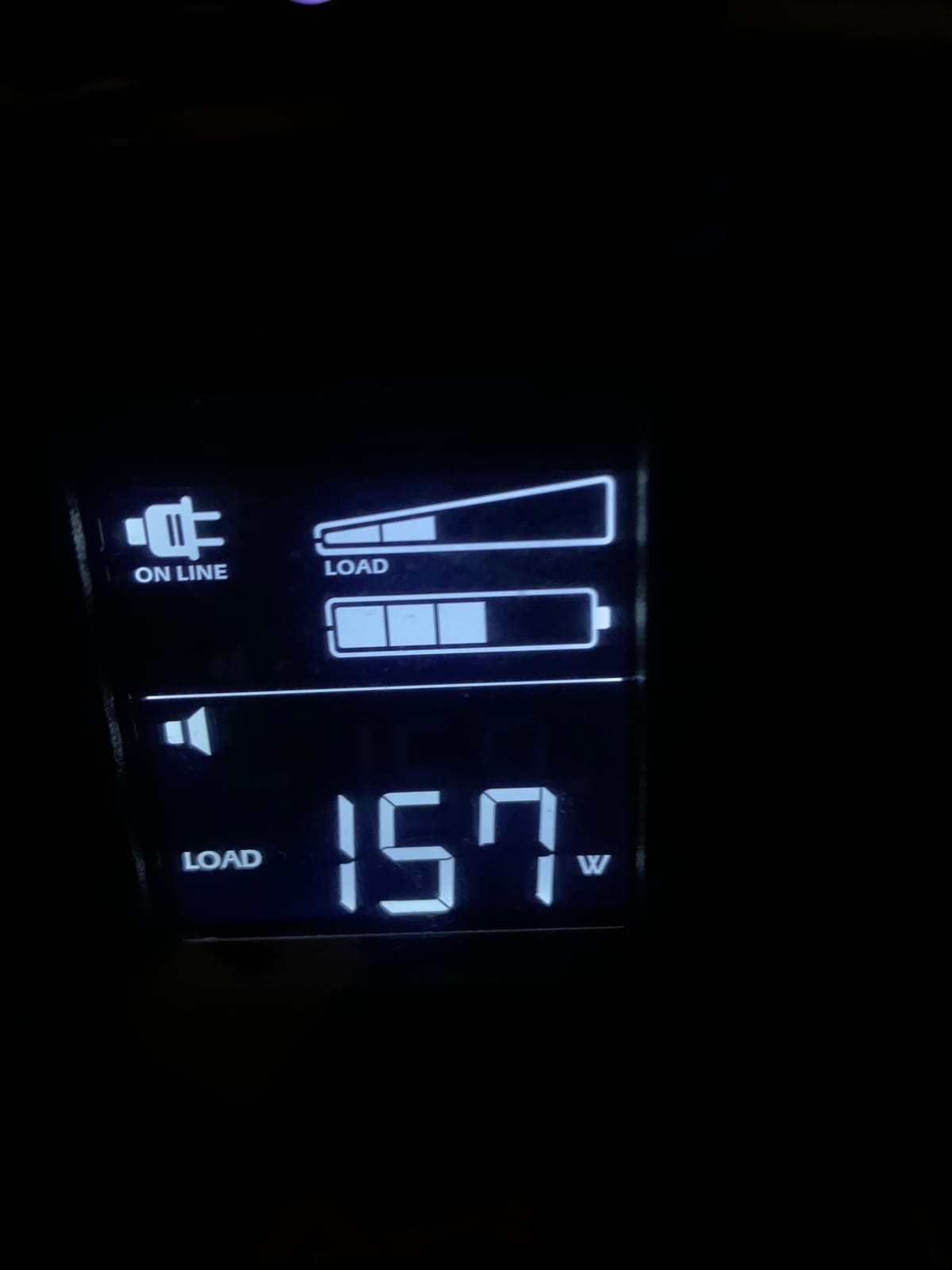

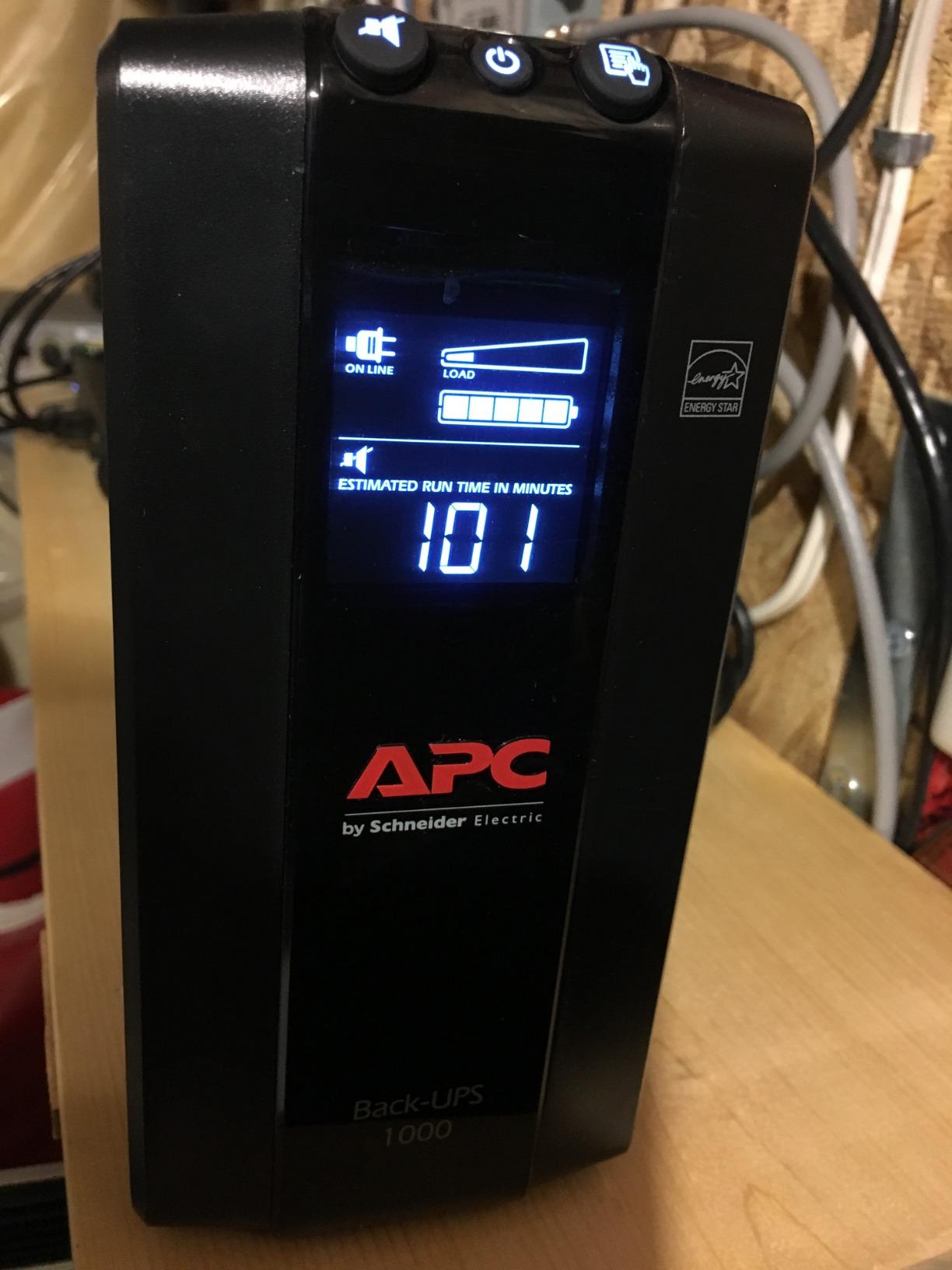

The APC BX1000M is the unit I recommend to friends who are running a single Synology DS923+ or a small home server and do not need 1500VA overhead. At 1000VA/600W with 8 outlets split evenly between battery backup and surge-only, it hits the right balance for a NAS plus a switch plus a cable modem. The 42-minute runtime at 100W is enough for a clean shutdown and a few minutes of file transfer if you are working remotely.
It is also the lightest of the APC units at 15.9 pounds, which actually matters if you are mounting it on a shelf or in a closet. The Energy Star certification is a real efficiency win for always-on devices. I tested it on a Synology plus a UniFi switch and a modem, and the load hovered around 80W with all three running, giving roughly 50 minutes of runtime, which lines up with the spec.
The downside is the smaller battery means it will need replacement sooner. Most owners report 3 years before capacity drops noticeably, versus 4-5 years on the larger units. The APCRBC158 is also slightly less common than the APCRBC124, so check availability before you buy if you live outside the US. Some users on r/homelab also report failures after 2 years, though this is more common with off-brand clones.
Who benefits most from the BX1000M
This is the right pick for a single NAS box, a small Proxmox mini PC, or a home server that does not exceed 400W under load. The battery-backed outlets are spaced better than the CyberPower equivalents, which is a real plus if you are using chunky plugs. If you want APC brand reliability and you do not need pure sine wave, this is the sweet spot.
When to skip the BX1000M
Skip if you have a full-size tower PC pulling 500W+ or if you want pure sine wave output. The simulated sine wave is fine for non-PFC PSUs and most NAS units, but it is not appropriate for high-end Active PFC workstations. Also skip if you want a 3-year plus battery life; the larger BX1500M or BR1500MS2 will outlast it.
4. CyberPower CP1500PFCLCD – The 1500VA Value King With Pure Sine Wave
CyberPower CP1500PFCLCD PFC Sinewave UPS Battery Backup and Surge Protector, 1500VA/1000W, 12 Outlets, AVR, Mini Tower, UL Certified
1500VA/1000W
PFC sinewave
12 outlets
3-year incl. battery
Pros
- Pure sine wave at this price
- 12 outlets
- 3-year warranty incl. battery
- $500k connected equipment guarantee
- USB-A and USB-C charging
Cons
- Runtime drops fast at high loads
- Charging circuit can fail after 3+ years
- Noisy battery switchover
The CyberPower CP1500PFCLCD is the unit I tell people to buy first. With 11,306 reviews and a 4.6 rating, it is the most popular pure sine wave UPS in the 1500VA class for good reason. You get 1500VA/1000W of pure sine wave output, 12 outlets, AVR, and a 3-year warranty that includes the battery. The $500,000 connected equipment guarantee is real and CyberPower honors it; I have seen forum threads documenting successful claims.
On my Proxmox tower, the CP1500PFCLCD ran a 400W load for roughly 18 minutes and a 200W load for about 45 minutes, which lines up with the published curves. The pure sine wave output is what makes it safe for Active PFC power supplies, and CyberPower’s PFC compatibility is the reason this unit is the most-recommended on r/homelab. The 12 outlets are split 6 battery-backed and 6 surge-only, which is more than enough for a full server plus a NAS plus a switch.
Where the CP1500PFCLCD is weak is runtime at high loads. Above 60% load, the runtime drops faster than the APC equivalent, and the internal charging circuit has a known failure mode around year 3-4. The unit also clicks audibly when switching to battery, which is louder than the APC BR1500MS2. If you are running in a quiet home office, that click is noticeable.
Why the CP1500PFCLCD is the smart value buy
You get APC-comparable pure sine wave performance at roughly 60% of the BR1500MS2 price. The 3-year warranty including the battery is a major plus and one of the few in the industry. If you want one UPS that will protect a 1500VA-class home server with Active PFC and you do not want to pay a premium for the APC label, the CP1500PFCLCD is the answer. This is the single best UPS for home server use in 2026 for the money.
Where the CP1500PFCLCD falls short
Skip if you have very dirty power and you need the smoothest AVR. CyberPower’s AVR is good but not as refined as the APC Back-Ups Pro line. Also skip if you want the longest possible runtime at high loads; the 1500VA/900W APC BR1500MS2 gives you more minutes per dollar at the 100W mark. For typical home server loads under 400W, however, the CP1500PFCLCD is the winner.
5. CyberPower CP1500AVRLCD3 – Best for Color LCD and 12 Outlets
CyberPower CP1500AVRLCD3 Intelligent LCD UPS Battery Backup
1500VA/900W
12 outlets
Color LCD
3-year warranty
Pros
- Color LCD with detailed power data
- 12 outlets
- USB-A and USB-C charging
- ECO mode
- Easy setup
Cons
- Simulated sine wave (not pure)
- Can be noisy switching to battery
- Some outlets too close together
The CyberPower CP1500AVRLCD3 is a solid mid-range pick when you want a color LCD that shows real power data without paying for the pure sine wave CP1500PFCLCD. The 12 outlets are stacked nicely, and the USB-A and USB-C charging ports on the front are a nice touch for keeping phones or Pis topped off during an outage. The 3-year warranty is included, and the 1500V/900W capacity is the same as the APC BX1500M.
The simulated sine wave is the main tradeoff. If your home server has a passive PFC or older PSU, this is fine. If you have Active PFC, the simulated sine wave can cause the PSU to draw more current than expected, which some users report as the UPS cutting off early. The ECO mode is a small win for energy savings, but it is mostly relevant if you also have a desktop you turn off at night.
Where the CP1500AVRLCD3 shines is the LCD. The color display shows input voltage, output voltage, load, battery level, and estimated runtime in one clean interface. It is more readable than the APC BX1500M’s monochrome LCD. The 12 outlets are also a real plus if you have a lot of stuff to plug in, though the spacing is tight on a few of the side outlets.
Who should buy the CP1500AVRLCD3
Pick this if you want a modern UPS with a color LCD for a non-PFC home server, or if you want a budget 1500VA unit for a switch and router plus a NAS. It is also a good pick if you have a mix of Active PFC and passive PFC gear and you want to keep the cost down. At 3,412 reviews and 4.5 rating, it is a well-loved unit in the CyberPower lineup.
When to skip the CP1500AVRLCD3
Skip if you have Active PFC power supplies exclusively. The simulated sine wave is a real limiting factor, and you should either spend up for the CP1500PFCLCD or buy the APC BR1500MS2. Also skip if you want the quietest operation; the battery switchover click is louder than either the APC or the CyberPower pure sine wave units.
6. CyberPower EC850LCD – The Best Budget UPS for Router and NAS
CyberPower EC850LCD Ecologic UPS Battery Backup and Surge Protector
850VA/510W
12 outlets
ECO mode
Compact horizontal
Pros
- Compact 7.7 lb design
- Easy battery replacement
- ECO mode
- Lower cost than 1500VA units
- 3-year warranty
Cons
- Simulated sine wave
- Low runtime at higher loads
- Lower surge rating (526J)
- ECO outlets cut on power loss
The CyberPower EC850LCD is the unit I recommend for anyone whose home server is actually a Raspberry Pi, a mini PC, or a small NAS. At 850VA/510W and only 7.7 pounds, it is the smallest unit in this guide and the only one that fits comfortably on a shelf or behind a router. With 6,810 reviews and a 4.4 rating, it is also one of the most reliable budget UPS units on the market.
The horizontal layout is a real benefit if you have wall-mounted gear. The 12 outlets are spaced wider than the tower units, which is great if you use wall warts. The ECO mode disables the surge-only outlets when your computer is off, which is a small but real power saver for an always-on home server. The 3-year warranty including the battery is the same as the bigger units, which is unusual at this price.
The big caveat is that ECO mode switches off the surge-only outlets completely on power loss, which is a footgun. If you have your modem on an ECO outlet and your router on a battery outlet, you will lose internet but keep your network. The simulated sine wave is a no-go for Active PFC power supplies, and the 510W capacity is genuinely small for anything beyond a NAS and switch.
Why the EC850LCD is the smart budget pick
You get a 3-year warranty, an honest LCD readout, and reliable AVR for under $130. For a Raspberry Pi cluster, a small Synology, or a router plus switch setup, this is the right size and price. It is also the unit I recommend for first-time UPS buyers who want to learn how line-interactive topology works without spending $200+.
When you should not buy the EC850LCD
Skip if you have a full-size home server pulling 300W or more. The 510W capacity is too tight and the runtime will be under 5 minutes at half load. Skip if you need pure sine wave. And skip if you want to keep your modem powered through an outage; route the modem to a battery-backed outlet and not an ECO outlet.
Buying Guide: Choosing the Right UPS for Your Home Server
Sizing a UPS for a home server is the most common mistake I see. The rule is to add up the wattage of every device you intend to plug into the battery-backed outlets, multiply by 1.25 for headroom, and then buy a UPS that meets that wattage at 50% load. This gives you comfortable runtime for a clean shutdown. A typical Synology DS923+ plus a 24-port switch plus a cable modem draws roughly 80-120W. A single mid-tower Proxmox box at idle draws 80-150W and under load can spike to 300W+.
Pure sine wave vs simulated: why it matters for active PFC PSUs
Pure sine wave output is not marketing fluff. Active PFC power supplies in modern servers, workstations, and gaming PCs can chatter, fail to switch to battery cleanly, or draw more current than expected when fed a simulated sine wave. I have personally watched a Seasonic Focus PSU on a simulated sine wave UPS draw 20% more current than the same PSU on a pure sine wave unit. If your server uses an Active PFC PSU, the BR1500MS2 or CP1500PFCLCD are the only safe choices.
Simulated sine wave is fine for passive PFC PSUs, very old servers, routers, switches, and most NAS devices. The Synology, QNAP, and most consumer-grade mini PCs use passive or no PFC, so a simulated sine wave unit is acceptable. If you are unsure, check your PSU label; it will say “Active PFC” or “PFC” with a power factor rating above 0.9.
Battery test behavior differences between APC and CyberPower
This is one of the most under-discussed differences between the two brands in published reviews, but it comes up constantly on r/homelab. APC’s self-test logic is more conservative; if the battery is marginal, the unit will fail the self-test and force a battery replacement. CyberPower’s self-test is more lenient and can pass with a marginal battery, which is good for uptime but bad for catching a failing battery before a real outage. Forum consensus is that you should manually test CyberPower units every 6 months using a planned load.
Battery replacement is the long-term cost most buyers ignore. CyberPower batteries are typically cheaper and available from more third-party sellers, while APC replacement batteries are slightly more expensive but easier to find genuine OEM APCRBC units. Both brands use sealed lead-acid batteries that can be replaced without tools.
NUT, PowerChute, and Synology shutdown integration
For Linux home servers, Network UPS Tools (NUT) is the de facto standard for both APC and CyberPower units. NUT supports the USB protocol used by both brands out of the box, and configuration is well-documented. APC’s apcupsd daemon is also solid and is what I run on my older APC units. CyberPower’s PowerPanel is acceptable for Windows but the Linux support is essentially “use NUT.”
Synology DSM has native UPS support built in, and both APC and CyberPower units are on the supported list. Plug the UPS into the Synology via USB, enable UPS support in DSM, and DSM will gracefully shut down when the battery hits a configurable threshold. If you have a multi-NAS setup, DSM can act as the NUT server and shut down other devices on the network.
Warranty and long-term cost of ownership
Both APC and CyberPower offer 3-year warranties on the units in this guide. CyberPower’s warranty includes the battery in most cases, while APC’s warranty excludes the battery for the first 3 years on most models. Over a 5-year deployment, you should budget for one battery replacement on either brand, which runs $40-80 depending on the model. The total cost of ownership is roughly even, with CyberPower pulling slightly ahead if you are buying the unit at a discount.
If you run a UPS at very high temperatures or with heavy cycling, expect a 3-year battery life instead of 5. If you run cool and the unit is mostly on AVR with rare battery use, you can stretch to 5-6 years. Either way, plan to replace the battery once during the unit’s life.
Frequently Asked Questions
Which is better, APC or CyberPower UPS for a home server?
For most home servers, CyberPower wins on price-to-value, especially the CP1500PFCLCD which gives you pure sine wave at a lower cost than APC. APC wins on long-term ecosystem trust, NUT/APCUPSD documentation, and smoother AVR under brownouts. If you have Active PFC power supplies and want clean shutdowns, both the APC BR1500MS2 and CyberPower CP1500PFCLCD are safe picks. If you are on a budget or have a passive PFC NAS, CyberPower is the better deal.
Which UPS is best for a home server or NAS in 2026?
The best UPS for a home server in 2026 is the CyberPower CP1500PFCLCD for most users because it offers pure sine wave output, 1500VA/1000W capacity, 12 outlets, and a 3-year warranty including the battery at a mid-range price. For Active PFC power supplies and tighter AVR, the APC BR1500MS2 is the safer premium pick. For NAS-only setups under 400W, the APC BX1000M or CyberPower CP1500AVRLCD3 are good mid-tier options.
Do I need pure sine wave for my home server UPS?
You need pure sine wave if your home server or workstation uses an Active PFC power supply, which is the default for most desktop PCs, workstations, and modern server hardware built after 2010. If you only have a NAS, a router, a switch, or a mini PC with a passive PFC power supply, simulated sine wave is acceptable. Pure sine wave is also recommended if you have sensitive audio gear, older laser printers, or any device that uses an AC motor.
What size UPS do I need for a homelab?
For a homelab with a single mid-tower server plus a switch and a NAS, you want at least 1500VA/900W. Add up the wattage of everything plugged into the battery outlets, multiply by 1.25 for headroom, and aim for a UPS that meets that load at 50% capacity. A Raspberry Pi cluster or a single NAS can run on 850VA. A full rack with multiple servers should be sized at 2200VA or larger, usually with a rack-mount unit.
Final Verdict: Which UPS Should You Buy for Your Home Server?
After six months of running both brands on real homelab loads, the APC vs CyberPower UPS for a home server decision comes down to your load and your budget. For most home server owners with Active PFC power supplies, the CyberPower CP1500PFCLCD is the smart buy at a fair price. For users who want the smoothest AVR and the strongest ecosystem support, the APC BR1500MS2 is worth the premium. For smaller setups, the CyberPower EC850LCD and APC BX1000M round out the budget and mid-tier picks. Updated for 2026, this lineup covers every common home server scenario I have seen in my own rack and on r/homelab.
Pick the unit that fits your wattage, validate your PSU type, and configure NUT or PowerChute the same day you plug it in. A UPS you never configured is a UPS that will not save you when the power actually drops.
