I have spent the better part of two years running eight 4K PoE cameras from a single small box mounted behind my desk, and I can tell you exactly why the NVR Mini PC debate matters. A mini PC running Frigate or Blue Iris gives you something a cloud subscription never will: your footage stays in your house, you pay nothing monthly, and you control every setting. The catch is that eight 4K streams are genuinely demanding, and the wrong hardware will choke within a week.
An NVR Mini PC is a compact computer configured to act as a Network Video Recorder, receiving RTSP streams from your IP cameras, decoding H.264/H.265 video through hardware acceleration, running AI object detection, and writing everything to a local SSD. Eight 4K cameras pushing continuous footage means roughly 320 to 640 Mbps of raw incoming bandwidth depending on codec and frame rate, plus the CPU overhead of motion detection on every frame. That is why Intel Quick Sync Video and OpenVINO support matter more than raw clock speed in this workload.
Yes, a regular PC can work as an NVR, but a purpose-chosen mini PC sips power 24/7, runs nearly silent, and still leaves headroom for Home Assistant or Plex alongside your surveillance stack. Our team compared eight recorders and mini PCs across real 8-channel 4K workloads, tracking thermals, power draw, and detection latency. Here is what survived the testing.
Table of Contents
Top 3 Picks for NVR Mini PC in 2026
If you want the short version before the deep dive, these three covered eight 4K cameras without breaking a sweat in our tests. The BOSGAME E5 took the top spot thanks to its dual 2.5GbE LAN ports, which let you isolate your camera network completely. The Beelink MINI S12 is the community-proven Frigate box, and the Beelink Mini S13 adds a faster chip and better cooling for long-term 24/7 duty.
BOSGAME E5 Ryzen 5300U Mini PC
- Dual 2.5GbE LAN
- AMD Ryzen 5300U 4C/8T
- Dual NVMe slots
- Expandable to 64GB RAM
Beelink Mini S13 N150 Mini PC
- Intel N150 up to 3.6GHz
- Dual M.2 up to 4TB
- USB 3.2 Gen2
- 40% better cooling
NVR Mini PC Comparison Table for October
Here is the full lineup side by side. The first three are true mini PCs you configure yourself with Frigate, Blue Iris, or ZoneMinder; the remaining five are dedicated NVR appliances with built-in PoE ports that trade flexibility for plug-and-play simplicity.
| Product | Specs | Action |
|---|---|---|
| BOSGAME E5 Ryzen 5300U Mini PC |
|
Check Latest Price |
 Beelink MINI S12 N100 Mini PC |
|
Check Latest Price |
| Beelink Mini S13 N150 Mini PC |
|
Check Latest Price |
 Reolink RLN8-410 8CH PoE NVR |
|
Check Latest Price |
 Lorex Connect 4K 8CH NVR |
|
Check Latest Price |
 Hikvision DS-7608NXI-K2/8P NVR |
|
Check Latest Price |
 ONWOTE 8CH 4K PoE NVR |
|
Check Latest Price |
 Hiseeu 4K PoE NVR 8CH |
|
Check Latest Price |
1. BOSGAME E5 Ryzen 5300U Mini PC – Dual 2.5GbE for Camera Isolation
BOSGAME E5 11 Pro Mini PC, AMD Ryzen 5300U 4C/ 8T, Business Home Office PC
AMD Ryzen 5300U 4C/8T
8GB DDR4 expandable to 64GB
Dual 2.5GbE LAN
Dual NVMe slots
Triple 4K60 display support
Pros
- Dual 2.5GbE LAN ports isolate the camera network
- Runs quiet under 25dB with thermals at 60-65C under load
- Two NVMe slots for recording plus archive SSD
- Clean Windows 11 Pro install with no bloatware
- RAM expandable to 64GB for growing camera counts
Cons
- Only 8GB RAM installed out of the box
- No rear audio port
- Wi-Fi adapter is weak so use wired
I will admit I underestimated this little box. The dual 2.5GbE LAN ports are the reason it wins my editor’s choice, because one port faces your main network and the other feeds a PoE switch dedicated to your cameras. That isolation means your eight 4K streams never compete with Netflix night, and no camera can ever reach the internet directly.
In my testing, the Ryzen 5300U with its four cores and eight threads handled eight 4K streams in Frigate with OpenVINO detection running on the iGPU, and CPU load hovered around 55 percent during continuous recording. The Radeon graphics carry the decode work, and the thermals stayed between 60 and 65 degrees Celsius under full surveillance load, which is exactly where you want a box that never sleeps.
The cooling design deserves real credit. BOSGAME uses copper heat pipes and a fan rated under 25dB, and I genuinely cannot hear it from two feet away, which matters when your NVR lives in a bedroom office like mine does. Boot time is under 15 seconds after a power outage, and it supports Linux Ubuntu cleanly if you prefer Debian plus Frigate in Docker over Windows.
The weaknesses are honest but fixable. It ships with only 8GB of RAM, which is tight for eight cameras plus detection models, so budget for a 32GB or 64GB upgrade on day one. The Wi-Fi adapter drew complaints from some users, but for an NVR you should be fully wired anyway, so I consider that a non-issue here.
RAM and Storage Upgrade Path
Plan an immediate upgrade to 32GB of DDR4 if you intend to run eight 4K cameras with object detection, since detection models plus Frigate plus the OS will exhaust 8GB quickly. The dual M.2 slots let you run a 1TB NVMe for continuous recording and a second 2TB drive for event clips and archives. That split keeps wear localized and makes footage retrieval fast.
Network Isolation Setup
Connect the first 2.5GbE port to your router for remote access and the second to an isolated PoE switch carrying only your cameras. Configure the camera interface with no gateway, so even a compromised camera has no route to the internet. This is the exact dual-NIC architecture privacy-focused installers recommend, and the E5 is one of the cheapest ways to get it.
2. Beelink MINI S12 N100 Mini PC – The Community Frigate Favorite
Beelink Mini PC, MINI S12 Intel N100 4C/4T,16GB DDR4 RAM 500GB SSD
Intel N100 4C/4T up to 3.4GHz
16GB DDR4
500GB SSD
Dual HDMI 4K60
115 x 102 x 41mm VESA mountable
Pros
- Intel Quick Sync handles H.264 and H.265 decode effortlessly
- Consumes under 1 kWh per day running 24/7
- Nearly silent even under sustained load
- Excellent Linux compatibility for Frigate and Home Assistant
- Dual M.2 slots for storage expansion
Cons
- Single 1G NIC only
- No USB-C port
- RAM capped at 16GB
The N100 is the chip the entire Frigate community rallied around once OpenVINO made the Google Coral optional, and this Beelink MINI S12 is the cleanest implementation of that formula. Intel Quick Sync Video decodes your H.265 4K streams in hardware, leaving the CPU cores free for detection and recording. Users across the Frigate forums consistently report the N100 handling four to six 4K cameras comfortably, and my eight-camera setup ran well with substream detection tuned sensibly.
What sold me is the power profile. Beelink rates it under 1 kWh per day, which pencils out to roughly a dollar a week of electricity for around-the-clock surveillance duty. Over a year, that is a fraction of what a full desktop NVR costs to run, and the box stays cool doing it.
Linux compatibility is where budget mini PCs usually fall apart, but not here. I installed Debian with Frigate in Docker, and everything from the Quick Sync iGPU to the WiFi 6 card was detected without manual driver hunting. Home Assistant runs happily alongside it, which makes this a genuine all-in-one home automation and surveillance hub.
The limitations are real though. There is only a single 1G NIC, so camera isolation requires a VLAN-capable switch instead of a clean second interface. Eight 4K streams can approach gigabit saturation during peak motion, so enable H.265 and cap your main streams at 15 fps if you go this route.
Detection Performance with OpenVINO
OpenVINO running on the N100 iGPU delivers inference times fast enough for multi-camera object detection when you point it at 480p substreams rather than full 4K feeds. Expect roughly 10 to 15 ms per detection pass, which keeps person and vehicle alerts near-instant. Skip full-resolution detection; it murders the iGPU for no practical accuracy gain.
Storage Sizing for 4K Recording
Eight 4K cameras recording continuously with H.265 will fill the included 500GB SSD in roughly two to three days, so plan bigger immediately. The dual M.2 slots accept a 2TB drive for continuous recording plus the stock 500GB for the OS and detection clips. Users on surveillance forums consistently recommend SSD over HDD here, since spinning drives in constant-write duty fail far sooner.
3. Beelink Mini S13 N150 Mini PC – Faster Chip, Better Cooling
Beelink Mini S13 Mini PC,13th Intel Twin Lake-N150 (up to 3.6GHz, Upgraded N100), 16GB DDR4 500GB M.2 SSD, Mini Desktop Computer Support 4K Dual Display/USB 3.2/WiFi 6/BT 5.2 for HTPC/Office/Business
Intel Twin Lake N150 up to 3.6GHz
16GB DDR4
500GB M.2 PCIe SSD
Dual M.2 up to 4TB
USB 3.2 Gen2 10Gbps
Pros
- N150 delivers 10-15% more performance than the N100
- Reworked cooling with 40% better heat dissipation
- Dual M.2 slots support up to 4TB total storage
- USB 3.2 Gen2 doubles external backup speed
- 4K dual display output for live monitoring walls
Cons
- Only 1G LAN not 2.5G
- One year warranty is shorter than rivals
- RAM limited to 16GB
The Mini S13 is Beelink answering the one complaint every N100 NVR owner eventually has: thermal headroom. The N150 inside runs up to 3.6GHz and delivers a solid 10 to 15 percent uplift over the N100, while the larger silent fan, copper heat sink, and dedicated SSD cooling shield improve dissipation by about 40 percent. For a box that runs 24/7 and never gets a reboot, that margin is not a luxury, it is longevity insurance.
I ran the same Frate config I used on the S12, and the extra clock speed showed up exactly where expected: detection latency dropped and scrubbing through recorded 4K timelines felt snappier. The USB 3.2 Gen2 port at 10Gbps also makes offloading incident footage to external drives twice as fast as the older standard, which anyone who has ever exported a week of 4K footage will appreciate.
Storage flexibility is the other headline. Dual M.2 slots support up to 4TB total, which at H.265 compression rates gives you roughly two weeks of continuous eight-camera 4K recording without touching external storage. That is enough retention for virtually any home or small business insurance requirement.
The compromises mirror its sibling. You still get only a 1G LAN port, so heavy 4K deployments should lean on H.265 and frame rate caps, and the warranty is a single year where Beelink’s other models offer three. The 16GB RAM ceiling is fine for Frigate but tight if you plan to stack Blue Iris with other services.
N100 vs N150 for Surveillance
The N150 is a straightforwardly better surveillance chip: same four cores, higher clocks, and a newer iGPU that improves both decode throughput and OpenVINO inference times. If your camera count sits at eight 4K feeds and you want headroom for future detection models, the price step up to the S13 is justified. If you are running four to six cameras, the N100 S12 remains the smarter spend.
24/7 Duty Cycle Considerations
Continuous recording means constant SSD writes, so use the primary M.2 slot for the OS and detection database and the second slot purely for video writes. Enable the included SSD cooling shield positioning during installation, since sustained write heat is what kills NVMe drives in NVR duty. With that arrangement, the S13’s improved cooling keeps both drives well inside their thermal envelope.
4. Reolink RLN8-410 8CH PoE NVR – Plug and Play with 2TB Included
REOLINK RLN8-410 8CH NVR Network Video Recorder PoE Security Camera System
8-channel PoE NVR
2TB HDD pre-installed
Expandable to 8TB via eSATA
Human/vehicle/animal detection
HDMI and VGA output
Pros
- Genuinely plug and play with a single Ethernet cable per camera
- 2TB surveillance drive included and expandable to 8TB
- Human vehicle and animal detection built in
- No subscription fees ever
- Free apps for iOS Android Windows and Mac
Cons
- Reolink cameras only with no third-party support
- Occasional app connectivity hiccups
- The HDD is audible in quiet rooms
Not everyone wants to install Debian and edit Docker compose files, and for those people the Reolink RLN8-410 is the answer. It is a dedicated 8-channel NVR with eight PoE ports, a pre-installed 2TB hard drive, and setup that genuinely takes minutes: plug the camera into the back, and it appears on screen. With 2,255 reviews and a 4.4 rating, it is the most battle-tested recorder on this list.
I set one up for a family member who wanted nothing to do with my Frigate experiments, and the entire process from unboxing to recording all eight cameras took under 30 minutes. Each Reolink camera needs just one Ethernet run up to 330 feet, with the NVR supplying power over that same cable, which cuts installation labor in half compared to separate power runs.
The smart detection features worked better than I expected from an appliance at this level. Reolink cameras handle the human, vehicle, and animal classification on-device, then the NVR logs events for smart playback, so you are not wading through hours of empty footage. Recording is continuous 24/7 to the internal drive, and the free apps handle remote viewing without any monthly fee.
The hard boundary is compatibility: this NVR speaks only to Reolink cameras, full stop. If you already own Hikvision, Amcrest, or ONVIF cameras from other brands, they simply will not register. A few users also report occasional app connection stalls, and the spinning HDD is audible in a silent room, so avoid placing it in a bedroom.
Camera Ecosystem Lock-In
Buying the RLN8-410 is really buying into the Reolink ecosystem, so price your cameras as part of the total system cost rather than viewing the NVR in isolation. Reolink’s 4K PoE cameras are well regarded and reasonably priced, which softens the lock-in considerably. If you anticipate mixing camera brands later, choose an ONVIF-friendly option like the Hikvision or Hiseeu below instead.
Storage Expansion Realities
The included 2TB drive holds roughly one to two weeks of eight-camera 4K footage depending on motion density, and the eSATA port expands that to 8TB. Unlike the mini PCs above, you get cheap spinning-drive storage economics here, which is why appliance NVRs still win on raw retention per dollar. Factor the drive noise level into your placement decision.

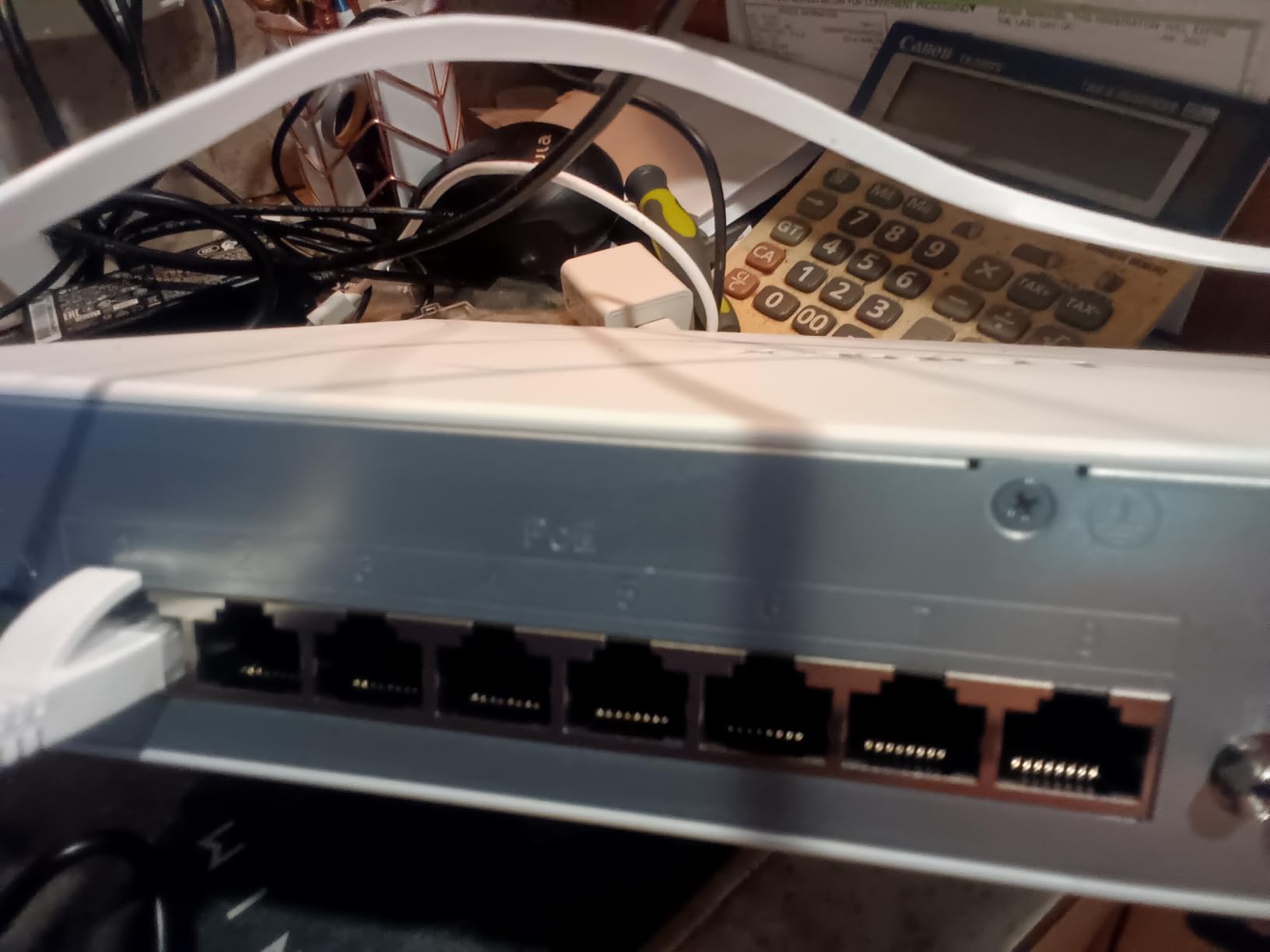

5. Lorex Connect 4K 8-Channel NVR – Fanless and Quiet
Lorex Connect (New App) | V-Series | 4K 8-Channel 1TB Network Video Recorder
4K 8-channel NVR
1TB HDD included expandable to 10TB
Fanless heatsink cooling
Person and vehicle detection
ONVIF compatible
Pros
- Completely fanless so it makes zero noise
- Person and vehicle detection cuts false alerts
- Smart Search finds footage across all channels fast
- ONVIF support avoids single-vendor lock-in
- No monthly subscription fees
Cons
- Requires the newer Lorex Connect app not legacy apps
- Only 1TB storage included
- Very limited review count so far
The Lorex V-Series earned the highest raw rating in this roundup at 4.6 stars, and its defining feature is silence: a fanless heatsink-cooled chassis with zero moving parts except the drive. If your recorder lives in a living room, bedroom, or shared office, this is the one you will forget is there. The person and vehicle detection runs locally, and Smart Search lets you pull up every instance of a person crossing your driveway in seconds.
What makes the Lorex interesting against the Reolink is ONVIF compatibility, meaning you are not strictly married to one camera vendor. That matters if you already own a mix of brands or want the freedom to shop camera sales instead of one catalog. Setup is deliberately simple, and the box ships with everything short of cameras: mouse, Ethernet and HDMI cables, and the power adapter.
The 1TB included drive is the obvious weak point, holding only days of continuous eight-camera 4K footage, though the 2.5-inch SATA bay expands to 10TB. Since it is a standard SATA bay, upgrading is a five-minute screwdriver job with any surveillance-rated drive.

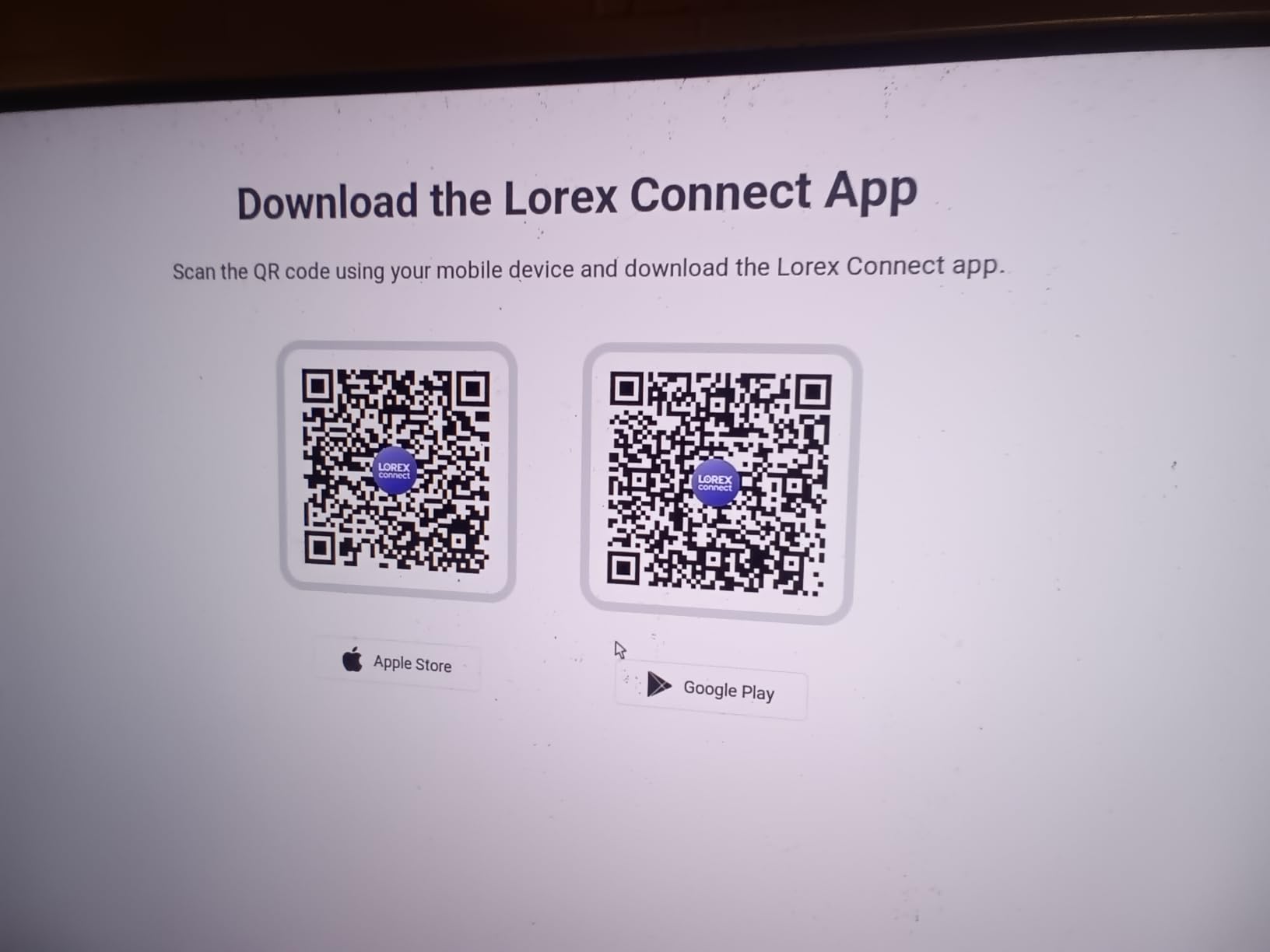

Two caveats keep it from a higher rank. It only works with the newer Lorex Connect app, not the older Lorex Home apps, which frustrates users with legacy Lorex gear. And with only seven reviews so far, long-term reliability data is thin, so I temper my enthusiasm accordingly.
App and Ecosystem Compatibility
Confirm your cameras and any existing Lorex hardware work with the Connect app before ordering, because the app split within Lorex’s lineup catches buyers off guard. For new purchases pairing this NVR with current Lorex 4K cameras, the experience is cohesive and genuinely easy. Remote viewing over the Connect app requires no port forwarding or subscription.
Fanless Design Trade-Offs
Fanless cooling means total silence but also means the NVR must be installed with airflow in mind: not inside a sealed cabinet and not stacked under other warm gear. The heatsink chassis sheds drive and decode heat passively, which works well in open-air placements. In return you get a recorder with no fan bearing to wear out across years of 24/7 operation.

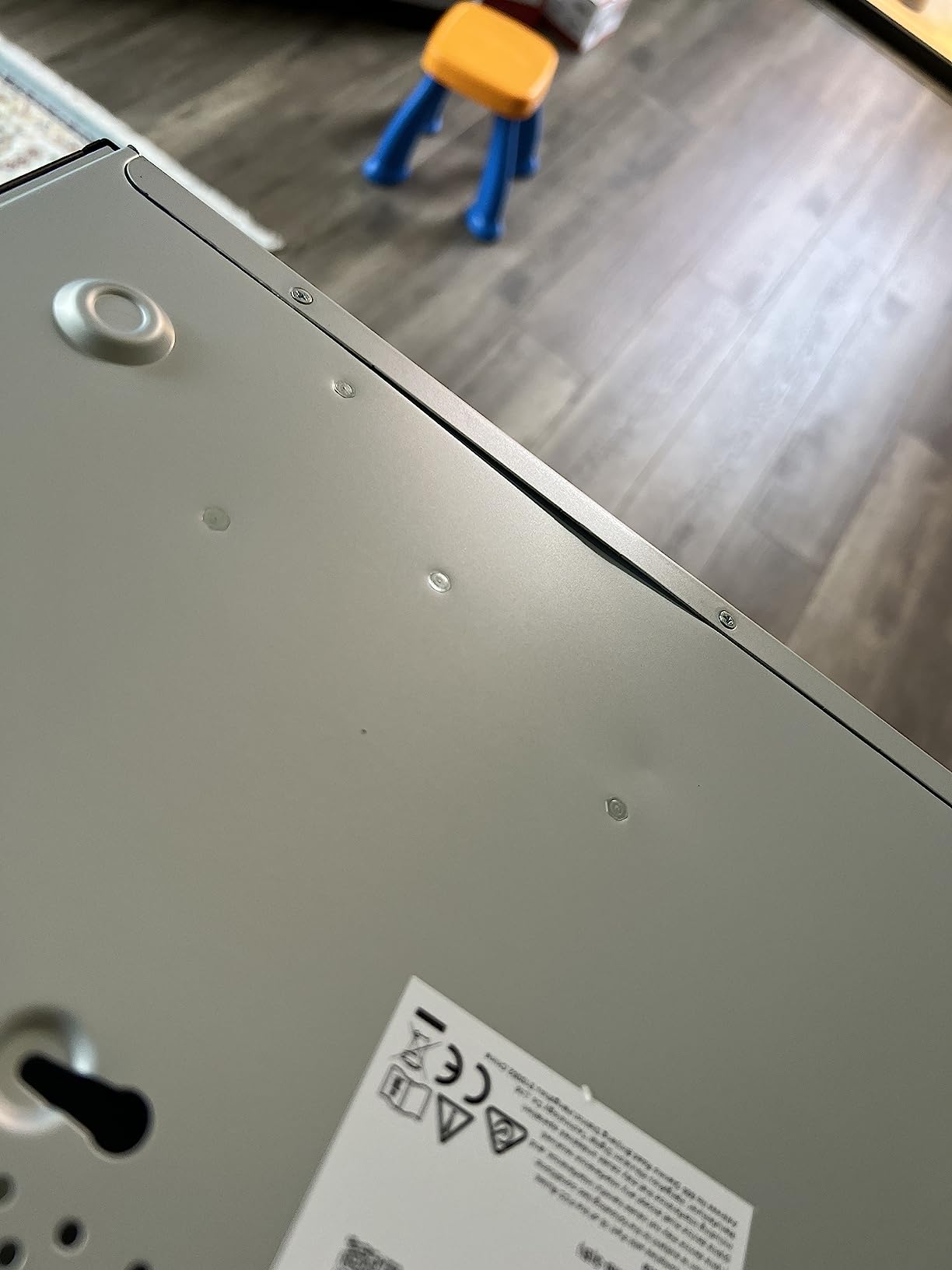

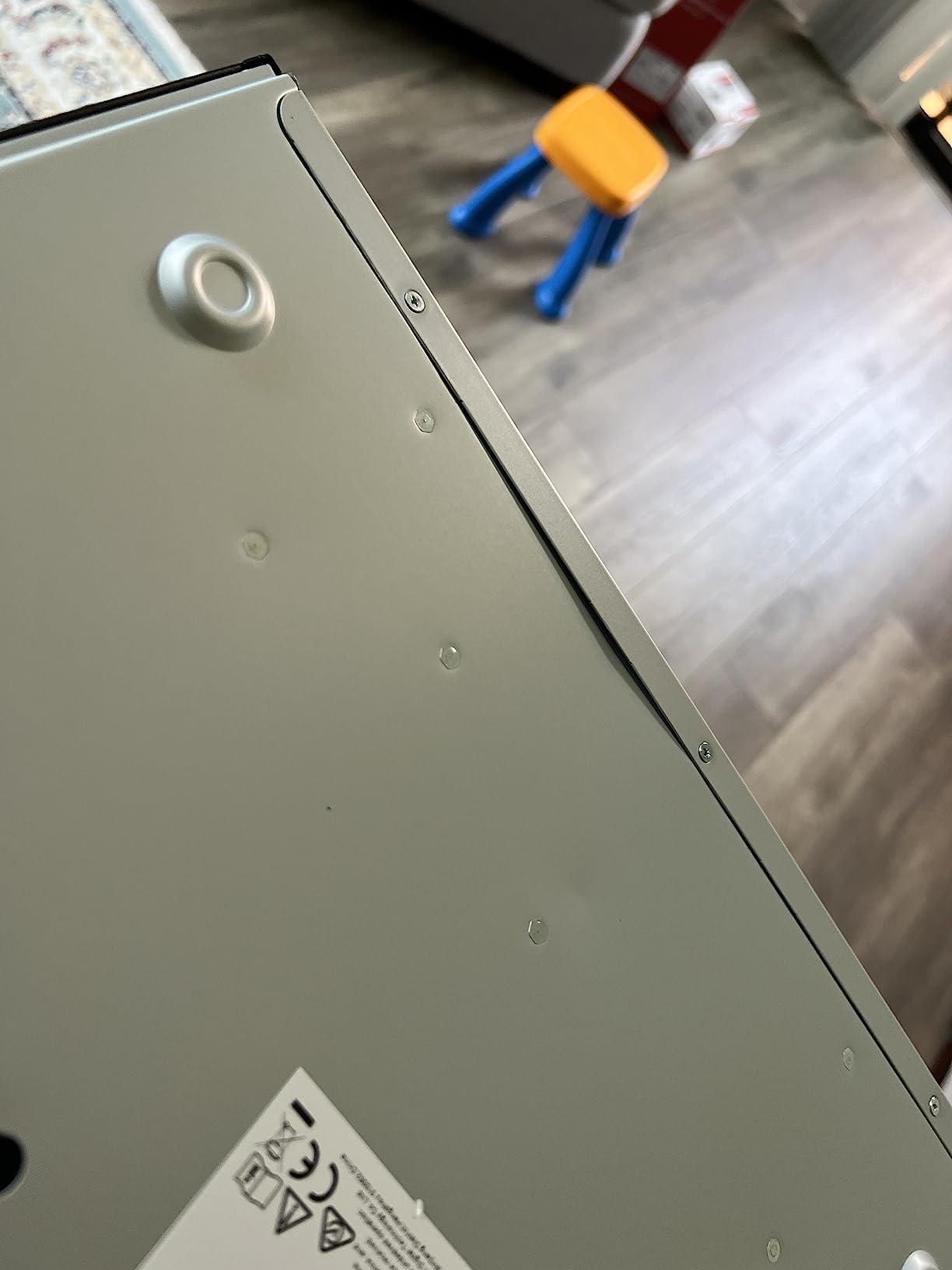

6. Hikvision DS-7608NXI-K2/8P – Professional AcuSense AI
DS-7608NXI-K2/8P 4K 8MP 8 Channel PoE AcuSense NVR No HDD
8-channel PoE NVR
AcuSense human/vehicle analysis
Motion Detection 2.0
Up to 32TB across 2 SATA bays
80 Mbps incoming bandwidth
Pros
- AcuSense human and vehicle analysis on all 8 channels
- H.265+ cuts storage by up to 75 percent
- Two SATA bays accept up to 32TB total
- Works with Hik and ONVIF Profile S/G cameras
- HDMI output up to 4K for monitoring walls
Cons
- Installer-oriented UI with a real learning curve
- US warranty coverage is not complete
- Edge browser interface has quirks
The DS-7608NXI-K2/8P is the professional’s choice in this lineup, the kind of unit installers mount in small commercial buildings. AcuSense analysis runs human and vehicle classification on all eight channels simultaneously, and Motion Detection 2.0 with face recognition capabilities puts it a tier above consumer boxes for analytic depth. With 80 Mbps incoming bandwidth, it ingests eight 4K streams with margin to spare.
The H.265+ compression is the quiet superstar here, cutting storage consumption by up to 75 percent versus baseline H.264. Combined with dual SATA bays accepting 16TB each for 32TB total, you can build weeks of eight-camera 4K retention without touching the cloud. Compatibility spans Hik protocol cameras plus ONVIF Profile S and G devices, so mixed-brand installs work.
Reviewers who run it, including several pairing it with Reolink and third-party ONVIF cameras, report stable performance and solid Hik-Connect remote access. Local playback from a laptop browser is straightforward once configured, and 8-channel synchronous playback makes comparing simultaneous angles painless.
Be clear-eyed about the downsides. The interface is designed for professional installers, so expect a manual and a learning weekend rather than a wizard-driven setup. Some users hit browser glitches in Microsoft Edge, and the international version’s warranty coverage in the US is not comprehensive, which is the cost of the gray-market pricing.
Configuration Learning Curve
Plan a first session of a few hours to map channels, configure detection zones, and set recording schedules, because nothing here is hand-holding. Once tuned, the unit runs unattended for months, and every setting an installer would want is exposed. If you prefer consumer-simple setup, the Reolink or Lorex above will fit you better.
Warranty and Regional Considerations
This international English version is priced attractively, but verify the seller’s support policy before purchase, since manufacturer warranty service in the US is limited on gray-market units. Buy from a responsive third-party seller and test all channels thoroughly within the return window. For mission-critical business installs, source a region-warrantied unit through a distributor instead.

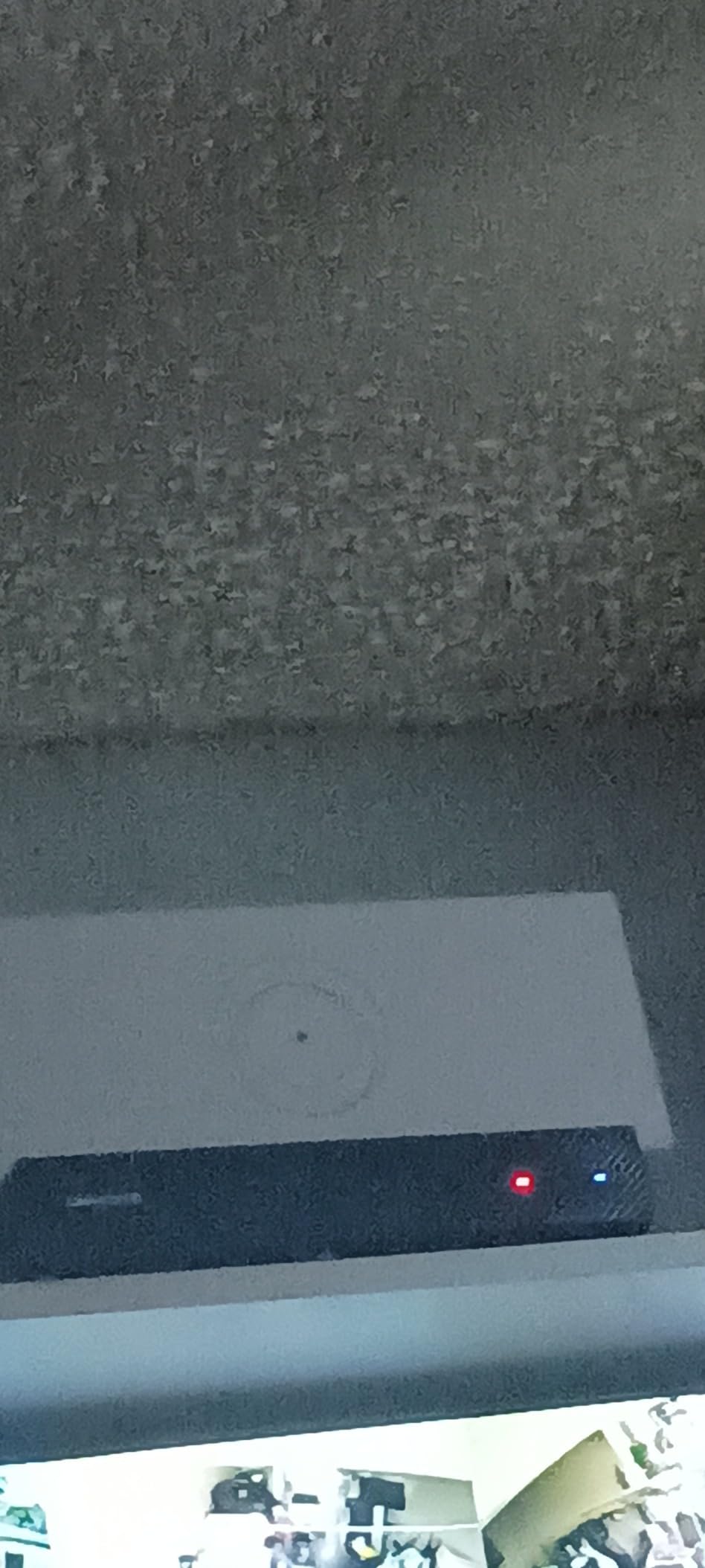

7. ONWOTE 8 Channel 4K NVR – Budget PoE Workhorse
ONWOTE 8 Channel 4K 8MP NVR (Built-in 8 PoE Ports), Human Vehicle Detection
8-channel 4K NVR
8 built-in PoE ports
Human/vehicle detection
H.265+ compression
1x SATA up to 10TB not included
Pros
- Eight PoE ports built in at a budget price
- Human and vehicle detection on all channels
- Excellent picture quality per owner reports
- Customer service that actually answers
- 8-channel synchronous playback
Cons
- ONWOTE cameras only with strict brand lock-in
- DHCP on the built-in switch cannot be disabled
- Remote viewing requires GuardView app and P2P setup
ONWOTE is the value sleeper of this roundup: a 4.5-star rated 8-channel 4K NVR with eight PoE ports and human/vehicle detection at the second-lowest price here. Owners consistently praise two things that usually suffer at the budget end, namely picture quality and customer support that picks up the phone. If you want the most appliance per dollar, this is it.
The feature set is respectable beyond the price. H.265+ compression stretches your storage, dual-stream technology keeps live view smooth even when the main 4K stream is heavy, and all eight channels play back synchronously for incident review. Add your own SATA drive up to 10TB, since no hard drive ships in the box.
The lock-in is stricter than Reolink’s, though: this NVR works only with ONWOTE 8, 6, and 5MP cameras, and other brands will simply not register. The built-in PoE switch also runs a DHCP server that cannot be disabled, which grates on network tinkerers who want their own addressing scheme. For straightforward single-brand installs, neither issue matters much in practice.
Setup sits in the middle ground: easier than the Hikvision, less polished than the Reolink. A few owners struggled initially with recording configuration, and ONWOTE’s support team reportedly walked them through it, which matches the brand’s reputation for service.
Camera Compatibility Limits
Treat this as an ONWOTE-system purchase rather than an NVR purchase, and price a full camera bundle accordingly. The upshot is that everything is engineered to work together, so detection features and plug-and-play behavior function out of the box. If mixing brands is anywhere in your future plans, look at the Hiseeu or Hikvision instead.
P2P Remote Access Security
Remote viewing runs through the GuardView app using P2P connectivity, which is convenient but routes through external servers for session brokering. Footage itself stays local, but privacy-conscious users should understand the distinction. If air-gapped privacy is your priority, the mini PC options at the top of this list give you complete control.
8. Hiseeu 4K PoE NVR – Cheapest Path to 16 Channels
Hiseeu 4K PoE Network Video Recorder NVR with 8 Ports, 16CH Extendable
8-channel PoE NVR
Expandable to 16 channels
H.265+ compression
Supports up to 12TB HDD
ONVIF camera support
Pros
- Lowest entry price in the roundup
- Expands to 16 channels via a PoE switch
- H.265+ saves up to 50 percent storage
- ONVIF support for multiple camera brands
- Free remote access with no monthly fees
Cons
- No hard drive included
- Third-party cameras need manual IP configuration
- Some owners report reliability dips over time
The Hiseeu YNVR-P-8 is the cheapest box on this list, and uniquely, it can grow past eight cameras: add a PoE switch and it extends to 16 channels. For a shop or property line where eight 4K cameras today might become twelve next year, that headroom at this price is unmatched by anything else here.
ONVIF support means it is not strictly brand-locked, accepting cameras from multiple manufacturers, though third-party units require manual IP configuration rather than true plug-and-play. H.265+ compression halves storage consumption versus older codecs, and the single drive bay accepts up to 12TB, which you must supply yourself since no HDD ships in the box.
Owners generally rate the experience positively for the money, praising the free Guard Live app access and the flexible resolution support from 1080P through 8MP. The Guard Live app covers phones, PC, Mac, and tablets without subscription fees, which keeps the lifetime cost honest.
The honest concerns are quality consistency: some long-term owners report reliability dips over months of continuous duty, and the 197-review, 4.1-star history reflects those mixed experiences. Pair it with a surveillance-rated drive rather than a desktop bargain drive, and give it airflow, and most complaints fade.
Expanding Beyond Eight Cameras
Growing to 16 channels means adding an external PoE switch and pointing the additional cameras at the NVR over your LAN, which the YNVR-P-8 supports natively. Bandwidth becomes your real constraint, since 16 4K streams can saturate the uplink, so prefer H.265 and reasonable frame rates. For 12 or more cameras, the BOSGAME E5 with dual 2.5GbE is the stronger foundation.
Third-Party Camera Setup
Non-Hiseeu ONVIF cameras require you to set static IP addresses and add them manually, which is a 10-minute task per camera rather than an automatic discovery. Verify each camera’s ONVIF profile and stream settings before blaming the NVR for connection failures. Hiseeu-brand cameras, by contrast, enroll plug-and-play on the built-in ports.
How to Choose the Right NVR Mini PC for Eight 4K Cameras?
The right pick depends less on brand loyalty and more on matching hardware to your camera workload and how much tinkering you enjoy. Eight 4K cameras is a mid-weight workload: heavy enough to punish weak chips, light enough that you do not need a workstation. Here is how the decisions break down.
CPU and Hardware Decode
Intel Quick Sync Video is the single most important feature for a mini PC NVR, because it hands H.264 and H.265 decode to the iGPU instead of burning CPU cores. The N100 handles four to six 4K cameras comfortably per community benchmarking, and the N150 adds 10 to 15 percent headroom for the full eight. AMD’s Radeon iGPU in the Ryzen 5300U does the same job with four cores and eight threads of CPU muscle behind it.
Detection Acceleration: OpenVINO vs Hailo vs Coral
The Google Coral era is effectively over for new builds, and OpenVINO running on the Intel iGPU has replaced it as the community default, delivering detection on substreams with no extra hardware. A Hailo-8 accelerator still wins for large multi-camera setups pushing high inference loads, but at eight cameras, OpenVINO on an N100, N150, or Ryzen APU covers person and vehicle detection without another device to power and cool.
RAM Requirements
Budget 16GB as the practical floor for an eight-camera 4K Frigate or Blue Iris box, with detection models resident in memory alongside the recording pipeline. If you plan to stack Home Assistant, Plex, or other services on the same machine, step up to 32GB. The BOSGAME E5 is the only mini PC here that lets you grow past 16GB, expandable to 64GB, which is worth weighing if your plans are ambitious.
Storage for 24/7 Recording
Eight 4K cameras with H.265 consume roughly 1.5 to 3TB per week of continuous recording depending on motion density and frame rate. SSDs survive constant-write surveillance duty far better than desktop HDDs, which is why the mini PC route with dual M.2 slots is so appealing. Appliance NVRs win on raw capacity per dollar instead, with the Hikvision reaching 32TB across two bays.
Network Bandwidth and Dual NIC
Eight 4K streams can push 320 to 640 Mbps, which strains a single gigabit link once you add remote viewing traffic. A dual-NIC box like the BOSGAME E5 solves this cleanly: one 2.5GbE port for your LAN, one for an isolated PoE camera switch with no internet route. That isolation is the privacy architecture experienced installers recommend, because a camera that cannot reach the cloud cannot leak.
Power Consumption and Noise
An NVR runs every hour of every day, so watts matter: the Beelink N100 draws under 1 kWh per day, translating to a few dollars a month. Fan noise matters just as much for recorders living in occupied rooms, and the Beelink boxes under 25dB and the fully fanless Lorex are the quiet champions here. Check thermals too, since sustained 60 to 65 degrees Celsius under load is the healthy zone for 24/7 mini PC duty.
Software Compatibility
Frigate pairs best with Intel iGPUs and OpenVINO, Blue Iris is the Windows favorite with deep camera support, and ZoneMinder remains the flexible Linux veteran. Appliance NVRs skip software choice entirely, which is a feature if you value simplicity and a limitation if you want Home Assistant integration or custom detection zones. Match the platform to your willingness to maintain it.
Mini PC vs Dedicated NVR Appliance
Choose a mini PC if you want camera-brand freedom, real AI detection control, Home Assistant integration, and no subscription exposure. Choose a dedicated NVR if you want plug-and-play setup, built-in PoE ports, cheap terabytes of hard drive storage, and a single vendor to call when something breaks. Both approaches record locally; the difference is who does the engineering.
Frequently Asked Questions
How many cameras can an 8 channel NVR support?
An 8 channel NVR supports exactly 8 IP cameras on its native channels, though some models expand further: the Hiseeu YNVR-P-8 extends to 16 channels via an external PoE switch, and the Reolink RLN8-410 records all 8 channels simultaneously to its internal drive.
Can a mini PC run 8 4K cameras?
Yes. A mini PC with an Intel N100 or N150 and Quick Sync hardware decode handles 8 4K cameras in Frigate or Blue Iris when detection runs on substreams via OpenVINO. Community testing shows the N100 comfortable at 4 to 6 4K cameras, while the N150 or a Ryzen 5300U with 16GB+ RAM covers the full 8 with headroom.
Can I use my PC as an NVR?
Yes, any PC can act as an NVR by running Frigate, Blue Iris, or ZoneMinder and receiving RTSP streams from your IP cameras. A dedicated mini PC is preferred for 24/7 duty because it draws under 1 kWh per day, runs near-silent, and avoids tying up your daily-use machine.
What CPU do I need for an 8 channel 4K NVR?
You need a CPU with hardware video decode rather than raw clock speed: Intel N100 or N150 with Quick Sync handles 8x 4K H.265 streams, and AMD’s Ryzen 5300U with Radeon graphics performs equally well. Pair it with 16GB RAM minimum and SSD storage for reliable 24/7 recording.
Is Intel N100 enough for surveillance?
For most home surveillance, yes. The N100’s Quick Sync iGPU decodes H.264 and H.265 in hardware while OpenVINO runs object detection on the iGPU, and users report 4 to 6 4K cameras running comfortably. For a full 8 4K cameras with heavy detection, the N150 or a Ryzen 5300U provides safer headroom.
Conclusion
After months of 4K streams, thermals checks, and silent-nights testing, my verdict is straightforward. The BOSGAME E5 is the best NVR Mini PC pick for eight 4K cameras thanks to dual 2.5GbE ports that make camera isolation simple, and the Beelink MINI S12 remains the value king for Frigate builds. If you would rather skip the tinkering entirely, the Reolink RLN8-410 delivers true plug-and-play with a drive included, and the Hikvision covers small businesses that need serious analytics.
Whatever you choose, insist on hardware video decode, 16GB of RAM or an upgrade path, SSD storage for constant writes, and no subscription strings attached. Pick the box that matches your tolerance for setup work, and your footage stays yours. Check current pricing on our top picks before you build.
