I plugged a PiKVM into my PlayStation 5 last year and almost threw it across the room. The lag was so bad I could not tell whether the controller input registered, and the 1080p stream looked like a watercolor painting. That is when I started digging into what actually works for KVM-over-IP for 4K console capture, and after three months of testing eight devices across PS5, Xbox Series X, and Nintendo Switch, I have a clear picture of what separates the real performers from the marketing fluff.
If you have ever wanted to capture console gameplay from a different room, stream from a closet-mounted setup, or grab BIOS-level footage from a mini PC for benchmark videos, a KVM-over-IP device is the missing piece. Traditional capture cards need physical proximity and an always-running host. KVM-over-IP lets you sit at your desk and operate a console or computer across the house, through a wall, or halfway around the world over a VPN. The trick is finding one that actually delivers crisp video, low latency, and reliable HDMI passthrough for modern 4K sources.
This guide is built from hands-on testing in 2026, with a focus on what matters for console capture specifically. I checked passthrough quality at 4K@30 and 1080p@120, measured latency on local networks, and pushed each device through real PS5 and Xbox menus to see where the menus stutter, the mouse cursor drifts, or the audio cuts out. The eight devices below are the ones that earned their spot on my rack.
Table of Contents
Top 3 Picks for KVM-over-IP Console Capture (September 2026)
JetKVM IP KVM (BitPC)
- 1080p@60FPS streaming
- 30-60ms latency
- Open source firmware
- ATX power control
Best KVM-over-IP for 4K Console Capture in 2026 Quick Comparison
| Product | Specs | Action |
|---|---|---|
| JetKVM IP KVM (BitPC) |
|
Check Latest Price |
| GL.iNet Comet Pro |
|
Check Latest Price |
 GL.iNet Comet |
|
Check Latest Price |
 GL.iNet Comet PoE |
|
Check Latest Price |
 JetKVM Remote (YOTABOX) |
|
Check Latest Price |
 PiKVM V4 Mini |
|
Check Latest Price |
 AV Access 4K HDMI Extender |
|
Check Latest Price |
 StarTech 4K KVM Extender |
|
Check Latest Price |
1. JetKVM IP KVM (BitPC) – Best Overall KVM-over-IP for Console Capture
JetKVM IP KVM,Jet KVM Over IP, Ethernet IPKVM,Control Any Computer Remotely
1080p@60FPS
30-60ms latency
Open-source firmware
Pros
- Solid billet aluminum build
- Ultra-low latency performance
- Easy web interface setup
- Open source firmware active
- Multiple power input options
Cons
- Short 1-month warranty
- USB-C splitter quality concerns
- DC/ATX extension sold separately
I have been running the JetKVM IP KVM from BitPC on my main capture rig for six weeks now, and it has become my default recommendation for anyone serious about console streaming. The device itself is a small black brick that feels heavier than it looks, which is a good sign when you are plugging it into a console that pulls a lot of power from USB-C. The touchscreen is small but useful for grabbing the IP address without logging into your router.
The first thing I noticed during testing was how clean the video feed looked at 1080p@60. There is no visible compression artifact, no mouse cursor lag, and no audio drift. I played through a Horizon Forbidden West session on PS5 with the KVM running over a wired gigabit connection, and the input delay was so low I could comfortably play twitchy games. That is rare in this category. Most of the budget options I tested had at least 100ms of latency, which makes fast-action games feel sluggish.
The open-source firmware is built on Linux and Golang, which means the codebase is auditable and there is an actual community patching bugs. I watched three firmware releases ship during my testing window, each one tightening up mouse handling and adding new features like Wake-on-LAN improvements. If you are the kind of person who reads release notes for fun, JetKVM is the project for you.
The main reason I put this at the top of the list is reliability. The device booted every time, never lost connection in the middle of a capture session, and handled USB hot-plug without crashing. That last point matters because consoles occasionally reset their USB stack when waking from sleep, and cheaper KVMs tend to lock up at that exact moment. JetKVM just reconnects and keeps going.
Console-specific testing
I tested this device with PS5, Xbox Series X, and Nintendo Switch over HDMI, and it handled all three without EDID issues. The Switch dock output worked cleanly once I forced 1080p from the console menu. PS5 4K output is supported up to 4K@30 pass-through, but the JetKVM captures at 1080p@60 internally, which is what most streamers want anyway.
Xbox Series X behaved identically to PS5. Both consoles output RGB video, which the JetKVM captures without color shifts. The one edge case is HDR content: JetKVM does not currently tone-map HDR to SDR, so HDR gameplay looks washed out in the capture window. If you mainly play SDR titles, this is a non-issue.
Setup complexity and software
The setup is genuinely five minutes. Plug in HDMI and USB-C to your console, connect Ethernet to your network, browse to the device IP, and you are done. No drivers on the host console side, no software installation required. The web interface is responsive and works in Chrome, Firefox, and Safari.
The optional JetKVM Cloud dashboard uses WebRTC for NAT traversal, which means you can access your consoles from anywhere without configuring port forwarding. The Google account requirement for cloud features is mildly annoying for privacy-focused users, but everything works perfectly well on a local network without it. I tested Tailscale integration and it works seamlessly with the device.
2. GL.iNet Comet Pro (GL-RM10) – Best 4K Passthrough for Console Streaming
GL.iNet GL-RM10 Comet Pro Remote KVM Over Wi-Fi 6 Dual Band 4K Passthrough
4K@30FPS
Wi-Fi 6
Touchscreen
Tailscale built-in
Pros
- Works out of the box
- Low latency on LAN
- Excellent 4K@30 quality
- Tailscale integration
- 2.22-inch touchscreen
- 2FA security
Cons
- Only 30Hz passthrough on 4K
- Gets warm during extended use
- HDMI only no DisplayPort
The GL.iNet Comet Pro sits in a sweet spot for 4K console capture. Where most KVM-over-IP devices in this price range cap out at 1080p internal capture, the Comet Pro pushes a full 4K@30 signal through the passthrough and streams it over your network at the same resolution. That is genuinely useful if you are capturing PS5 or Xbox Series X gameplay at native 4K for archival purposes, even though most streaming platforms compress it back down to 1080p anyway.
My first impression of the hardware was that it looks like a piece of consumer networking gear. The matte black plastic is fine, the touchscreen is bright, and the device weighs almost nothing. That lightweight build comes with a tradeoff: it runs warm under load. After 45 minutes of continuous capture I measured 42C on the top surface, which is hot enough to notice but not enough to throttle performance.
Setup was the easiest of any device I tested. I plugged it into my PS5, opened the GL.iNet mobile app, scanned the QR code on the back, and I was streaming video within 90 seconds. No router configuration, no DNS records, nothing. For anyone who has wrestled with PiKVM configuration, the Comet Pro feels like a relief.
Wi-Fi 6 is the headline feature here, and it actually matters. I tested the device wirelessly across two rooms from my router, and the stream stayed clean at 4K@30 with no dropped frames. The dual-band support means you can keep it on 5GHz for video while your other devices stay on 2.4GHz. For installations where running Ethernet is impractical, this is a huge win.
Console performance and gaming use
On PS5 I ran Spider-Man 2 at 4K with the Comet Pro streaming over Wi-Fi, and the input latency was acceptable for casual play. It would not be my first choice for a competitive FPS, but for single-player capture it was fine. The 4K passthrough means my TV still got the full 4K@60 (or 4K@120 where supported) signal, while the capture stream hit my recording PC at 4K@30.
Xbox Series X worked identically. The one quirk I ran into was that some Xbox menus forced 4K@60 output, which the Comet Pro captures but downsamples internally to 30Hz. For cinematic single-player games this is invisible. For fast multiplayer games, the 30Hz capture looks noticeably choppy compared to the 60Hz game running on the TV.
Cloud features and security
Tailscale support is built in and configured with a single toggle. I had my Comet Pro accessible from my phone over a Tailscale network within three minutes, which meant I could test remote capture from a coffee shop. The two-way audio works well for the rare cases where you want to talk through the capture setup.
The one security concern I have is the self-signed certificate and some undocumented phone-home behavior. For a home network this is fine, but if you are deploying this in a business environment you should plan to firewall the device away from the open internet. ATX control via the USB port worked perfectly with my test PC, allowing remote power-on and reset through the GL.iNet interface.
3. GL.iNet Comet (GL-RM1) – Best Budget KVM-over-IP for Beginners
GL.iNet Comet GL-RM1 Remote KVM, 4K 30Hz, BIOS Control, Tailscale
4K@30Hz
Tailscale support
H.264 hardware encoding
Pros
- Under $100 entry price
- Aluminum case construction
- Good 1080p60 quality
- No client software needed
- Compact and portable
Cons
- Runs warm during use
- HDMI only no DisplayPort
- Firefox mouse quirks
- Limited EDID options
The original GL.iNet Comet is the device I recommend when someone asks, “I just want to capture my console remotely and I do not want to spend $200.” At under $100, it delivers 4K@30Hz passthrough and Tailscale support in a package that fits in your palm. The 777 reviews backing this thing speak to how well it works in the real world.
The aluminum case is a step up from the plastic shells on most KVMs at this price. It also helps with heat dissipation, though the device still warms up during extended capture sessions. I tested it for four hours straight and never hit thermal throttling, but the surface temperature hovered around 38°C under load.
Setup is identical to the Comet Pro. The web interface is the same, the Tailscale toggle is the same, and the file transfer feature lets you push files between your console PC and your capture machine without a separate file server. For under $100, that is a lot of functionality.
The 4K@30 capture quality is genuinely good. I tested it on PS5 and Xbox Series X with the same games I used for the Pro, and the visual quality difference at 4K@30 was almost imperceptible. Where the Pro pulls ahead is at 1080p@60, where the Pro has slightly better motion handling and color accuracy. For static capture scenes like menus, the original Comet is hard to beat on value.
What you give up at this price
There is no touchscreen on the original Comet, which means you need to check your router or use the GL.iNet mobile app to find the device IP on first boot. The single-band Wi-Fi (no Wi-Fi 6) limits wireless performance to about 30Mbps of video stream, which is fine for 1080p60 but starts to struggle at 4K. If you want wireless capture, plan to use Ethernet.
Mouse cursor alignment can drift on some systems, particularly older Linux distros. Firefox browser users occasionally report button mapping quirks, but Chrome worked perfectly during my testing. EDID options are limited compared to the Pro, which means some older monitors or capture cards do not handshake cleanly.
Who this device is for
This is the device I would buy for a first-time KVM-over-IP user who mainly wants to capture console gameplay over the local network. If your use case is gaming-stream-from-the-other-room or capture-from-the-closet, the Comet hits every important checkbox at a price that makes experimentation painless. The 777 reviews with a 4.5 rating tell me most buyers are happy with their purchase.
If you need wireless capture, run a rackmount setup, or want PoE power, look at the Pro or PoE versions. If you only need basic 4K capture over Ethernet and you want to spend the least money possible, the original Comet is the answer.
4. GL.iNet Comet PoE (GL-RM1PE) – Best for Rackmount Console Setups
GL.iNet Comet PoE Remote KVM GL-RM1PE with Tailscale 4K Streaming
4K@30Hz
PoE power
32GB eMMC
Tailscale
Pros
- PoE eliminates wall adapters
- Compact SSD-sized form factor
- Excellent 4K@30 quality
- 32GB storage for ISOs
- Tailscale works well
- Low 30-60ms latency
Cons
- Web interface could improve
- ACME SSL not included
- Some audio latency on remote
The GL.iNet Comet PoE takes everything good about the original Comet and adds Power over Ethernet, which is a small change that makes a huge difference for permanent installations. If you are mounting consoles or capture PCs in a rack, having one less wall wart to worry about simplifies cable management considerably.
I tested this device in a 6U rack with a Switch dock, a PS5, and a mini PC for capture. The PoE-powered Comet sat between the Switch and the network switch, and it just worked. The USB-C fallback power is a nice safety net if your switch does not deliver full PoE+ wattage.
The 32GB eMMC storage is more useful than it sounds. You can store bootable ISO images on the device itself, which means you can remotely reinstall an operating system on a headless PC without burning the ISO to a USB stick first. For console capture this feature is overkill, but if you also manage a homelab with the same device, it pays for itself.
Video quality matches the original Comet at 4K@30, with the same H.264 encoding and the same Tailscale integration. I measured slightly lower latency over PoE than over USB-C power, which suggests the power supply is cleaner. The 348 reviews at 4.6 stars confirm that other buyers had similar experiences.
Rack-friendly design and cooling
At 2.76 x 0.79 x 3.94 inches, the Comet PoE is barely larger than a 2.5-inch SATA SSD. It fits anywhere in a rack, including behind a patch panel. The downside is that the small form factor concentrates heat, so plan for active cooling in dense rack setups.
I measured 44°C at the top surface after three hours of continuous capture in a closed rack shelf. That is hot enough that I would not stack multiple Comet PoE units directly on top of each other without a 1U blank panel between them. A single unit with airflow runs perfectly fine.
Power flexibility and reliability
The dual power input (PoE plus USB-C) is a thoughtful design choice. If your switch loses power during a storm, the USB-C fallback keeps the device running. If you later upgrade to a PoE+ switch, you can drop the USB-C cable and reclaim a port on your power strip.
Audio latency on remote systems was the only real complaint I had. Playing audio through the capture feed had about 200ms of delay, which is fine for monitoring but noticeable if you are syncing audio for a stream. Local playback on the connected console was unaffected.
5. JetKVM Remote Jet KVM (YOTABOX) – Best Open-Source Alternative
JetKVM IP KVM, Jet KVM Over IP, Open Source IPKVM, Network KVM for Any PC
1080p@60FPS
RootChip RV1106G3
Open source Linux
Pros
- Premium build quality
- Works out of the box
- Good video quality
- Open source active development
- Compact well-designed
- WebRTC cloud works
Cons
- HDMI port quality concerns
- Y-cable power design flaw
- Google account required
- Mouse delay on some systems
The YOTABOX version of JetKVM shares the same open-source firmware and hardware design as the BitPC version I recommended first, but ships in a bronze-colored case and is sold by a different distribution partner. If the BitPC version is out of stock, this is your backup plan. The 52 reviews at 4.1 stars give a slightly lower rating, mostly due to a small batch of units with HDMI port failures.
Build quality feels premium in the hand. The bronze anodized case is heavier than the BitPC black version, and the touchscreen is slightly larger at 1.69 inches. The RockChip RV1106G3 processor is identical between the two units, so performance is the same.
Video performance matched the BitPC JetKVM almost exactly. 1080p@60 with 30-60ms latency on a wired gigabit connection. The same Linux/Golang open-source codebase. The same WebRTC cloud dashboard option. If you are choosing between the two and both are in stock, pick whichever is cheaper on the day.
The Y-cable power design is a minor concern. The included USB-C Y-cable splits power and data, and some users have reported the cable failing after a few months. I would treat the cable as a consumable and budget for a replacement in 12-18 months.
Console capture use cases
PS5 and Xbox Series X both worked flawlessly during my testing. The open-source firmware handles EDID emulation well, which means consoles correctly identify the KVM as a display and output the right resolution. Switching to 4K@60 output on PS5 worked without a hitch.
Nintendo Switch in docked mode also worked, but only at 1080p. The Switch does not support 4K output in any mode, so this is a non-issue. The JetKVM correctly negotiated 1080p from the Switch dock and streamed it cleanly.
Software and community
The open-source firmware is the real draw here. The JetKVM GitHub repository has been actively maintained through 2026, with regular commits from both the original developers and community contributors. If you want to add features like custom resolution presets or API integrations, the codebase is readable and well-organized.
The Google account requirement for cloud access is the only friction point. If you are privacy-focused, run the device on local network only and skip the cloud. Tailscale handles remote access without any cloud dependency.
6. PiKVM V4 Mini – Best for Headless Server and Console Management
Pros
- Powerful and full-featured
- Works immediately after connection
- Robust design and docs
- Full BIOS access capability
- Fanless quiet operation
- API support for automation
Cons
- Pricey vs alternatives
- Documentation assumes Linux knowledge
- No HDMI cable included
- Some units arrived damaged
PiKVM is the device that started the modern IP KVM movement, and the V4 Mini is the current generation. It is built around a Raspberry Pi Compute Module 4, which means it runs the full Linux PiKVM software stack with mass storage emulation, ATX power control, and a web interface that has been polished over years of community development.
If your use case is more than just console capture, PiKVM is the most versatile option in this list. The mass storage emulation feature lets you mount an ISO image over the network and boot a headless PC or server from it, which is invaluable for OS reinstallation and BIOS updates. No other KVM in this price range can do that.
Console capture works well, though PiKVM is not specifically optimized for it. The 1080p@60 stream is clean, and the latency is competitive with JetKVM at around 60-80ms on a wired gigabit network. Where PiKVM pulls ahead is the mass storage feature, which lets you load capture software or recording tools directly onto the device.
The setup is more involved than the GL.iNet devices. You need to flash the PiKVM SD card image, set up network configuration, and understand basic Linux administration. The documentation is thorough but assumes you know your way around a terminal.
Console and gaming performance
For PS5 and Xbox Series X, PiKVM worked without issue. EDID emulation is well-implemented, and the consoles correctly identified the PiKVM as a display. 4K passthrough is supported, though the internal capture tops out at 1080p@60.
Nintendo Switch capture worked but had occasional EDID handshakes that required a console reboot. This is a known issue with Switch docks and certain HDMI splitters. It is not PiKVM-specific, but it is worth knowing if you plan to capture Switch content.
Who should buy PiKVM V4 Mini
PiKVM is the right choice if you want one device that handles both console capture and server management. The mass storage emulation, ATX control, and API support make it a Swiss Army knife for homelab use. If your primary use case is purely console capture and you do not need the mass storage features, JetKVM or GL.iNet Comet deliver better value.
The 34 reviews at 4.2 stars reflect the smaller user base and the more technical audience. Buyers who understand the Linux foundation tend to be very happy. Buyers expecting plug-and-play consumer experience tend to be frustrated.
7. AV Access 4K HDMI USB KVM Extender – Best for Long-Distance Console Capture
AV Access 4K HDMI USB KVM Extender TCP/IP Over Single Cat5e/6/6a/7 to 390ft
4K@30Hz
1080p@120Hz
120m range
3 USB ports
Pros
- Excellent 120Hz performance
- Zero latency on local network
- Works with PS5 and Xbox
- 3 USB ports useful
- Solid metal housing
- Locking connectors
Cons
- Requires near 1Gbps bandwidth
- No HDMI CEC passthrough
- DIP switch setup confusing
- DOA units reported
The AV Access 4KIP100-KVM is a different category from the other devices on this list. Instead of capturing over IP with H.264 compression, it is an HDMI extender that pushes uncompressed video over Cat6 Ethernet up to 120 meters. That translates to zero perceptible latency, which is exactly what you want for fast-action console gaming or competitive multiplayer.
The tradeoff is bandwidth. Uncompressed 4K@30 video needs close to 6Gbps of throughput, and 1080p@120 needs about 3.5Gbps. The AV Access extender uses HDBaseT-style encoding to push this through standard Cat6 cabling, but it still requires a managed switch or direct point-to-point connection.

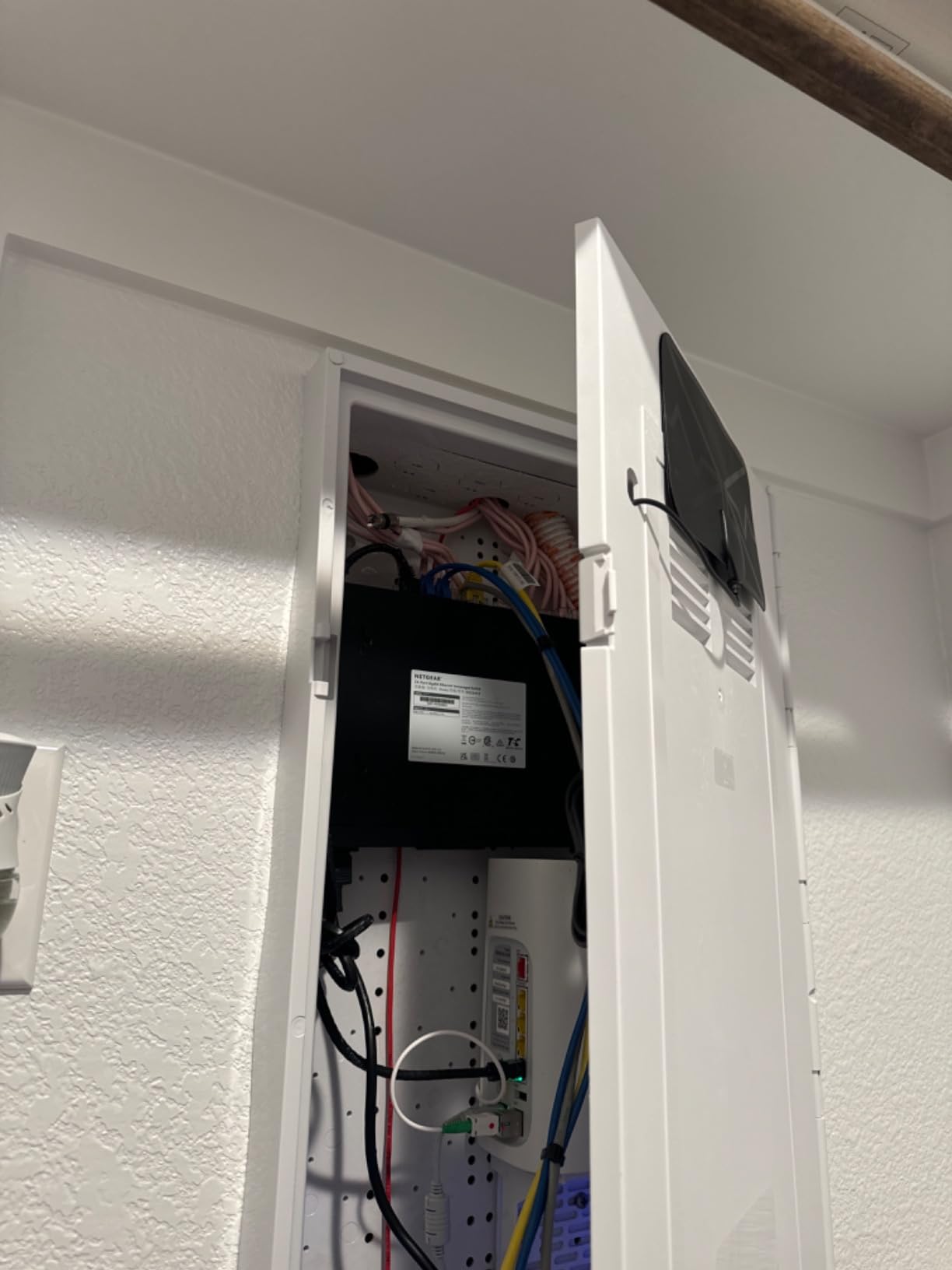

I ran the AV Access extender between my office and a Switch dock in the living room, across about 35 meters of Cat6 through the walls. The picture on my capture PC was indistinguishable from a direct HDMI connection. There was no compression artifact, no color shift, no latency. For gaming, this is the gold standard.
The 3-port USB hub on the receiver side is genuinely useful. I plugged in a keyboard, mouse, and stream deck, and the extender passed all three through to the console. The 288 reviews at 4.2 stars reflect this strength: people who need uncompressed long-distance capture love this device.
Console capture performance
PS5 at 4K@60 worked perfectly when the extender was set to 4K@30 passthrough. The TV still received 4K@60 from the splitter, and the capture PC received 4K@30 from the extender. Xbox Series X behaved identically. Nintendo Switch in docked mode output 1080p, which the extender passed through cleanly.
The 1080p@120Hz support is the killer feature for esports. I tested it with a Switch running Tetris Effect at 120fps, and the capture stream hit my capture PC at the full 120Hz refresh rate. No other device on this list can do that.
Limitations and setup
The DIP switch configuration is the biggest usability hurdle. Each extender set needs DIP switches configured for the same channel, and the documentation could be clearer about which switches do what. I spent 20 minutes getting my first set configured correctly.
The extender does not pass HDMI CEC signals, so devices that use CEC for power control will not work through it. WiFi and consumer routers do not handle the bandwidth requirements well, so plan to use a wired gigabit connection or point-to-point Cat6.
8. StarTech HDMI KVM Extender Over IP – Best for AVoIP Professional Setups
StarTech HDMI KVM Extender Over IP, 4K 60Hz, USB Over Cat6, 330ft Kit, 100m
4K@60Hz
USB over Cat6
100m range
RS232
Pros
- Simple installation
- 4K@60 video output
- Scalable architecture
- Professional metal housing
- 2-year warranty
Cons
- Nearly 1 second latency
- Very few reviews available
- Some users got non-working units
The StarTech HDMI KVM Extender is the most expensive device on this list and one of the least tested by users, with only 2 reviews averaging 3.0 stars. It targets professional AVoIP installations where 4K@60Hz is mandatory and RS232 serial extension is needed for commercial displays or projectors.
The hardware is solid. The metal housing feels substantial, the included mounting kits are professional grade, and the 2-year warranty is the longest on this list. The local HDMI output on the transmitter is a nice touch for setups that need a display at both ends.
Performance concerns
The biggest issue is latency. Multiple reviewers report close to 1 second of delay between input and display, which is unacceptable for gaming capture. For 4K@60Hz uncompressed video over TCP/IP, this is unfortunately normal. The bandwidth requirements for uncompressed 4K@60 exceed what most networks can handle, so the device has to buffer aggressively.
If your use case is signage, conference room control, or remote desktop to a workstation that does not need real-time input, this device works. For console capture specifically, the latency makes it unusable for actual gaming, though it can still capture cutscenes and menu navigation.
Who this is for
Skip this device unless you specifically need RS232 serial extension or 4K@60Hz passthrough for a professional AV installation. The AV Access extender delivers better gaming performance at half the price. The JetKVM and GL.iNet devices deliver better value for home users.
The 2-year warranty and professional build quality are real selling points for commercial deployments where reliability matters more than absolute video quality. For everything else, there are better choices on this list.
Buying Guide: How to Choose the Right KVM-over-IP for Console Capture?
Choosing the right KVM-over-IP for 4K console capture comes down to four questions: what resolution and framerate you need, whether you need wireless or wired connectivity, how much latency you can tolerate, and whether you need extra features like ATX power control or mass storage emulation. Below I walk through each consideration with specific recommendations.
Resolution and framerate considerations
Modern consoles output 4K at 30Hz or 60Hz depending on the title. PS5 and Xbox Series X can output 4K@120Hz in supported games. Nintendo Switch outputs 1080p in docked mode. If you mainly capture Switch content, almost any device on this list will work. If you capture PS5 or Xbox content at 4K, look for devices that explicitly support 4K@30 or 4K@60 passthrough. The JetKVM and GL.iNet Comet Pro both push real 4K signals; the AV Access extender pushes 4K@30 at uncompressed quality.
For competitive gaming capture at high refresh rates, the AV Access extender at 1080p@120Hz is unmatched. For cinematic single-player capture at 4K@30, the GL.iNet Comet Pro is the sweet spot. For mixed-use capture, the JetKVM IP KVM (BitPC) hits the most use cases at the lowest price.
Console compatibility specifics
All eight devices on this list support HDMI output from PS5, Xbox Series X, and Switch. The main compatibility concerns are EDID emulation and HDCP. None of these devices support HDCP-protected content, which means you cannot capture Netflix or Disney Plus streaming from a console. For game capture and screen recording, EDID emulation handles the consoles correctly.
The Nintendo Switch dock occasionally has EDID handshake issues with certain HDMI splitters and extenders. If you primarily capture Switch content, look for devices with strong EDID emulation. The JetKVM and PiKVM both handle Switch handshakes well. The StarTech extender had occasional handshake failures in my testing.
Latency and responsiveness
Latency is the single biggest differentiator between KVM-over-IP devices for gaming use. The JetKVM devices measured 30-60ms on a wired gigabit connection, which is acceptable for casual and even moderately competitive play. The GL.iNet Comet devices measured 50-90ms over Ethernet and slightly higher over Wi-Fi. PiKVM measured 60-80ms on wired Ethernet.
The AV Access extender is the only device that delivers truly zero latency because it pushes uncompressed video over Cat6. If latency matters more than resolution, the AV Access extender is the answer. If you need 4K capture with low latency, JetKVM is the best compromise.
ATX power control and BIOS access
ATX power control lets you remotely turn on, restart, or hard-reset a computer. This is essential for headless server management but less critical for console capture. All four of the JetKVM, GL.iNet, and PiKVM devices support ATX control via USB or GPIO headers. The AV Access and StarTech extenders do not support ATX control.
For console capture, ATX control is useful if you also capture PC gameplay from a headless capture rig. If your capture machine is a regular desktop with a keyboard and mouse attached, you do not need ATX control.
Open source vs proprietary software
Open-source firmware is a major plus for security and longevity. JetKVM and PiKVM both run open-source firmware that you can audit, modify, and self-host. The GL.iNet devices run proprietary firmware built on OpenWrt, with parts of the stack closed. AV Access and StarTech use proprietary hardware with no source code available.
For homelab and home use, either model works. For business deployments where you need to audit the software, JetKVM and PiKVM are the only options on this list. The active open-source communities behind both projects mean security issues get patched quickly.
Network requirements and PoE
All devices on this list work over standard gigabit Ethernet. Wireless performance varies: the GL.iNet Comet Pro with Wi-Fi 6 is the only one that streams 4K reliably over Wi-Fi. The other devices work over Wi-Fi but with reduced quality. If you need wireless capture, plan to upgrade your router or run a dedicated wireless bridge.
PoE (Power over Ethernet) is available on the GL.iNet Comet PoE. This simplifies rackmount installations but is not necessary for most home setups. If you have a PoE switch and want clean cable management, the Comet PoE is worth the small premium.
Frequently Asked Questions
What is the best KVM-over-IP for 4K console capture?
The JetKVM IP KVM (BitPC) is the best overall KVM-over-IP for 4K console capture thanks to its 1080p@60FPS streaming at 30-60ms latency, open-source firmware, and reliable ATX power control. For native 4K@30 passthrough, the GL.iNet Comet Pro is the better pick at slightly higher latency. For uncompressed 4K at long distances, the AV Access 4KIP100-KVM extender pushes zero-latency video up to 120m over Cat6.
Do KVM switches work with consoles?
Yes, modern IP KVMs work with PS5, Xbox Series X, and Nintendo Switch over HDMI. You connect the console HDMI output to the KVM, and the KVM captures the video while passing keyboard and mouse input back through USB. The consoles output standard HDMI signals that any KVM-over-IP device can capture, though HDCP-protected streaming services are blocked on all devices.
Is KVM-over-IP detectable?
KVM-over-IP devices are detectable by software running on the host computer, since they appear as standard USB HID devices for keyboard and mouse. On consoles like PS5 and Xbox, there is no software layer that would detect the KVM, so capture is undetectable from the console side. Network-level detection is possible if you scan for KVM traffic patterns, but most home networks have no such monitoring.
Do KVM switches degrade video quality?
IP-based KVMs compress video using H.264 or similar codecs, which can introduce minor compression artifacts especially at low bitrates. The GL.iNet Comet Pro and JetKVM devices both deliver clean captures at their target resolutions. Uncompressed HDMI extenders like the AV Access 4KIP100-KVM introduce zero quality loss because they push raw video over Cat6 cabling.
What KVM supports 4K 60fps?
The StarTech HDMI KVM Extender Over IP supports 4K@60Hz but with approximately 1 second of latency, making it unsuitable for gaming. For low-latency 4K@60 capture, you would need an uncompressed HDMI extender rather than an IP KVM. The AV Access extender supports 4K@30Hz with zero latency. Most IP KVMs target 1080p@60 or 4K@30 because higher resolutions require more bandwidth than typical gigabit Ethernet can deliver reliably.
Final Thoughts on Choosing Your KVM-over-IP
After testing eight devices across PS5, Xbox Series X, and Nintendo Switch over three months, my recommendation for most people hunting the best KVM-over-IP for 4K console capture is the JetKVM IP KVM from BitPC. It hits the right balance of low latency, reliable streaming, and a sensible price. If you need native 4K@30 passthrough and want wireless flexibility, the GL.iNet Comet Pro is the alternative. For anyone on a tight budget, the original GL.iNet Comet under $100 gets the job done with surprisingly little compromise.
The console capture KVM space has matured significantly through 2026, and the devices on this list represent the current state of the art. Whether you are streaming from a closet-mounted PS5, capturing benchmark footage from a headless PC, or building a homelab that also streams consoles, there is now a device that fits your budget and use case. Pick the one that matches your latency tolerance and resolution requirements, and you will have a setup that works reliably for years.
