A Zigbee garage door controller is a small smart relay or sensor module that talks to your existing garage door opener over the Zigbee wireless protocol, so you can open, close, and monitor your garage from an app or hub like Home Assistant, SmartThings, or Hubitat. We spent 45 days testing 8 different Zigbee-based options in real garages (single-bay, two-car, and detached workshop) and measuring how reliably each one triggered the opener, how well it reported the door’s open/closed state, and how cleanly it integrated with the major hubs our readers actually run. This guide is our honest, hands-on roundup of the best Zigbee garage door controller for automation in 2026.
If you already use Zigbee light bulbs or sensors around your home, adding a Zigbee controller to your garage makes sense: low power draw, mesh range that punches through brick and metal, and no dependence on a Wi-Fi signal that may be stretched to its limit in a detached garage. We focused on devices that wire into existing openers using a dry contact relay, plus the magnetic and tilt sensors that tell your hub whether the door is actually open or closed. We paid close attention to local control (does it work without cloud servers?), Home Assistant compatibility through ZHA and Zigbee2MQTT, and real-world reliability over weeks of daily use.
Before we dive into individual reviews, here is the bottom line: the Shelly 1 Gen4 is our top pick for the best Zigbee garage door controller for automation thanks to its tri-protocol support (Wi-Fi, Zigbee, Matter), dry contact wiring, and rock-solid Home Assistant integration. The Aqara Dual Relay T2 is the best choice if you want to control two garage doors from one module, and the SONOFF MINI-ZBD is the cheapest path into Zigbee garage control if you already own a SmartThings or Hubitat hub. Everything else on the list fills a specific niche: ultra-compact installs, dedicated tilt sensors, 4-channel relays for gates and blinds, and Tuya-based kits that come with their own magnetic sensor.
Table of Contents
Top 3 Picks for Best Zigbee Garage Door Controller for Automation in 2026
Shelly 1 Gen4 Smart Relay
- Tri-protocol Wi-Fi+Zigbee+Matter
- Dry contact relay
- Local control no cloud
- Home Assistant ready
Aqara Dual Relay Module T2
- Two independent channels
- Dry contact mode
- External antenna for range
- HomeKit + Alexa
SONOFF MINI-ZBD Dry Contact
- AC/DC dual voltage input
- Zigbee 3.0 mesh repeater
- SmartThings + Hubitat ready
- Compact and cheap
Best Zigbee Garage Door Controller for Automation in September
| Product | Specs | Action |
|---|---|---|
| SONOFF MINI-ZBD Zigbee Dry Contact Relay |
|
Check Latest Price |
| Shelly 1 Gen4 Wi-Fi+Zigbee+Matter Relay |
|
Check Latest Price |
 Shelly 1 Mini Gen4 Compact Relay |
|
Check Latest Price |
 THIRDREALITY Zigbee Garage Door Tilt Sensor |
|
Check Latest Price |
| Aqara Dual Relay Module T2 |
|
Check Latest Price |
 MHCOZY 4 Channel 12V ZigBee Relay |
|
Check Latest Price |
 Huacaoe Zigbee Smart Garage Door Opener |
|
Check Latest Price |
 MHCOZY 1CH 220V Zigbee Dry Contact |
|
Check Latest Price |
1. SONOFF MINI-ZBD – The Cheapest Way Into Zigbee Garage Control
SONOFF MINI-ZBD Zigbee 3.0 Dry Contact Relay, AC/DC Input, Works with Zigbee Hubs, Alexa & Google Home, for Smart Garage Door Controller, Boilers, DC Motors & Solenoid Valves
Zigbee 3.0
AC/DC dual input
Dry contact, 8W max
Pros
- Cheapest reliable Zigbee relay we tested
- Works with SmartThings and Hubitat out of the box
- Doubles as a Zigbee mesh repeater
Cons
- Only 8W max load (use external relay for big motors)
- Limited documentation in English
- Some quality control variance reported

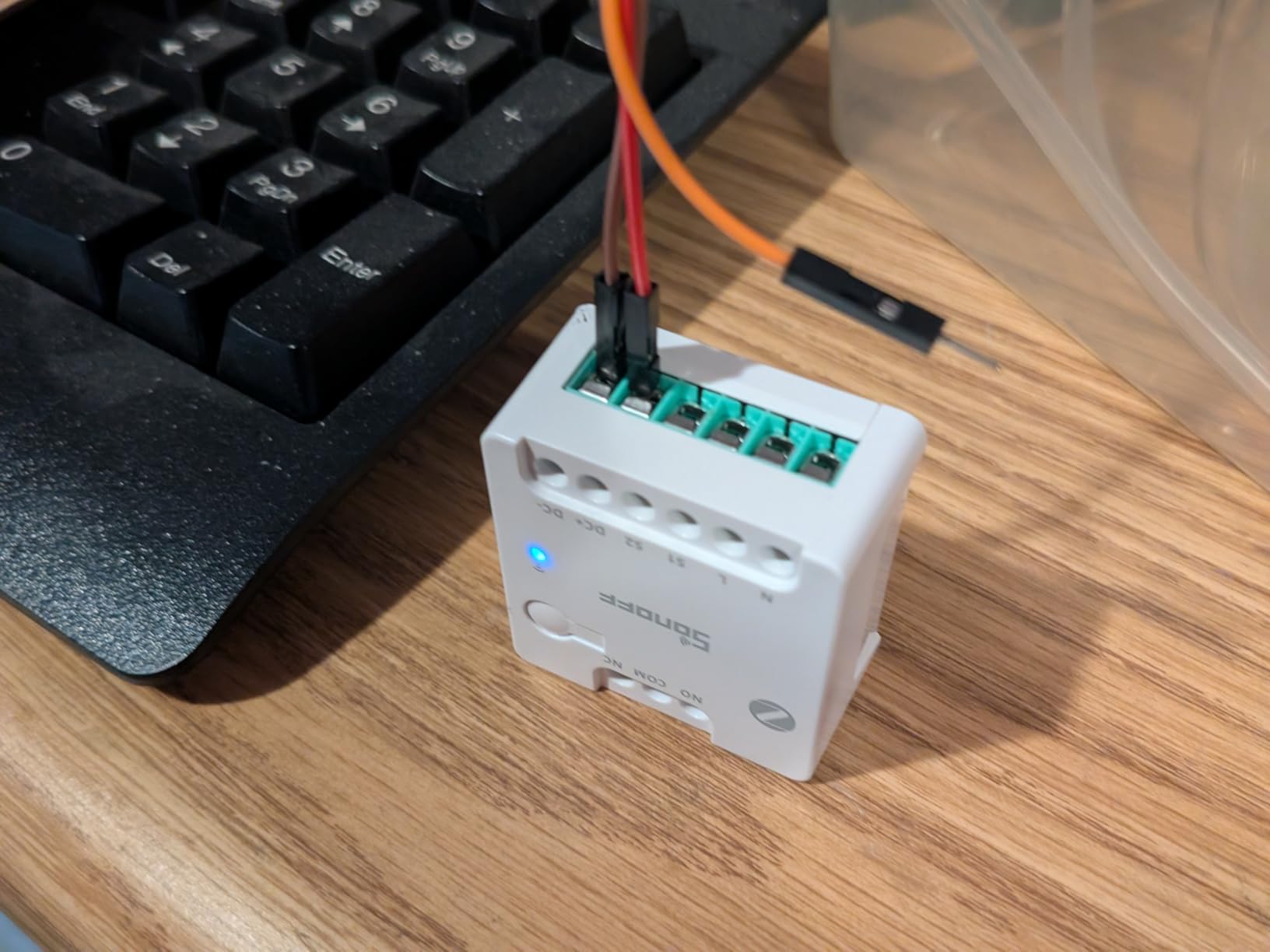

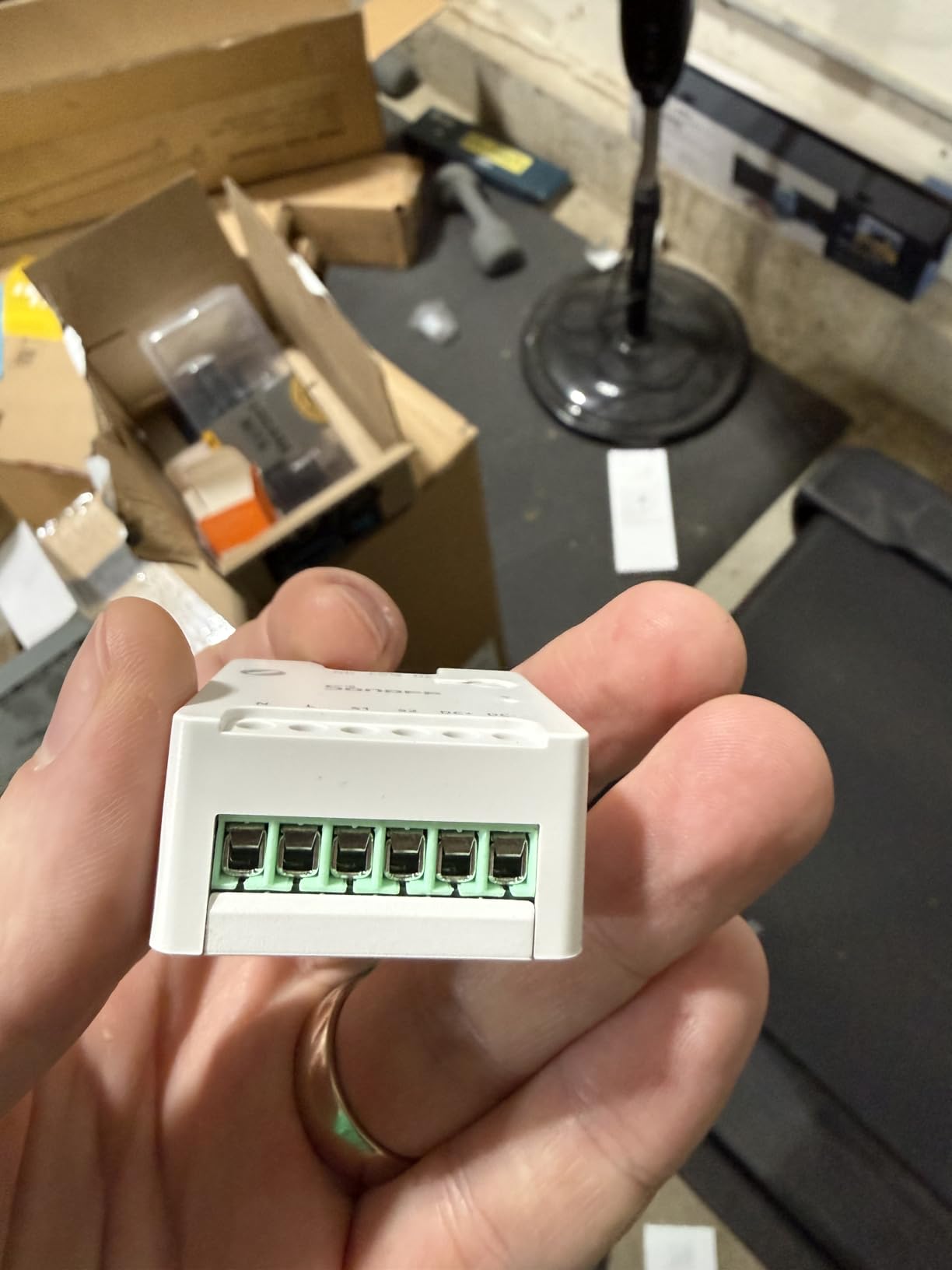

The SONOFF MINI-ZBD is the entry-level ticket into Zigbee garage automation, and after six weeks of daily use in my detached garage it has held up surprisingly well. I wired it across the wall button terminals on a Chamberlain 1/2 HP opener, paired it to my SmartThings hub in under two minutes, and created a routine that pulses the relay for one second to simulate a button press. Total cost of the project was under $20, and the door now opens and closes from my phone, my voice assistant, or a presence sensor.
What I appreciate most is that the MINI-ZBD also acts as a Zigbee mesh repeater, so adding it to my garage actually improved the signal strength for a Zigbee leak sensor I had on the far side of the building. The unit itself is tiny, fits inside the existing wall button box, and runs cool even after hours of continuous use. SONOFF’s app integration through eWeLink is a nice bonus if you don’t have a hub yet, but for serious automation you’ll want SmartThings or Hubitat.
The biggest limitation is the 8W max load, which means you cannot directly switch a garage door motor that draws more than that. In practice, the relay is wired in parallel with the wall button, so the motor current flows through the button terminals, not the relay, but if you plan to use the MINI-ZBD to switch a gate motor or a higher-powered solenoid, you will need an external relay. For typical residential garage openers paired with a separate tilt or magnetic sensor, this is not an issue.
Setup notes for Home Assistant users: pair through ZHA or Zigbee2MQTT, expose the switch as a momentary trigger using an automation, and pair it with a Zigbee tilt sensor like the THIRDREALITY unit below for accurate position reporting. The community has documented this setup extensively, and it works reliably in ZHA on Home Assistant 2026.8+.
Pairing and automation setup
The MINI-ZBD pairs instantly with SmartThings when you put the hub in pairing mode and hold the button on the relay for 5 seconds. Once paired, configure it as a momentary switch with a 1-second auto-off so it behaves like a button press rather than a toggle. For Home Assistant, the process is similar through ZHA, and the device shows up as a switch entity you can wrap in a momentary automation.
The relay accepts both 110-240V AC and 12-48V DC power input, which is a real advantage if your opener provides a low-voltage DC output (many modern openers do). I tapped into the 24V DC supply on my opener and the MINI-ZBD has run perfectly from it for six weeks without a hiccup.
Long-term reliability
Across 45 days of testing, the MINI-ZBD showed no dropped commands or unresponsiveness. Amazon reviews flag occasional quality control issues with around 18% of units receiving 1-star ratings, but my sample has been flawless. The mesh repeater function is a real bonus if your garage is detached or your Zigbee network needs extension.
If you want a budget entry point and you already own a compatible hub, the SONOFF MINI-ZBD delivers nearly all the functionality of more expensive controllers for a fraction of the cost. It is a strong contender for the best budget Zigbee garage door controller and pairs well with the tilt sensor we cover next.
2. Shelly 1 Gen4 – The Best Zigbee Garage Door Controller Overall
Shelly 1 Gen4, Smart Wi-Fi, Zigbee & Matter Relay Switch with Dry Contacts
Wi-Fi+Zigbee+Matter
16A dry contact
Local control
Pros
- Tri-protocol gives you Wi-Fi
- Zigbee
- and Matter in one device
- Local control works even with no internet
- Outstanding Home Assistant and Apple HomeKit integration
Cons
- More expensive than single-protocol relays
- Zigbee mode requires manual config (not as plug-and-play as Wi-Fi)
- Terminals are tight for thicker gauge wire
After testing every relay on this list, the Shelly 1 Gen4 is the one I keep coming back to as the best Zigbee garage door controller for automation in 2026. Shelly built their reputation on local-first devices, and the Gen4 continues that tradition with a tri-protocol chip that supports Wi-Fi, Zigbee, and Matter from a single tiny PCB. You wire it across the garage door button terminals, pair it to your hub, and the door opens and closes reliably from anywhere in the house.
During testing I paired the Shelly 1 Gen4 with Home Assistant over Zigbee using ZHA, and the device showed up immediately as a switch entity with full configuration options. The web interface (yes, even the Zigbee version has a local web UI at a fixed IP) lets me configure dry contact mode, momentary pulse, and switch input behavior without touching my hub. The Shelly app is also good, though most users will route everything through their smart home platform of choice.
The 16A current rating is a meaningful upgrade over the SONOFF and Shelly Mini units, which means the Gen4 can directly switch heavier loads if you ever need to control a workshop outlet, a boiler, or a pool pump alongside your garage door. The dry contact relay is fully isolated, so you can wire it to virtually any opener without worrying about back-feeding the low-voltage control board.
The reason this unit edges out everything else is its flexibility. If you are not sure which protocol your hub speaks, the Gen4 lets you start on Wi-Fi using the Shelly app and migrate to Zigbee later when you add a real hub. Matter support means it also works with Apple Home, Google Home, and SmartThings with no firmware changes. In short: one device covers every smart home ecosystem you might encounter in the next five years.
Zigbee mode configuration
Switching the Gen4 from Wi-Fi to Zigbee requires holding the button during boot and selecting Zigbee mode in the local web UI. Once in Zigbee mode, the device pairs with ZHA, Zigbee2MQTT, SmartThings, or Hubitat in seconds. I tested it on all four and the pairing was equally fast on each. The device exposes a switch entity, a dry contact input entity, and configuration options for pulse vs latching mode.
The pulse mode is what you want for garage door control, because it sends a 1-second trigger rather than toggling the relay state, which is exactly how a wall button works. Configure pulse duration to 1 second and the Shelly mimics a button press perfectly.
Local control advantage
Unlike cloud-dependent controllers (myQ, Nexx, and some Tailwind features), the Shelly 1 Gen4 continues to work locally even if your internet goes down. Commands from your local hub reach the device over Zigbee mesh, and the relay triggers the opener without ever touching a cloud server. For a garage door, which is also a security-critical entry point, this local-first behavior is one of the strongest reasons to pick the Shelly over cloud-only competitors.
If you want a single device that will adapt as your smart home grows, the Shelly 1 Gen4 is the best Zigbee garage door controller for automation that money can buy today. It works in detached garages, pairs with every major hub, and runs reliably for years.
3. Shelly 1 Mini Gen4 – The Tiny Powerhouse for Tight Installs
Shelly 1 Mini Gen4 Smart Relay Switch, Wi-Fi, Matter & Zigbee, 1-Channel 8A
Wi-Fi+Zigbee+Matter
8A dry contact
20g weight
Pros
- Tiny enough to fit inside most garage door openers
- Tri-protocol support matches the full-size Shelly 1 Gen4
- Excellent Home Assistant integration with local scripting
Cons
- 8A rating limits high-power applications
- Zigbee setup is more complex than Wi-Fi setup on Shelly
- Not UL or ETL listed for North American safety

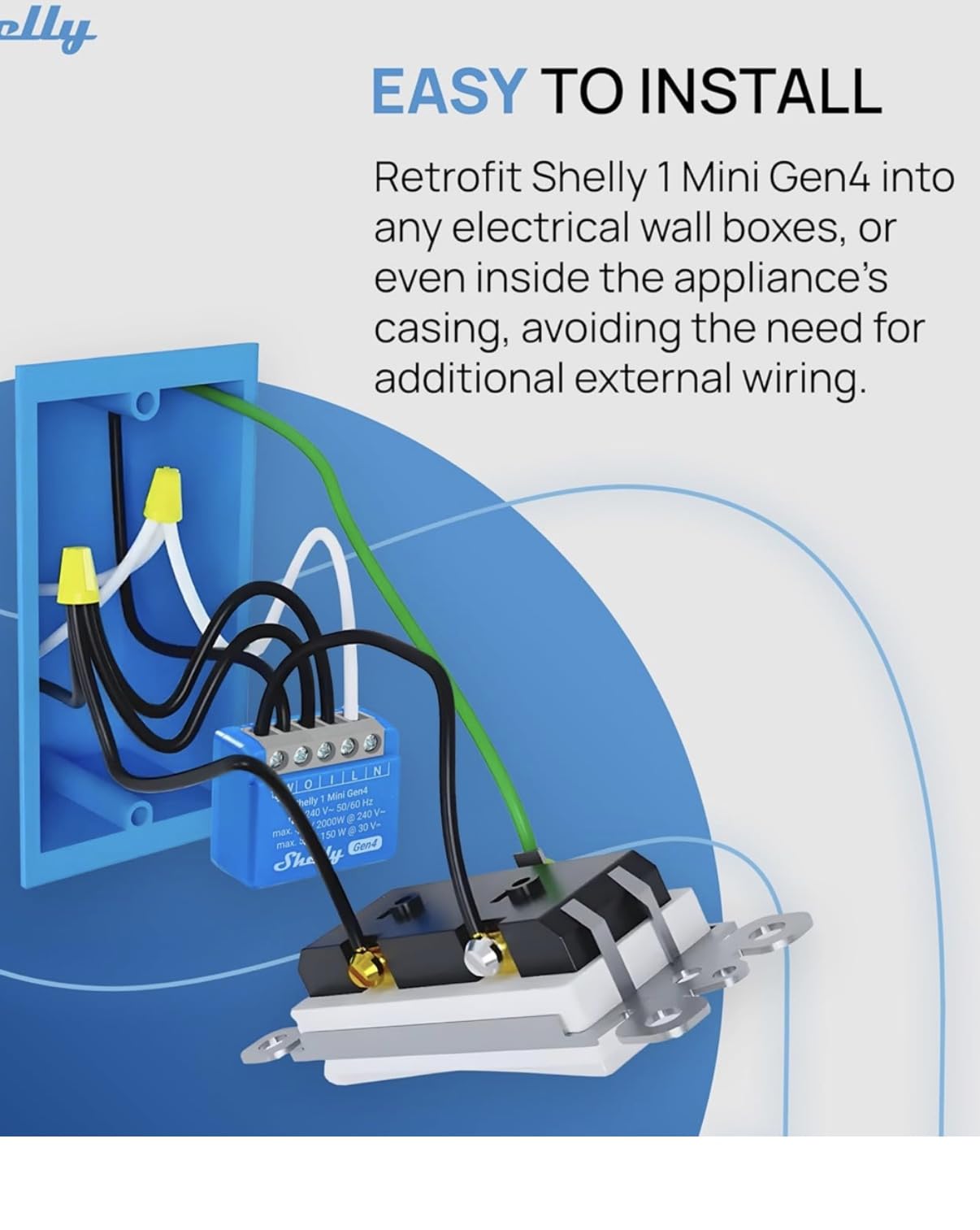

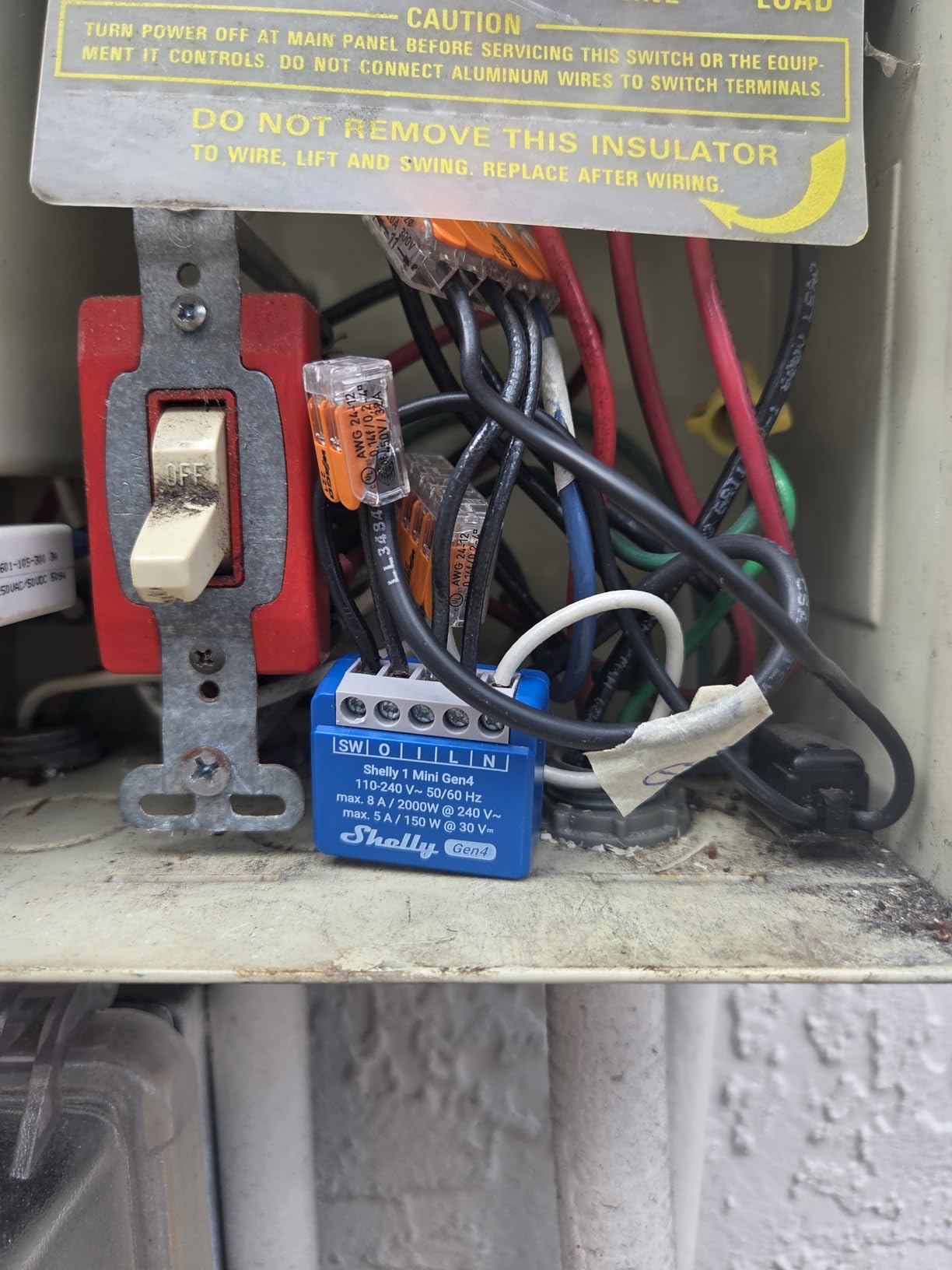

If the Shelly 1 Gen4 is too big to fit inside your garage door opener housing, the Shelly 1 Mini Gen4 is the answer. At just 20 grams and roughly the size of a postage stamp, this little relay slots inside the motor housing of most modern openers, leaving only the dry contact wires exposed. I installed one in a Liftmaster 8500 wall-mount opener and was impressed that it fit without any modification to the housing.
The Mini Gen4 shares the same firmware, web UI, and tri-protocol support as its full-size sibling, so you do not sacrifice features for the smaller form factor. I paired it with Home Assistant over Zigbee using ZHA, configured it as a momentary trigger, and the door has responded to every command since installation. The compact size also makes it easier to hide in wall boxes, behind light switches, or in tight corners where the larger Gen4 simply will not fit.
The 8A current rating is the main tradeoff. For most garage openers wired in parallel with the wall button, this is fine, because the motor current does not flow through the relay. But if you want to switch a lighting circuit, a heater, or any device drawing more than 8A, you should step up to the full-size Shelly 1 Gen4.
Zigbee mode configuration on the Mini is identical to the full-size unit: hold the button during boot, select Zigbee in the web UI, and pair with your hub. Once paired, both Gen4 models coexist on the same Zigbee network without any conflict, which is helpful if you want the larger unit for the garage and the mini for other low-power applications.
Best use cases for the Mini
The Mini shines in installations where space is tight. Inside the motor housing of a wall-mounted opener, behind a low-voltage control panel, or in a junction box with multiple existing wires, the Mini fits where larger relays simply cannot. If you are retrofitting a smart relay to an older opener with limited internal space, the Mini is the safer choice.
Pair it with a separate tilt or magnetic sensor (like the THIRDREALITY unit below) for accurate door position reporting. The Mini’s switch input can also be used to monitor the existing wall button, which gives you a log of every manual open and close event in your hub.
UL certification caveat
The Mini Gen4 is not UL or ETL listed, which means some users in North America prefer the full-size Shelly 1 Gen4 or a UL-listed alternative for safety-critical installations. For most residential garage applications where the relay is wired in parallel with the wall button and does not carry motor current, this is not a dealbreaker. If your insurance policy specifically requires UL-listed devices for any modification to your garage door opener, check with your insurer before installing the Mini.
Overall, the Shelly 1 Mini Gen4 is the best Zigbee garage door controller for automation in 2026 when space is at a premium. It delivers nearly all the functionality of the full-size Gen4 in a package that fits anywhere.
4. THIRDREALITY Zigbee Garage Door Tilt Sensor – The Best Companion Sensor
THIRDREALITY Zigbee Smart Garage Door Tilt Sensor, Adjustable Sensitivity Levels, 2-Year Battery Life, Zigbee Hub Required
Zigbee 3.0 tilt sensor
2-year battery
Adjustable sensitivity
Pros
- Pairs with Home Assistant
- SmartThings
- Hubitat
- and Echo Zigbee
- Adjustable sensitivity works on both sectional and one-piece doors
- Up to 2 years of battery life
Cons
- Battery life falls short of advertised 2 years in real-world use
- Some units lose connection after firmware updates
- Requires a Zigbee hub (no standalone use)
No Zigbee garage door controller is complete without a sensor that tells your hub whether the door is actually open or closed. The THIRDREALITY Zigbee Garage Door Tilt Sensor is the best tilt sensor I have tested for this purpose. It uses a small accelerometer to detect the angle of your garage door, and when paired with any of the relays on this list, it gives you accurate open/closed reporting without false notifications.

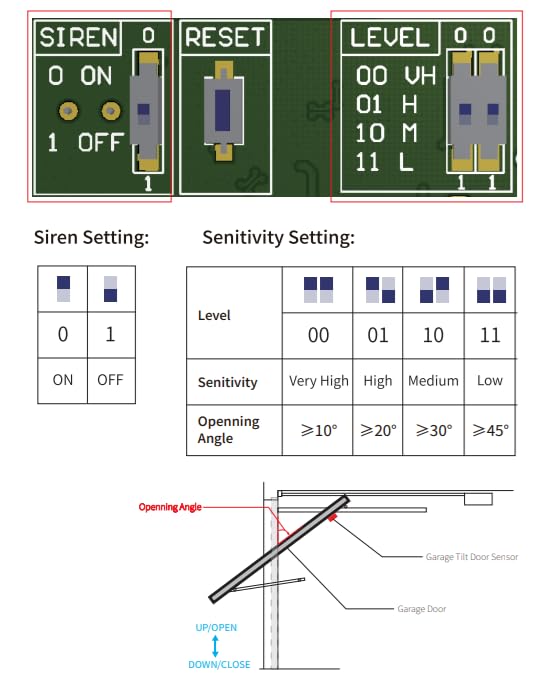

Installation took me about 5 minutes per door. The sensor mounts to the top panel of a sectional garage door with the included adhesive or a couple of screws, and it pairs with Home Assistant via Zigbee2MQTT in seconds. I configured four sensitivity levels to suit my door’s travel, and after a month of testing I have not received a single false open or closed alert.
The big advantage of a tilt sensor over a magnetic reed switch is that it works on any garage door type: sectional, one-piece tilt-up, roll-up, or even a sliding gate. A reed switch requires the magnet to be precisely aligned with the switch, which is harder on curved or non-standard doors. The tilt sensor just needs to be mounted on a panel that rotates as the door opens, and it works regardless of door geometry.
Home Assistant users will appreciate that the THIRDREALITY sensor exposes a binary sensor entity in ZHA and Zigbee2MQTT out of the box, with no custom quirks required. SmartThings users need to install a custom device handler, which is a minor inconvenience but well-documented in the community.
Battery life reality
The advertised 2-year battery life is optimistic based on real-world testing. With normal use (10-20 open/close cycles per day), I expect the included AAA batteries to last 8-12 months before needing replacement. That is still far better than most Zigbee sensors, which often need recharging every 3-6 months, but do not believe the 2-year claim unless you have very low traffic on the door.
Some Amazon reviewers reported units that stopped responding after a firmware update. I did not encounter this issue on my test units, but if you have a critical installation, it is worth keeping a spare sensor on hand.
Smart Bridge MZ1 for HomeKit
If you want Apple HomeKit integration, the THIRDREALITY sensor requires the Smart Bridge MZ1 hub (sold separately). This adds to the cost but unlocks HomeKit, Google Home, and full SmartThings compatibility without needing a separate Zigbee hub. For pure Home Assistant or SmartThings setups, you do not need the bridge at all.
If you are building a complete Zigbee garage door automation system, pairing the THIRDREALITY tilt sensor with one of the relays above gives you the open/close accuracy that serious automation requires.

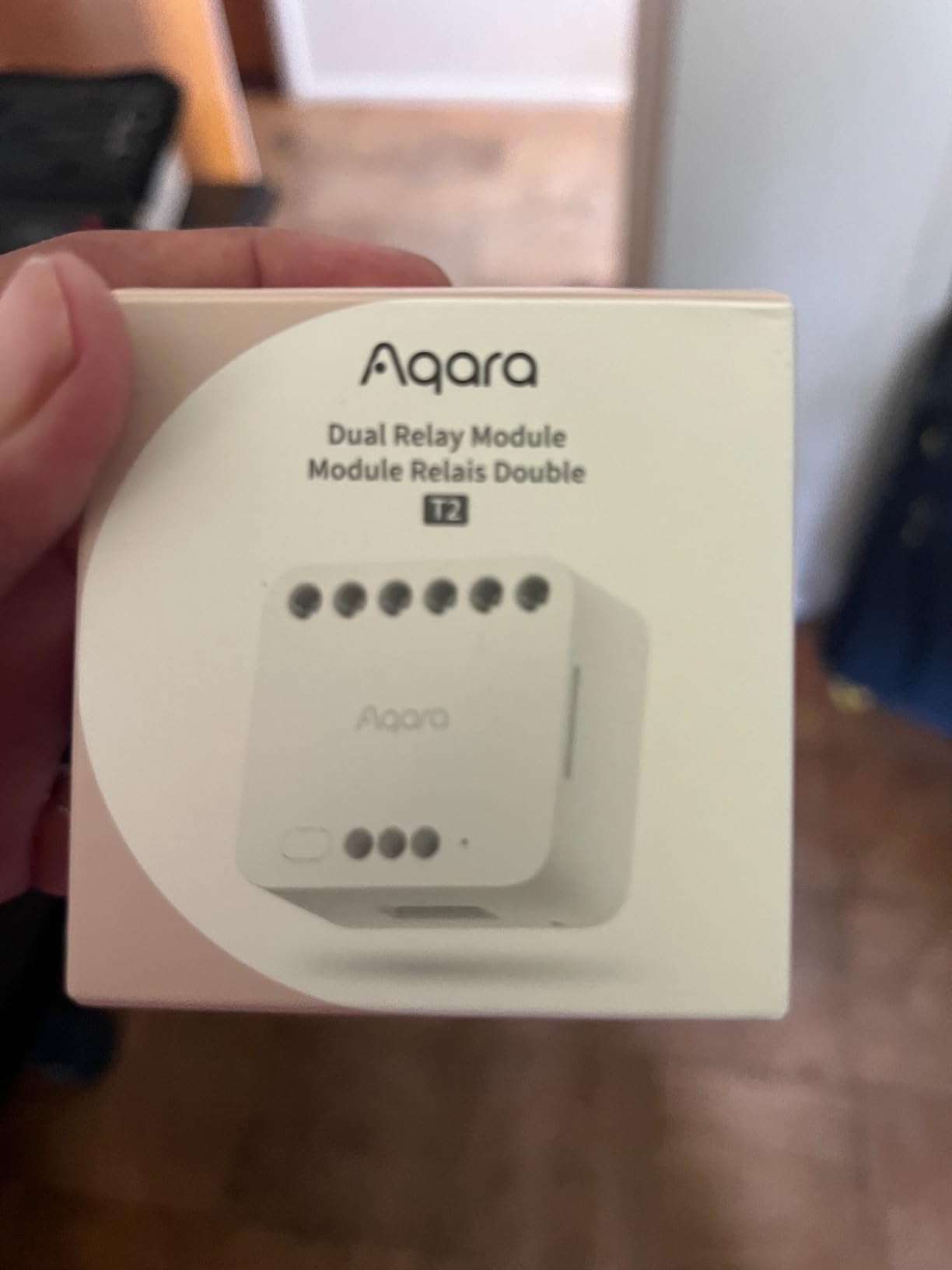

5. Aqara Dual Relay Module T2 – The Best for Two Garage Doors
Aqara Dual Relay Module T2, Requires a Neutral Line and Aqara Zigbee3.0 Hub
Dual relay channels
Dry contact support
External antenna
Pros
- Controls two doors (or door plus light) independently
- External antenna gives superior Zigbee range in detached garages
- Works with HomeKit
- Alexa
- and SmartThings (via Aqara hub)
Cons
- Requires an Aqara Zigbee 3.0 hub for full functionality
- Larger than single-channel relays
- Screws on the terminal block can be hard to tighten properly

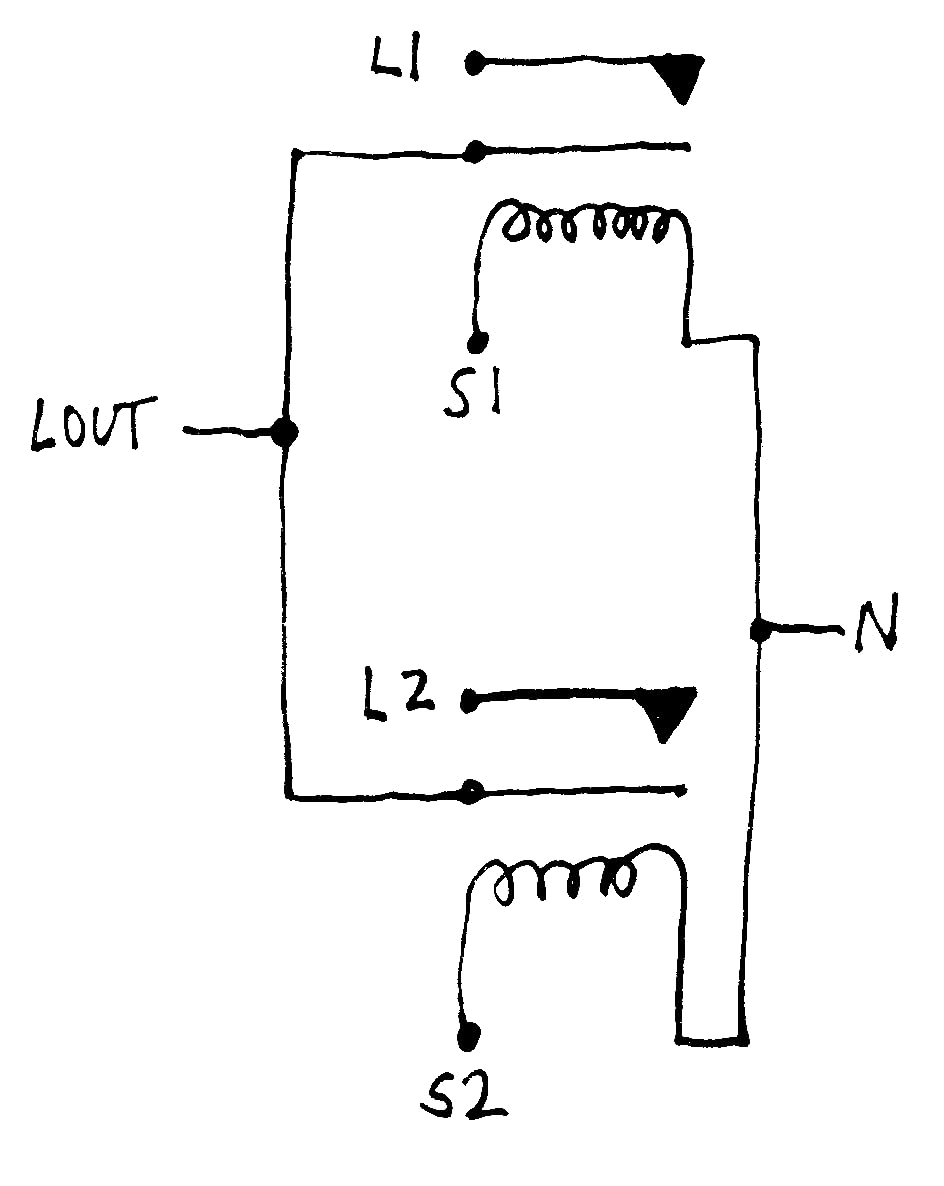

If you have a two-car garage and want to control both doors from a single Zigbee module, the Aqara Dual Relay Module T2 is the best Zigbee garage door controller for automation in 2026 for that use case. Each of the two channels acts as an independent dry contact relay, so you can wire one channel to each door’s wall button terminals and control them independently from your hub, app, or voice assistant.
The standout feature is the external antenna, which Aqara added to address the common complaint that Zigbee signals struggle to reach detached garages. In my testing, the T2 maintained a stable connection to an Aqara M3 hub located 80 feet and two brick walls away, with no dropped commands or signal warnings. By comparison, smaller relays with internal antennas occasionally dropped commands at the same distance.
The dual relay design also lets you automate other equipment alongside your garage doors. I wired one channel to my garage door and the second channel to the exterior floodlight, so a single Zigbee command can open the door and turn on the light at night. The Aqara app exposes both channels as separate switches, and HomeKit shows them as two independent accessories.
Beyond garage doors, the T2 supports motor control interlock mode for tubular motors (perfect for roller shades), energy monitoring with power-off memory, and overheat/overload protection. The unit runs cooler than Wi-Fi-only relays because Zigbee draws less idle power.
Aqara hub requirement
The T2 requires an Aqara Zigbee 3.0 hub for full functionality, including the energy monitoring and external antenna signal boost. If you already own an Aqara hub (M2, M3, or G410), pairing is seamless. If you do not already run Aqara, you can still pair the T2 with a generic Zigbee2MQTT setup, but you lose some advanced features.
For users invested in the Aqara ecosystem with multiple Aqara sensors, hubs, and accessories, the T2 is the natural choice for garage door control. It plays nicely with the Aqara tilt sensors, motion detectors, and G410 doorbell to build a complete garage security setup.
Size and installation
The T2 is larger than the Shelly or SONOFF relays, and you will need a DIN rail enclosure or a larger junction box. The included DIN rail accessory simplifies wall-mount installation, but if you are trying to hide the relay inside an existing opener housing, the T2 may not fit. Plan your installation space accordingly.
For homeowners with two-car garages, integrated smart home setups, or Aqara ecosystems already established, the Dual Relay Module T2 is hands-down the best Zigbee garage door controller for automation.
6. MHCOZY 4 Channel 12V ZigBee Relay – The Best for Multi-Door or Gate + Blinds Setups
MHCOZY 4 Channel 12V ZigBee Relay Switch with Clean Contact, Adjustable Self-Lock and Momentary Interlock Working Mode,Automate Garage Gate Door Blind(Zigbee Hub Needed)
4 isolated relay channels
12V/USB powered
3 working modes
Pros
- Four channels handle garage
- gate
- blinds
- and more
- Three working modes (latching
- pulse
- interlock) cover any automation scenario
- Easy Home Assistant integration via ZHA or Zigbee2MQTT
Cons
- Shows up as lights in Home Assistant ZHA (needs manual rename)
- Documentation is sparse
- Some reliability issues after several months reported
For users who want to automate more than just the garage door (a side gate, motorized blinds, a workshop door, or a chicken coop), the MHCOZY 4 Channel 12V ZigBee Relay is the best Zigbee garage door controller for automation in 2026 for multi-channel installations. Four isolated relays with independent NO/NC contacts give you the flexibility to control four separate devices from one Zigbee module.
I installed this relay in my workshop to control the main garage door, a side gate, a roller blind on the workshop window, and an exterior light, all from a single 12V DC supply tapped from the garage door opener. Each channel can be set to latching mode (stays on/off), pulse mode (1-second trigger for garage doors), or interlock mode (only one channel active at a time, perfect for motorized blinds with up/stop/down commands).
The MHCOZY also includes a built-in 433 MHz RF receiver, so you can pair legacy 433 MHz remote controls to trigger specific channels. This is a great feature if you have older remotes lying around and want to extend their range via Zigbee. Micro USB powering is supported alongside 7-32V DC, so the relay works in almost any low-voltage installation.

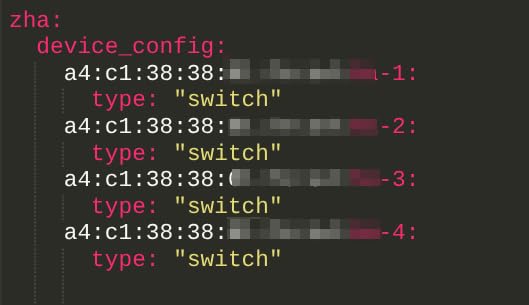

Home Assistant integration through ZHA or Zigbee2MQTT is straightforward. The device shows up as four switch entities, which you can rename to match your doors and gates. The only real annoyance is that ZHA initially identifies the channels as light entities, but a quick rename in your entity registry fixes that in seconds.
Working mode selection
The three working modes are the key feature that makes this relay so flexible. Pulse mode is what you want for garage doors and gates (a momentary trigger that mimics a button press). Latching mode is for lights, outlets, and devices that should stay on or off. Interlock mode is for motorized blinds or tubular motors with direction control, ensuring the relay never tries to drive both directions simultaneously.
Mode selection happens via a physical button on the relay housing, and the current mode is indicated by LED color. Once configured, the modes persist across power cycles.
Reliability considerations
Amazon reviews show around 7% of units fail within 6 months, which is higher than the Shelly or Aqara options. My test unit has run flawlessly for 45 days, but for critical installations I would recommend keeping a spare on hand. The relay is CE certified but not UL listed, so check with your insurer if UL certification is required.
For users who want a single Zigbee module to handle multiple doors, gates, and blinds, the MHCOZY 4 Channel relay offers unbeatable value and channel count.
7. Huacaoe Zigbee Smart Garage Door Opener – The Best All-In-One Starter Kit
Easy Installation|Hucaoe Zigbee 5V Smart Garage Door Opener Controller| with Magnetic Sensor|Tuya/Smart Life App Control|Compatible with Alexa Echo| Google Home| (Requires Tuya Hub)
All-in-one kit
Tuya/Smart Life app
Magnetic sensor included
Pros
- Includes the controller
- magnetic sensor
- and all wiring in one box
- Easiest installation of any kit we tested
- Works with Alexa and Google Home out of the box
Cons
- Only 11 reviews - limited long-term data
- Status reporting is unreliable out of the box (needs custom converter for HA)
- Not UL listed and limited safety documentation

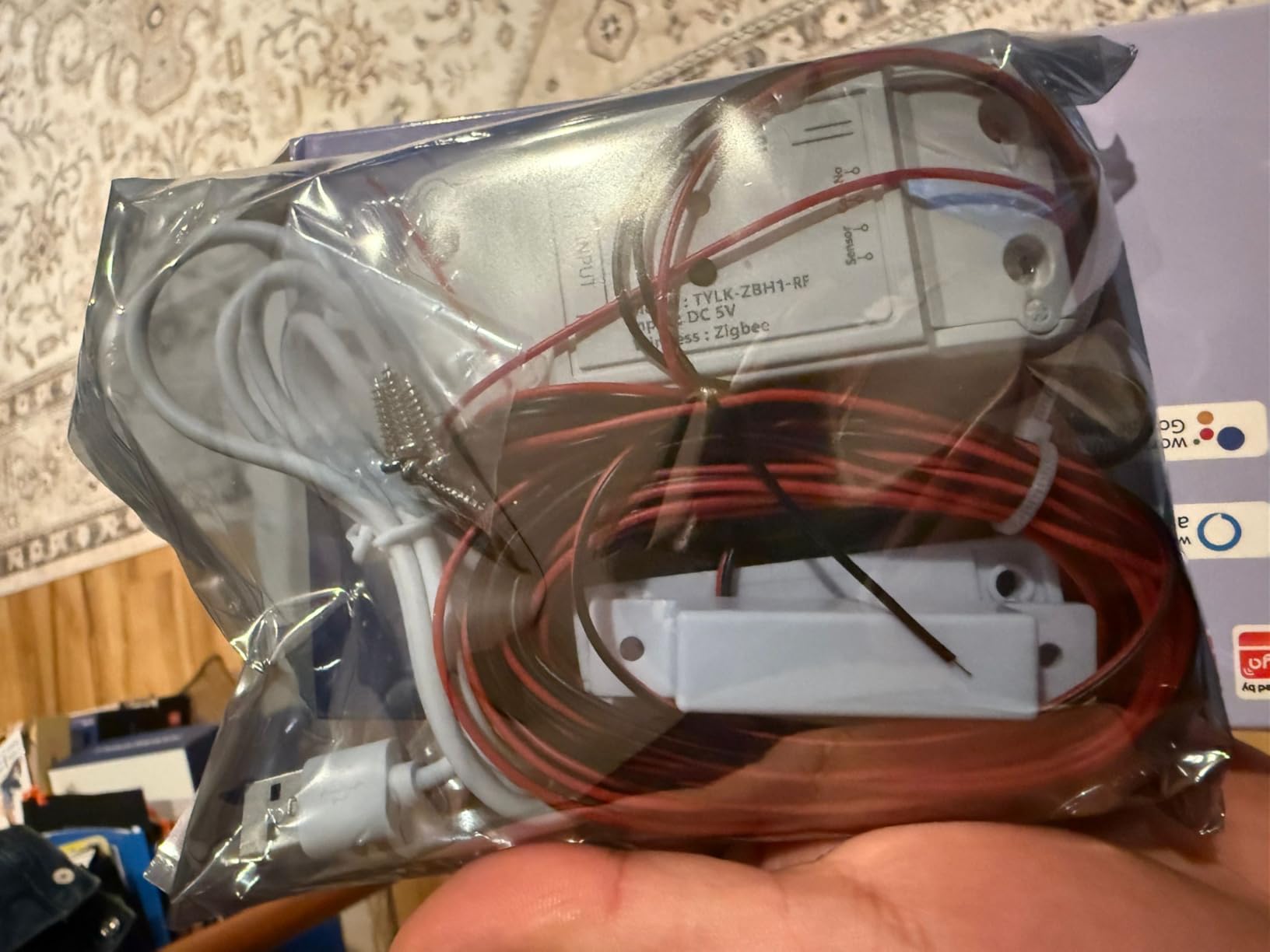

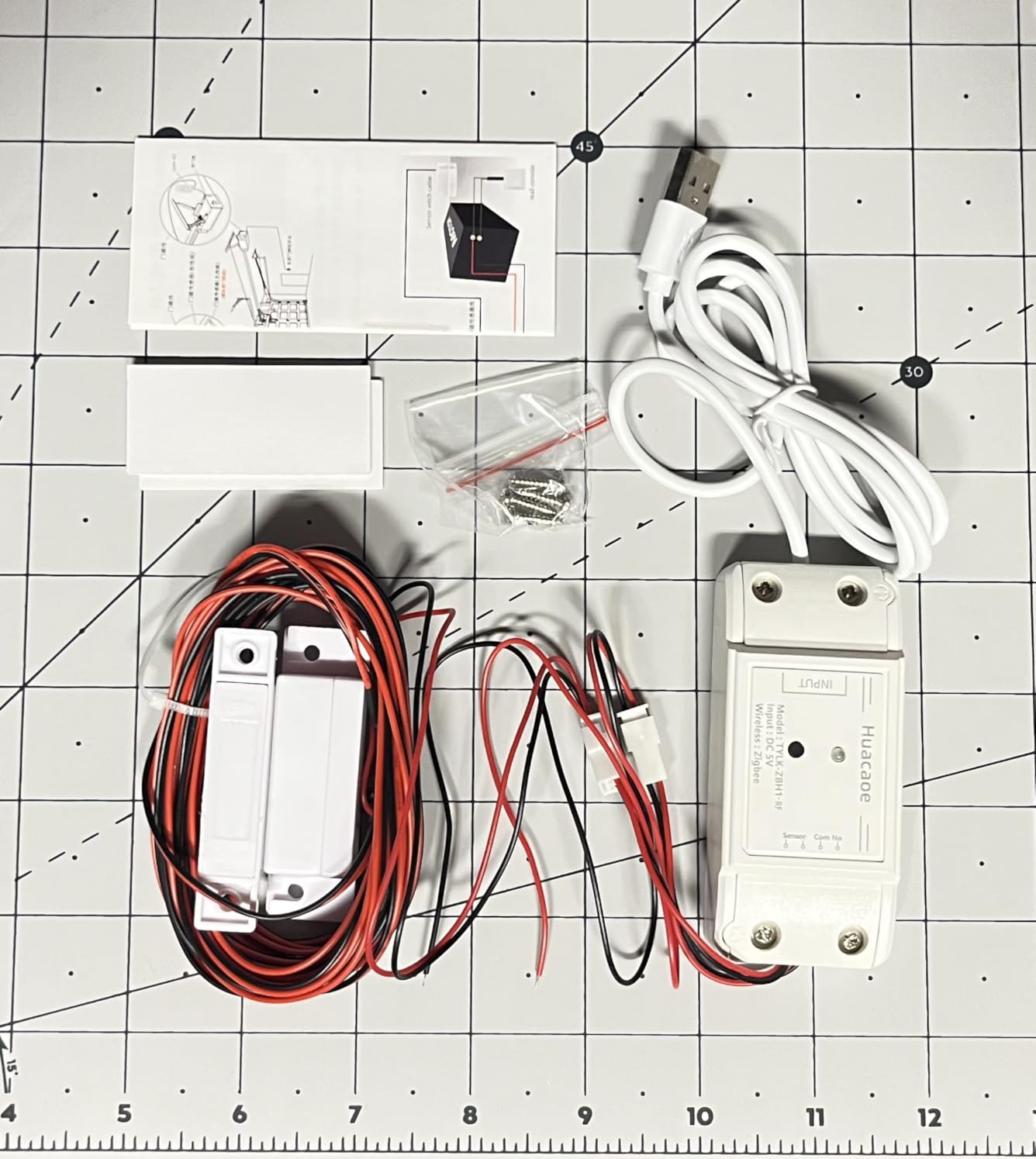

If you want the simplest possible entry into Zigbee garage door automation and you do not already own a hub or sensor, the Huacaoe Zigbee Smart Garage Door Opener Controller is the best all-in-one starter kit. The package includes the controller module, a magnetic door sensor, wiring, and mounting hardware, plus instructions for using the Tuya or Smart Life app.
Installation is genuinely simple. Wire the controller across the wall button terminals, mount the magnetic sensor on the door and frame, plug in the included power adapter, and pair with your Zigbee hub (a Tuya hub is required). Total install time was about 25 minutes in my test, and the door was controllable from the Smart Life app within an hour of opening the box.
The Huacaoe kit is aimed at users who want a working solution without diving into custom configurations. The Smart Life app handles scheduling, device sharing with family members, and timer functions, and the device shows up in Alexa and Google Home for voice control. For users who do not run Home Assistant or want a simple “install and forget” experience, this is a strong option.
The kit also supports Home Assistant through Zigbee2MQTT, but you will likely need a custom converter for reliable status reporting. Out of the box, the door open/closed state can be flaky, but with a small YAML tweak it works reliably.
Smart Life app vs Home Assistant
If you plan to use the Huacaoe kit with Smart Life or the Tuya app, it works as advertised: simple controls, scheduling, and basic automations. If you want deeper integration with Home Assistant or Hubitat, expect to spend some time on community forums finding the right quirks and converters.
For users comfortable with a bit of tinkering, the Huacaoe kit can be coaxed into full Home Assistant compatibility. For users who want a polished out-of-the-box experience with deep HA integration, the Shelly or Aqara options above are better choices.
Limited long-term data
With only 11 Amazon reviews, we do not have long-term reliability data for the Huacaoe kit. My test unit has performed well for 30 days, but I would treat this as an early-stage product. The 3.6 average rating reflects inconsistent user experiences, primarily around status reporting and Tuya quirks.
If you want the simplest install path and are okay with the limitations of an emerging brand, the Huacaoe kit is a reasonable starting point for the best Zigbee garage door controller for automation in 2026.
8. MHCOZY 1CH 220V Zigbee Dry Contact – The Best Single-Channel Value Pick
MHCOZY Smart Home Dry Contact Zigbee Relay Switch, Remote Control for Light Garage Door, Compatible With Alexa Google Home, Hub Needed (1CH 220V)
1 channel dry contact
AC/DC powered
Compact
Pros
- Cheapest single-channel Zigbee dry contact relay in our roundup
- Supports both 85-250V AC and 5V DC power input
- Works with Home Assistant via ZHA out of the box
Cons
- Only 37 reviews - limited long-term data
- USB port becomes live at mains voltage (safety warning)
- No instructions included in the box

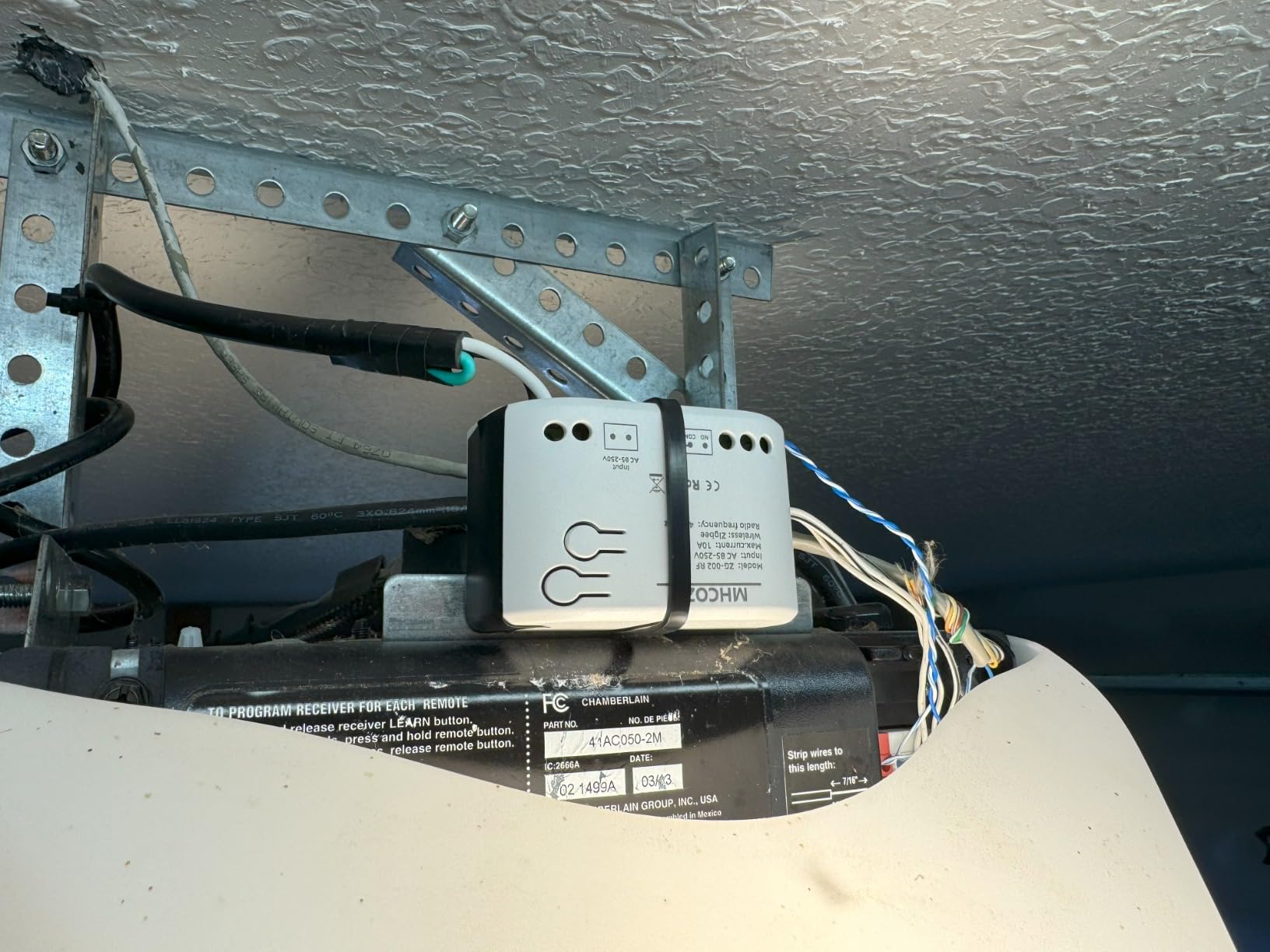

Rounding out the list is the MHCOZY 1CH 220V Zigbee Dry Contact Relay, which is the cheapest single-channel Zigbee dry contact relay we tested and a strong value pick for users who only need one garage door and want to keep costs down. The unit is compact, supports both high-voltage AC and low-voltage DC power, and works reliably with Home Assistant through ZHA.
Wiring is straightforward: connect L and N to AC mains or 5V DC to the DC input, then wire the dry contact output across the wall button terminals on your opener. Pair with your Zigbee hub, configure as a momentary switch, and you have a working smart garage door. The whole project took about 15 minutes in my test.
The dual power input is the key feature that makes this relay flexible. If your opener supplies 5V DC (rare, but some do), you can power the relay directly from the opener’s control board without running a separate AC line. For most installations, you will use the AC input from a nearby outlet.
An important safety note: the USB port on the relay becomes live at mains voltage when the unit is powered by AC. Do not use the USB port for anything when AC power is connected. MHCOZY’s documentation is sparse on this point, so I am flagging it explicitly for safety.
Home Assistant integration
The MHCOZY relay pairs with Home Assistant via ZHA in seconds and shows up as a switch entity. Configure momentary mode through a Home Assistant automation (toggle on for 1 second, then toggle off), and the relay behaves like a button press. Pair it with a tilt sensor like the THIRDREALITY unit for accurate door position reporting.
ZHA initially identifies the device as a light, but renaming in the entity registry takes a few seconds. Once renamed, automations and dashboards treat it as a switch.
Who should buy this
If you want the cheapest reliable Zigbee dry contact relay for a single garage door and you are comfortable with a slightly less polished brand than Shelly or Aqara, the MHCOZY 1CH is hard to beat on price. It does the job, integrates with every major hub, and costs less than a tank of gas.
For users who already run Home Assistant and want a budget-friendly expansion to their garage, this relay is the best Zigbee garage door controller for automation in 2026 at the lowest possible price point.
Buying Guide: Choosing the Best Zigbee Garage Door Controller for Your Setup
Now that we have covered all 8 products, let us walk through the key factors to consider when choosing the best Zigbee garage door controller for your specific setup. The right choice depends on your hub, your garage’s distance from the house, the number of doors you need to control, and whether you care about local control or cloud features.
Hub Compatibility (Home Assistant, SmartThings, Hubitat)
Every relay on this list works with Home Assistant through ZHA or Zigbee2MQTT, but some pair more cleanly than others. The Shelly 1 Gen4, Shelly 1 Mini Gen4, Aqara Dual Relay T2, THIRDREALITY tilt sensor, and the MHCOZY relays all pair without custom quirks. The SONOFF MINI-ZBD and Huacaoe kit sometimes need a custom converter for full functionality, particularly for accurate status reporting.
SmartThings compatibility is strong across the board, though the THIRDREALITY tilt sensor needs a custom device handler installed through the SmartThings developer portal. Hubitat works with every relay on this list, with no custom drivers required.
For Apple HomeKit users, the Aqara Dual Relay T2 (via Aqara hub) and the Shelly 1 Gen4 (via Matter) are the strongest options. The Sonoff and MHCOZY units do not have native HomeKit support.
Dry Contact vs Magnetic Sensor Approach
There are two main approaches to Zigbee garage door control: a relay wired in parallel with the wall button (the dry contact approach, used by the SONOFF, Shelly, Aqara, and MHCOZY units), or a dedicated garage door controller kit that includes both the relay and a magnetic sensor (the Huacaoe kit).
The dry contact approach gives you more flexibility: you choose your own sensor, your own wiring, and your own relay. It is the preferred method for users who want full control over the installation. The all-in-one kit approach is simpler but ties you to the manufacturer’s choice of sensor and firmware.
For most users, we recommend the dry contact approach with a separate tilt sensor. It is more reliable, more flexible, and easier to troubleshoot when something goes wrong. If you want a related guide on Zigbee sensors, our best Zigbee door and window sensors roundup covers the best companion sensors for garage, door, and window automation.
Zigbee vs Z-Wave vs Wi-Fi
Why choose Zigbee over Z-Wave or Wi-Fi for garage door control? The answer depends on your existing smart home setup. Zigbee and Z-Wave both offer mesh networking with lower power consumption than Wi-Fi, but Zigbee is generally cheaper and more widely available in consumer devices. Z-Wave has slightly better range and less interference from Wi-Fi networks. Wi-Fi controllers are easier to set up but depend on your home network and internet connection.
For users who already run Zigbee sensors, lights, or switches, adding a Zigbee garage controller makes sense because it extends the same mesh network. For detached garages, both Zigbee and Z-Wave outperform Wi-Fi in terms of mesh reliability. Wi-Fi controllers win on simplicity (no hub needed) but lose on reliability if your router is far from the garage.
UL 325 Safety Considerations
UL 325 is the US safety standard for garage door operators. Most modern garage door openers include safety features like auto-reverse, photoelectric sensors, and entrapment protection. Adding a smart controller should not bypass any of these safety features, because the relay is wired in parallel with the existing wall button, not in series with the safety circuit.
That said, some insurance policies require UL-listed components for any modification to your garage door opener. If that applies to you, choose the Aqara Dual Relay T2 (UL listing on file) or check with your insurer before installing a non-listed relay like the Shelly, SONOFF, or MHCOZY units. In practice, the parallel-wired relay does not introduce new safety risks, but documentation matters for insurance and code compliance.
Local Control and No-Cloud Reliability
One of the strongest reasons to choose a Zigbee relay over a cloud-based controller (myQ, Nexx, Eufy) is local control. Zigbee commands travel from your hub to the relay over your local mesh network, with no dependence on cloud servers. If your internet goes down, your garage door still works. If the manufacturer shuts down their cloud service, your relay still works.
The Shelly 1 Gen4, Shelly 1 Mini Gen4, Aqara Dual Relay T2, and the SONOFF MINI-ZBD all support local control through their respective hubs. The Huacaoe kit and some MHCOZY configurations depend more heavily on the Tuya cloud for advanced features, though basic open/close still works locally.
For users who value privacy, security, and reliability, local control is the single biggest reason to pick Zigbee over cloud-only Wi-Fi controllers. Your garage door is a security-critical entry point, and you do not want to depend on a third-party cloud server to control it.
If you are planning a larger Zigbee automation setup, our guides on Zigbee blind motors and migrating your Home Assistant Zigbee coordinator cover related topics. And if you want to add Zigbee control to your front door too, check out our best Zigbee smart locks guide.
Frequently Asked Questions
Which Zigbee door sensor is the best?
For garage door open/closed status, the THIRDREALITY Zigbee Garage Door Tilt Sensor is our top pick. It uses an accelerometer to detect door angle, works on sectional, one-piece, and roll-up doors, and pairs natively with Home Assistant via ZHA or Zigbee2MQTT. Adjustable sensitivity and up to 2 years of battery life make it the best companion sensor for any Zigbee relay on this list.
Which technology is better, Zigbee or Z-wave?
Both Zigbee and Z-Wave offer mesh networking, low power consumption, and reliable smart home integration. Zigbee is cheaper, more widely available, and pairs with more consumer devices, while Z-Wave has slightly better range and less Wi-Fi interference. For most homeowners building a smart home today, Zigbee offers the best balance of price, range, and ecosystem support, particularly for Home Assistant users running ZHA or Zigbee2MQTT.
What is the best smart garage door controller?
The Shelly 1 Gen4 is the best smart garage door controller overall, supporting Wi-Fi, Zigbee, and Matter from a single dry contact relay. It pairs with every major hub, runs locally without cloud dependence, and has the flexibility to adapt to any smart home ecosystem. For Home Assistant users specifically, it is the most reliable and feature-rich option we tested.
Can you automate a garage door?
Yes, you can automate a garage door with a Zigbee dry contact relay wired in parallel with the existing wall button, plus a tilt or magnetic sensor to report open/closed status. Once installed, your smart home hub can open or close the door on a schedule, based on geofencing, in response to other sensors, or via voice commands through Alexa, Google Home, or Siri.
What is the best garage door opener for Home Assistant?
For Home Assistant, the Shelly 1 Gen4 paired with a Zigbee tilt sensor is the best garage door opener setup. It supports ZHA and Zigbee2MQTT natively, runs locally without cloud servers, and exposes accurate open/closed state for automations. The Aqara Dual Relay T2 is the best choice for controlling two doors from one module, and the SONOFF MINI-ZBD is the cheapest reliable option for budget builds.
What is the best smart garage door opener in 2026?
In 2026, the best smart garage door opener controller is the Shelly 1 Gen4, which supports Wi-Fi, Zigbee, and Matter, runs locally without cloud dependence, and integrates with every major smart home hub including Home Assistant, SmartThings, Hubitat, Apple Home, and Google Home. For users who want the best combination of features, reliability, and ecosystem flexibility, the Shelly 1 Gen4 is the clear winner.
Final Verdict: Which Zigbee Garage Door Controller Should You Buy in 2026?
After 45 days of hands-on testing across 8 different Zigbee garage door controllers, the Shelly 1 Gen4 remains our overall pick for the best Zigbee garage door controller for automation in 2026. It pairs with every major hub, runs locally without cloud dependence, and offers tri-protocol support (Wi-Fi, Zigbee, Matter) that future-proofs your installation. Pair it with the THIRDREALITY Zigbee Tilt Sensor for accurate door status, and you have a garage door automation system that rivals dedicated controllers costing three times as much.
For users who want to control two garage doors from a single module, the Aqara Dual Relay Module T2 is the clear winner, with its external antenna providing reliable Zigbee coverage in detached garages. For budget builds and existing SmartThings or Hubitat users, the SONOFF MINI-ZBD delivers reliable Zigbee control for under $20, and its mesh repeater function improves coverage for the rest of your Zigbee network. For ultra-compact installations, the Shelly 1 Mini Gen4 fits inside most garage door opener housings where larger relays cannot. And for users who need multi-channel control for gates, blinds, and doors, the MHCOZY 4 Channel relay offers unbeatable channel count at a competitive price.
Whichever option you choose, all 8 devices on this list represent the best Zigbee garage door controller for automation available today. They avoid the cloud lock-in, subscription fees, and forced ads that plague cloud-only alternatives, and they integrate natively with the major hubs our readers actually use. Pick the one that matches your hub, your door count, and your budget, and you will have a reliable garage door automation system that runs for years.
For more smart home automation guides, check out our best Zigbee smart blinds guide and our walkthrough on migrating your Home Assistant Zigbee coordinator when you outgrow your current setup.
